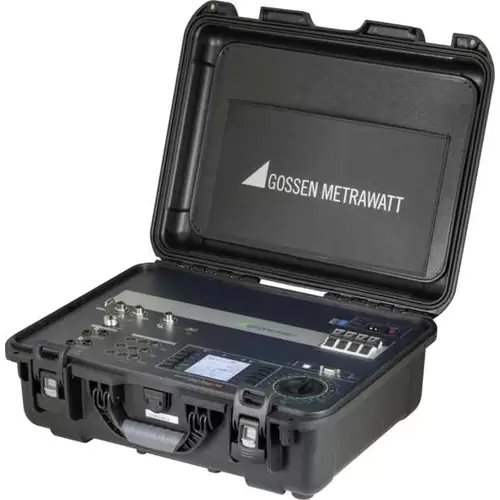

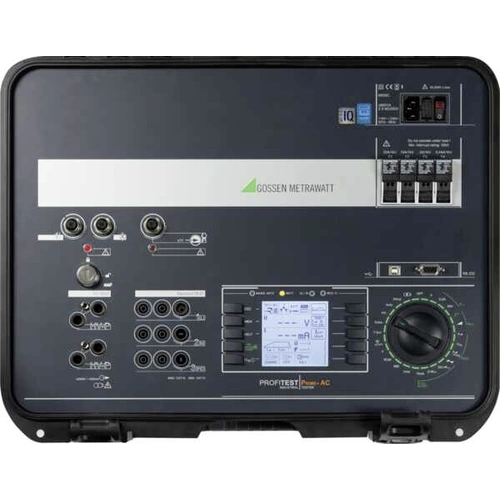

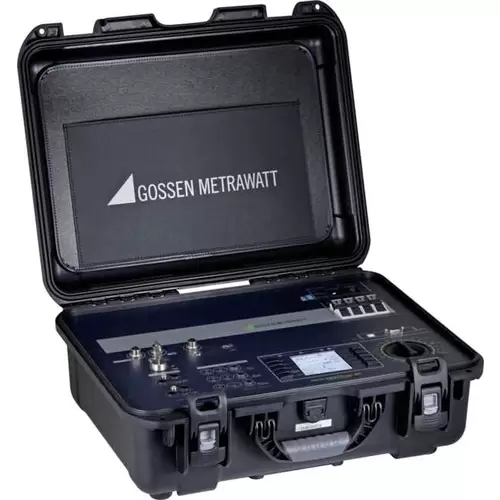

Gossen Metrawatt PROFITEST PRIME AC VDE tester, Electrical tester Calibrated to (DAkkS standards) VDE standard 0100, 0100-600

Description

The PROFITEST PRIME AC makes the investment decision easy for you. The perfectly tailored accessories allow the electrical system to meet the requirements to be tested according to DIN VDE 0100-600, machinery and equipment to VDE 0113-1, low-voltage switchgear combinations according to VDE 0126-23-600-1, PV systems according to VDE 0660 and E charging stations according to VDE 0122-1 standard.

Innovative and comprehensive operating concept
Quick access to measurement and test functions using rotary switches and softkeys

User-friendly
No complex replugging of measuring lines required, no swapping of measuring lines due to coded plugs

Modern data management
Extensive data management concept together with the user software including customer and measurement value management, test sequences, logging

Unique storage concept
Creation of plant structures – customer, plant, machine, distributor, RCD, IMD, RCM, circuits, earthing, equipotential bonding, Equipment and individual measurement points

PUSH-PRINT function
Transmission of the measured value via Bluetooth / USB after the measurement has been completed

Test sequences
Creation of individual test sequences for a quick and safe inspection of machines and systems

Universal interface
Bidirectional data exchange (USB), connection of barcode scanner as well as temperature and humidity sensor (RS232), Bluetooth/USB: Push-print function

Versatile use
Measuring and testing made easy with comprehensive accessories and integrated battery

Robust housing
Compact and shock-proof measurement case with trolley holder for easy transport

Characteristics

Measurement in AC-/DC-mains
Measurement of the network internal and error loop impedance with Hohem test current up to 690 V AC / 800 V DC without tripping RCD type A and type B.
Low ohm measurement for protection and potential equalizing conductors with 200 mA and automatic polarity reversal and 25 A
RCD TESTING TYPE A, AC, F, B, B+, EV, F-EV, F AUDIO, MI, G/R, SRCDs, PRCDs
E-Mobility: Check RDC-DD and RCMB
Combined RCD-test with constantly increasing ramp, tripping time, tripping current
Insulation measurement up to 1000 V with increasing ramp
Check RCMS and IMDS
Measurement of leakage and differential currents
Measuring of temperature and humidity
VOLTAGE MEASUREMENT 1,000 V AC / DC
High voltage testing 2.5 kV AC, 500 VA, standard process, ramp function and pulse-burning operation
Occupational health and safety test according to DIN EN 50191 and EN 61557-14 with signal lamp, emergency stop switch & key switch
Power and battery operation (with limited functionality)
Bluetooth and USB interface
Push-print function – sends the measured value after the measurement has been completed

Delivery content

• 1X PROFITEST PRIME AC
• 1x probe for L with probe tip and 4 m probe cable
• 1x probe for N with probe tip and 4 m probe cable
• 1x probe for PE with probe tip and 4 m probe cable
• 1x USB cable 1 m
• 3x alligator clip
• 1x power connection cable 1.5 m
• 1x accessories bag
• 1x quick user manual
• 1x Safety information leaflet
• 1x DAkkS calibration certificate
• 1x card with registration key for the IZYTRONIC Business Starter software
