Audio Production Studio
Fully integrated stand-alone device, special white edition
Mixer, recorder, soundbank and audio interface
Two Neutrik® combo sockets for microphones (XLR) or Instr./Line (6.35 mm TRS)
Front 3.5 mm TRRS socket for connecting a headset (CTIA assignment)
Built-in wireless receiver for Wireless ME, Wireless GO II, Wireless PRO, Interview PRO
Mixing desk, recorder and Dual audio interface in one device – the perfect solution for podcaster and content creator. The compact and only 23 cm wide RØDECaster Duo White offers the latest technology with ultra-low noise microphone preamps and studio effects together with the simplest and intuitive use. A 5.5" HD touch-screen, logically arranged control elements and professional channel presets with Quick Editor provide for a fast workflow. Those who want can also get a deeper look into the parameters of signal processing. Tried and tested mixer setups can be stored as "show" with all settings and re-established as needed by pressing a button.

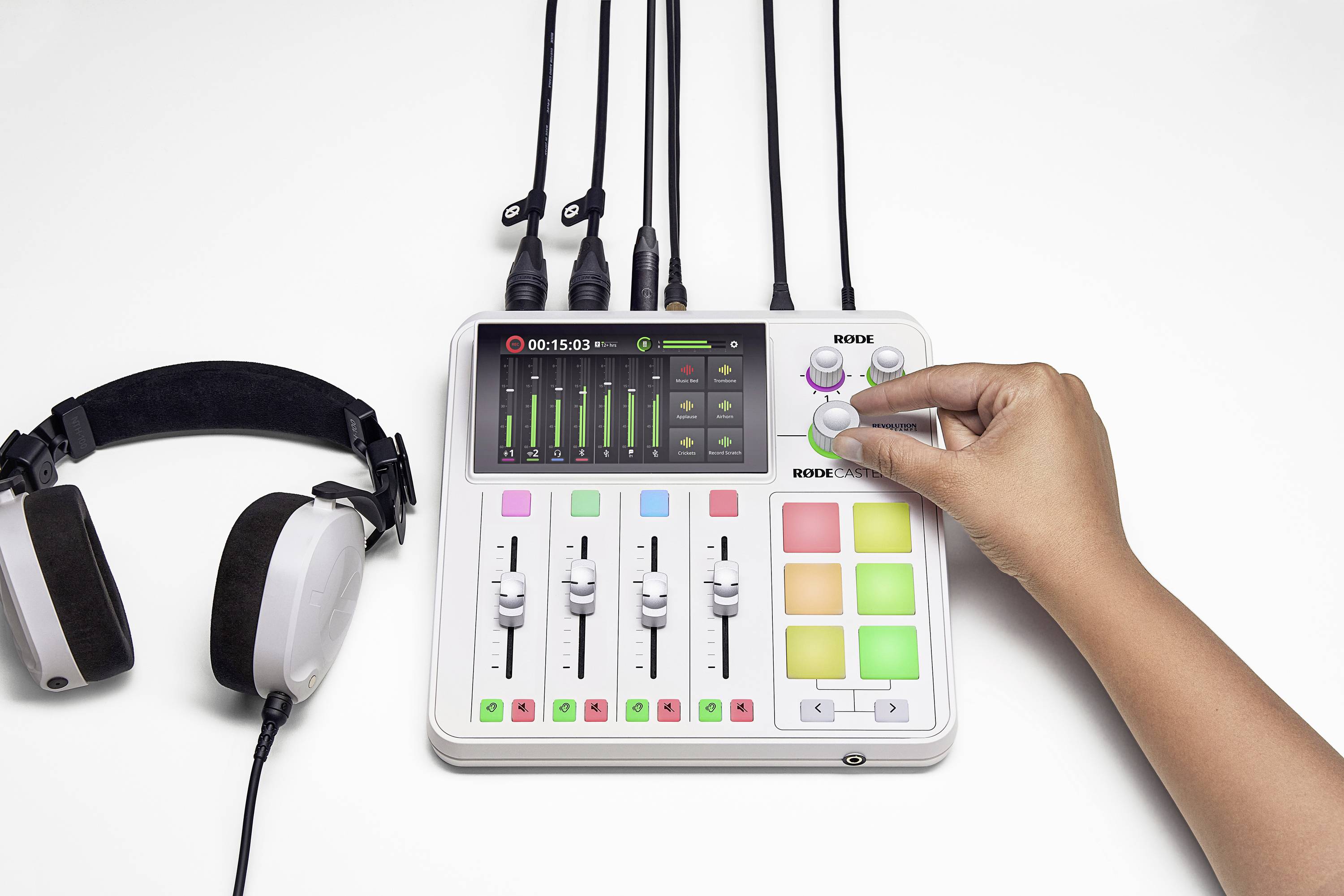

Mixing desk
The RØDECaster Duo White has seven freely assignable input channels, four of which have long 100 mm faders as well as select, mute and solo buttons. The remaining three input channels are virtual and are operated via touch screen and encoder. The following connections or signal sources can be assigned to the channels: The rear Neutrik combo sockets (XLR/jack), the front headset socket (3.5 mm TRRS), RØDE wireless, Bluetooth®, USB1, USB2 as well as Smart pad audio. You can connect (XLR) or electric guitars or line sources to the two combo sockets. The ultra-low noise high-gain preamps (up to 76 dB pre-amplification) deliver a crystal-clear audio signal – even in insensitive, dynamic speech microphones. For condenser microphones the required 48 volt phantom feed can be switched on. If necessary, you can activate the mix-minus and ducking functions, WAS is helpful when involving external guests.
Wireless
With broadband Bluetooth®, music and speech are received in first-class sound quality, and the other way around, signal output is possible via an external Bluetooth speaker. In addition, a wireless receiver is built-in: From one RØDE Wireless ME, Wireless GO II, Wireless PRO transmitter or Interview PRO you can directly sink into the RØDECaster Duo White; firmware updates can be done comfortably via WLAN.
Recorder
If you insert an optional microSD card in the rear slot, the RØDECaster Duo White can be used as a standalone recorder. Alternatively, you can connect a suitable (sufficiently fast) USB-C storage medium. You can start recording by pressing the red REC button in the upper left of the display. The recording can be done in stereo or multitrack. If you want, you can also use the RØDECaster Duo White as an audio interface and record it on your computer.
Dual audio interface

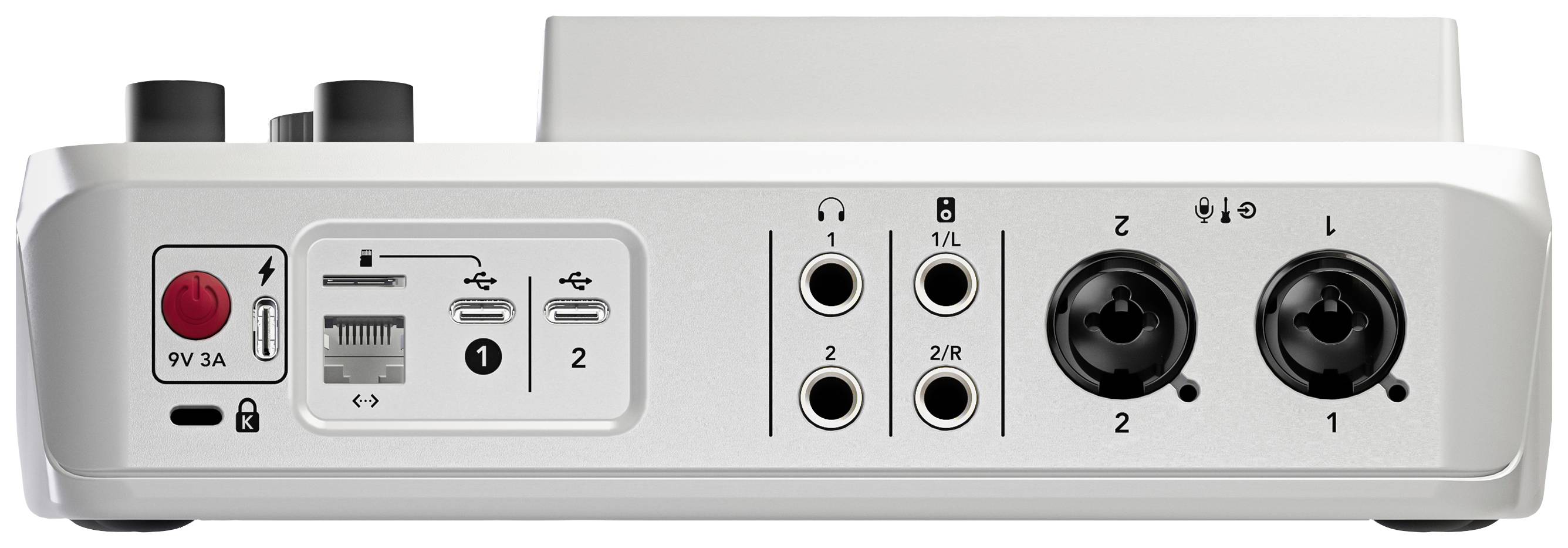

The RØDECaster Duo White offers two independent audio interfaces. Two computers or two smartphones and a combination can be connected to the rear USB-C connectors (1 and 2) and integrated into the setup, thanks to MFI certification also iOS devices.
Smart pads
The six programmable Smart pads are used to start or import audio files as well as to trigger MIDI commands, voice FX, mixer actions such as fade-in and fade-out as well as other functions. Via two bank switch buttons, one can gain access to 7 further banks for a total of 48 actions. The Smart pads can be used with your own audio files using the free software "RØDE Central"; the RØDECaster Duo White makes available 4 GB of internal memory. You can "record" audio (the composite signal) but also directly on the pads.
Signal processing and effects
All input signals (analogue and digital) can be edited extensively and can be separately and individually with high-pass filter, de-esser, noise gate, compressor, 3-band EQ, Aphex Exciter and Aphex Big Bottom are refined and arranged in a stereo panorama (Pan L/R). In addition, the RØDECaster Duo White offers the studio effects Reverb and Delay (Echo), the voice effects Megaphone, Robot, Disguise and Pitch Shifter as well as for the sum of the Aphex Compeller (Master Compressor).
Power Supply
Power is supplied via the enclosed external power unit which is connected to the third USB-C socket (next to the operating switch). For mobile use of the RØDECaster Duo White one can simply replace the power supply by an optional 30 watt USB-C PD power bank.
This text is machine translated.
Ultra-low-noise Revolution® preamps with 76 dB pre-amplification
Dual USB audio interface for simultaneous connection of 2 computers or mobile devices
Stereo and multi-track recordings on microSD, USB storage medium or computer
DSP with high-pass filter, de-esser, noise gate, compressor, EQ, Aphex Exciter and Big Bottom, Pan (L/R)
RØDE voice FX: Reverb, echo, megaphone, robot, speech, Pitch shifter
Intuitive operation, professional channel presets, mix-minus and ducking
7 freely programmable channels for individual configuration of the mixer
4 hardware faders, mute and solo buttons per channel
6 programmable Smart pads, two bank change buttons for a total of 48 actions
To trigger sounds, voice FX, MIDI commands and other functions
4 GB large internal Smart pad sound memory
5.5” HD touch screen with haptic feedback
Encoder with button function for navigation and parameter settings
2 headphone outputs (6.35 mm) with separate volume controls
2 balanced line outputs (6.35 mm L/R)
Broadband Bluetooth®, WLAN and Ethernet.
Windows 10 version 1803 or later, Windows 11
Mac OS 10.15 or later
