Audio Production Studio
Fully integrated stand-alone device, special white edition
Mixer, recorder, soundbank and audio interface
4 Neutrik combo inputs (XLR/6.35 mm TRS)
Ring built wireless receiver for Wireless ME, Wireless GO II, Wireless PRO, Interview PRO

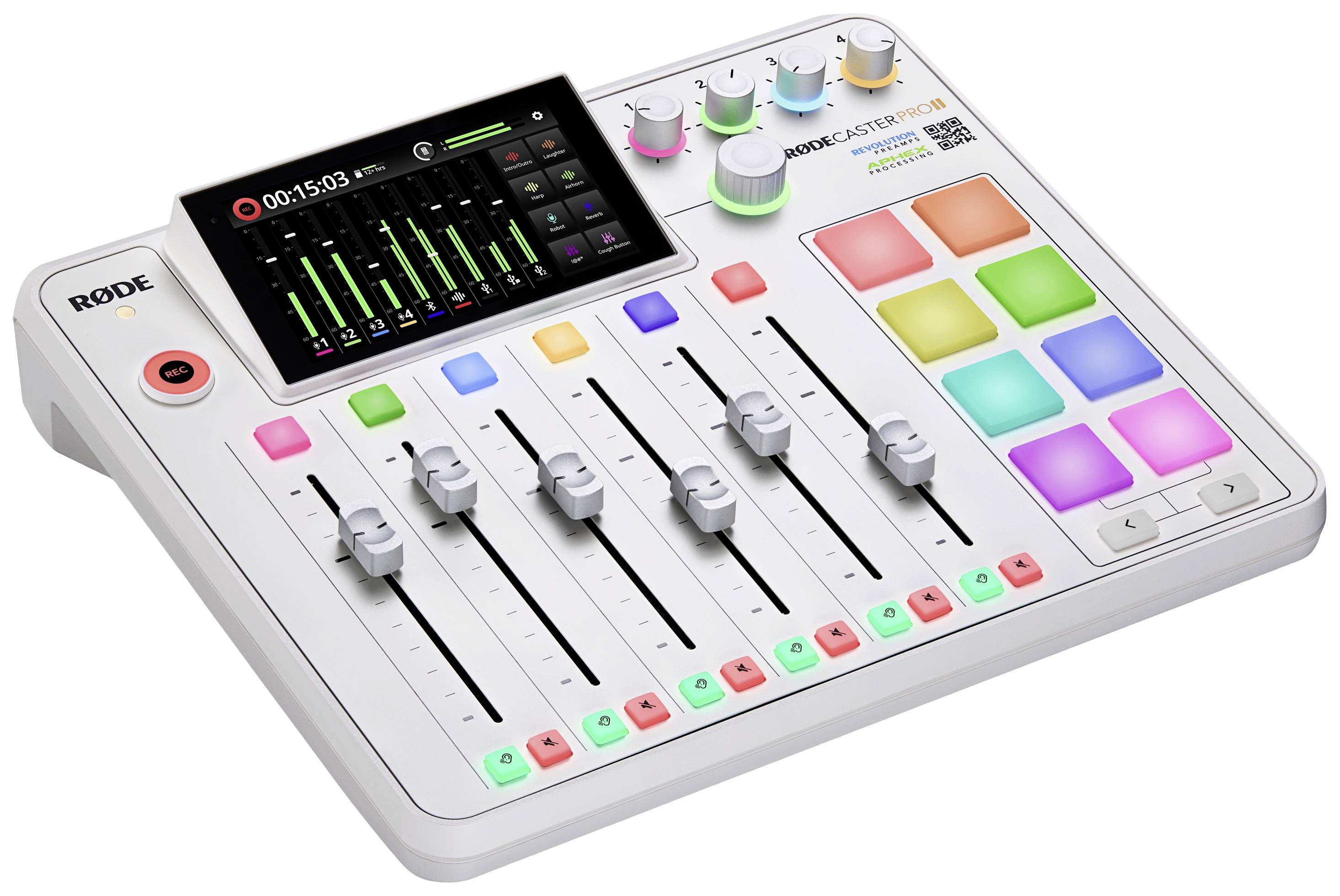

Mixing desk, recorder and Dual audio interface in one device – the perfect solution for podcaster and content creator. The 31 cm wide RØDECaster Pro II White offers the latest technology with ultra-low-noise microphone preamps and studio effects with a simple and intuitive use at the same time. A 5.5" HD touch-screen, logically arranged control elements and professional channel presets with Quick Editor provide for a fast workflow. Those who want can also get a deeper look into the parameters of signal processing. Tried and tested mixer setups can be stored as "show" with all settings and re-established as needed by pressing a button.
Mixing desk

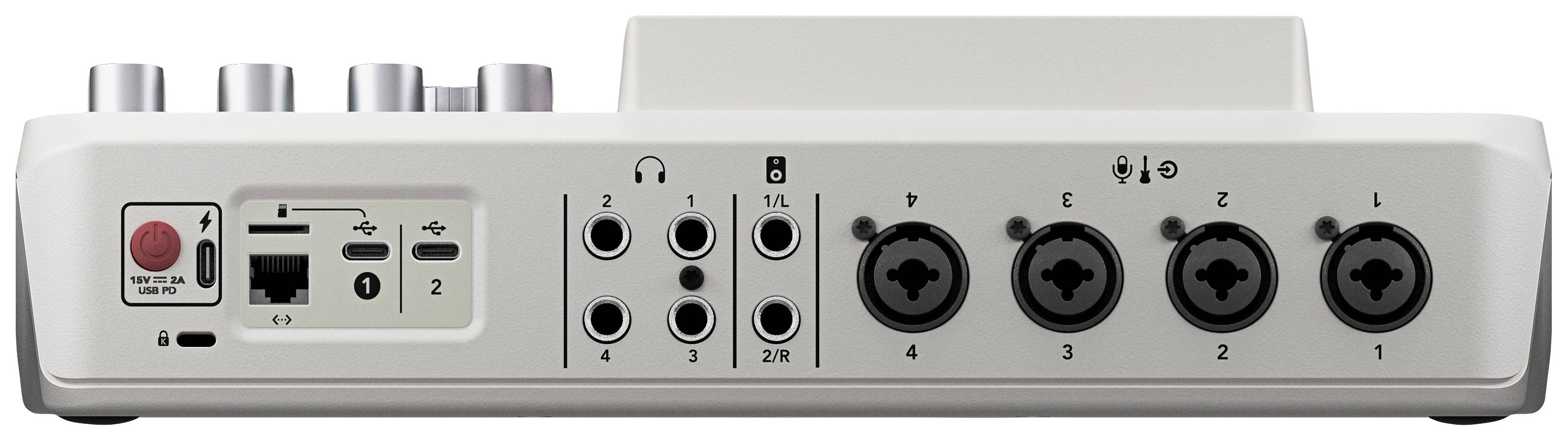

The RØDECaster Pro II White has nine freely assignable input channels, six of them with long 100-mm faders as well as select, mute and solo buttons. The remaining three input channels are virtual and are operated via touch screen and encoder. The following connections or signal sources can be assigned to the channels: The rear Neutrik combo sockets (XLR/jack), the front headset socket (3.5 mm TRRS), RØDE wireless, Bluetooth®, USB1, USB2 as well as Smart pad audio. You can connect (XLR) or electric guitars or line sources to the four combo jacks. The ultra-low noise high-gain preamps (up to 76 dB pre-amplification) deliver a crystal-clear audio signal – even in insensitive, dynamic speech microphones. For condenser microphones the required 48 volt phantom feed can be switched on. If necessary, you can activate the mix-minus and ducking functions, WAS is helpful when involving external guests.
Wireless
With broadband Bluetooth®, music and speech can be received in first-class sound quality and integrated into the podcast, while the signal can be output via an external Bluetooth speaker. In addition, a wireless receiver for Wireless ME, Wireless GO II, Wireless PRO transmitter or Interview PRO is integrated. So you can sink directly into the RØDECaster Pro II White. The RØDECaster Pro II White also has WLAN on board, so that firmware updates can be done wirelessly completely comfortably.
Recorder
If you insert an optional microSD card in the rear slot, the RØDECaster Pro II White can be used as a standalone recorder. Alternatively, you can connect a suitable (sufficiently fast) USB-C storage medium. You can start recording by pressing the red REC button in the upper left of the display. The recording can be done in stereo or multitrack. Of course, those who want to use the RØDECaster Pro II White as an audio interface and record on their computer.
Smart pads
The 8 programmable Smart pads can be used to start or import audio files as well as to trigger MIDI commands, voice FX, mixer actions and other functions. Via two bank switch buttons, one can gain access to 7 further banks for a total of 64 actions. The Smart pads can be used with your own audio files using the free software "RØDE Central"; the RØDECaster Pro II white makes available 4 GB of internal memory. You can "record" audio (the composite signal) but also directly on the pads.
Signal processing and effects
All input signals (analogue and digital) can be edited extensively and can be separately and individually with high-pass filter, de-esser, noise gate, compressor, 3-band EQ, Aphex Exciter and Aphex Big Bottom are refined and arranged in a stereo panorama (Pan L/R). In addition, the RØDECaster Duo offers the studio effects reverb and delay (echo), the voice effects megaphone, robot, discourse and pitch shifter as well as the sum of the apex compellor (Master compressor)
Hardware and power supply
In order to be able to fix the RØDECaster Pro II White to stands or holders, a 3/8"-thread as well as four VESA-retaining points are inserted in the base. Power is supplied via the accompanying external USB-C power supply, which can easily be replaced by an optional 30 W USB-C PD power bank for mobile use.
This text is machine translated.
Ultra-noise high-gain preamps (+76 dB)
Dual USB-C audio interface for 2 computers or iOS/Android devices
Broadband Bluetooth® Transmitter & Receiver
9 freely assignable channels, 6 faders, 3 virtual faders
8 programmable SMART pads with 8 banks for triggering up to 64 actions
4 GB internal Smart pad audio memory
5.5" HD touchscreen with haptic feedback
Endless encoder with touch function
APHEX® Aural Exciter, Big Bottom, Compellor
High-pass filter, De-esser, Noise Gate, EQ, Compressor
Reverb, Delay, Pitch Shift, Robot Voice
Mix/minus and ducking functions
Recording on USB storage medium or computer
Onboard recordings on microSD card (not included)
4 stereo headphone outputs (6.35 mm TRS)
2 balanced line outputs (6.35 mm TRS)
Wi-Fi plus Ethernet connection.
Windows 10 version 1803 or later, Windows 11
Mac OS 10.15 or later
Rode, RCPIIW
