Description

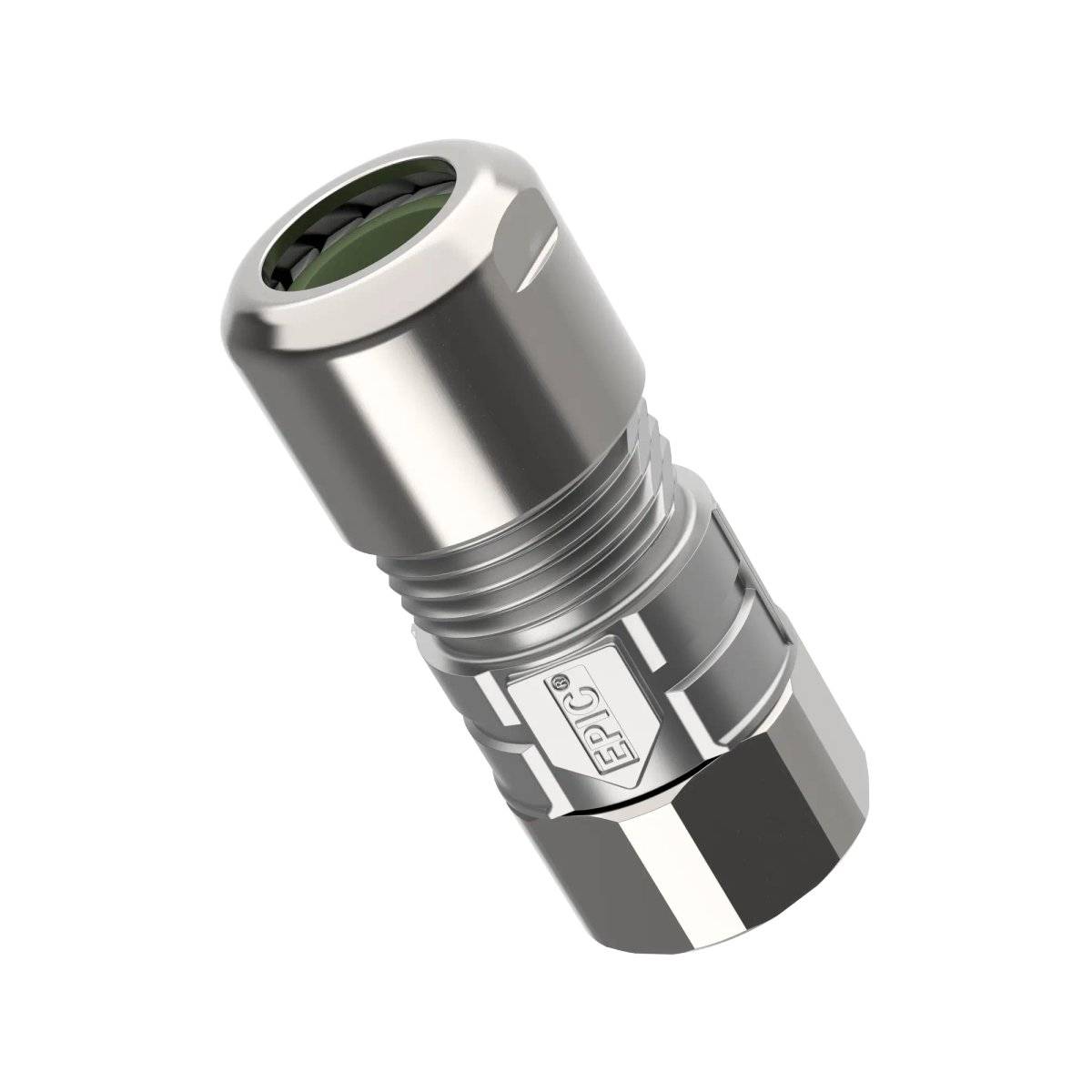

Cable plug EPIC® Power M12L D6 4P 1.5 6.5-10.5 (1); Cable plug; M 12 Power; M 12; M12 L-coded; Socket; number of contacts: 4; For cross-section (min./max.): 0mm² - 1.5mm²; clamping area (min./max.): 6.5mm - 10.5mm; Application areas: For power supply of smaller devices (e.g. distributed I/O modules, smaller motors)
;Also suitable for power supply in the PROFINET network (M1L is considered a standardized power interface there);For DC applications in the low-voltage range ; use: Crimp connection provides a vibration-proof connection HER, ensures maximum contact reliability between contact and leads and is suitable for automated packaging ; UL certification according to technical specifications allows the product to be used in North American areas;When plugged in, protection class IP 65, IP 67 and IP 69 can be achieved;Suitable for wire cross-sections of 0.75 – 2.50 mm²;Mechanical L-coding of the plug-in face prevents faulty insertion with mating connector;Powerful up to 16 A despite extremely space-saving size for very small devices;Available as a 4-pole version with black insulating body and as a 4+FE version with gray insulating body and functional ground contact (FE);D6 cable connector for use Use with attachment casing G4 or clutch F6
