Chauvin Arnoux PEL 113 Set Network diagnostics 3-phase Clamp meter, Data logger, Power testing, Ballast testing, Online testing

Overview

Recorder for recording and analyzing energy consumption to optimize energy efficiency
Record power consumption of all kinds of electrical installations up to several months, three-phase

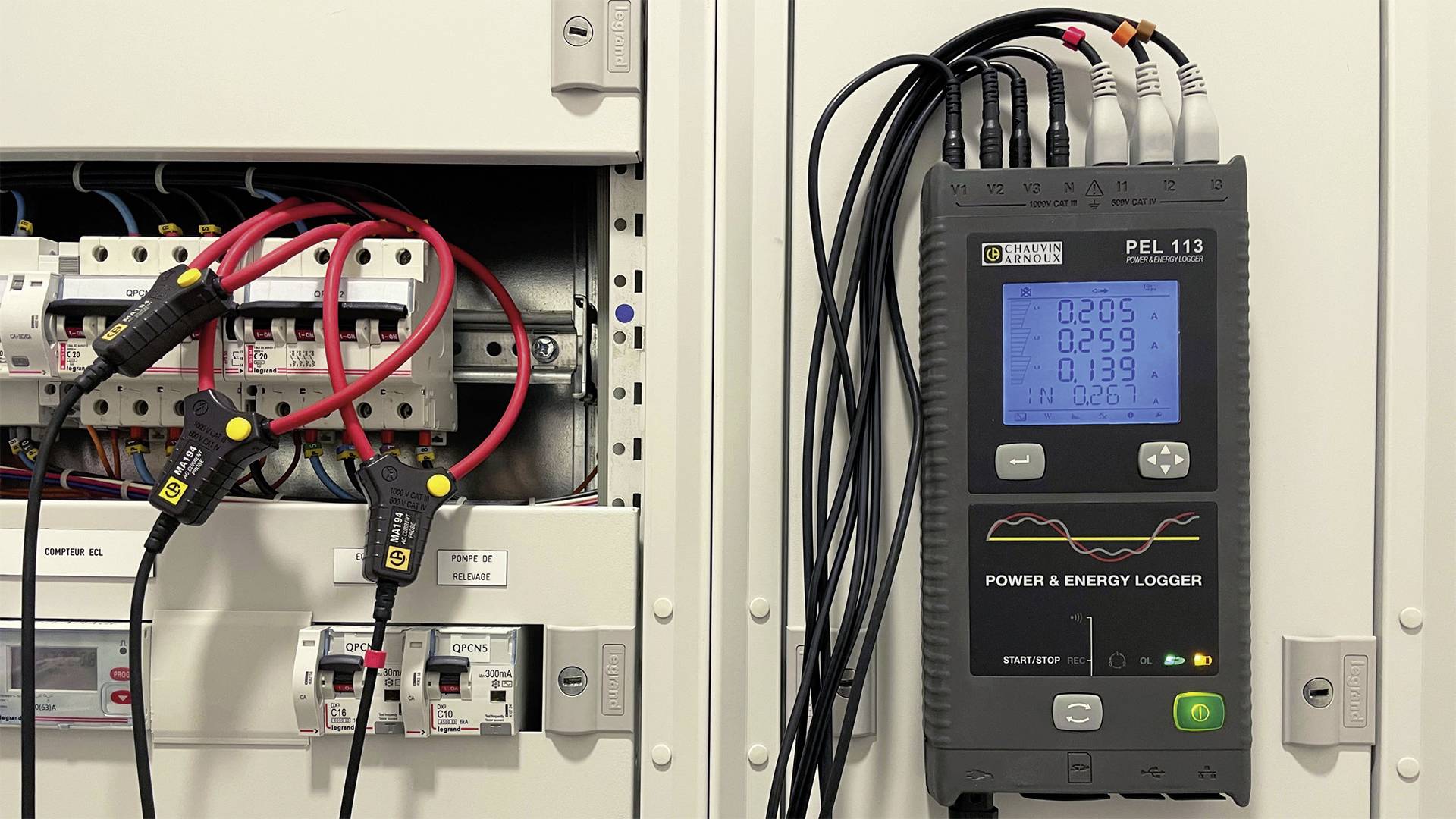

Record all electrical parameters (currents, voltages, etc.) and harmonics without interrupting the power supply

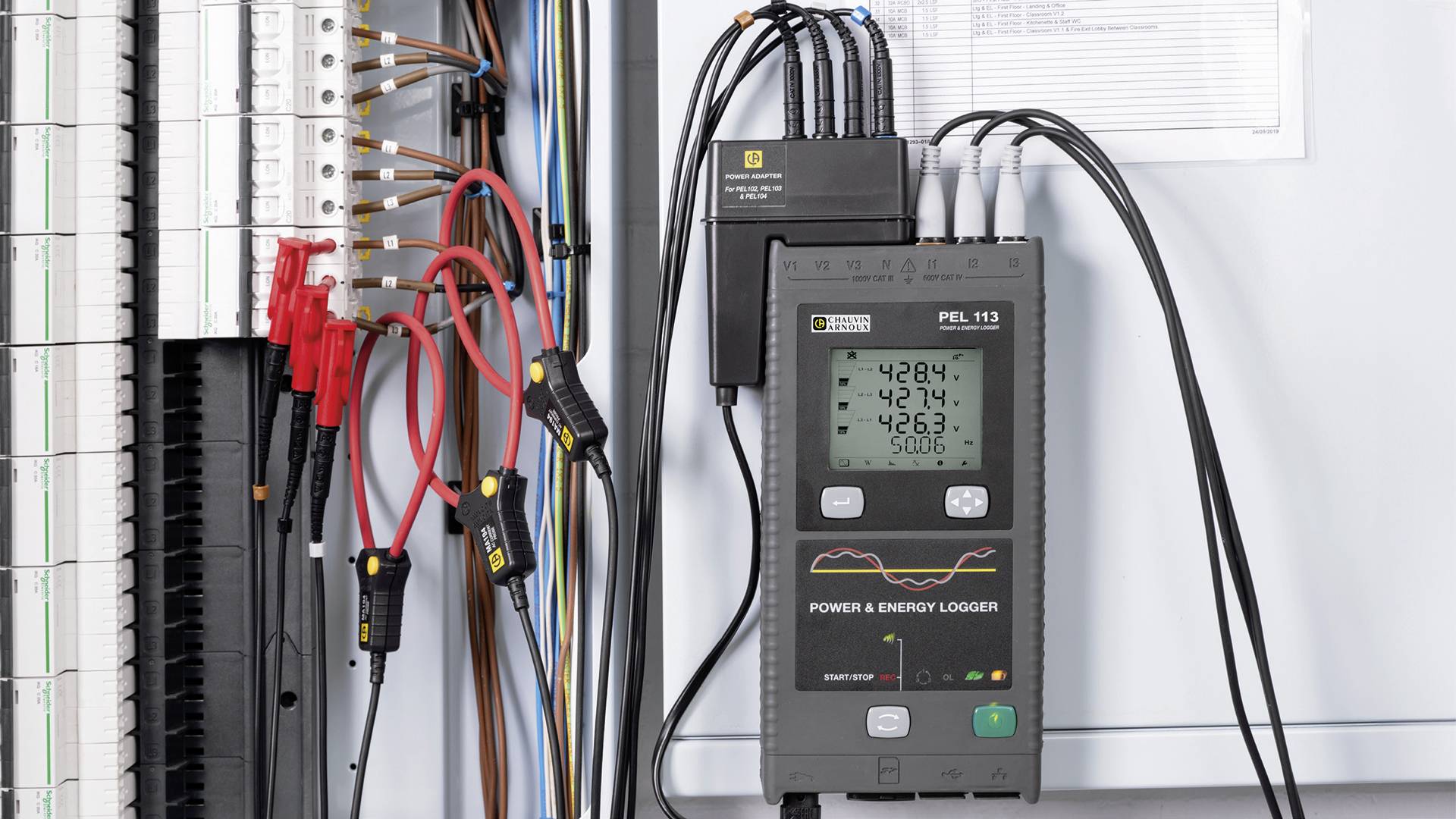

Set with 3 flexible current transformers with 100mm loop diameter and PEL power adapter for surge protection and supply of the measuring device via the voltage measuring inputs
Free software PEL Transfer for configuration of the device and for energy data processing with breakdown of energy (losses)
Versatile communication options: Ethernet, USB, WLAN, IRD server

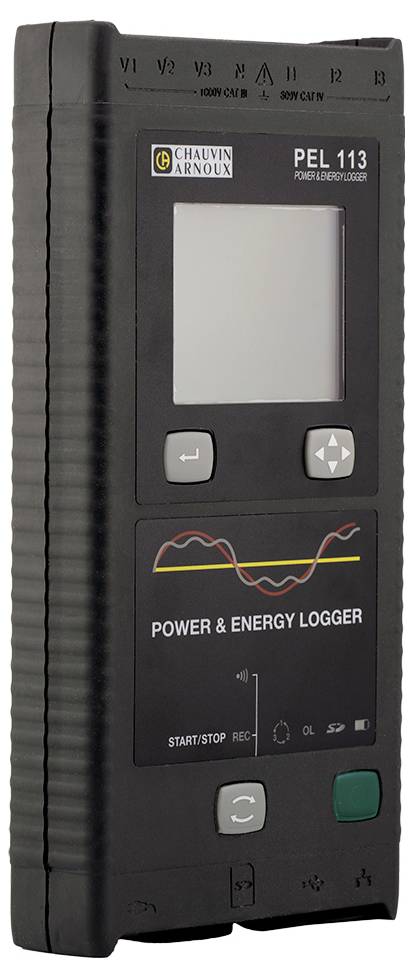

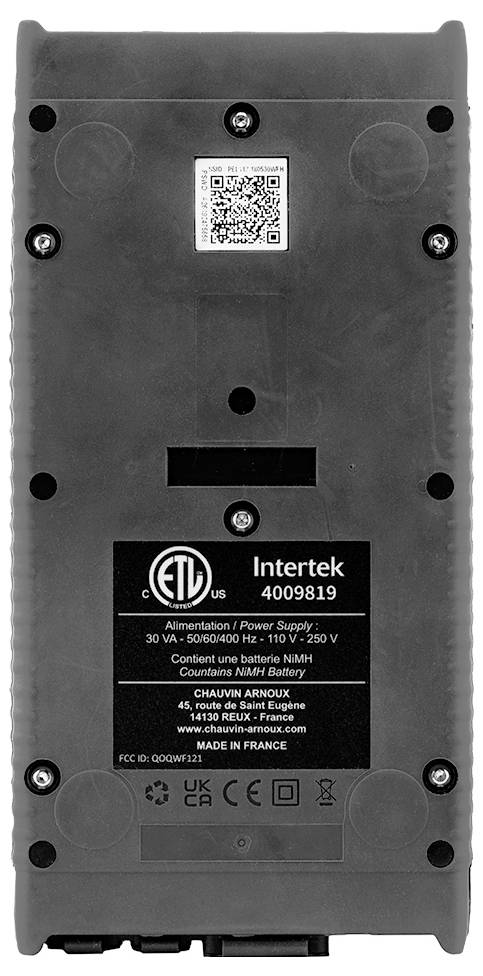

Compact, slim casing with magnetic rear side for convenient installation in the control cabinet

Description

The PEL 113 measures and stores all power and energy. It can be used wherever there is energy:
• Power generator: Renewable energies, heat power plants...
• Industry: Metal industry, glass production, food industry.
• Living and service building ...
• Infrastructure and traffic
• Data centers ...

Fields of application
• Energy audits
• Electrical diagnostics
• Industrial maintenance

Simple and proven ergonomics
• Compact and with magnetic housing
• 3 voltage and 3 current inputs

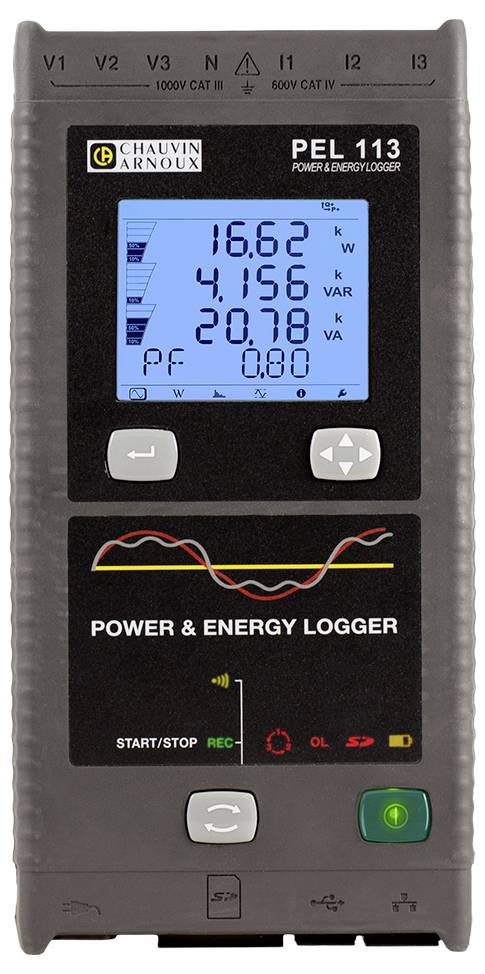

• Four times the digital display with lighting
• Self-supply via the phase

RMS and DC measurements
• AC and/or DC voltages up to 1 000 V.
• Currents up to 10 kA AC, 5 kA DC (depending on the current transformer)
• Active, reactive and apparent power
• Active, reactive and apparent energy
• Basic and symmetrical active power and active power of asymmetry
• Motor measurements and characteristics (via Android APP)

Functions
• Breakdown of energy losses
• Phase parameters: Cos φ, tan Φ, power factor PF
• Crest factor
• Calculation of the THD for currents and voltages
• DC, 50 Hz, 60 Hz and 400 Hz measurements (shipping...)

Software PEL Transfer

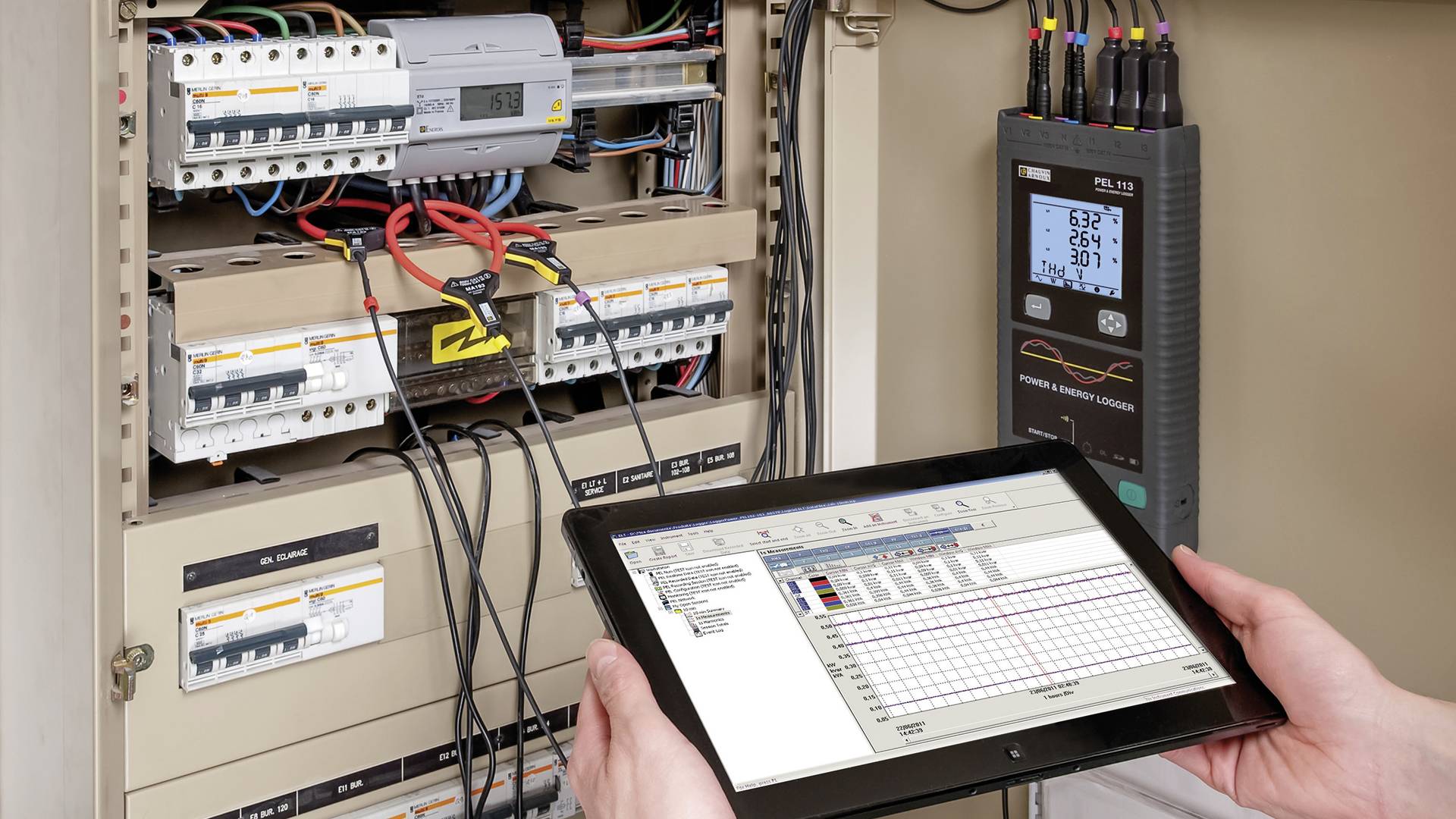

The PEL Transfer software offers the following options:
• Configuration of your PEL
• Check the connections before recording starts
• Download the measurements stored in PEL
• Displays the various measurement and analysis results

Additional plus point: PEL TRANSFER converts the value of your electricity consumption in euro (8 tariff zones).

Communication in networks
The PEL 110 has several transmission options:
- USB, the simplest solution for on-site use.
- Ethernet RJ45 or Wi-Fi (server): Connect your PEL 11x to the server for communication from any station on the network with the PEL Transfer software.
- Wi-Fi (Access Point):
• Set up a direct connection between the PEL 11x and your computer HER.
• The Access Point (AP) mode supports up to 5 clients.

Delivery content

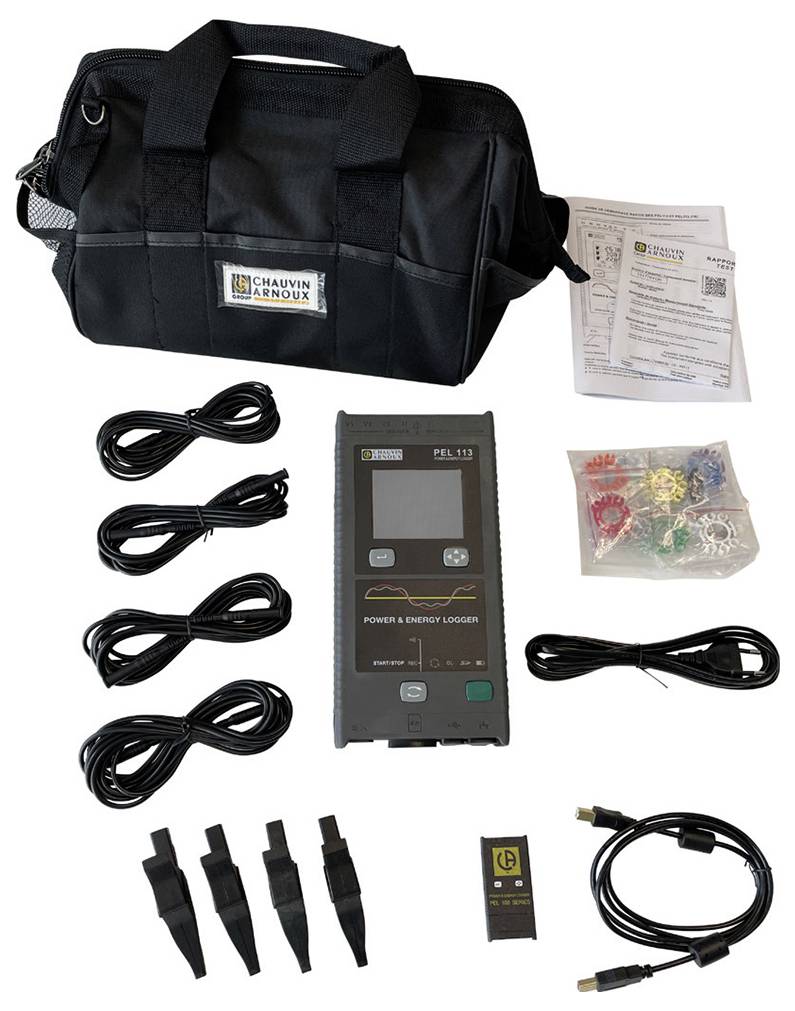

• 1 carrying case
• 3 MA194-350 MiniFLEX Current transformer
• 1 PEL mains adapter
• 4 voltage measurement lines
• 4 alligator clips
• 1 set of identification parts
• 1 SD-card
• 1 adapter SD/USB
• 1 USB cable
• 1 power cables
• 1 PC software (PEL Transfer) & user manual for downloading from the website
• 1 Quick start guide
