Bticino CLASSE100 A16M Indoor audio interface Two-wire Handset accessories White

Overview

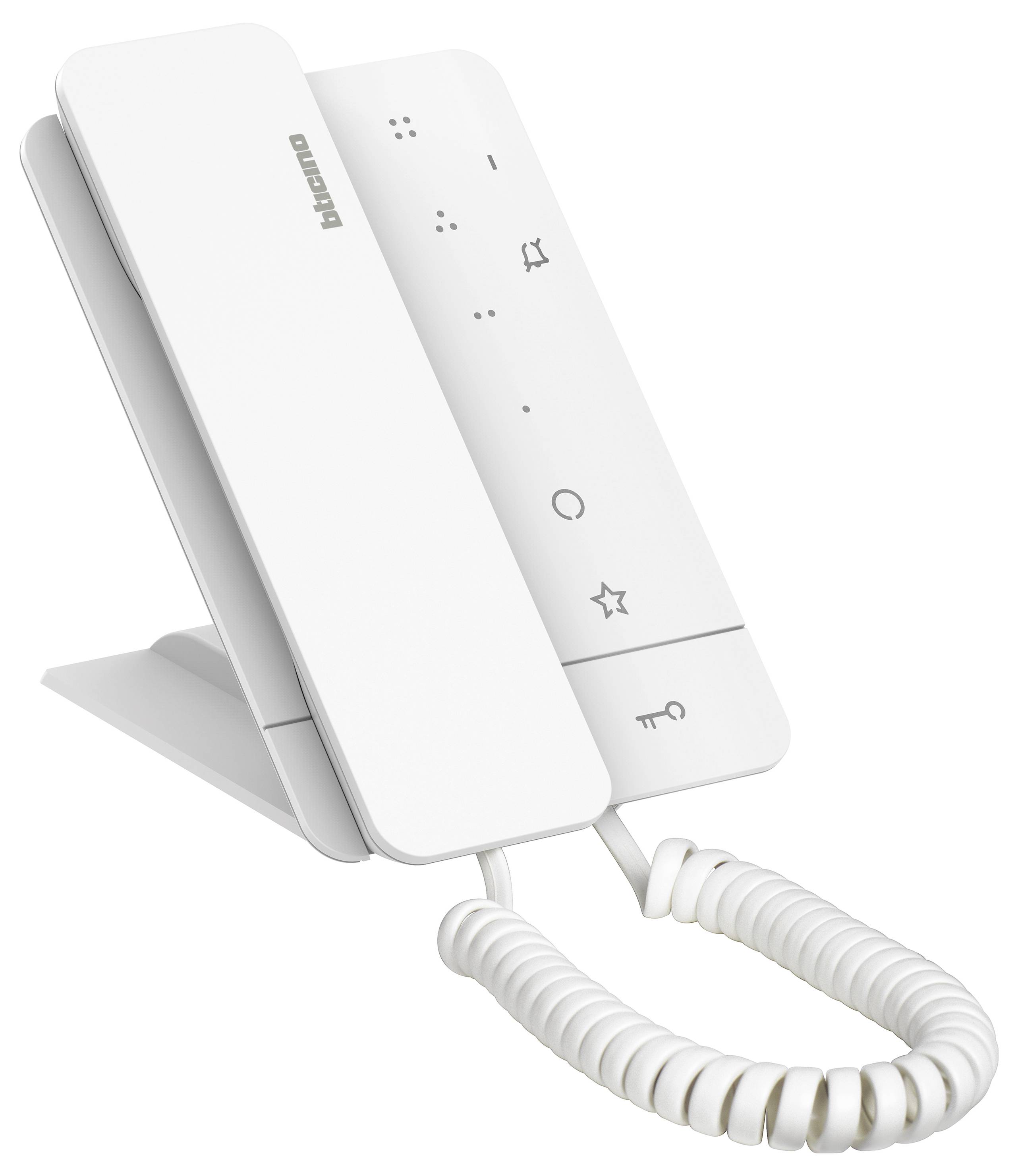

Interior position with handheld for 2-wire door entry systems with door mat function/physician circuit
3 Sensor buttons
4 free config. Keys
16 ring tones

Description

Audio home station with handset CLASSE100 A16M2-wire bus system, has 3 sensor buttons for: Door opening, switch on the staircase light (activator No.: 346210 is needed) and switch on and/or over the door station as well as 4 freely configurable additional buttons (e.g.:internal speaking, additional door opener, etc.).
16 selectable melodies.
Including doctor circuit/door-mat function.
For door/floor calling with distinctive ringtones.
Volume of the call sound is adjusted using the control on the side.
LED-display for: Ringtone switch and door-opening status.
Wall mounting with supplied wall mount.
A table accessory (order no.: 344692) is available separately.
Connection for BUS, floor call and additional signal bells.

Characteristics

Home/Internal Audio Station with 2-wire handset, suitable for wall or table mounting (table accessory sold separately)
The interior has next to the 3 sensor buttons for door OPEN, accept call, stairwell light ON (activator art. 346210) and switch door station on/off, 2 calls and 4 configured freely. Keys
Door automation (medical circuit): This function opens the door after a call is made from the door station, the CLASSE 100 A16M rings and the door opener is activated automatically
Select from 16 melodic ring tones. A distinction is made between door and floor calls with distinctive ringtones by 2 different melodies, adjust the volume with the control dial

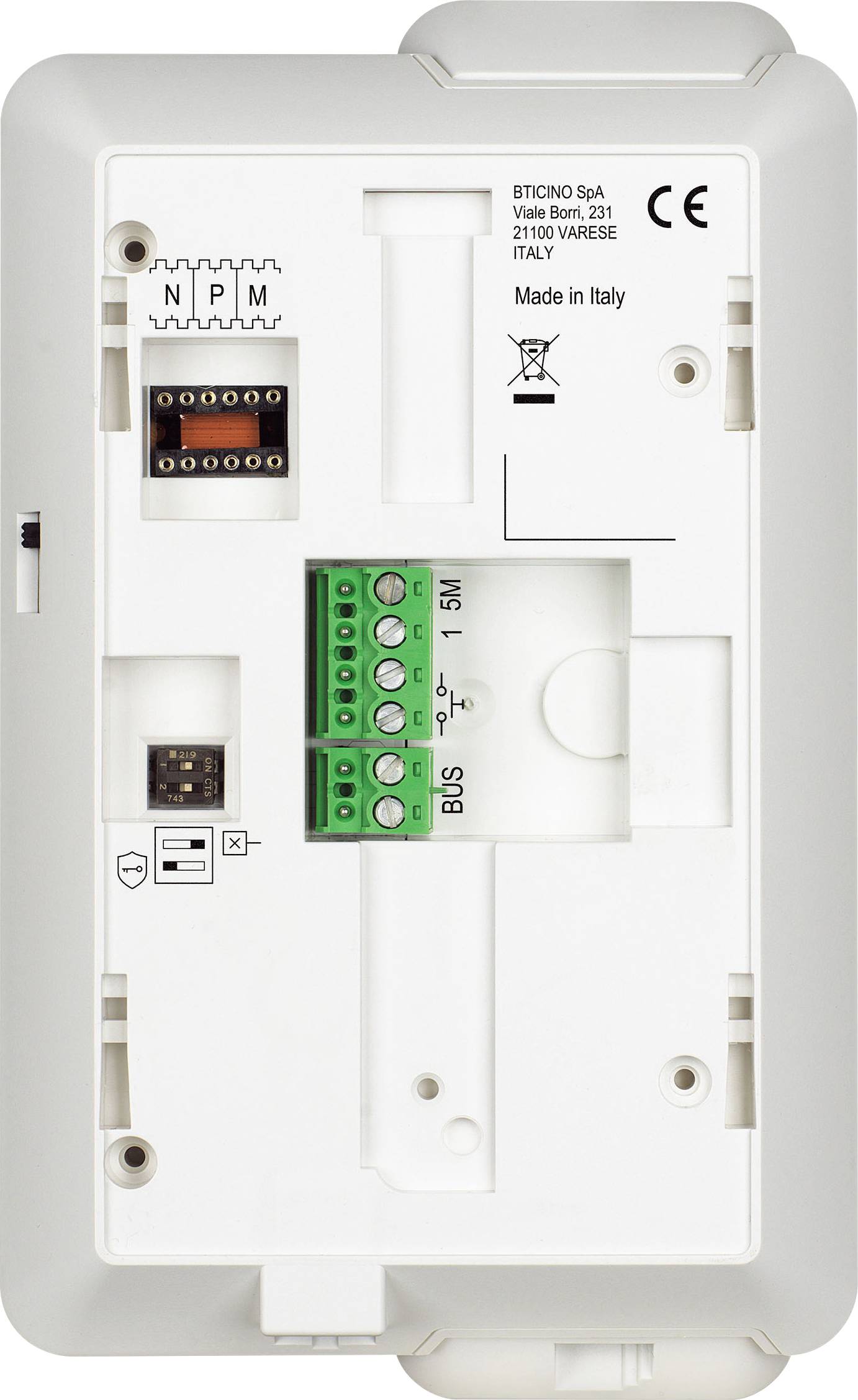

Connection for BUS, floor call and additional signal bells

Delivery content

• Speech unit
• Quick guide
• Instructions for use
