Processing based on the Sony IMX500 sensor
Supports popular neural networks
Relief for the Raspberry Pi processor
Suitable for AI-based applications
Optimized performance with on-board processing

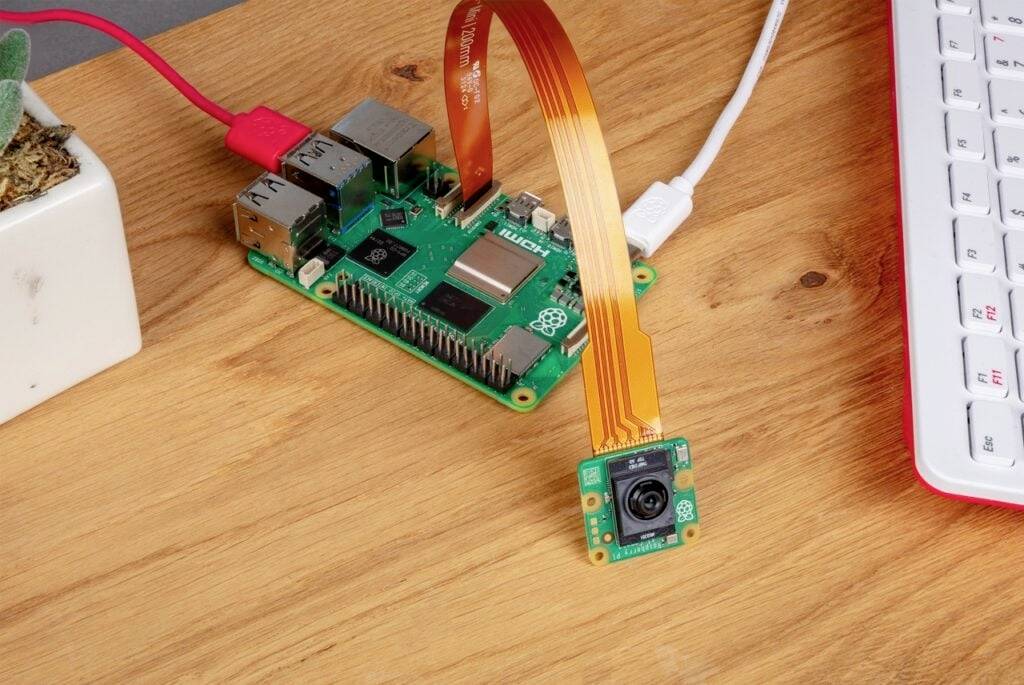

Works with all Raspberry Pi models using the standard camera cable from Raspberry Pi
Out with the old, pure with the new
Compatible with all Raspberry Pi computers, the Raspberry Pi AI camera uses Sony's IMX500 intelligent image sensor to create impressive AI applications and neural network models using the integrated AI processor.
Image Processing KI made easy
Tight integration of the IMX500 with the Raspberry Pi camera software stack allows users to use their own neural network models with minimal effort. To help you get started, we have developed a guide that allows you to run either a pre-built or self-created neural network model on the camera.
Scale with AITRIOS
Build AI models and applications for the IMX500 Intelligent Vision Sensor and the Raspberry Pi, and then scale to an enterprise solution with AITRIOS.
Discover the AI services of Sony
Local Studio guides you through the necessary steps to efficiently label, train, and create AI models.

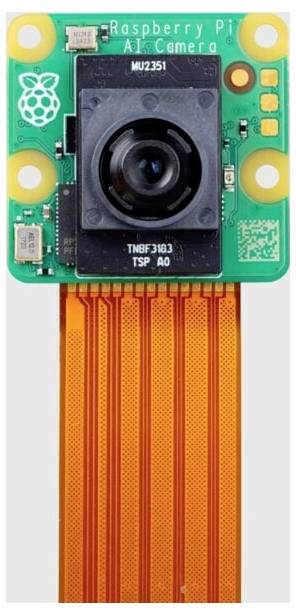

12.3 MP Sony IMX500 Intelligent Vision sensor with a powerful neural network accelerator
Frame rates: 2×2 bound: 2028×1520 10-bit 30fps / Full resolution: 4056×3040 10-bit 10fps
7.857 mm sensor size
1.55 μm × 1.55 μm pixel size
78.3 (±3) degrees FOV with manually/mechanically adjustable focus
F1.79 Focal length ratio
Module dimensions 25 × 24 × 11.9 mm
Integrated RP2040 for managing the firmware of the neural network
All Raspberry Pi Zero models require a Raspberry Pi Zero camera cable to be connected to the Raspberry Pi camera module. The standard cable supplied with the camera is not compatible with the smaller Raspberry Pi Zero camera connector.
The Raspberry Pi Camera Module 3 will remain in production until at least January 2030.
Raspberry Pi®, SC1174, AI Camera
