Dehner Elektronik AD 1500-400-A23 (400VDC) AC/DC PSU module 400 V DC 3.75 A 1500 W

Overview

Universal AC input (90-264Vac).
Simplified parallel operation & control via CAN bus
Parallel operation of different models possible
Interfaces: Single operation, parallel operation, Ethernet
In-built EEPROM for storage and later restoration of the settings if the input voltage is lost

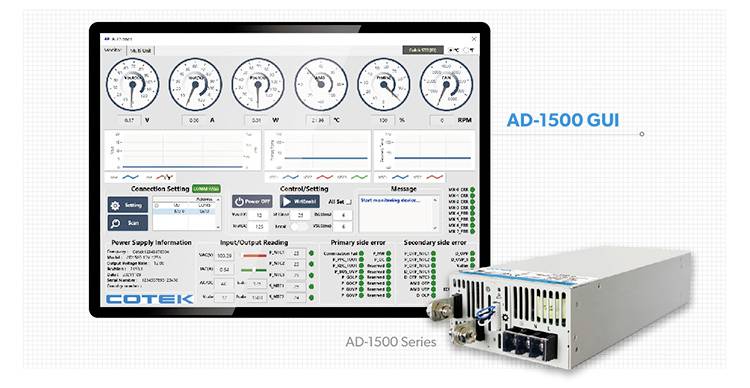

Graphical interface for setting, monitoring, and querying power status
Built-in ORing-FET and communications insulation circuit
Programmable output voltage and current 0~105%.
Built-in ORing FET and communications insulation circuit.
Supports parallel operation via CANBUS.
Built-in circuit for insulation of communication. (A23, A24 version)
Constant current limiting.
Auxiliary output supports 5V/1A.
Supports PMBus, MODBUS, RS232/485- and I2C-protocol.
Protection OVP, OLP, OTP, UTP, AC failure, Power and fan failure.
Optional interchangeable interface cards: A23, A24, C11, and Ethernet.

Description

For the complex requirements in conjunction with Industry 4.0, healthcare, battery charging infrastructure and much more, Cotek has developed the new AD-1500 series.

Through interchangeable interface modules, many applications are possible – from single and parallel operation, through direct control to remote control and remote monitoring via Ethernet.

The universal AC input range enables the worldwide use in different environments. Output rated voltages are available as standard from 120 VDC to 400 VDC. Both the output voltage and output current are flexible and intelligent programmable in a range from 0% to 105%.

The new AD-1500 power supply series supports various interface configurations: RS-232/RS-485, I²C, Ethernet, PMBus, MODBUS. The user is enabled by an easy to use graphical interface to configure the settings flexibly and precisely. The insulation circuit and the integrated ORING diode ensure an exact interplay of all the components of the application being operated.
