Control engine locks comfortably and intelligently – Ideal for modern door systems
Two flexible inputs for accurate detection of the door status or connection of a glass breakage detector
Simply operated via the Homematic IP APP and wired buttons or switches
Easy installation in all standard flush-mounted sockets thanks to compact design
The Homematic IP universal engine lock controller controls integrated engine locks in front doors, enables the easy change between day and night mode and reliably records the door status. It is compatible with standard motor locks and offers a flexible and secure solution for modern door systems.
The Homematic IP universal motor lock controller enables you a secure and smart control of house doors with integrated motor locks - the ideal solution for modern door systems. Along with a simple changeover between day and night mode, the controller also reliably detects the door status.
Installation
The compact design of the universal motor lock controller means it can be installed in all common flush-mounted sockets. Flush-mounted boxes with a depth of at least 50 mm are recommended for convenient installation.
Setting
With the Homematic IP APP you can set up the universal motor lock controller comfortably according to your individual wishes and easily integrate the common motor locks in your Smart home.
Control

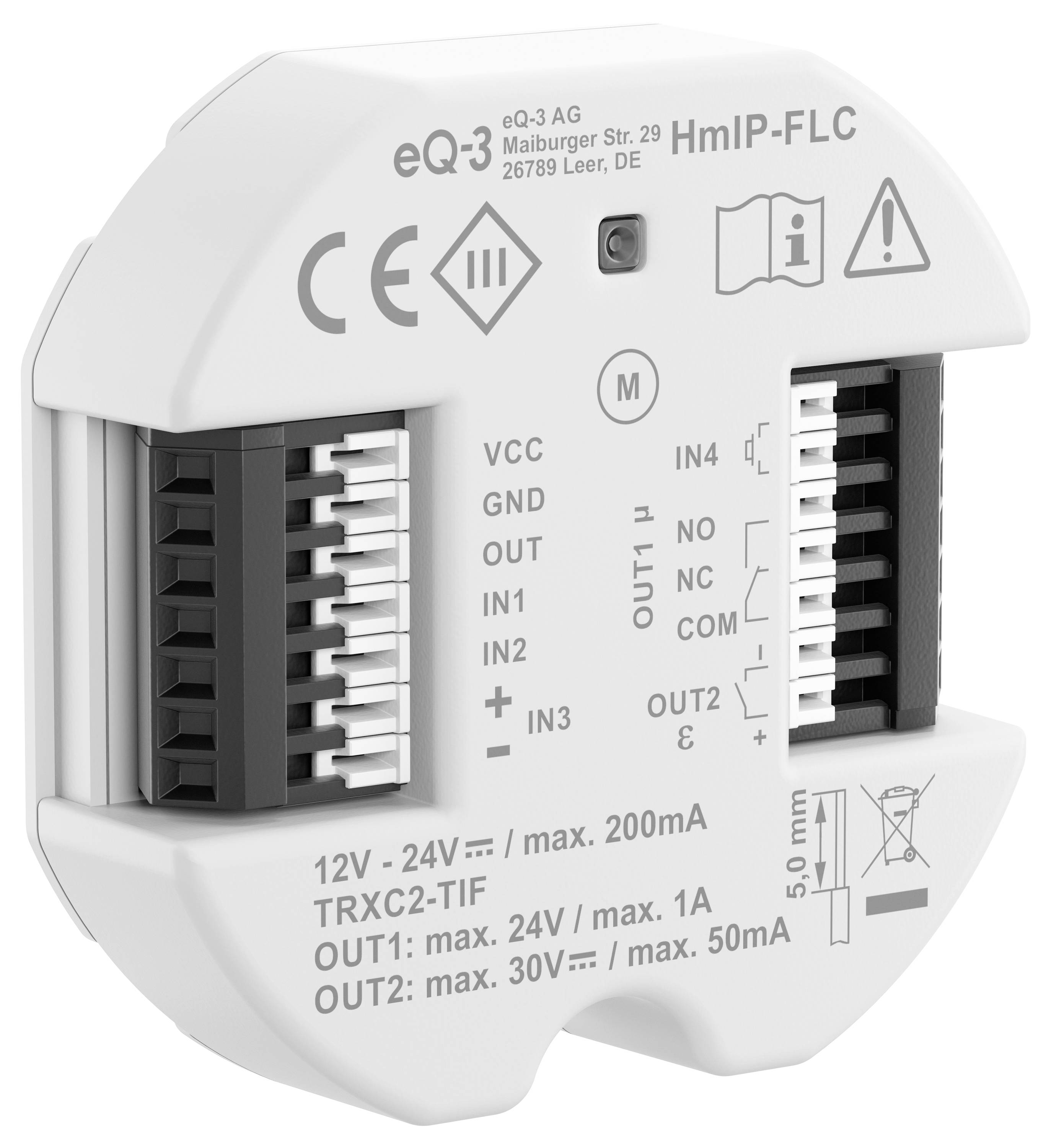

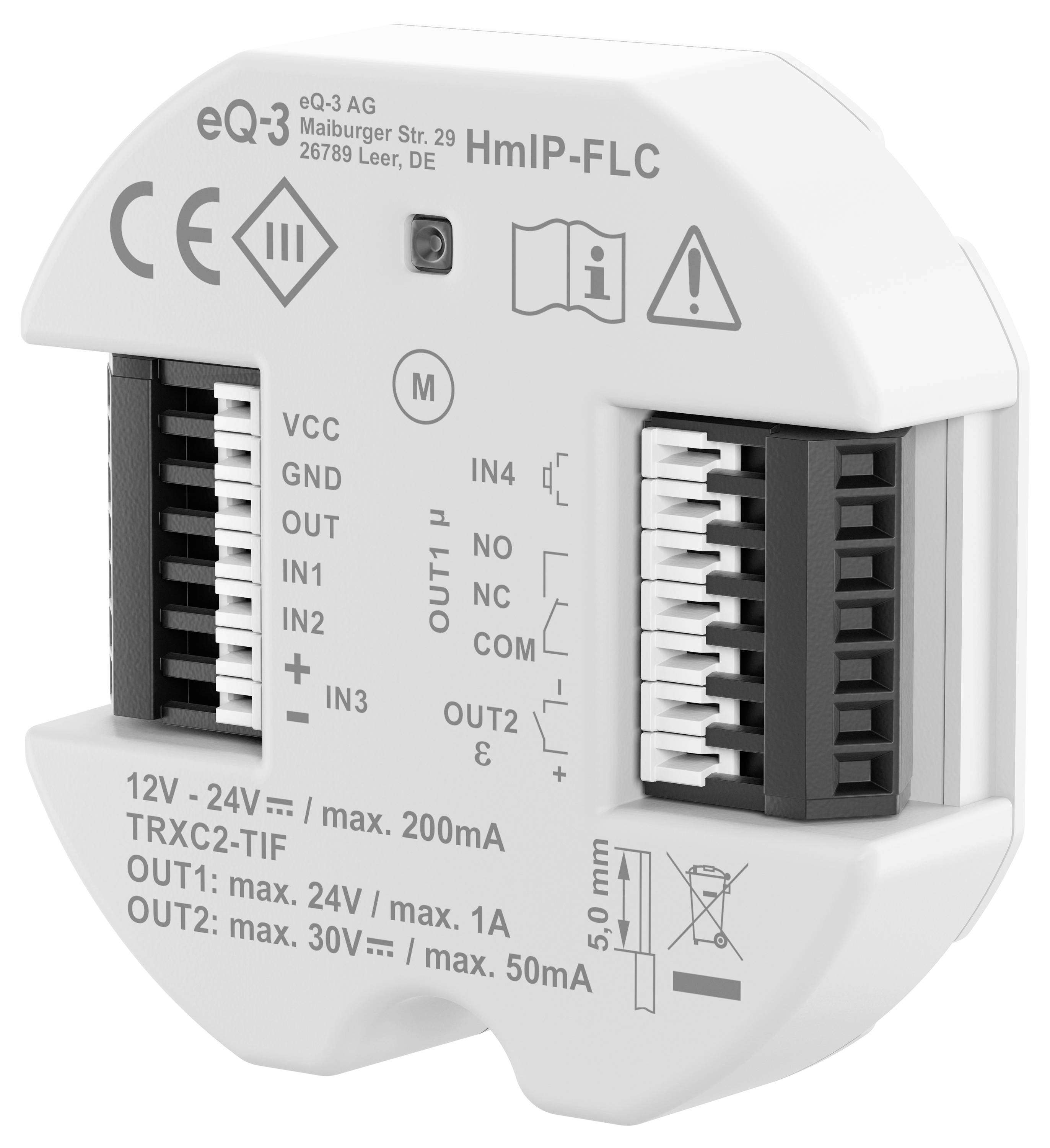

Two flexibly used inputs enable a precise recording of the door status or the configuration of a glass breakage detector, for example. By wired button or switch you can conveniently switch between the day and night mode or trigger an opening impulse.
In addition, two switching outputs are available for the smart control of the engine lock, with which one can also switch between day and night mode and send a switching impulse. In night mode, for example, a complete locking mechanism is secured after 20 a.m. with every use of the door.
This product requires a Homematic IP Access Point or a control center.
Homematic IP, 160578A0, HmIP-FLC
