Raspberry Pi® SBC housing Compatible with (development kits): Raspberry Pi® Active cooling Black

  • item model number: Y388693
Black electronic device with multiple ports, including two HDMI, two USB, Ethernet and power connection, with a fan and Raspberry Pi logo.

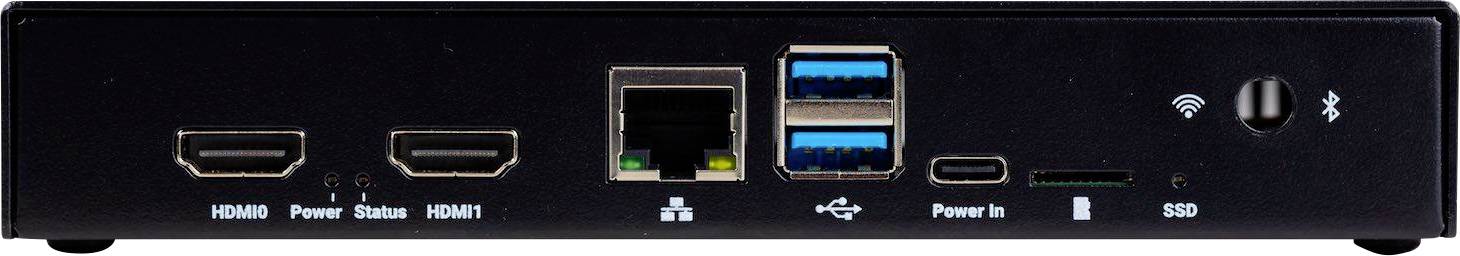

The back panel of a technical device with connections: two HDMI ports, Ethernet, four USB ports, power socket, SSD slot, along with Wi-Fi and Bluetooth symbols.
31,67 €
VAT included
plus
delivery as soon as available
30 days free return shipment
Raspberry Pi® SBC housing Compatible with (development kits): Raspberry Pi® Active cooling Black
31,67 €
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece: 31,35 € 1,0% savings
from 5 piece: 31,03 € 2,0% savings
from 10 piece: 30,71 € 3,0% savings

Product description

Overview

170 mm × 94 mm × 28 mm
Weight approx.: 350 g
Construction made of sheet metal
Brushless DC-fan

Description

The IO enclosure has slots for connecting cameras or DSI displays and includes a built-in, controllable fan to support heat regulation for applications with higher power consumption. Slots on the side of the chassis allow access to the HDMI, Ethernet, USB-A, and USB-C (power) connectors and the SD card slot, and there is a mounting hole for an external wireless/Bluetooth antenna.

Characteristics

5V DC (3.5 - 5.5V) supplied via four-pin fan strip on a carrier board
≥ 3.5V start voltage
0.85W power consumption
0.18 ± 0.02A Nominal current
8000 RPM ± 15% (at 25℃, after 3 - 5 minutes rotation) maximum fan speed
2.46 CFM maximum air flow
21.7 dB noise level
150 mm cable length

Keywords

Raspberry Pi®, SC1966

Other notes

Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.

Black electronic device with multiple ports, including two HDMI, two USB, Ethernet and power connection, with a fan and Raspberry Pi logo.
The back panel of a technical device with connections: two HDMI ports, Ethernet, four USB ports, power socket, SSD slot, along with Wi-Fi and Bluetooth symbols.
