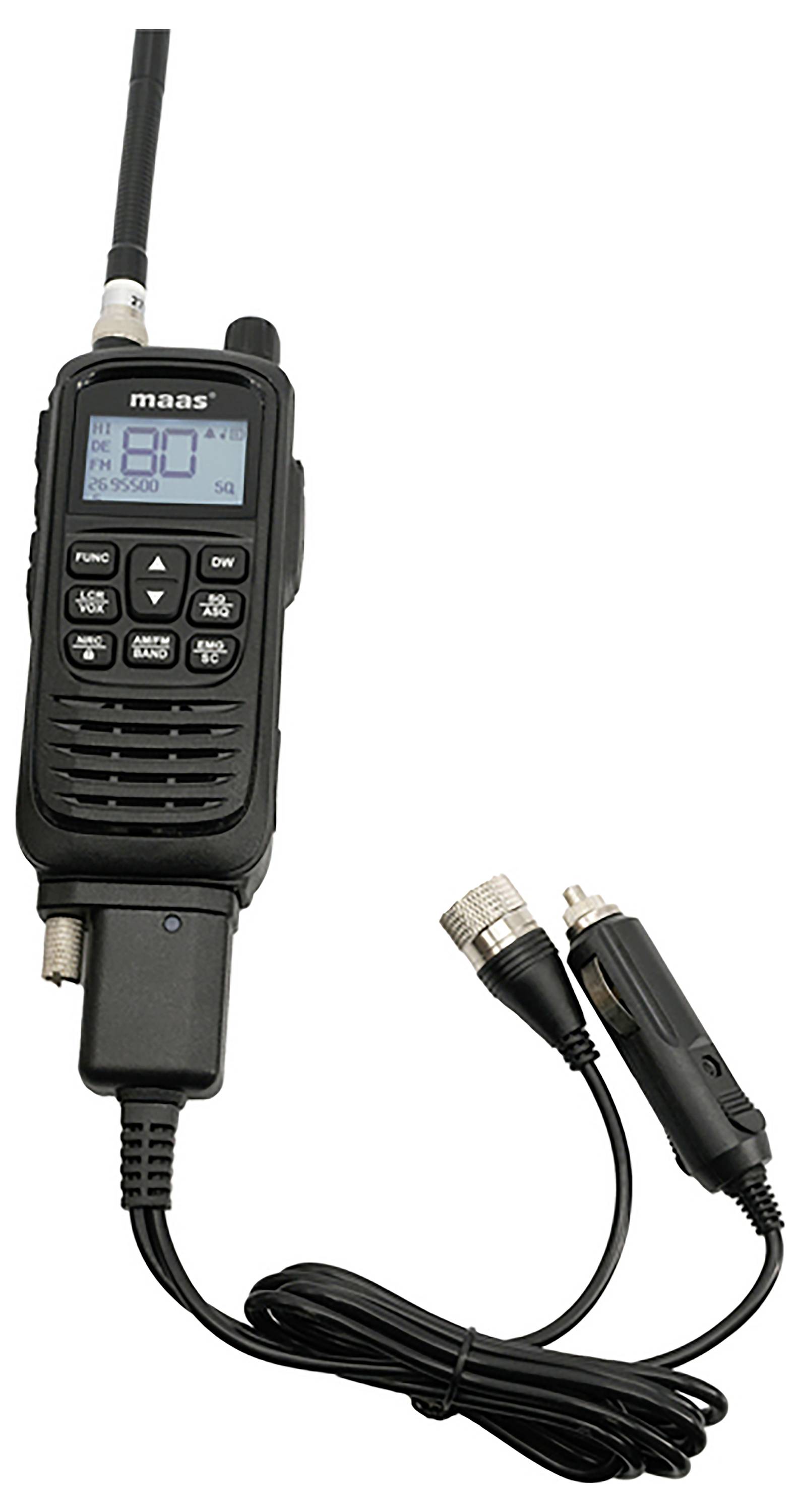

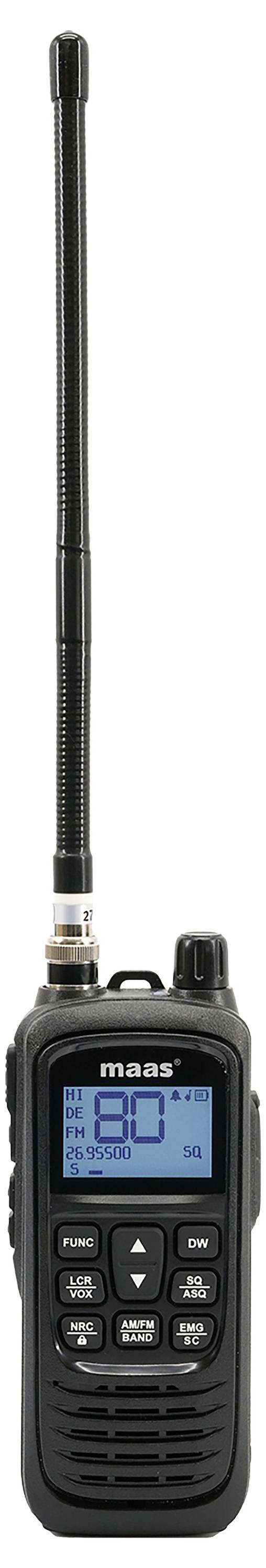

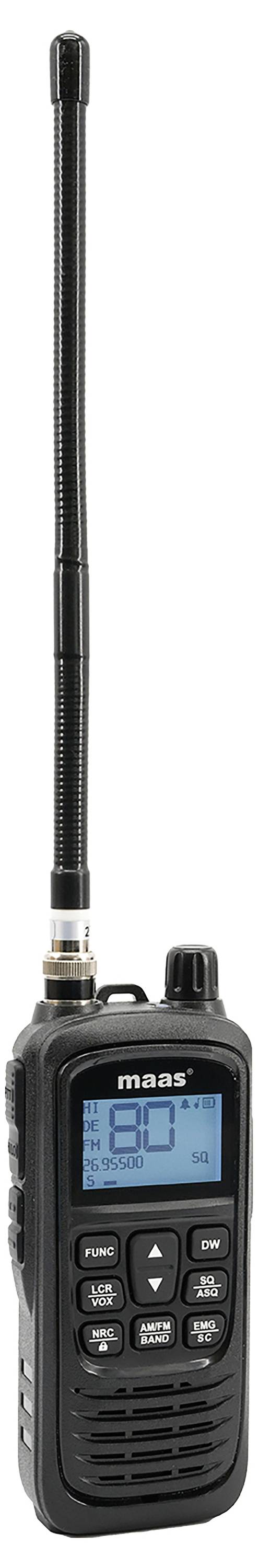

MAAS Elektronik KCB-H-1000 3081 CB handheld radio transceiver

Overview

Combined volume control with ON/OFF function
Lateral PTT key
Side keys for switching the display lighting on and off
Lateral monitor button (squelch off)
FUNC (function button)
LCR/VOX (last channel receive/VOX)
NRC / LOCK (NRC noise suppression / keypad lock)
UP / DOWN (channel selection keys)
AM / FM / BAND (AM / FM switching / country selection - DE, UK, CE, EU,PL)

Description

The MAAS KCB H-1000 is a modern CB multi-standard walkie talkie with extensive features. It can be operated in many EU countries simply by switching to the appropriate standard. It also features NRC, a noise cancellation system that significantly improves playback. Manual noise suppression (SQL) and automatic noise suppression (ASQ) are also available. The simple structured function menu and the large illuminated display makes possible a simple operation. The included car adapter converts the MAAS KCB H-1000 in a fully functional mobile device with the option of connecting an external antenna in seconds. The USB-C port also offers the option of charging the device to the standard USB 5 V adapters today or to use the 230 V or 12 V charger included in the delivery. The external connection for speaker mics and headsets corresponds to the "K" standard (Kenwood double jack plug). In this way a large range of accessories is available or use a suitable microphone adapter with which you can even adapt table microphones or hand microphones of mobile devices to the Maas KCB H-1000.

Characteristics

DW (2-channel monitoring)
SQ / ASQ (squelch / automatic noise limiter)
EMG / SC (emergency call channel / scan channel search)
USB-C charging socket
Connection for car adapter
Connection for speakers, headsets or microphone adapter
COUNTRY STANDARD DE: 80 FM/40 AM
Country standard EC: 40 FM
EU country standard: 40 FM 4 watts / 40 AM
Country standard PL: 40 FM / AM 4 Watt 0 kHz
Country standard UK: 40 FM CEPT 4 watts and 40 FM UK 4 watts

Delivery content

• MAAS Elektronik KCB-H-1000 CB portable radio transmitter
• BNC antenna
• Car adapter
• USB-C charging cable

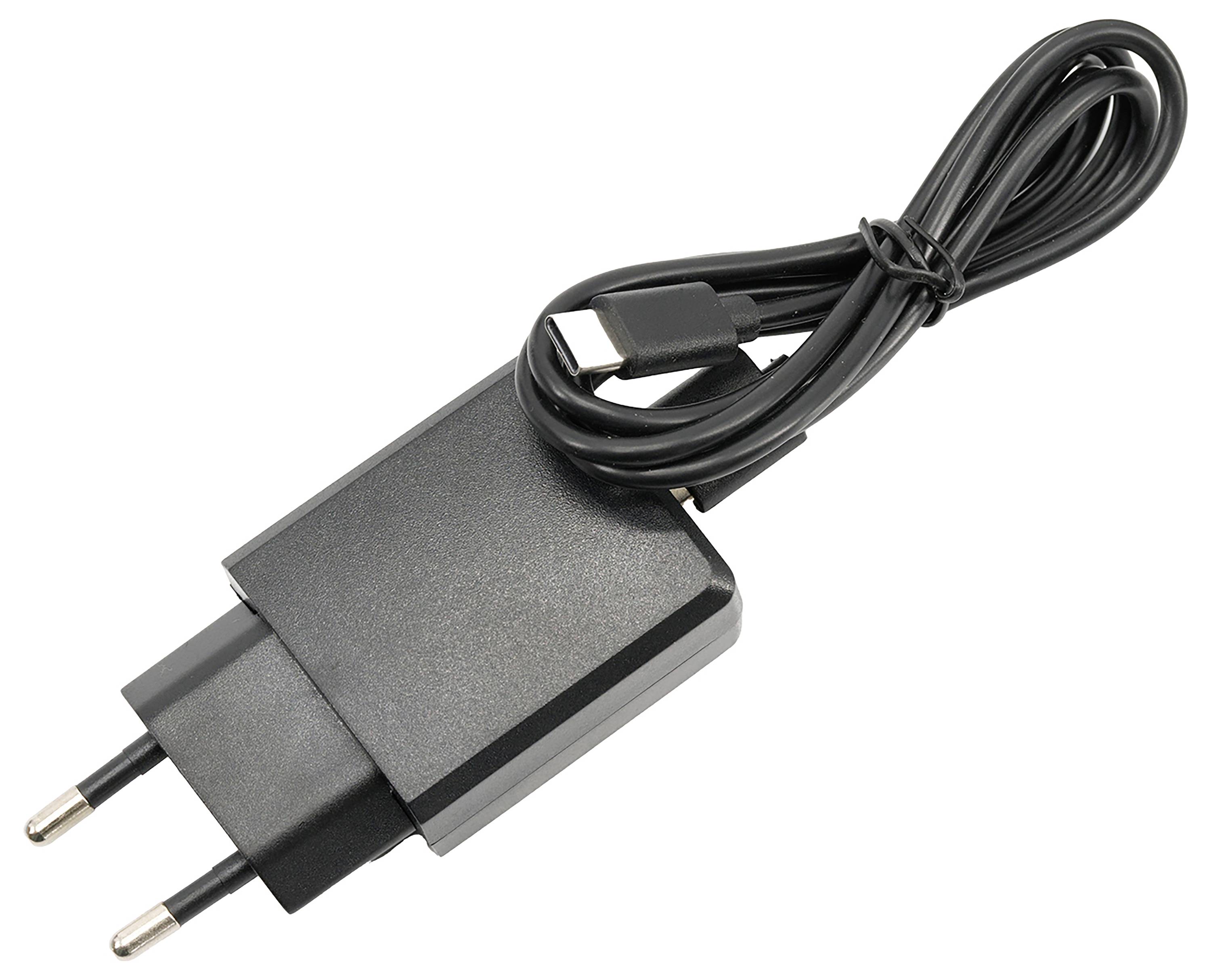

• AC ADAPTER 5 V / 2 A USB

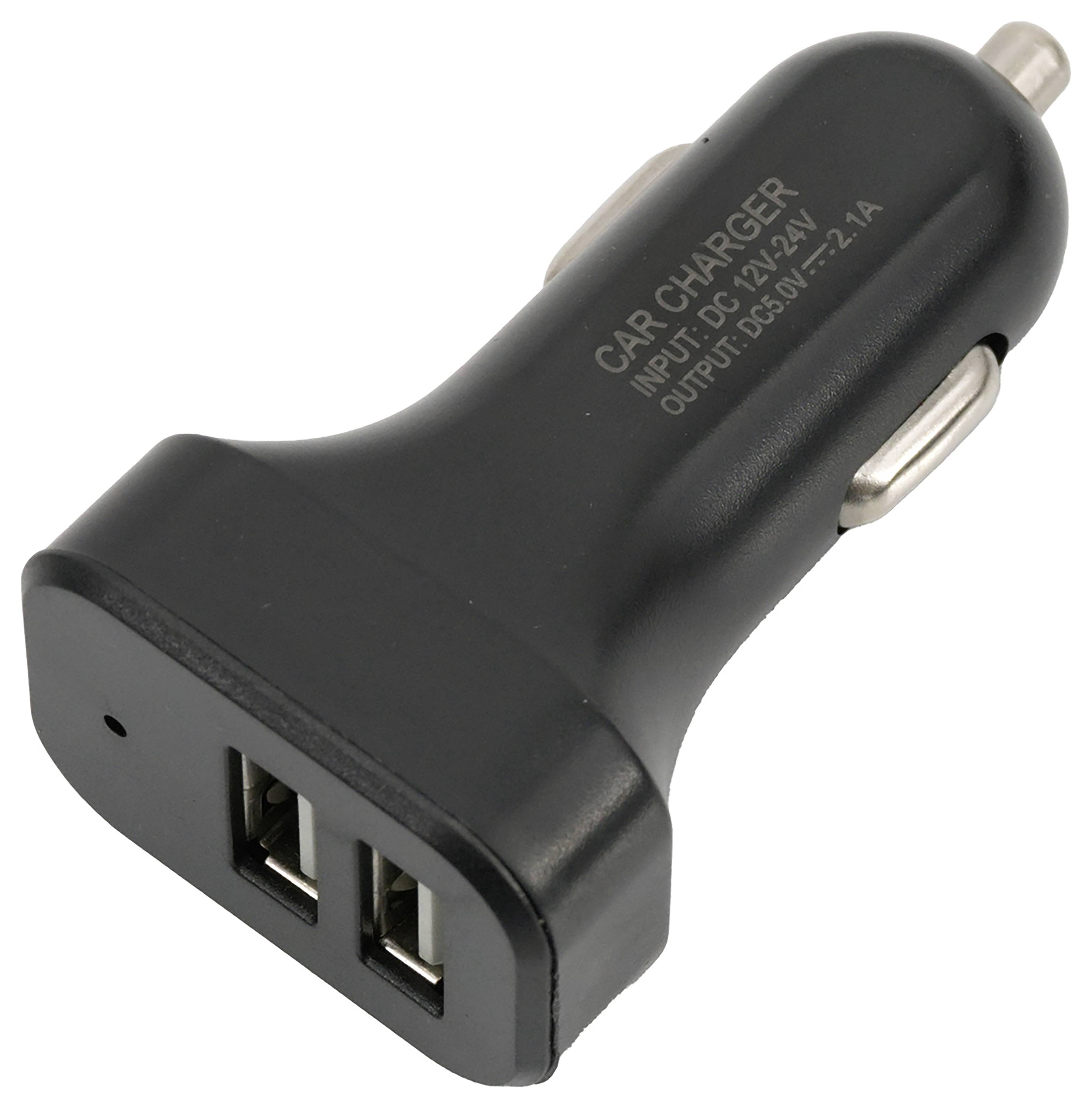

• CIGARETTE LIGHTER ADAPTER 12 V / 5 V USB
• Adhesive device holder
• Belt clip
• User manual
