Rohde & Schwarz HMC8015 Network diagnostics 1-phase Data logger

Overview

Brilliant QVGA color display (320 × 240 pixels)
Up to 10 simultaneous numeric measurement functions
Free configurable display
Real consumption counter through hardware-based integrator
Graphic display modes

Description

With the Rohde & black HMC8015 stands for the first time for the DC- and AC-load or standby current characterization of a compact tester is available to all measuring tasks without additional tools such as a PC or Remote Infrastructure. In addition to numerical and graphical representation of the 26 most important parameters can also be performance and compliance protocols in accordance with IEC 62301, EN 50564 or EN 61000-3-2. Many features are optionally.

Unique in this class is also the graphical representation of the harmonic analysis up to 50. Upper shaft in the logarithmic scale and the freely configurable two-channel trend chart function of, for example, U, I, P, S, Q, or F. Embedded Developers is through the 5-V measuring range which was not reached resolution for power and energy considerations are available.

The R&S®HMC8015 also sets new standards in the documentation: up to 10 freely configurable measured variables are made with 10 measurements per second is shown at the same time. The logging function allows you to save this data in CSV format including time stamp with almost unlimited life. Also the content of the screen can be used in any application by pressing a button on a USB stick can be stored.

The pass/fail-function enables the monitoring of a variety of measured variables on the screen, and externally via a back-to-analogue or digital output. With the inrush function, you can switch-on current and voltage flow captured and displayed graphically.

For the analysis of energy consumption is fitted with a hardware-based integrator is available to the consumption with high precision and without any gaps. The Watt and ampere-hours with the correct sign closed.

An additional sensor input for connecting a clamp-on ammeter or a shunt expands the current measuring range according to the requirements. A three-stage filter in the voltage and current branch of the detection system can be activated with the respective measurement task.

To LXI-Core 1.4 compliant power analyzer is via an Ethernet, USB or GPIB interface (R&S®HMC8015-G) can be remote controlled. The commands are based entirely on the SCPI-Standard. In the communication via USB are the virtual COM port and the TMC-class supported. There are also free driver packages for LabVIEW, LabWindows/CVI, VXI and IVI.net. Thus, the R&S®HMC8015 quickly and easily integrate into existing systems.

Clear representation of all parameters
Brilliant color QVGA display (320 × 240 pixels)
Up to 10 numeric measuring functions can be displayed at the same time
Freely configurable measuring display
Graphical display modes for inrush, harmonic analysis, wave-form and trend chart with option HVC 151 can be activated

Exact measurement
0.05 % basic accuracy
Signal acquisition of DC up to 100 kHz, with 500 ksample/s sampling rate
Simultaneous display of current and voltage of each with 16 bit resolution
Three-stage filter system with the respective measuring task
Long-time data recording using the USB-Stick in CSV format

Measurement functions for everyday life.
Real consumption counter with hardware-based Integrator
26 different measurement and mathematical functions
Limit Test with pass/fail display (with Option HVC 152 free switchable) for up to six limits, can be selected from 14 measured variables (e.g. U, I, P, S, Q, F)

Connections and expansion

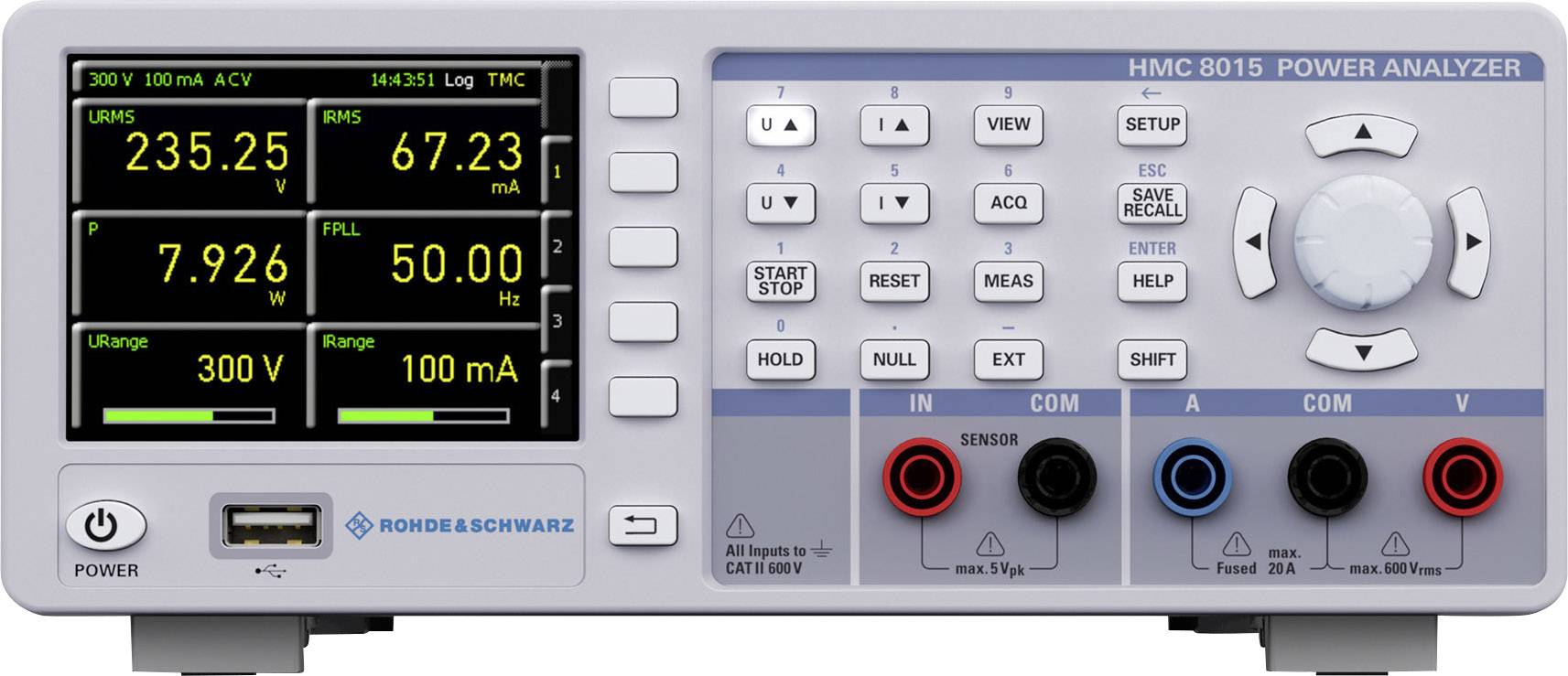

Front side: 4-mm safety sockets

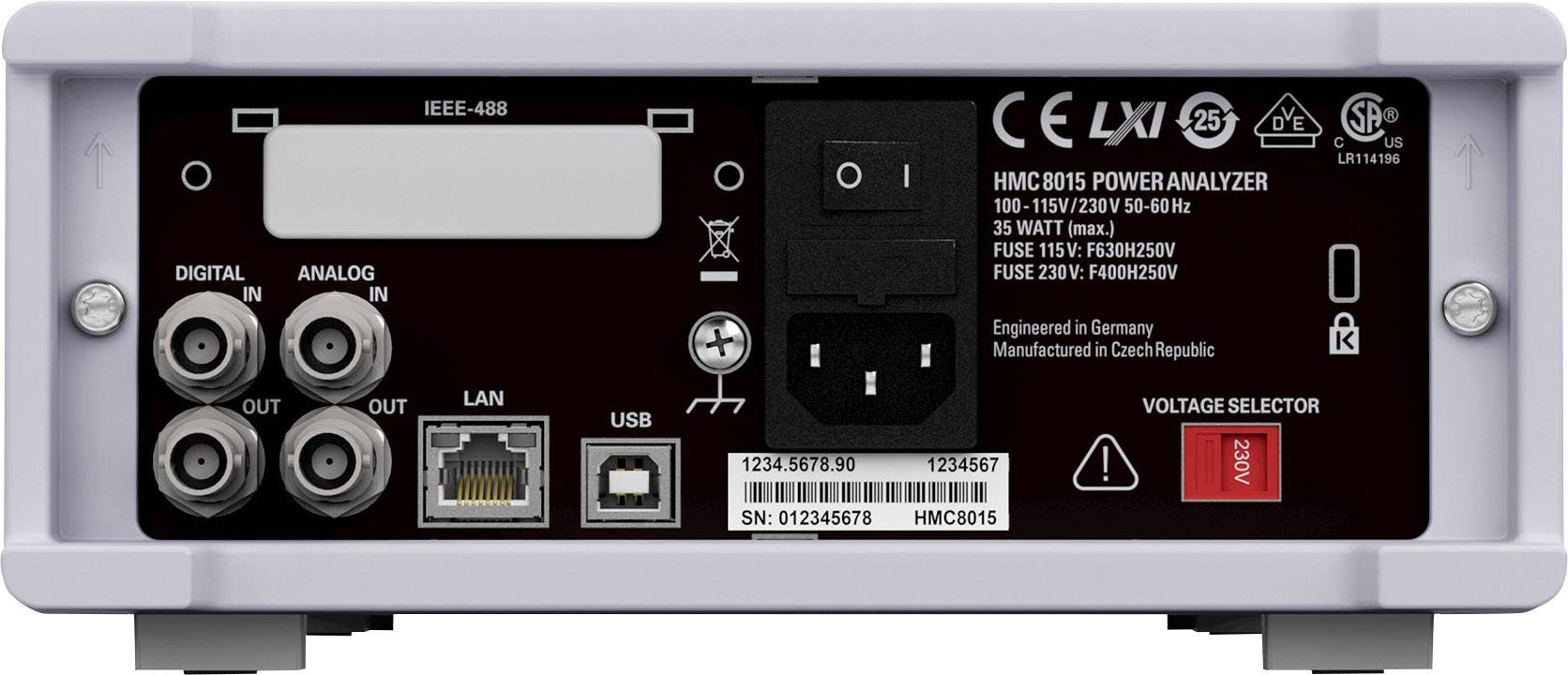

Back: 4 BNC connections for analogue and digital inputs and outputs with option HVC 152 can be activated
Additional sensor input for connecting a clamp-on ammeter or a shunt can be activated with option HVC 152
USB port (Virtual COM port and TMC-class)
Ethernet interface (LXI) with integrated web server
IEEE-488 (GPIB) interface (R&S®HMC8015-G)
Compliance test for the most important standby and harmonic standards with option HVC 153 can be activated
Remote control via SCPI-based commands
Driver Packages for LabVIEW, LabWindows/CVI, VXI, IVI.net

This text is machine translated.

Characteristics

Power measurement range: 50 μW to 12 kW
Analog bandwidth: DC to 100 kHz
sampling frequency: 500 ksample/s
16 bit resolution each for current and voltage
basic accuracy: 0.05 %;26 different measurement and mathematical functions

Delivery content

• Mains cable - Operating instructions.
