Laserliner 082.236A Inspection camera

  • item model number: Y069793
Inspection Camera Set with Monitor, 2 m Long Cable, Carry Case, Li-Ion Battery, Memory Card, USB-C Cable and Various Adapters.

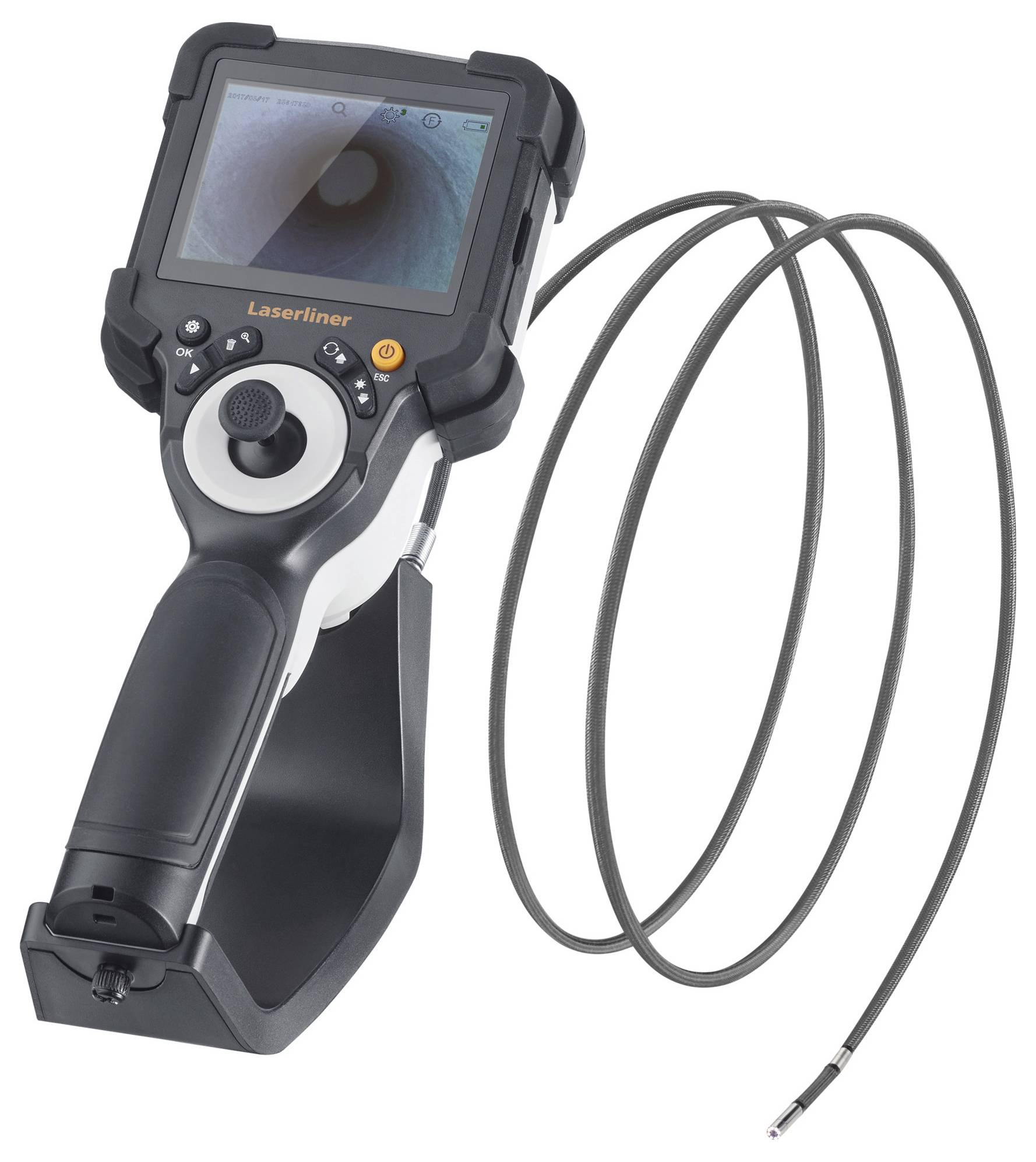

An inspection camera device with a flexible cable and screen for displaying investigations, useful for hard-to-reach areas.

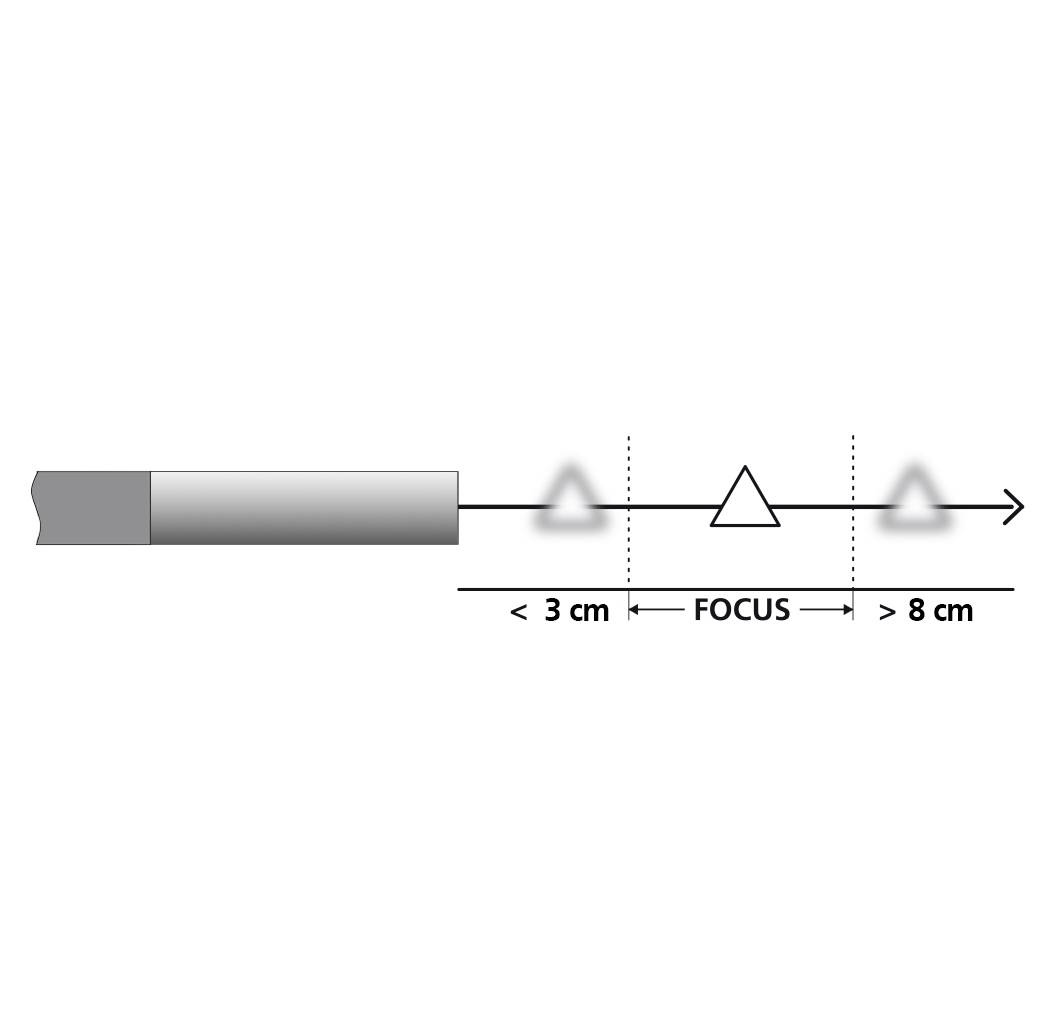

Shows a focal point between under 3 cm and over 8 cm on a horizontal axis. An arrow runs from left to right.

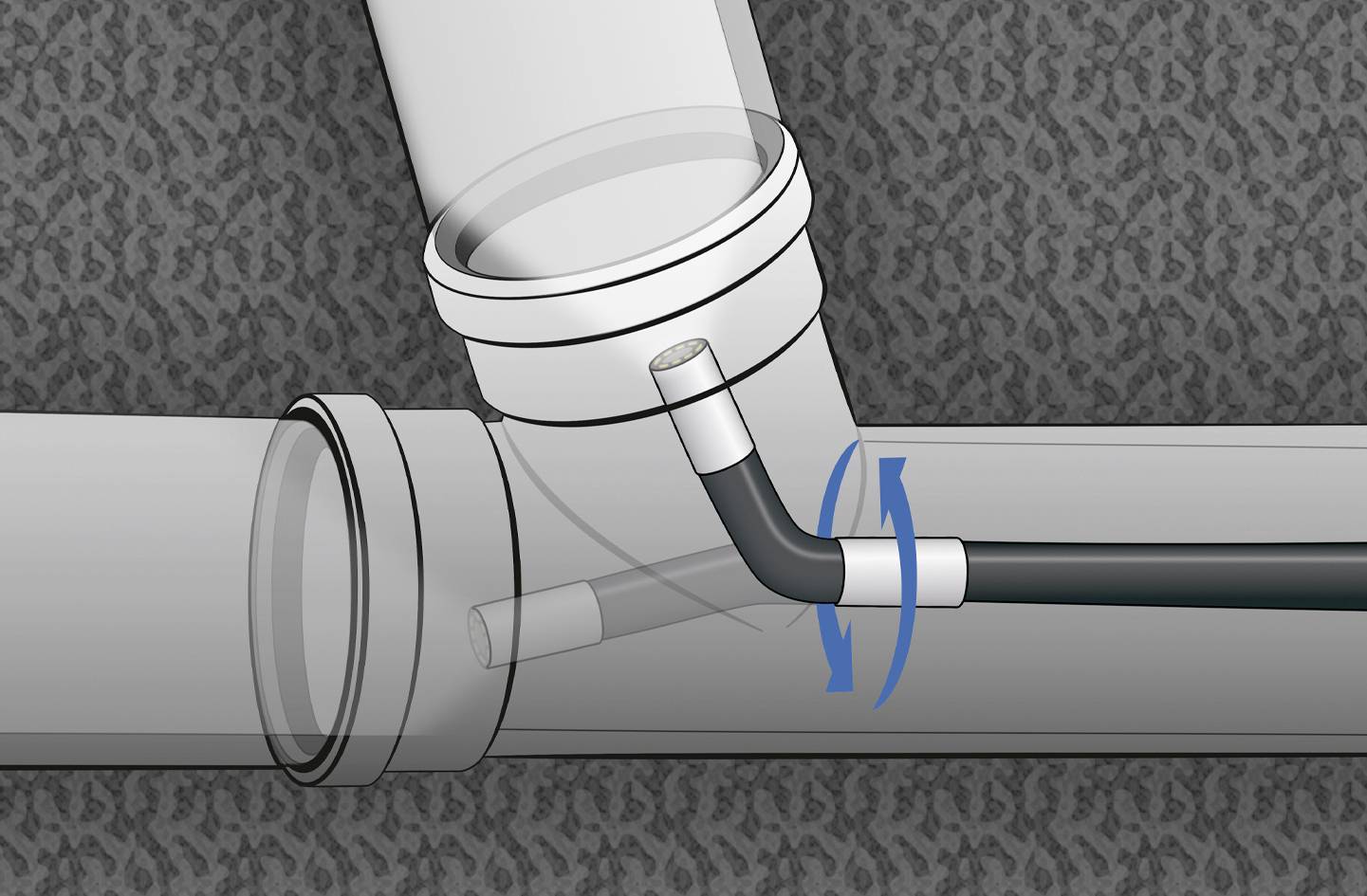

The graphic depicts a piping system with a flexible hose being inserted into a pipe. The hose is curved and indicates the direction of movement.

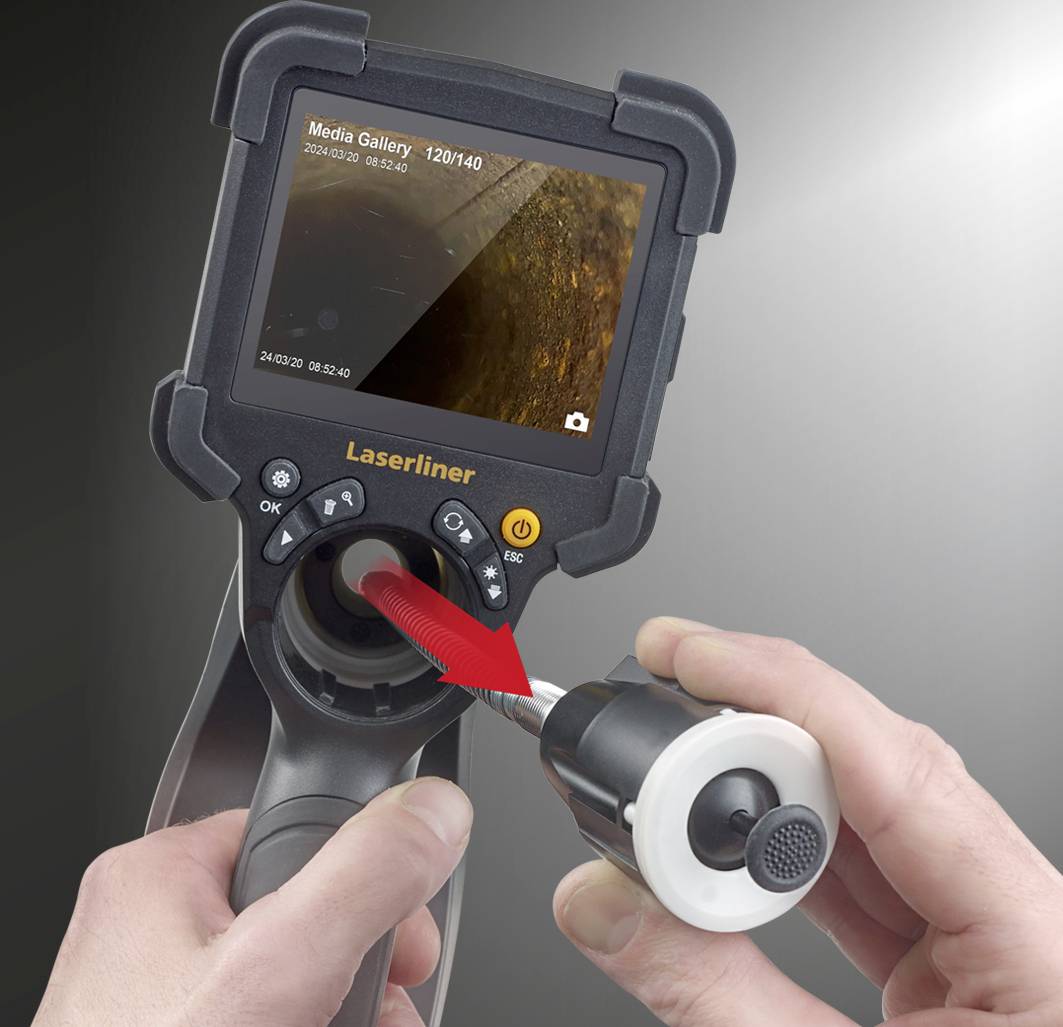

A person is holding an inspection camera with a screen displaying the interior of an object.

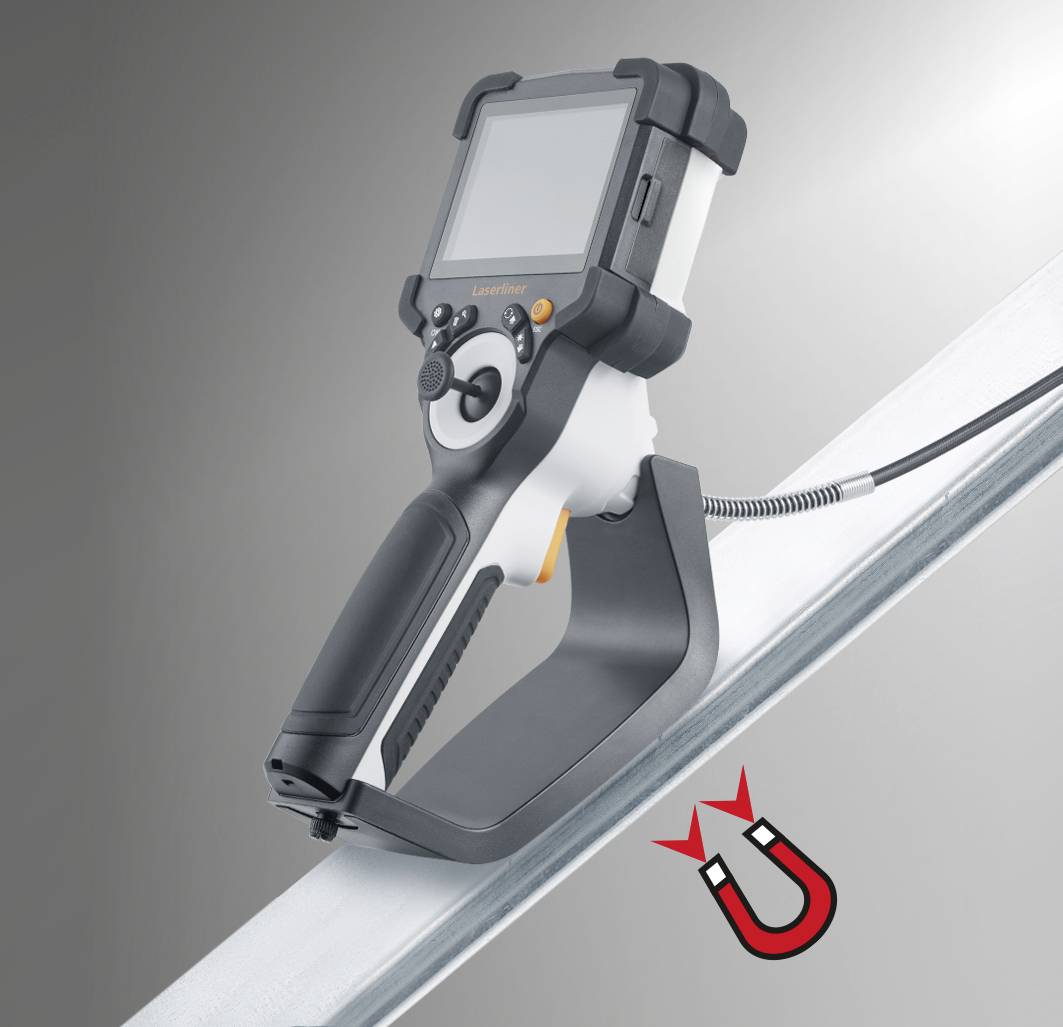

Handheld device with a grey screen, held against a metal component. Magnet symbol in the bottom right indicates magnetic function.

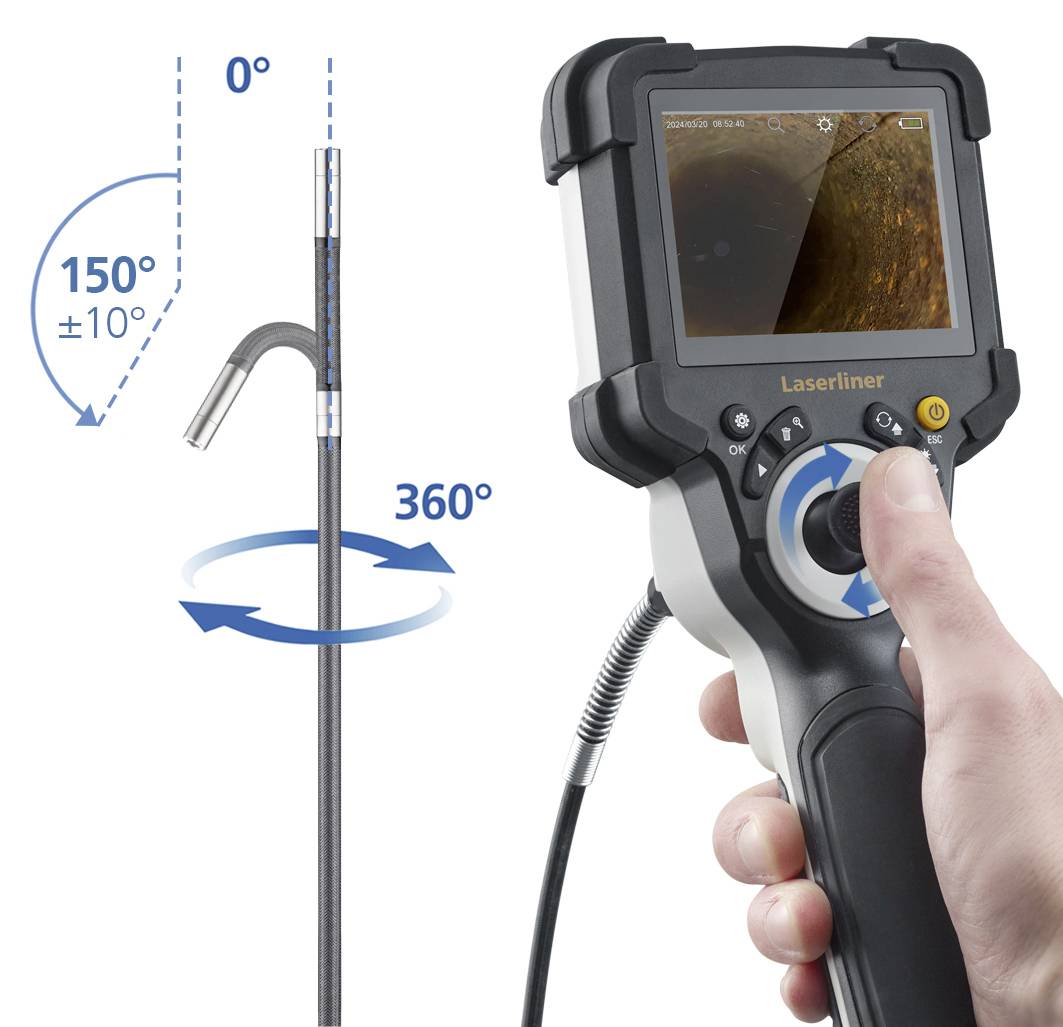

A hand holds an endoscope with a rotatable camera and screen. On the left, a diagram shows the flexible camera angle ranging from 0 to 150 degrees and a 360-degree rotation.

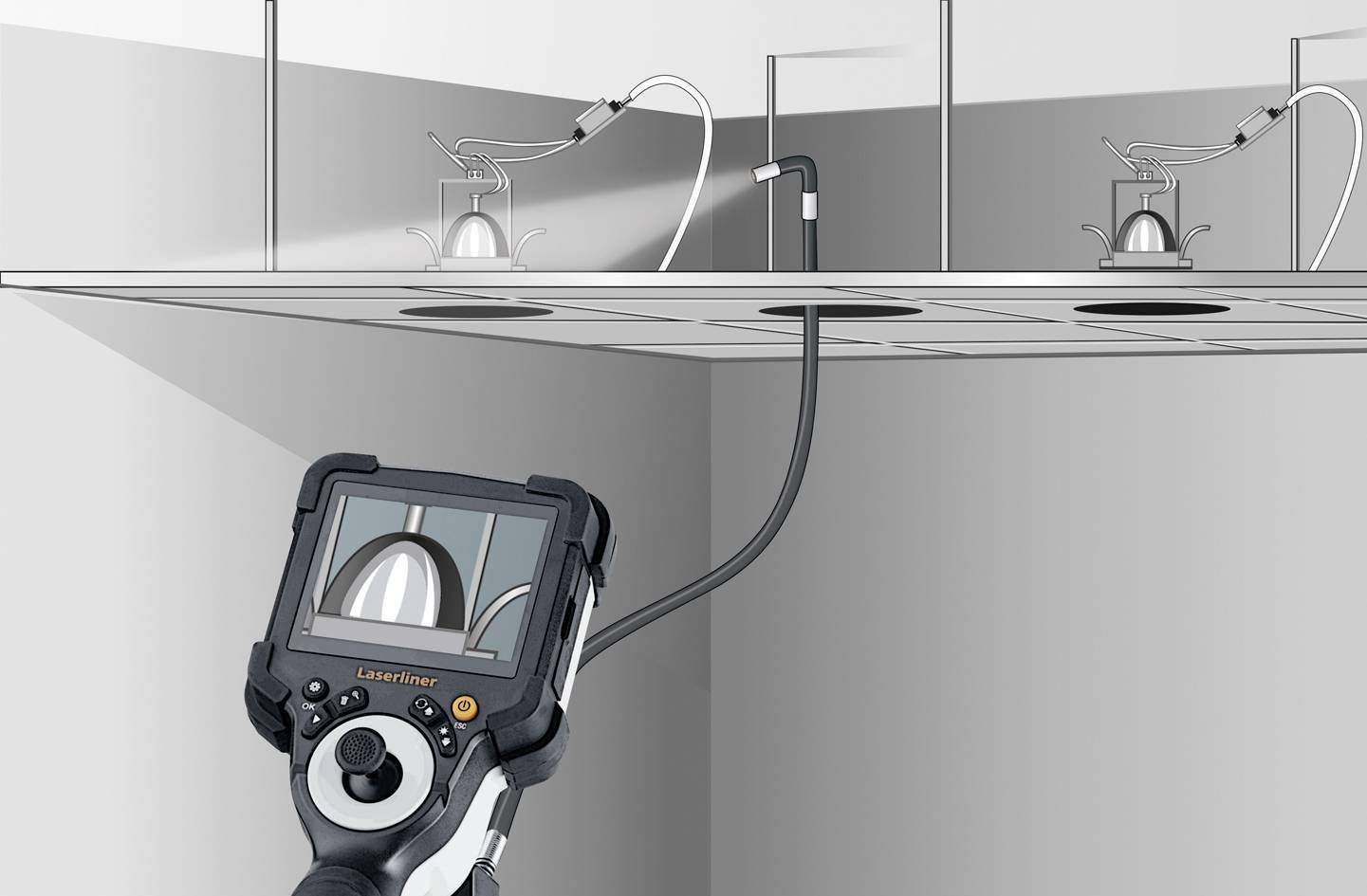

An endoscope is inspecting a complex ceiling structure, with details of the ceiling's interior visible on the screen.
CHF 1 822.35
VAT included
plus
Delivery time: 3-4 days
in stock
30 days free return shipment
Laserliner 082.236A Inspection camera
CHF 1 822.35
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 1 804.12 1,0 % savings
from 5 piece : CHF 1 785.90 2,0 % savings
from 10 piece : CHF 1 767.67 3,0 % savings

Product description

Overview

- Effective problem localization behind or in objects, walls, pipes, cavities
- Maximum Flex flexibility and optimum perspective with joystick control of the camera head
- Time-saving set-up on site by quickly adjusting the required viewing angle
- Ideal for hard-to-reach areas that are not visible with rigid camera systems
- Reliable inspection by moving pipe seals off by 360°
- Compact camera head optimal for small openings
- Camera head and probe are waterproof and resistant to diesel, petrol, engine oil, AdBlue®, ethyl alcohol and salt water (salt content 28%)
- Bright object lighting by 8 high-power LEDs
- The user has both hands free to work with the magnetic stand on the Basi unit
- Image is available in variable views by rotation and mirroring on the monitor
- True-to-life colors for realistic display
- Can also be used in network operation
- Flex possible applications through interchangeable camera unit
- Evaluation and documentation vi

Description

This professional video inspection system offers maximum Flex compatibility even with complex work. It has an individually moving, extremely small camera head, ideal for narrow openings. The camera head can be quickly adjusted to the optimal perspective by joystick on the Basi unit. This allows the investigation of hard-to-reach areas that are not visible with rigid camera systems. The inspection is also very reliable, as e.g. pipe seals can be checked by 360° and the damage points can be detected in a targeted manner. Camera head and probe are waterproof and resistant to diesel, petrol, engine oil, AdBlue®, ethyl alcohol and salt water, making the device very versatile. Other advantages are the first-class LED object lighting and the magnetic stand for setting up the Basi unit.

Delivery content

  • VideoInspector
  • Inspection camera 3DL
  • Integrated Li-Ion battery pack
  • Mains / charger incl. international Adapter
  • USB cable
  • Micro SD card
  • Carrying case

Keywords

Laserliner, 082.236A, VideoInspector 3DL, gooseneck camera, gooseneck, goose neck

Inspection Camera Set with Monitor, 2 m Long Cable, Carry Case, Li-Ion Battery, Memory Card, USB-C Cable and Various Adapters.
An inspection camera device with a flexible cable and screen for displaying investigations, useful for hard-to-reach areas.
Shows a focal point between under 3 cm and over 8 cm on a horizontal axis. An arrow runs from left to right.
The graphic depicts a piping system with a flexible hose being inserted into a pipe. The hose is curved and indicates the direction of movement.

Product specifications

Downloads

Reviews
