Digitus DN-93615-4 RJ45 module Keystone CAT 6A 4 pc(s)

Four metallic Ethernet keystone modules with white release lever, suitable for installation in network distribution cabinets.

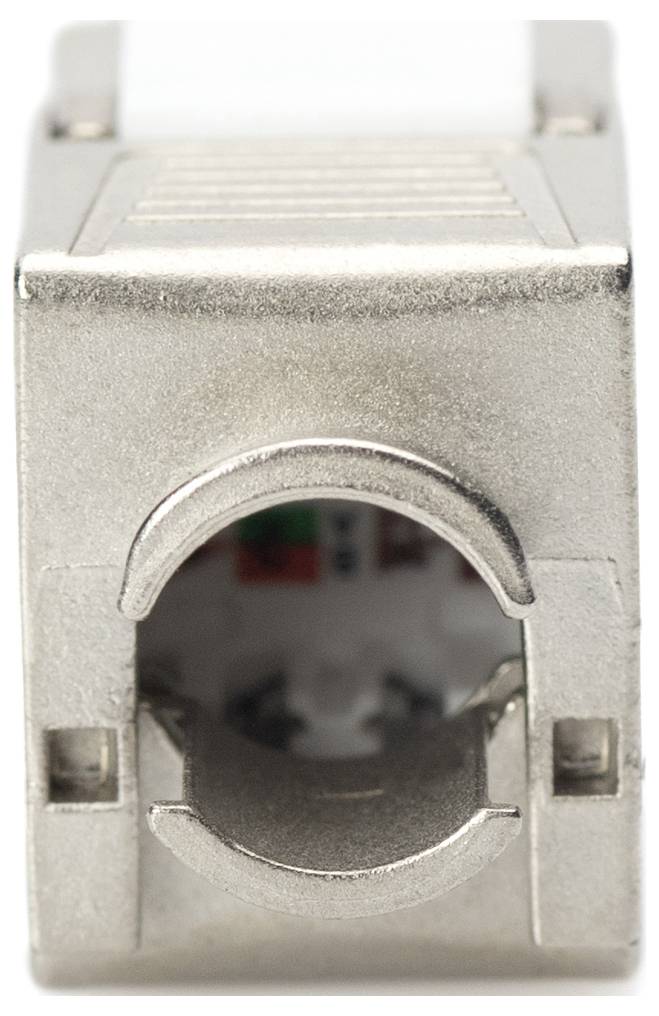

A grey network plug or adapter with a visible connector port in close-up, potentially for Ethernet cables.

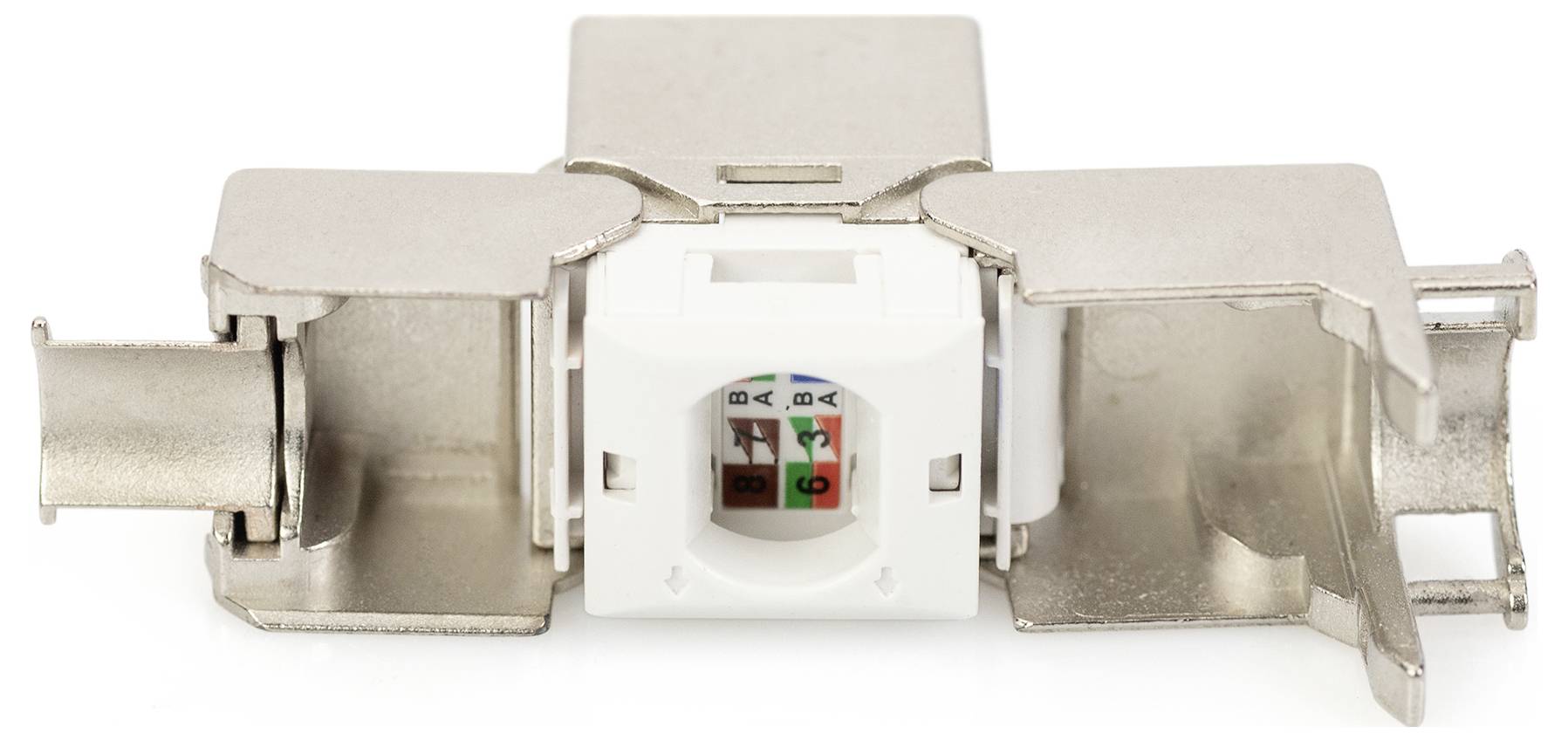

Metal RJ45 keystone module with plastic block in the centre, for network cabling, on a white background.

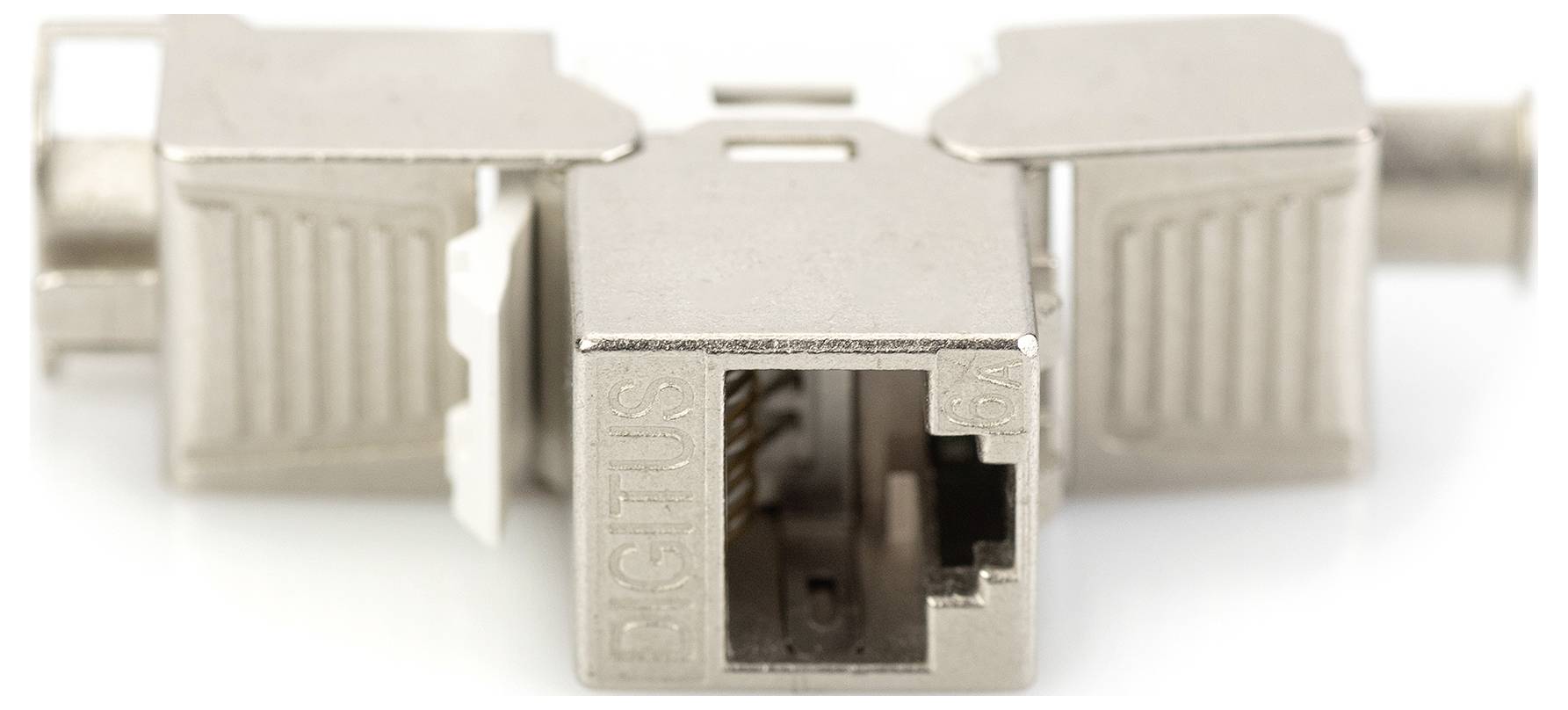

Metal network plug with socket for Ethernet cable, suitable for connecting network components, close-up view.

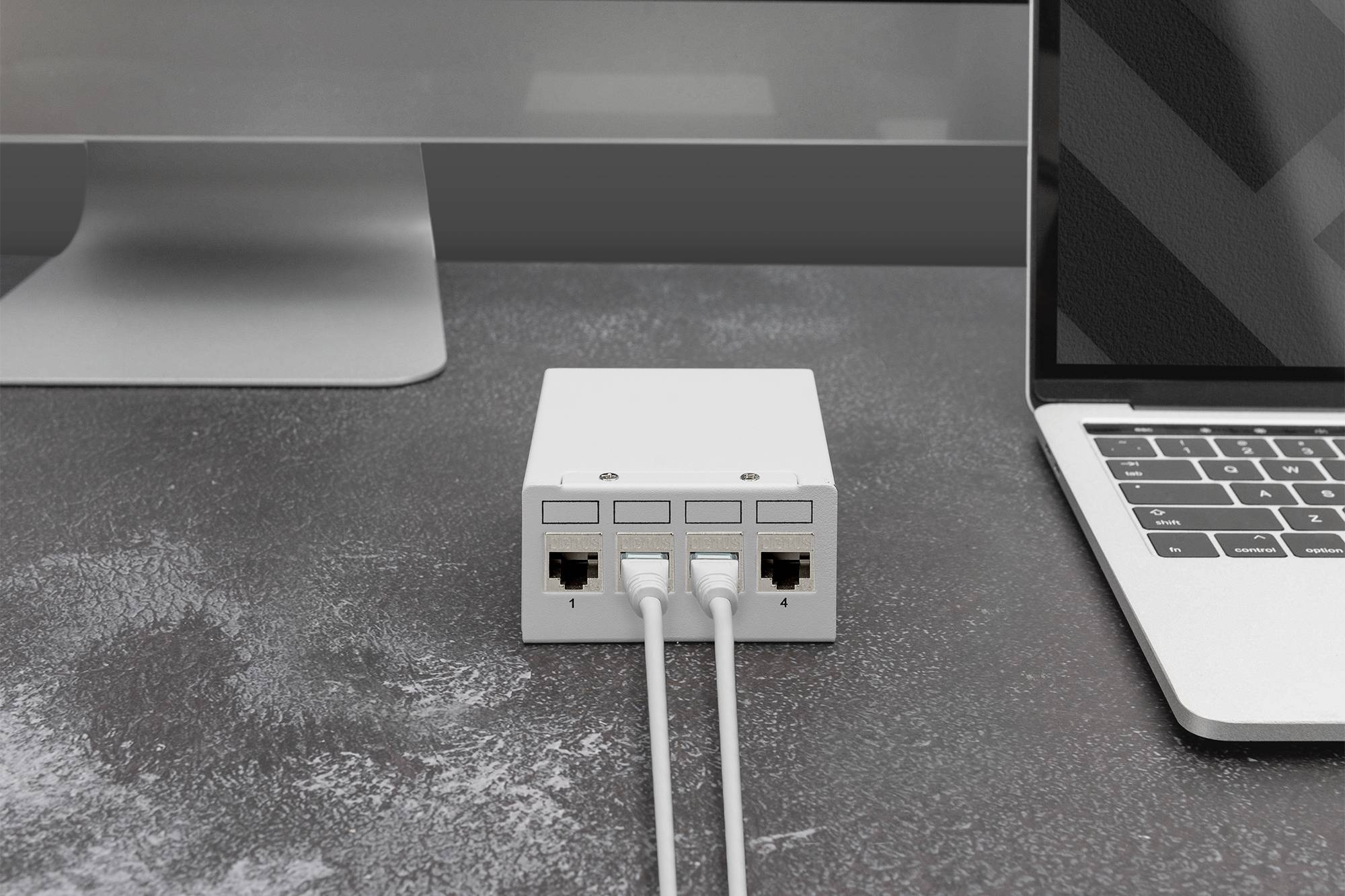

A small, white network switch connects two computers with network cables. The devices are situated on a grey desk.

13,59 €

VAT included

plus

pack

Delivery time: 1-2 days

in stock

30 days free return shipment

Digitus DN-93615-4 RJ45 module Keystone CAT 6A 4 pc(s)

13,59 €

VAT included

plus

One article is not enough for you and you want to save money?

from 3 pack:	13,45 €	1,0% savings
from 5 pack:	13,31 €	2,1% savings
from 10 pack:	13,18 €	3,0% savings

Product description

Overview

Category: 6A, 10GBASE-T, 500 MHz
ISO/IEC 11801 3rd Edition, EN 50173-1
Suitable for PoE/PoE+/4-pin (IEEE 802.3af, 802.3at, 802.3at)
Suitable for junction box and junction box mounting
RJ45-socket 8P8C
Cable installation via insulation displacement terminals, color coded according to EIA / TIA 568 A & B.
Strain relief and cable fixing with the help of cable ties
Tool-free installation
360°-Shield contact
Material housing: Zinc die-cast - nickel-plated
Contact material: Phosphorbronze
Coating contacts: Nickel, gold-plated 0.5 μ
OPERATING TEMPERATURE -20 °C TO +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
PLUG-IN CYCLES ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
Tested with AWG 22/1 solid installation cable
Tool-free installation by means of LSA insulation displacement terminals, color-coded according to norm EIA/TIA 568 A & B
Intelligent cable manager (resealable)
Category: CAT 6A Keystone module set

Description

The shielded CAT 6A Keystone module set DN-93615 from Digitus® convinces with future-oriented standards and high-end quality for your network. The compact design permits a series installation in 483 mm (19") 1HE Panel. Tool-free installation takes place via LSA strips, color coded according to EIA/TIA 568 A&B. The compact design of the module also fits into modular junction boxes compatible with design.

Characteristics

Category: 6A, 10GBASE-T, 500 MHz
ISO/IEC 11801 3rd Edition, EN 50173-1
Suitable for PoE/PoE+/4-pin (IEEE 802.3af, 802.3at, 802.3at)
Suitable for junction box and junction box mounting
RJ45-socket 8P8C
Cable installation via insulation displacement terminals, color coded according to EIA / TIA 568 A & B.
Strain relief and cable fixing with the help of cable ties
Tool-free installation
360°-Shield contact
Material housing: Zinc die-cast - nickel-plated
Contact material: Phosphorbronze
Coating contacts: Nickel, gold-plated 0.5 μ
Operating temperature -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
PLUG-IN CYCLES ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
Tool-free installation by means of LSA insulation displacement terminals, color-coded according to norm EIA/TIA 568 A & B
Intelligent cable manager (resealable)
Category: CAT 6A Keystone module set
