360° shield contacting
Suitable for field assembly (tool-free installation)
Designed - suitable for junction box and junction box mounting
CAT 6A with LSA-terminals
Dust cover for RJ45 socket
GHMT certified
Supports PoE standards IEEE 802.3 AF/at/bt (PoE, PoE+ & 4PPoE)

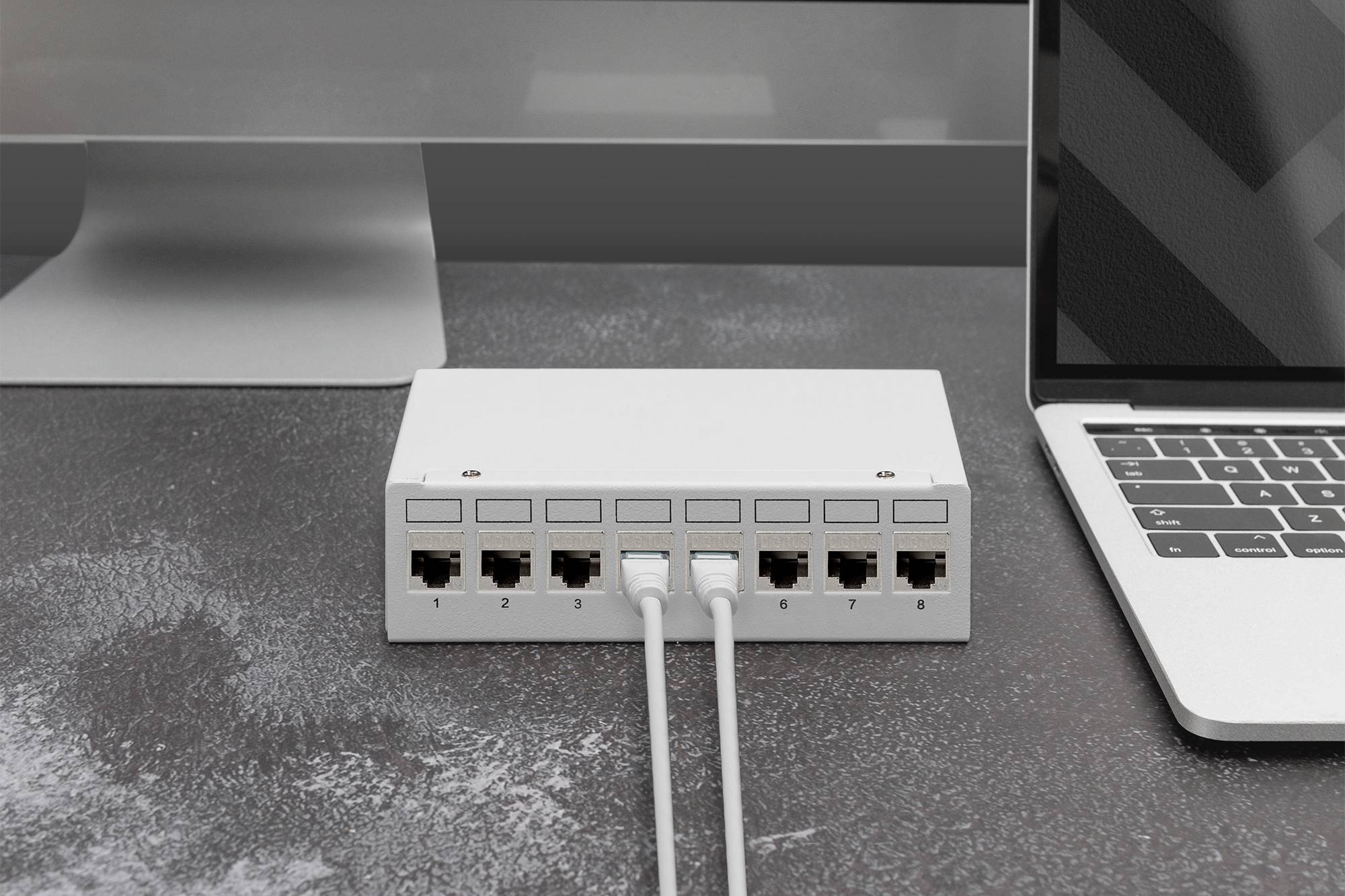

The shielded CAT 6A Keystone module set DN-93615 from Digitus® convinces with future-oriented standards and high-end quality for your network. The compact design permits a series installation in 483 mm (19") 1HE Panel. Tool-free installation takes place via LSA strips, color coded according to EIA/TIA 568 A&B. The compact design of the module also fits into modular junction boxes compatible with design.
Suitable for PoE/PoE+/4-pin (IEEE 802.3af, 802.3at, 802.3at)
Suitable for junction box and junction box mounting
RJ45 socket, 8P8C

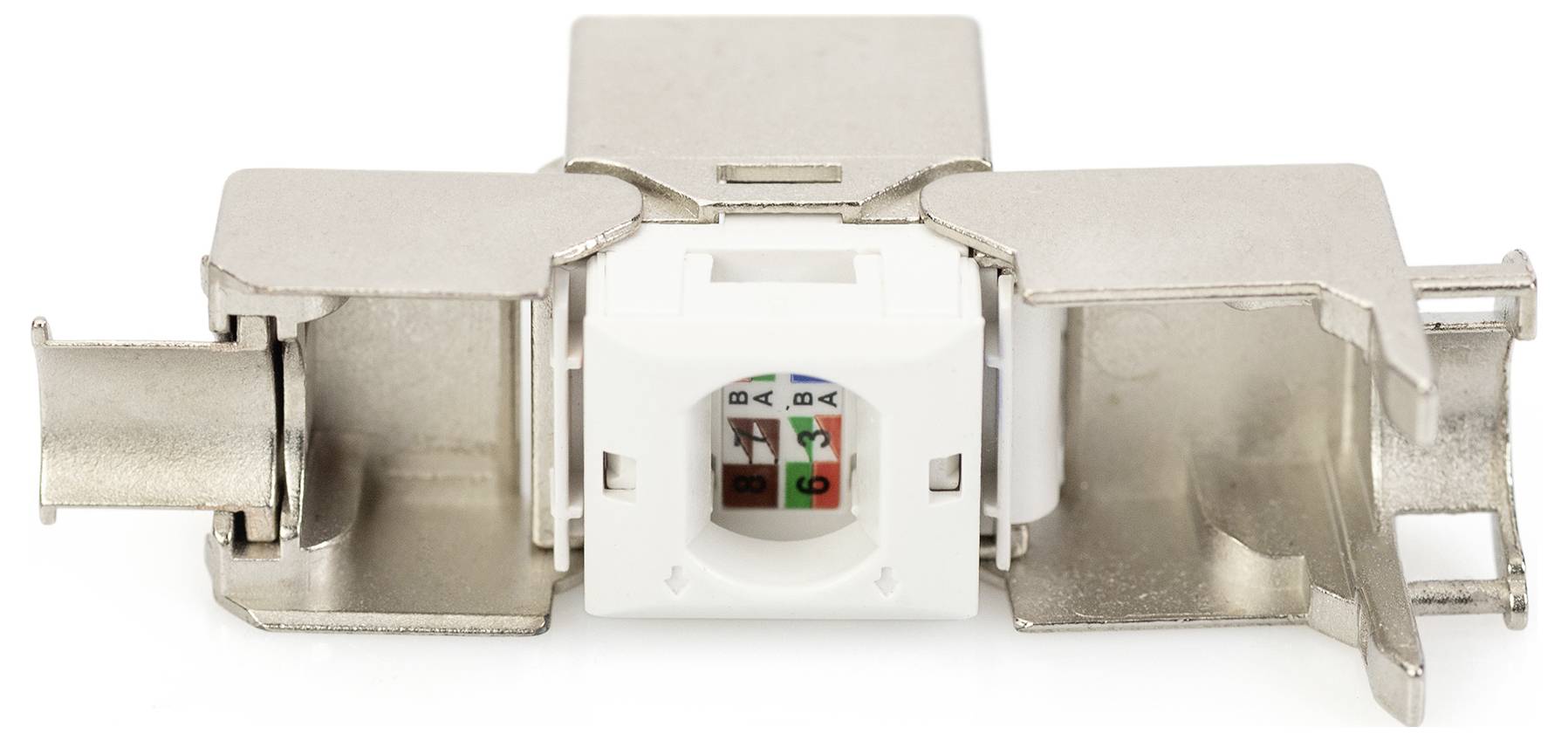

Cable installation via insulation displacement terminals, color coded according to EIA / TIA 568 A & B.
Strain relief and cable fixing with the help of cable ties
Tool-free installation

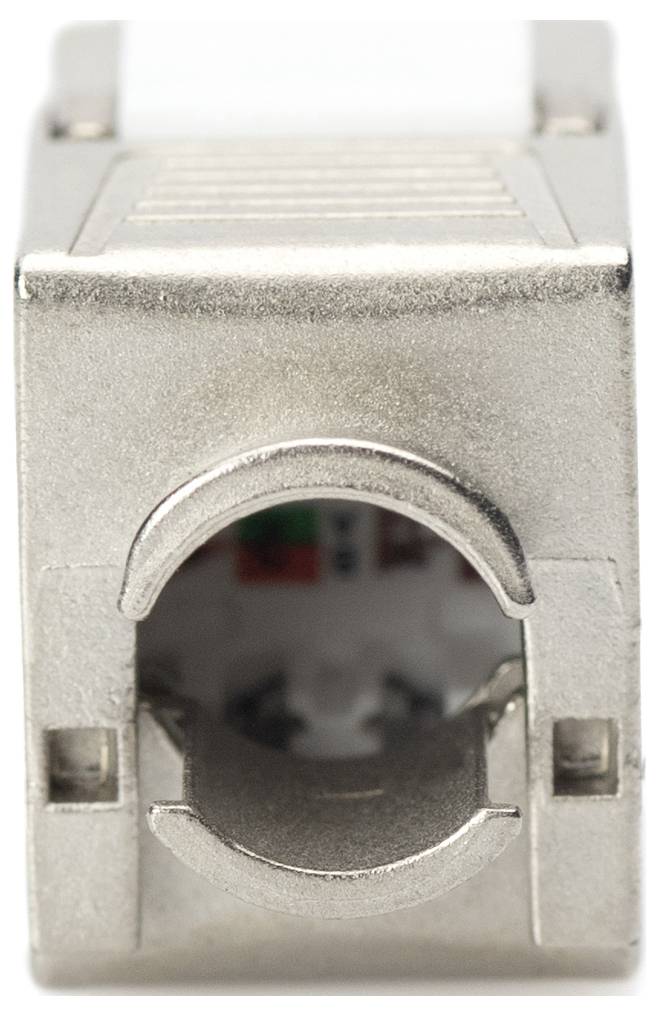

360°-Shield contact
Material housing: Zinc die-cast - nickel-plated
Contact material: Phosphorbronze
Coating contacts: Nickel, gold-plated 0.5 μ
Tested with AWG 22/1 solid installation cable (Digitus® DK-174X-A-VH-X; AWG 22/1 CAT.7A laying cable)
Intelligent cable manager (resealable)
