Elegant real glass design – Ideal for modern living environments
Up to four individually configurable keys and Quick ACTION function for easy control
Background lighting of the touch surfaces for visual feedback
Relay output and extension input for implementing button circuits
Simple integration in many switch programs through 55-frame size
The Homematic IP glass button adds modern elegance and convenient control to your Smart home. Through the high-quality designed touch-surfaces you can operate up to five devices or functions simply by finger tip.
Installation

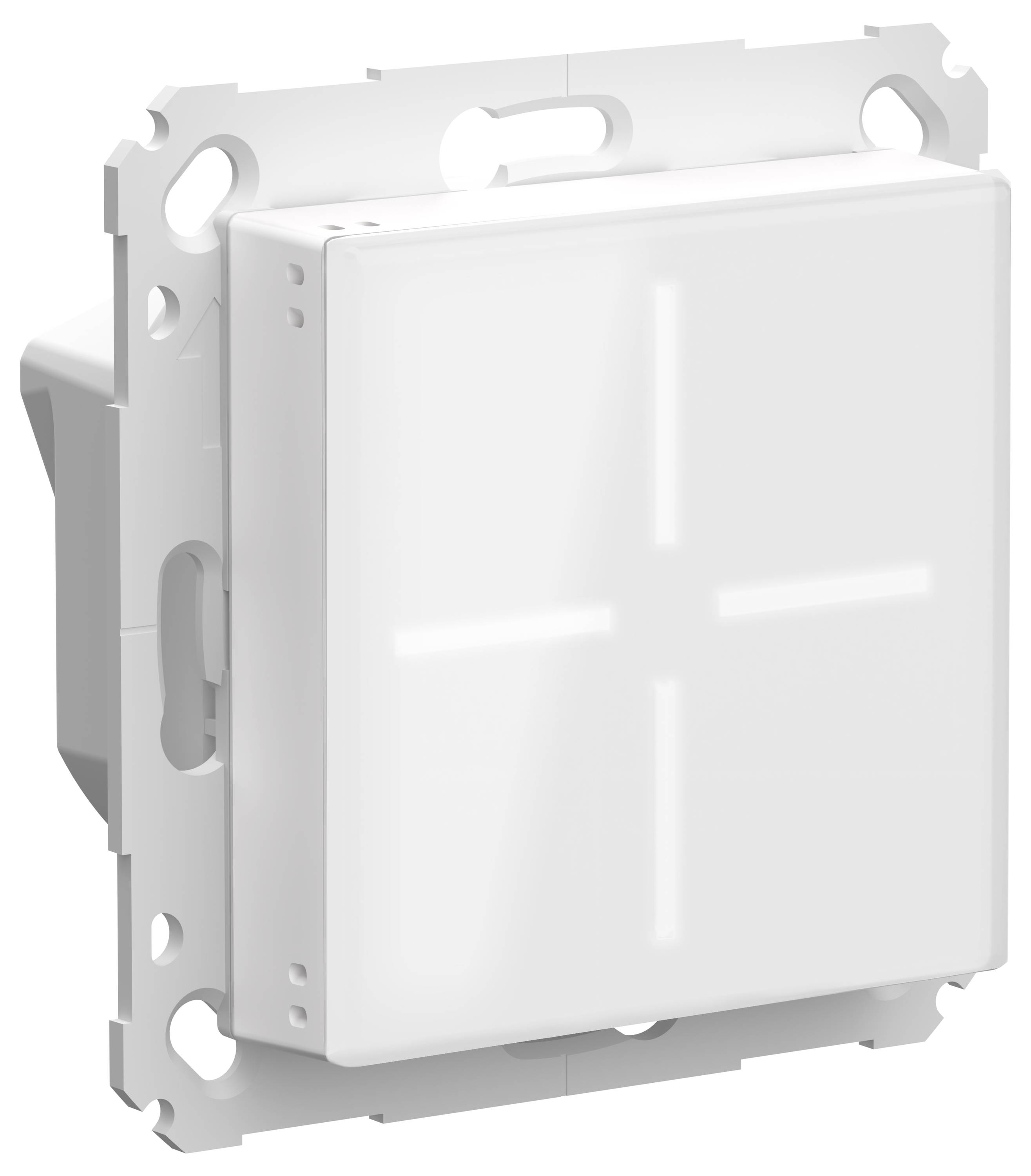

The installation is done in commercially available switch boxes according to DIN 49073-1 or in Legrand Batibox-flush-mounted sockets. The mounting module with relay output is used as base which is connected to 230 V/50 Hz. In addition to the connection for external conductor, neutral conductor and load, an optional extension input is also available – for example for the implementation of classical key or toggle circuits.
Note: The suitable Homematic IP glass frames (1-/2-/3-fold) are available separately and are not included in the delivery.
Setting
In the Homematic IP APP, the key layout is configured individually – as a 1, 2 or 4 channel variant. The contact surfaces are visually separated by darkened dividers. The Quick ACTION function triggers a separately configurable function - by a simple touch of all buttons with the palm The LED background lighting of the touch surfaces can be activated either continuously or time-controlled.
Control
The glass sensor is operated directly via the touch surfaces. The buttons can be flexibly configured in the APP and used for triggering actions or automation - for example for switching lights, controlling shadows or activating safety functions.
Smart highlight

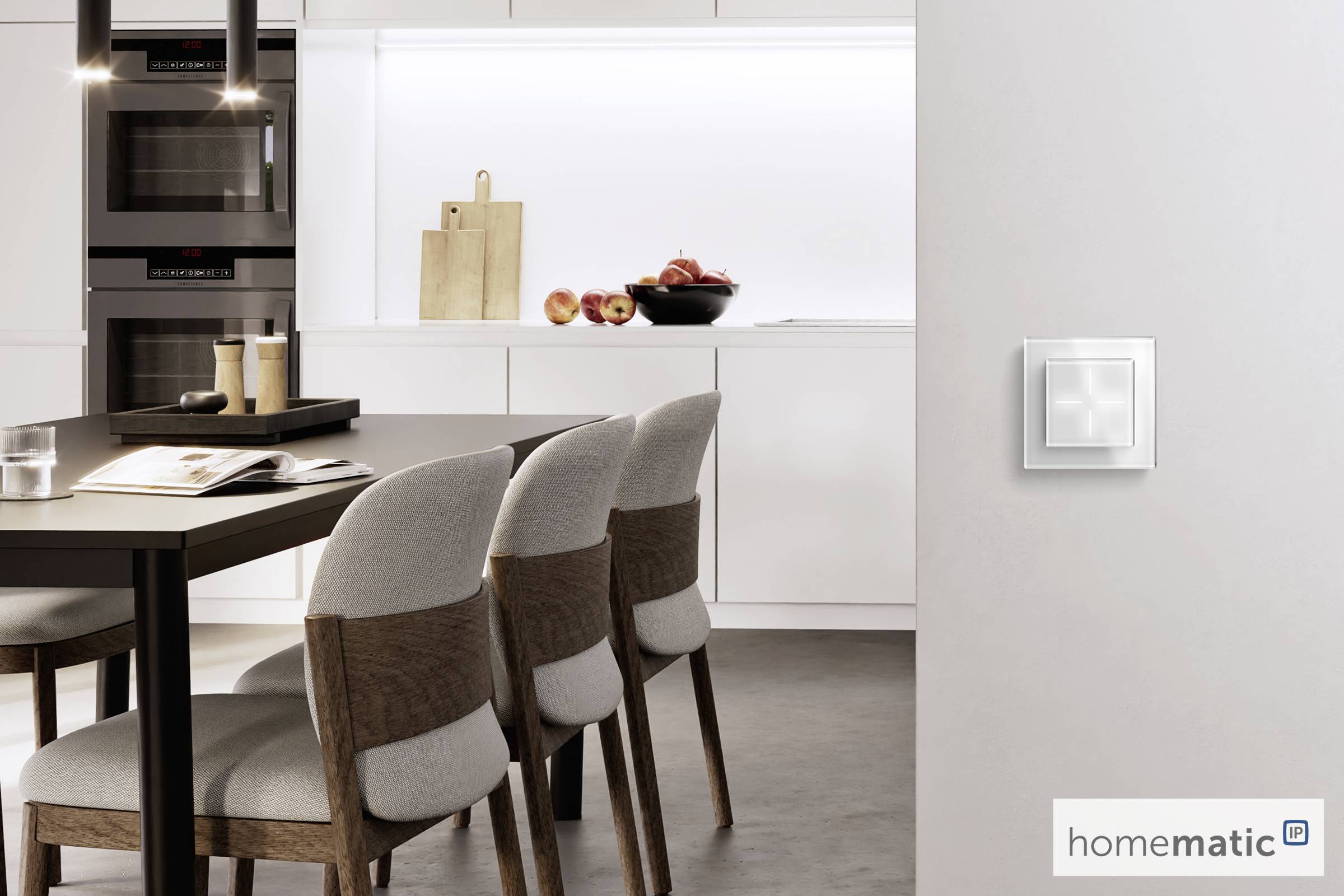

The noble glass surface with darkened dividers fits harmonically in modern home environments. The backlit touch surfaces give visual feedback during operation and increase user comfort. The modular design in the 55 series allows integration in many popular switch series - for a particularly stylish look.
Tip
The integrated relay output makes the glass button suitable not only for remote control, but also for classic button/toggle switching. In addition, an extension input can be connected - Ideal for existing installations.
The Homematic IP glass button with touch surfaces is characterized by a modern design in the 55 series frame and can be optimally integrated into the living environment. You can configure the glass button as a 1, 2 or 4 channel button. Depending on the configuration, the operator panels are visually separated by separators.
ELEGANCE IN GLASS
The surface is made from durable and hygienic real glass and draws all attention to itself thanks to its elegant look. In combination with a suitable glass frame (sold separately), the device is stylishly integrated into high-quality interiors and upgraded everyone
Room optically.
THE RIGHT FUNCTION FOR EVERY APPLICATION
The up to four configurable channels provide for the comfortable control of several devices or system functions in the Smart home by pressing a button.
The Quick ACTION function (simultaneous contact of all touch surfaces) can also be used for quick operation, e.g. for switching the ceiling light.
Smart IN THE BACKGROUND
If the glass button is in 2 or 4 channel mode, the separators are automatically darkened. During operation, they give visual feedback and light up. The backlight can glow in a set brightness or can be turned on
Time profile can be regulated.
FLEXIBLE OPERATION
Directly over the touchpads
By radio via Homematic IP button or remote controls or motion detector
Anytime via the Homematic IP APP
Via adjustable time profiles for an automatic
Switch the lighting on at the desired time
Convenient via voice control (via Amazon Alexa or Google assistant)
This text is machine translated.
This product requires a Homematic IP Access Point or a control center.

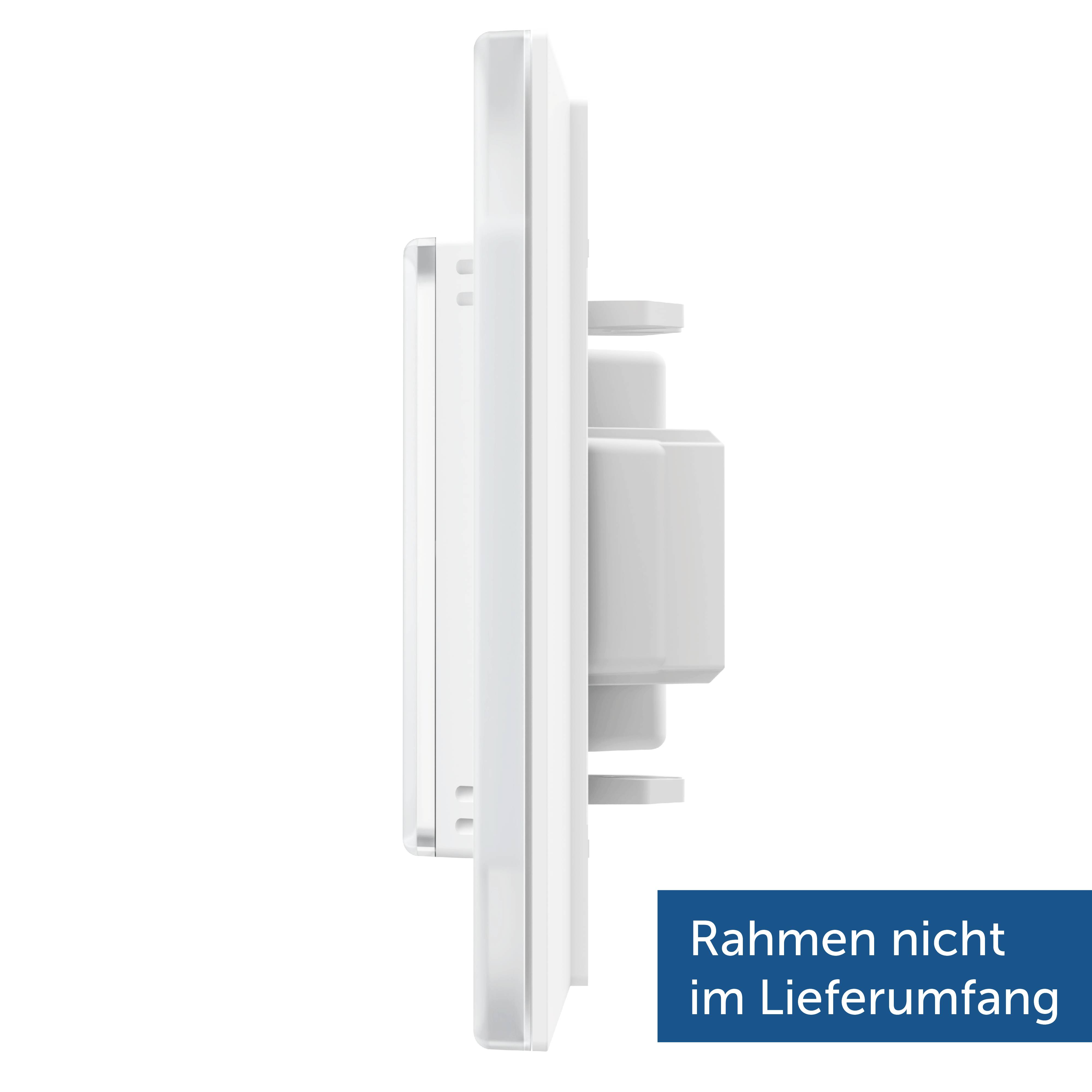

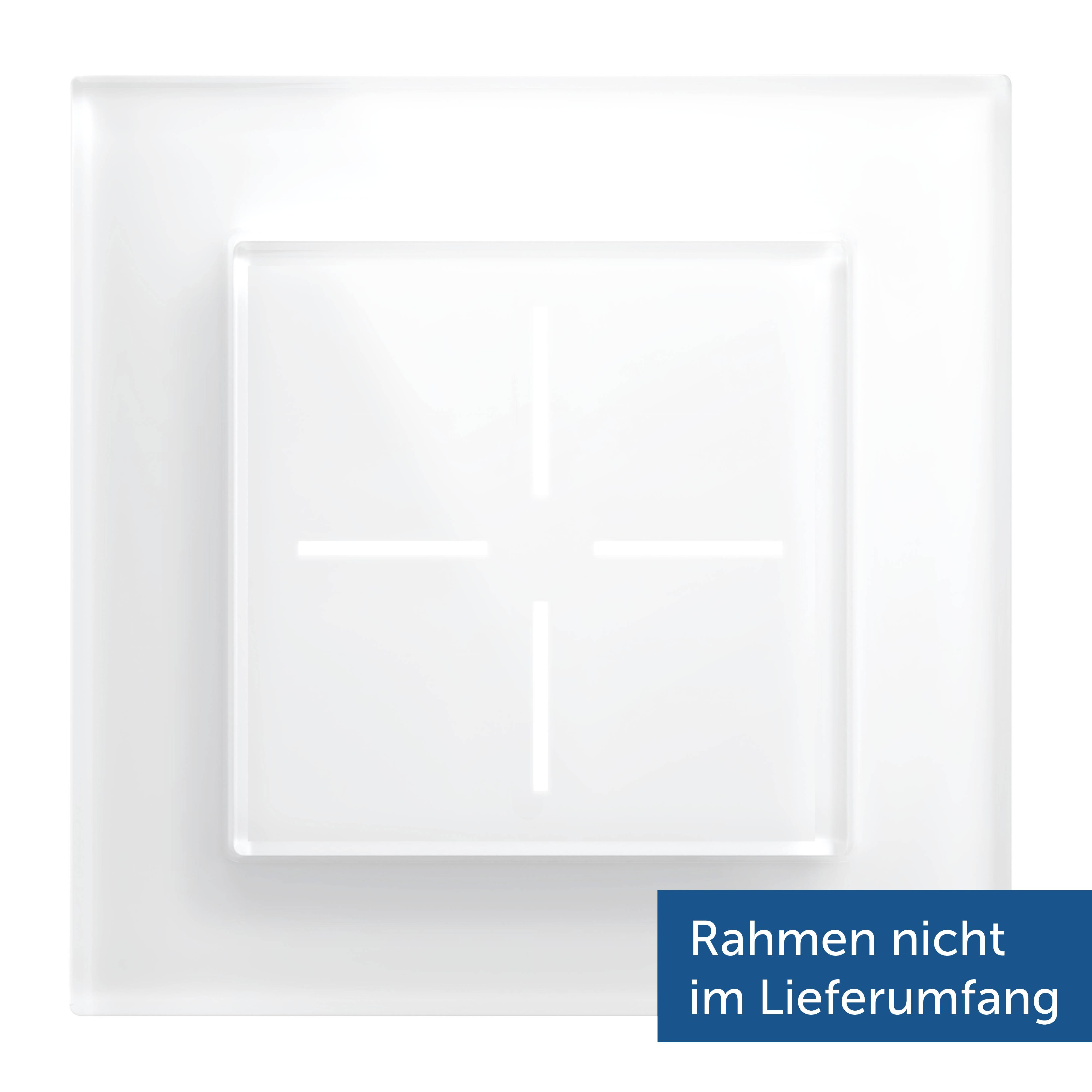

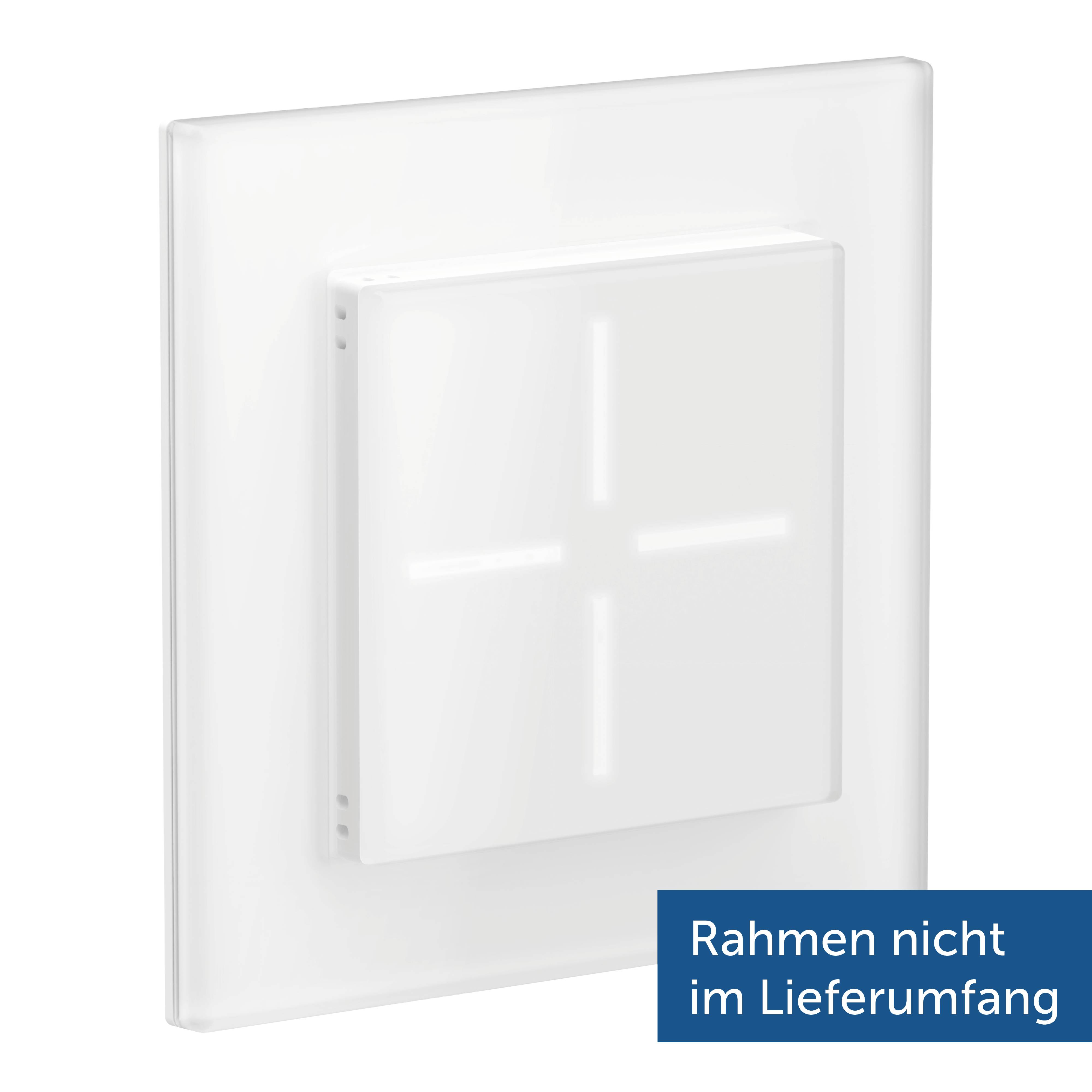

Frames are not included - suitable Homematic IP glass frames are available as accessories
Homematic IP, 161160A0, Funk Glastaster
