Overview

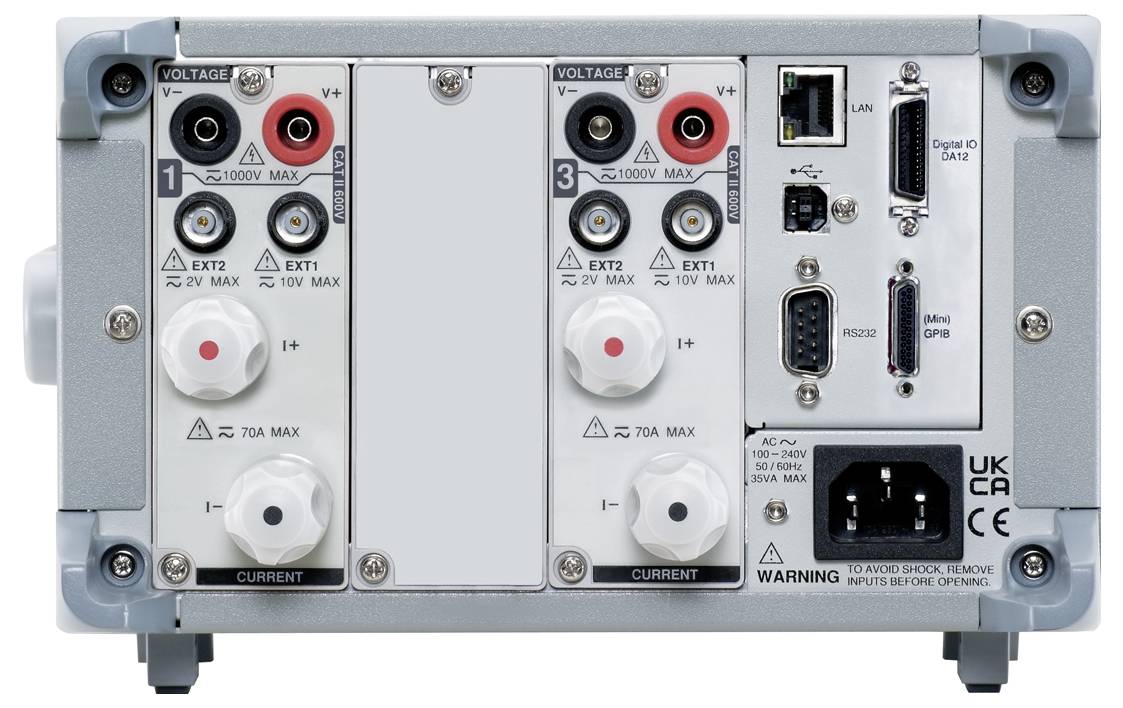

High current measurement: The GPM-8320-60 has two input elements and allows a maximum direct input current of up to 70 A (60 A guaranteed), which saves on the cost of a current transformer as compared to earlier models.
Wide measuring bandwidth: Supports measurements from DC and 0.1 Hz to 100 kHz.
High precision: Fitted with 16-bit A/D converters and a sampling rate of 300 kHz.
Comprehensive viewing: Provides a 5-inch TFT LCD display with 5-digit readings and 25 different power measurement parameters.
Waveform and harmonic analysis: Supports the display of voltage, current and power waveforms, as well as the harmonics measurement and analysis up to 50 order (conforming to IEC61000-4-7 for 50 Hz/60 Hz measurements).
Flexible Wiring Modes: Provides multiple input voltage configuration wiring modes (1P3W/3P3W/3P4W/3V3A) that allow users to choose the mode according to their needs and even calculate efficien
