Digitus DN-931097 FTTH junction box set Grey 1 pc(s)

  • item model number: W207853
A white fiber optic terminal box with four colored indicator holes on top and two green cable ports with yellow warning triangles on the front.

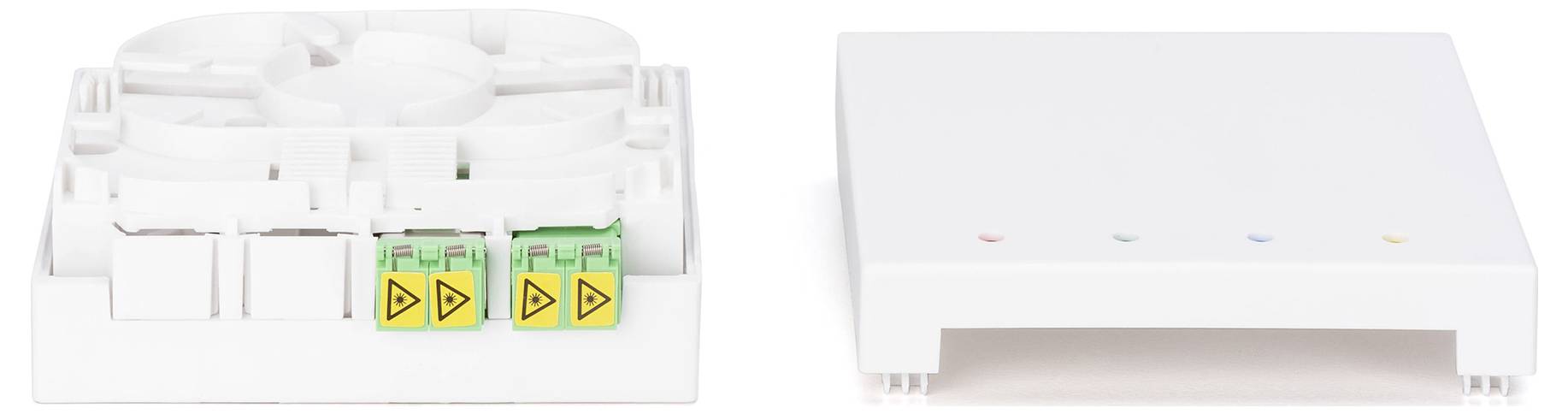

Two electronic devices side by side: the left has visible green and yellow connectors, and the right is a closed white unit with colored indicators.

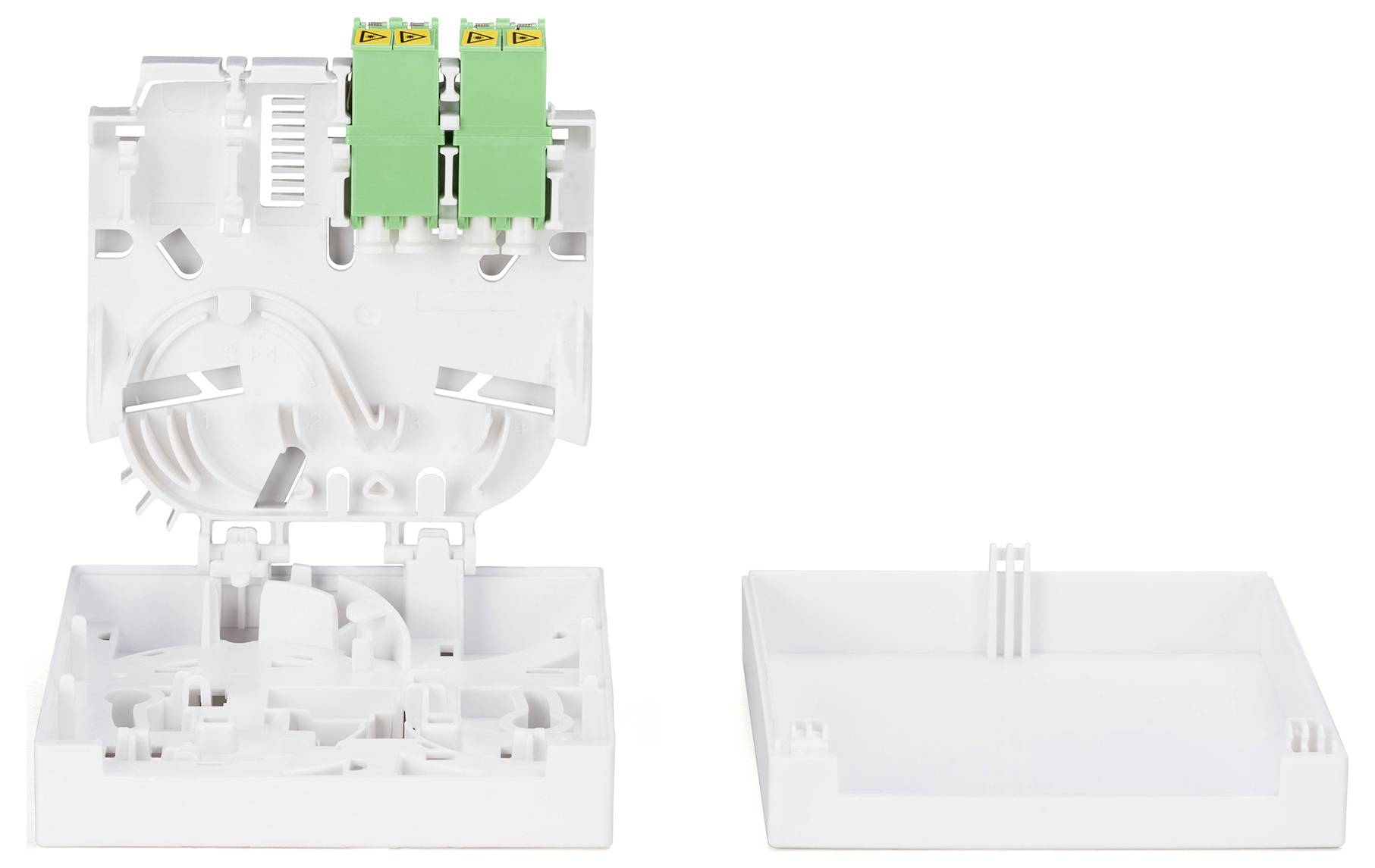

White fiber optic termination box with green couplers, shown open to reveal internal cable management features and compartments.
A white junction box with three green connectors and color indicators on top, alongside two screws and wall plugs, used for electrical connections.

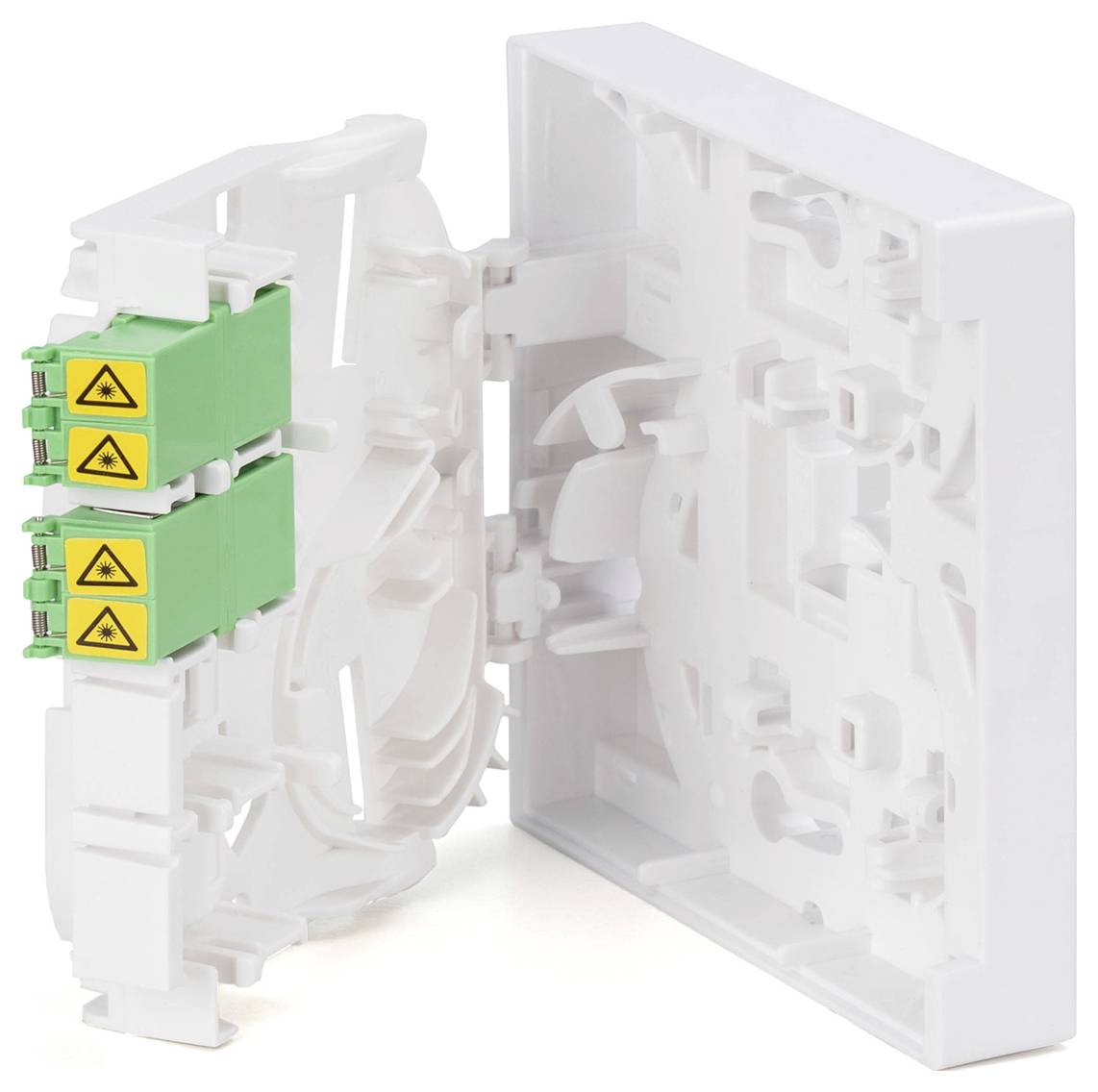

White plastic wall mount fiber optic distribution box with three green SC/APC adapters and caution symbols. Box is open showing connectors.

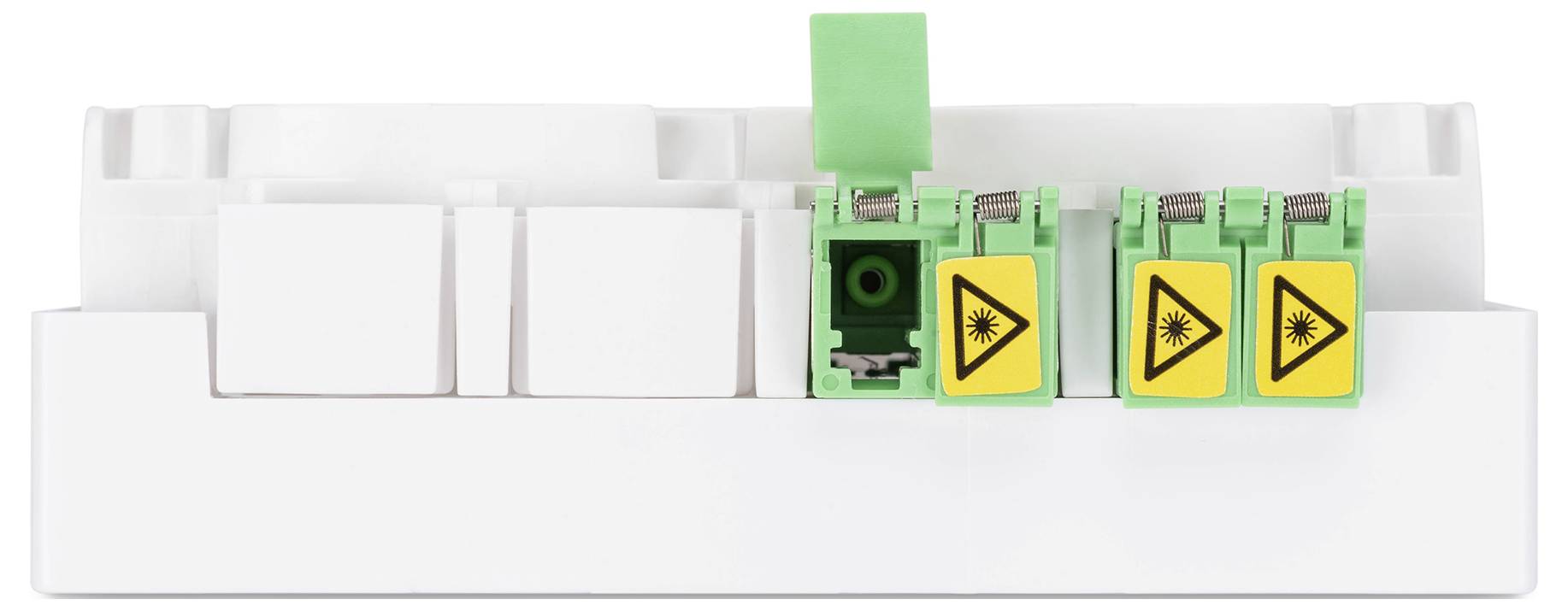

A white device with green fiber optic connections, marked with yellow 'laser' warning symbols, indicating caution near laser sources.

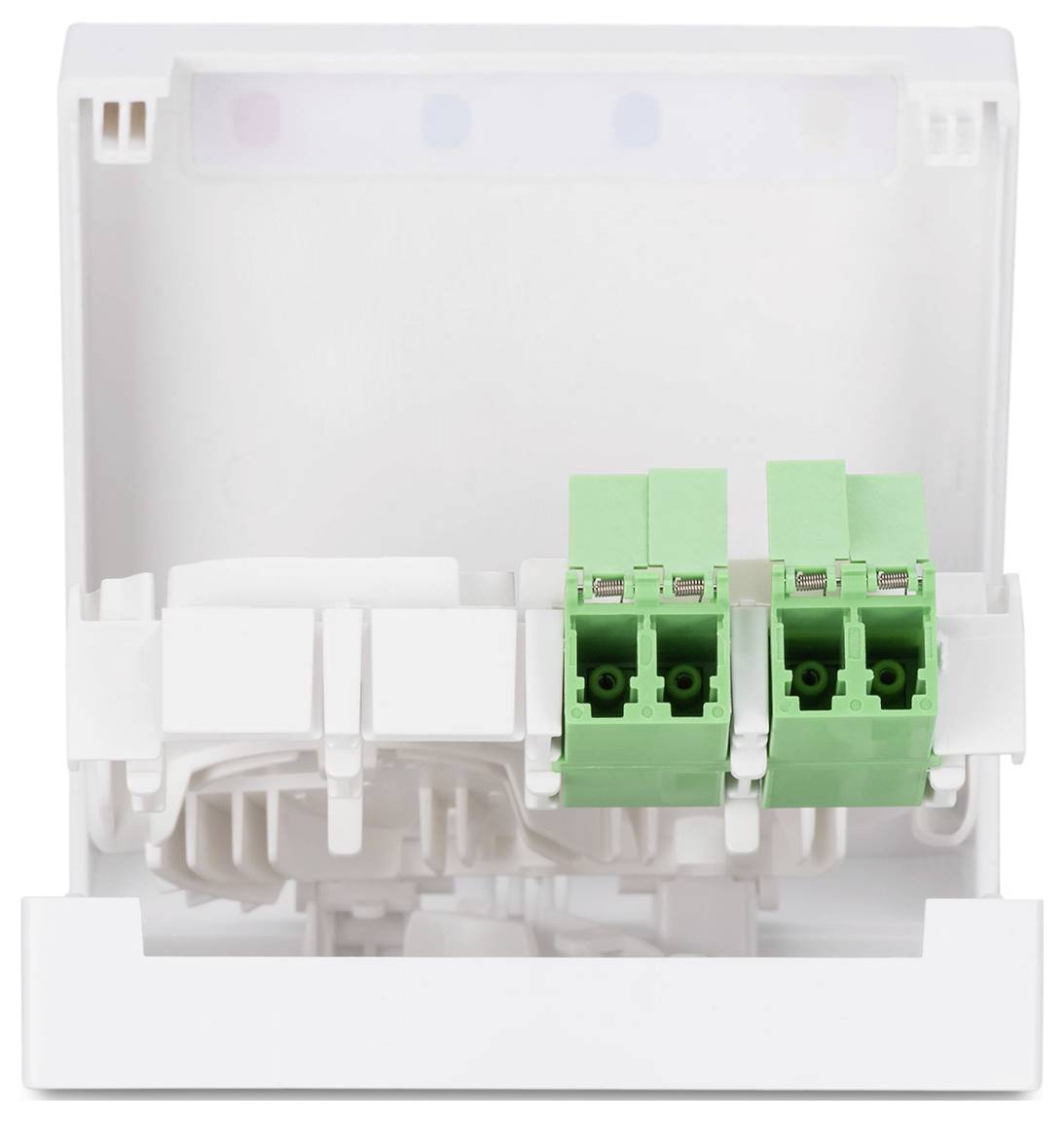

A white fiber optic termination box with two green connectors, used for managing and routing fiber optic cables in network installations.

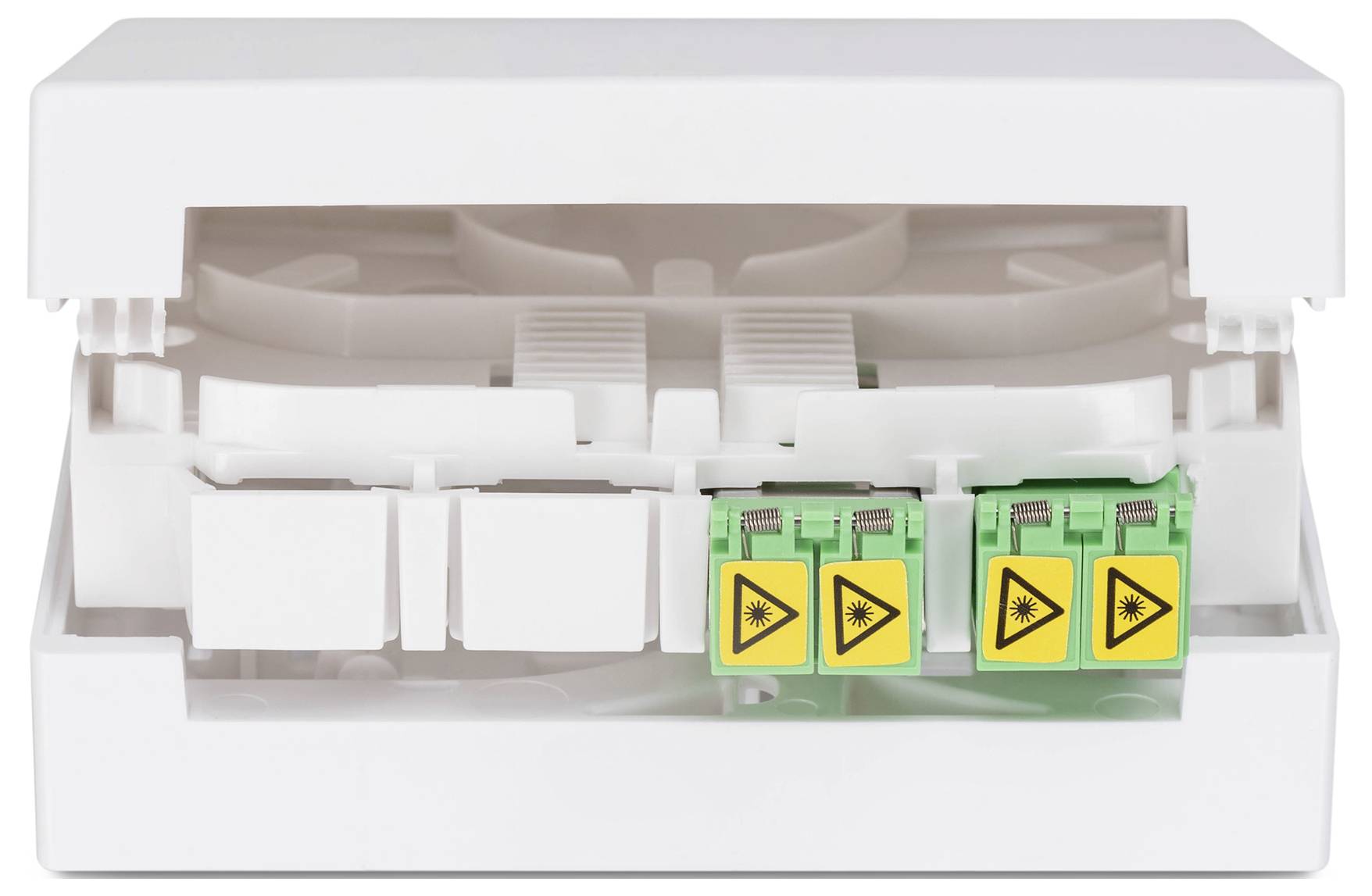

A white optical fiber termination box with multiple cable ports, featuring three green connectors with yellow triangular warning labels.

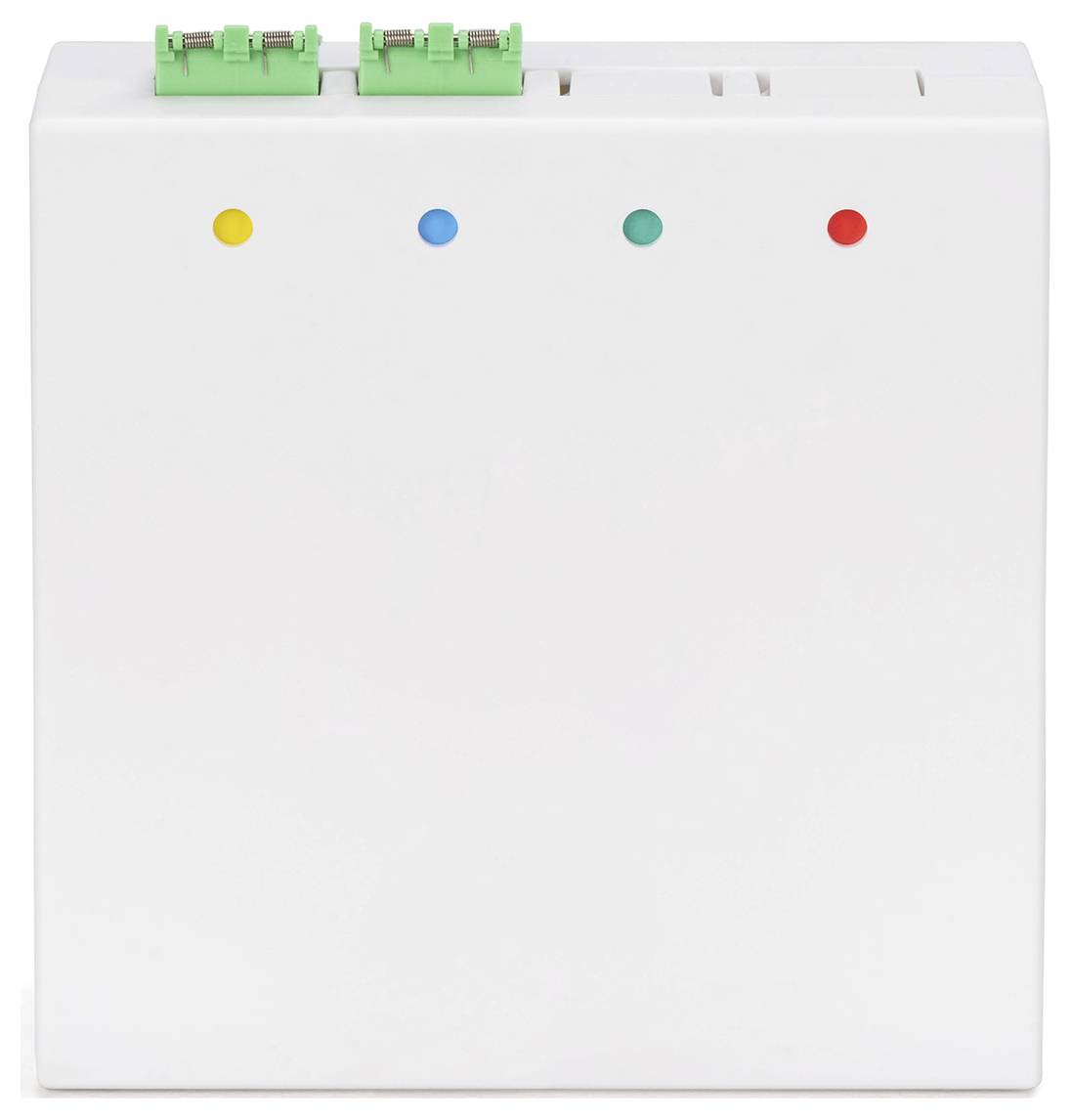

A white network terminal block with four colored indicator lights: yellow, green, blue, and red, used for optical fiber connections.

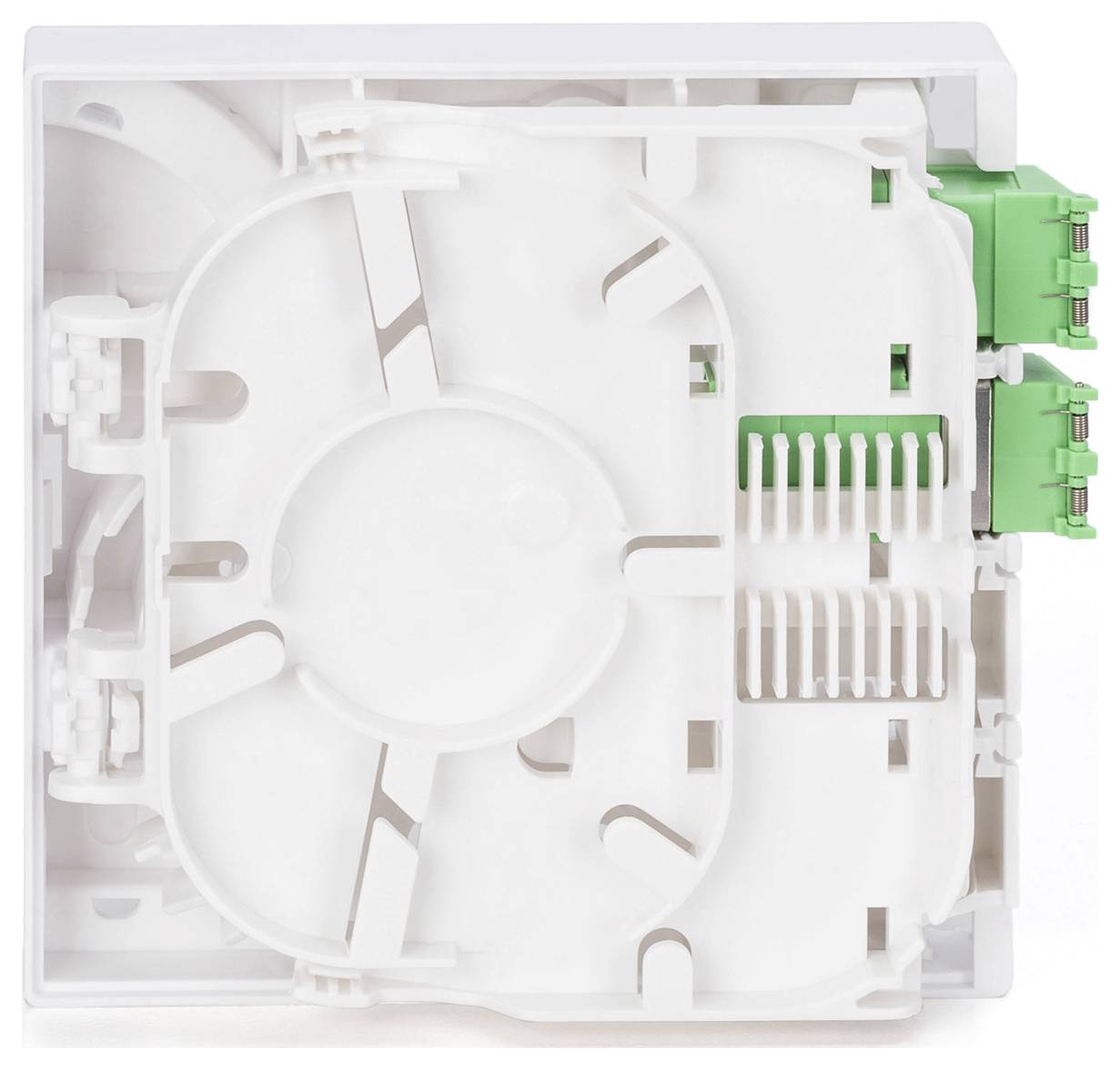

A white plastic fiber optic terminal box with two green connectors on the right side, used for managing and securing fiber optic cables.
CHF 6.80
VAT included
plus
Delivery time: 5-7 days
in stock
30 days free return shipment
Digitus DN-931097 FTTH junction box set Grey 1 pc(s)
CHF 6.80
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece: CHF 6.73 1,0% savings
from 5 piece: CHF 6.66 2,1% savings
from 10 piece: CHF 6.52 4,1% savings

Product description

Overview

Ideal connection box for glass fiber cables in the field of FTTH
Suitable for wall mounting
Equipped with LC/APC coupling with shutter
Designed for connecting installation cables with pigtails or for direct connection of pre-assembled cables
Integrated splice box, hinged with cable routing

Description

The fiber optic connection box is designed as an optical telecommunications housing. It is an ultra-compact housing for managing up to 4 fibers in the apartment, which can be mounted easily on the wall and offers the connection point for up to 4 terminals. It is pre-mounted with 2 x LC/APC duplex couplings and offers flexible cable entries. It efficiently combines fiber splicing, finishing, storage and connections in the smallest space. Even the screw holes on the back allow for easy installation and positioning with the housing flush to the wall.

Characteristics

Design: Wall housing
Mounting: Surface mounting
Transmission technology: Glass fiber
Integrated splice box
Fibre type: Single mode
Connector interface: LC duplex
Connector type: LC/APC with shutter
PC + ABS casing
Protection class IP45
Colour: White

Keywords

Digitus, DN-931097

A white fiber optic terminal box with four colored indicator holes on top and two green cable ports with yellow warning triangles on the front.
Two electronic devices side by side: the left has visible green and yellow connectors, and the right is a closed white unit with colored indicators.
White fiber optic termination box with green couplers, shown open to reveal internal cable management features and compartments.
A white junction box with three green connectors and color indicators on top, alongside two screws and wall plugs, used for electrical connections.
