Copper qualification - 10/100Mb/s, 1/2.5/5/10Gb/s.
PoE load test up to 90 watts
Live wiring test
Switch connection information
Network diagnostics
WiFi signal strength
TeamViewer and VNC remote control
Anyware Cloud Test Management software

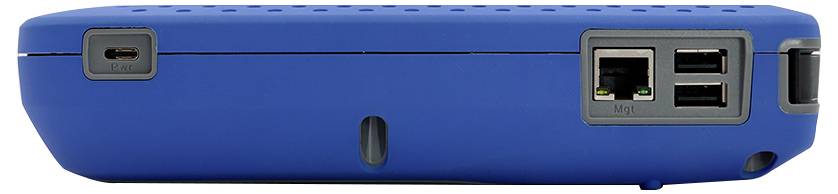

RJ45 test port
USB A/C CONNECTIONS
Cloud-connected

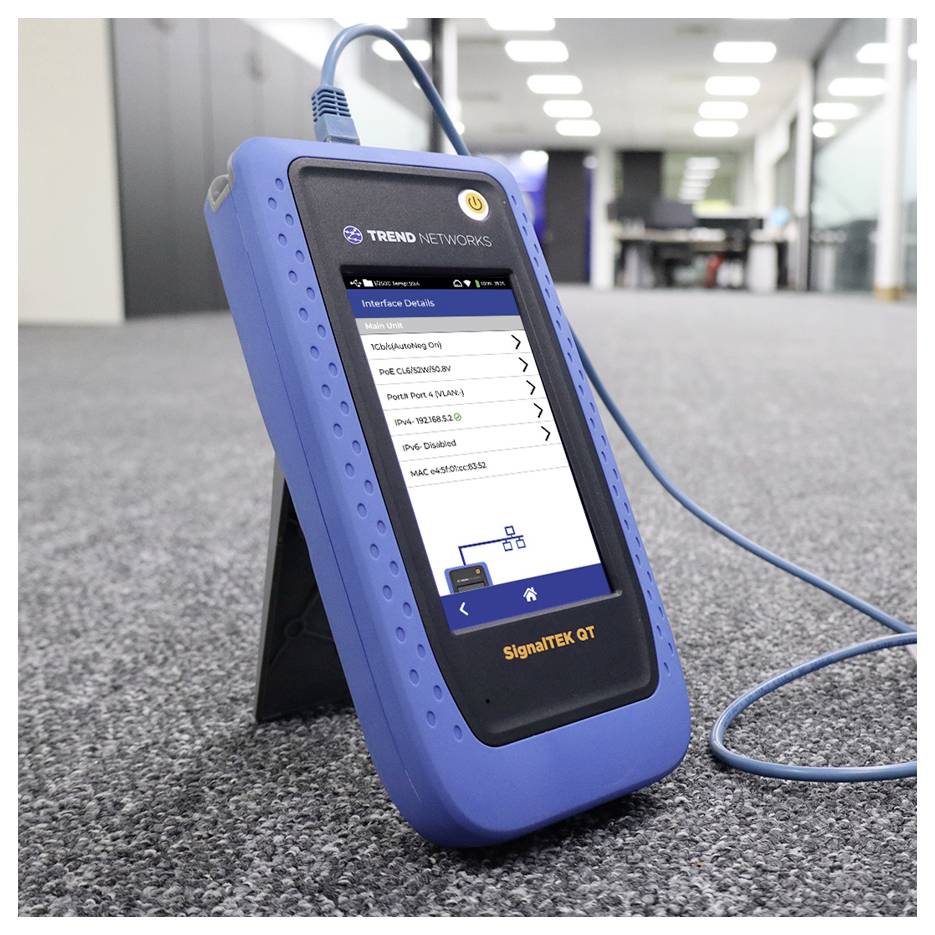

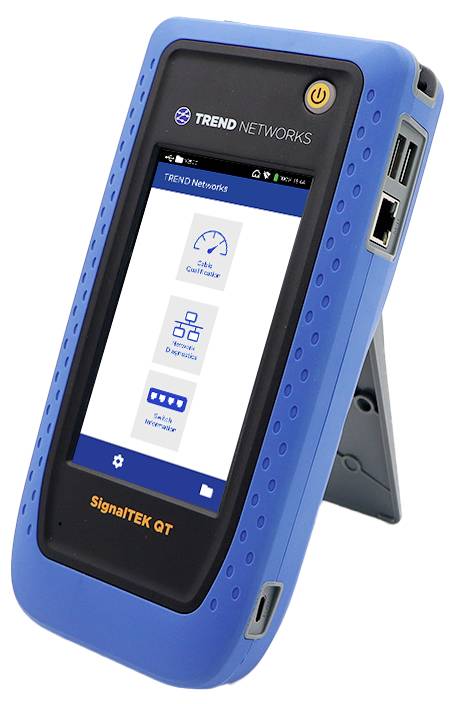

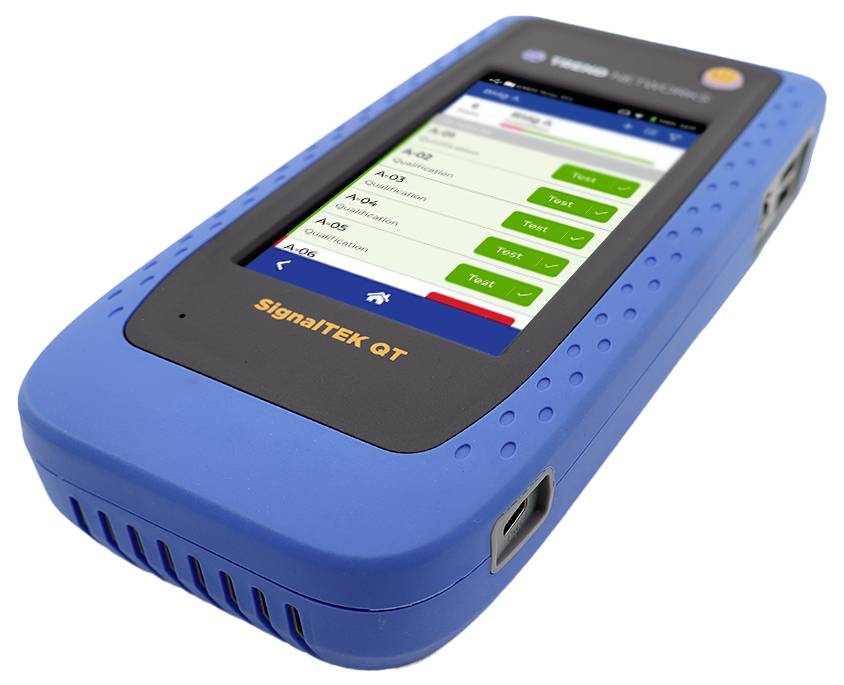

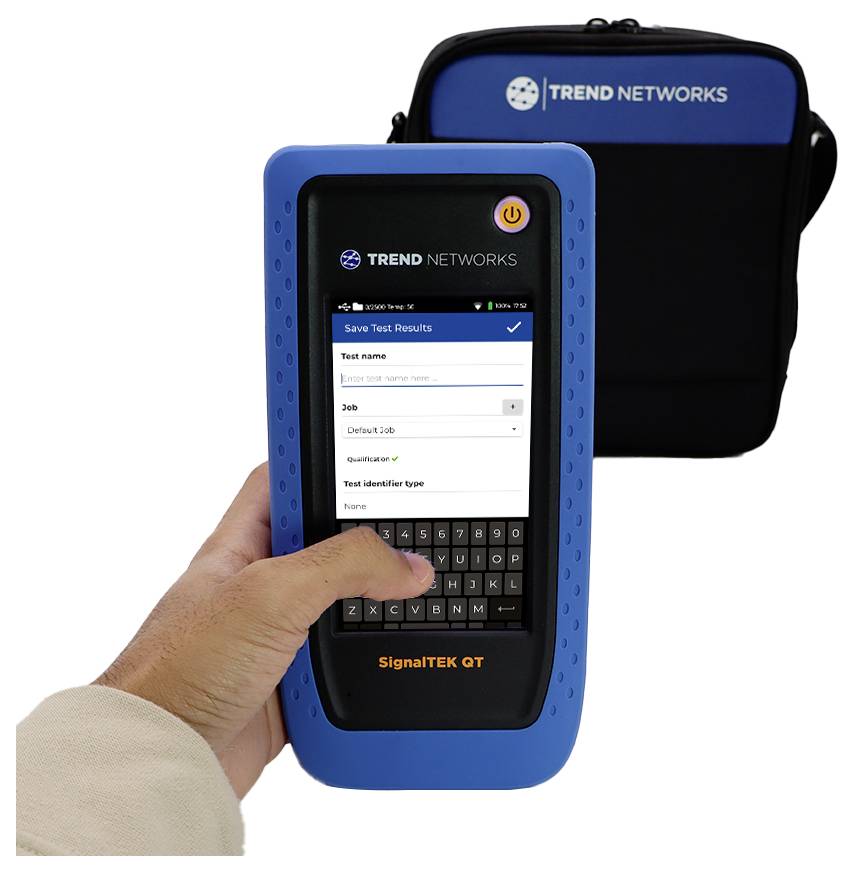

The SignalTEK QT 10 gigabit qualification tester is the test solution for testing copper connections. It tests cable performance based on frequency-based measurements and verifies that the desired network speed is supported. It shows the available performance as compared to the desired speed on an easy to read display and the speeds of 10 MB/s to 10 GB/s including the new 2.5 and 5 GB/s multi-speeds are available. Connected to the network, diagnostics can be performed using ping, traceroute, and device scan tests. Wi-Fi access point scan helps you check signal strength, detect conflicts, and monitor basic Wi-Fi performance. It performs a load test of up to 90 watts to ensure that the power provided by the switch also provides enough power for the PoE devices over the installed cables and will evaluate the results with PASS/FAIL. The NetScan allows you to capture a list of connected devices, including manufacturer ID, IP address, and MAC address, with automatic IP address conflict checking. The TREND Anyware Cloud management system enables real-time collaboration between project managers and service engineers, pre-configuration of test settings, free space, easy location of project files, sharing links to test reports and Fleet Manager device management system. The SignalTEK QT supports copper qualification, live wiring test with immediate wiring result, Li-polymer rechargeable battery with an operating time of up to 10 hours. Optionally available, the #1-12 Remote Adapter Kits (R166020/male and R166021/female) are available for wire testing and enable efficient use when testing in one-man operation.
Qualification of copper cables up to 10 GB/s including the new multi-gig 2.5 and 5 Gb/s applications
Frequency-based measurements, no additional active remote unit is required, increasing the productivity of the test run during cable testing
Network diagnostics: Ping, traceroute, device discovery, switch port information, port utilization, Port VLAN discovery
PoE load test up to 90 watts according to IEEE 802.3 AF/at/bt, detects PoE class 1-8
Live wiring test with immediate indication of wiring before the Autotest starts
Free Anyware Cloud management software for pre-configuration of projects and tests, which avoids possible errors
TeamViewer live support - online connection to the SignalTEK QT reduces time spent troubleshooting, improves collaboration and reduces callbacks
Over-the-Air software updates, software updates are installed directly from the TREND Anyware Cloud via Wi-Fi or wired Ethernet
Windows, iOS, Android
Trend Networks, R166002, SignalTEK QT 10G
