Digitus DK-1632-A-050S-B RJ45 Network cable, patch cable CAT 6A F/FTP 5 m Blue Colour-coded, Shielded, multi-core, incl. bend

A blue Ethernet cable with two RJ45 connectors.

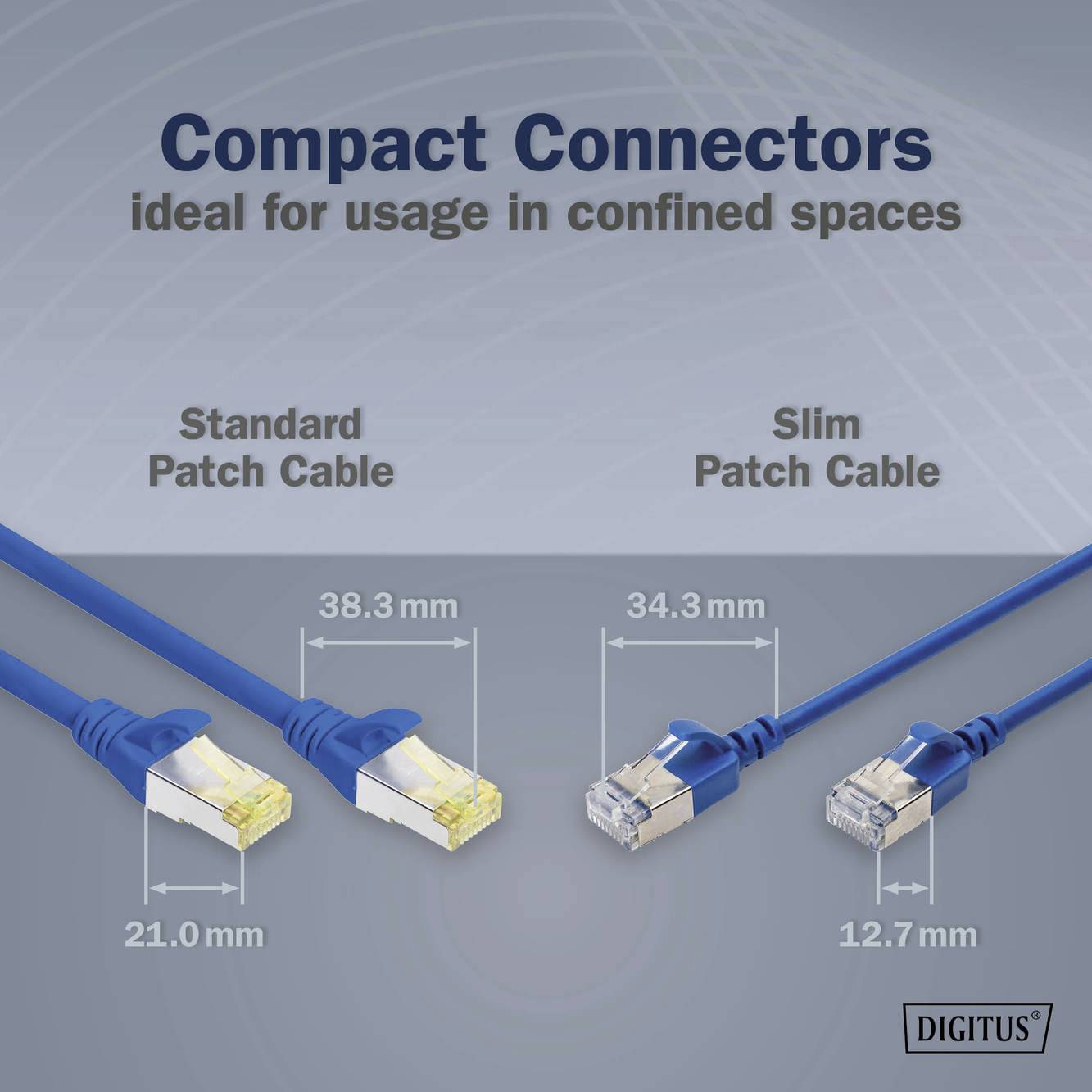

Two cable types: 'Standard Patch Cable' and 'Slim Patch Cable'. Standard: 21 mm width, 38.3 mm length. Slim: 12.7 mm width, 34.3 mm length. Ideal for confined spaces.

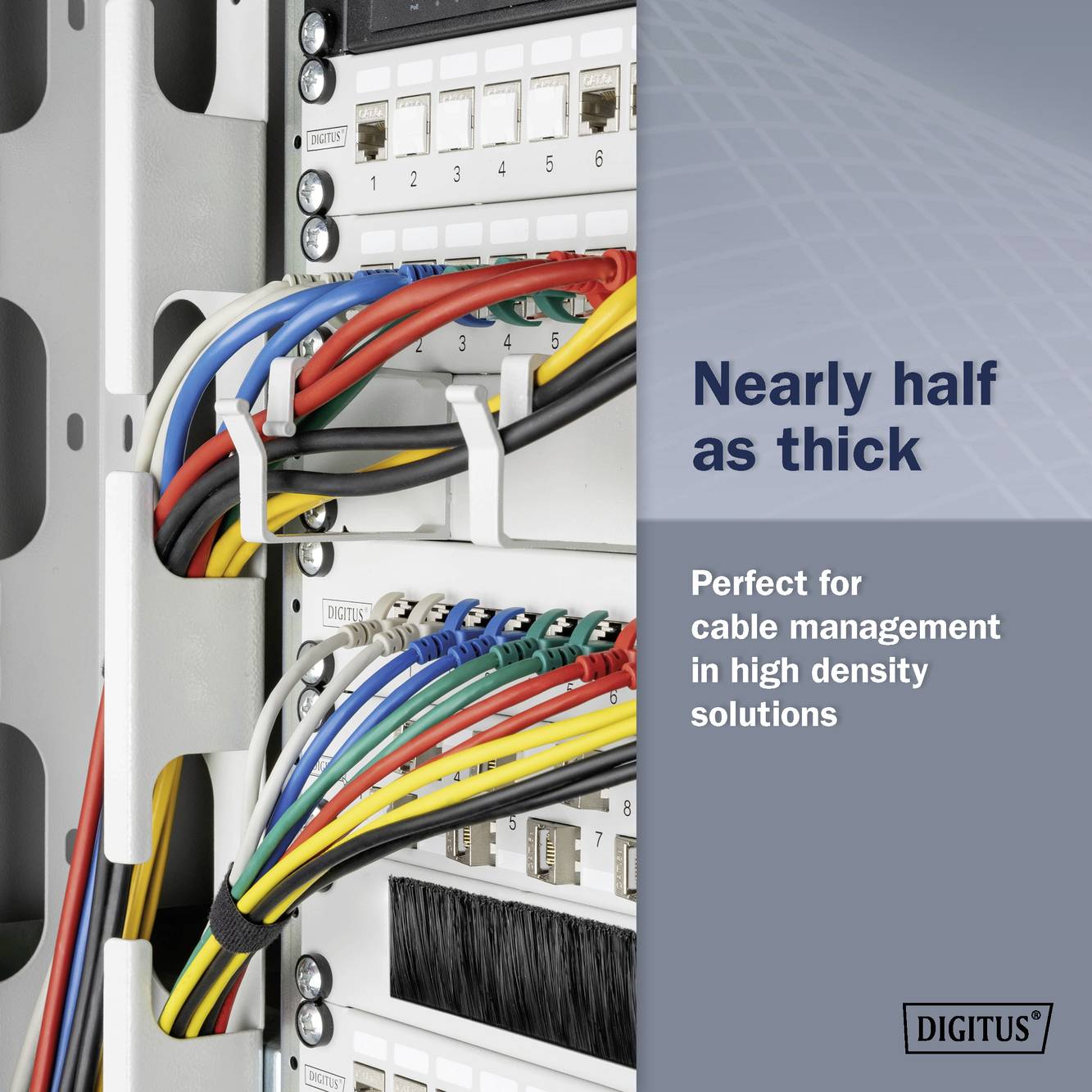

Netzwerkverkabelung mit farbigen Kabeln in einem Schrank. Text: 'Nearly half as thick' und 'Perfect for cable management in high density solutions'.

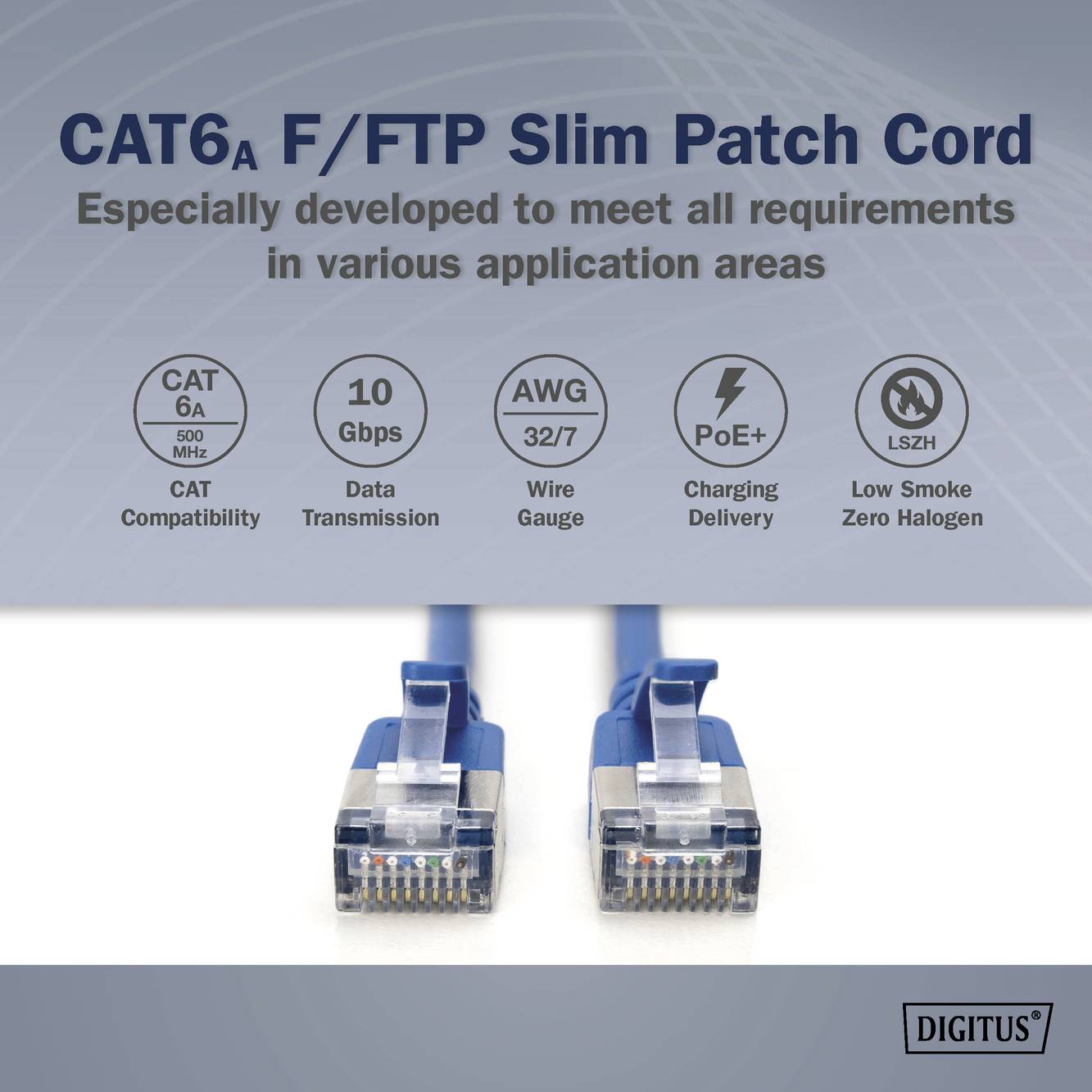

CAT6A F/FTP Patch Cable, specially developed for versatile applications. Features: 10 Gbps, AWG 32/7, PoE+, CAT6A, LSZH.

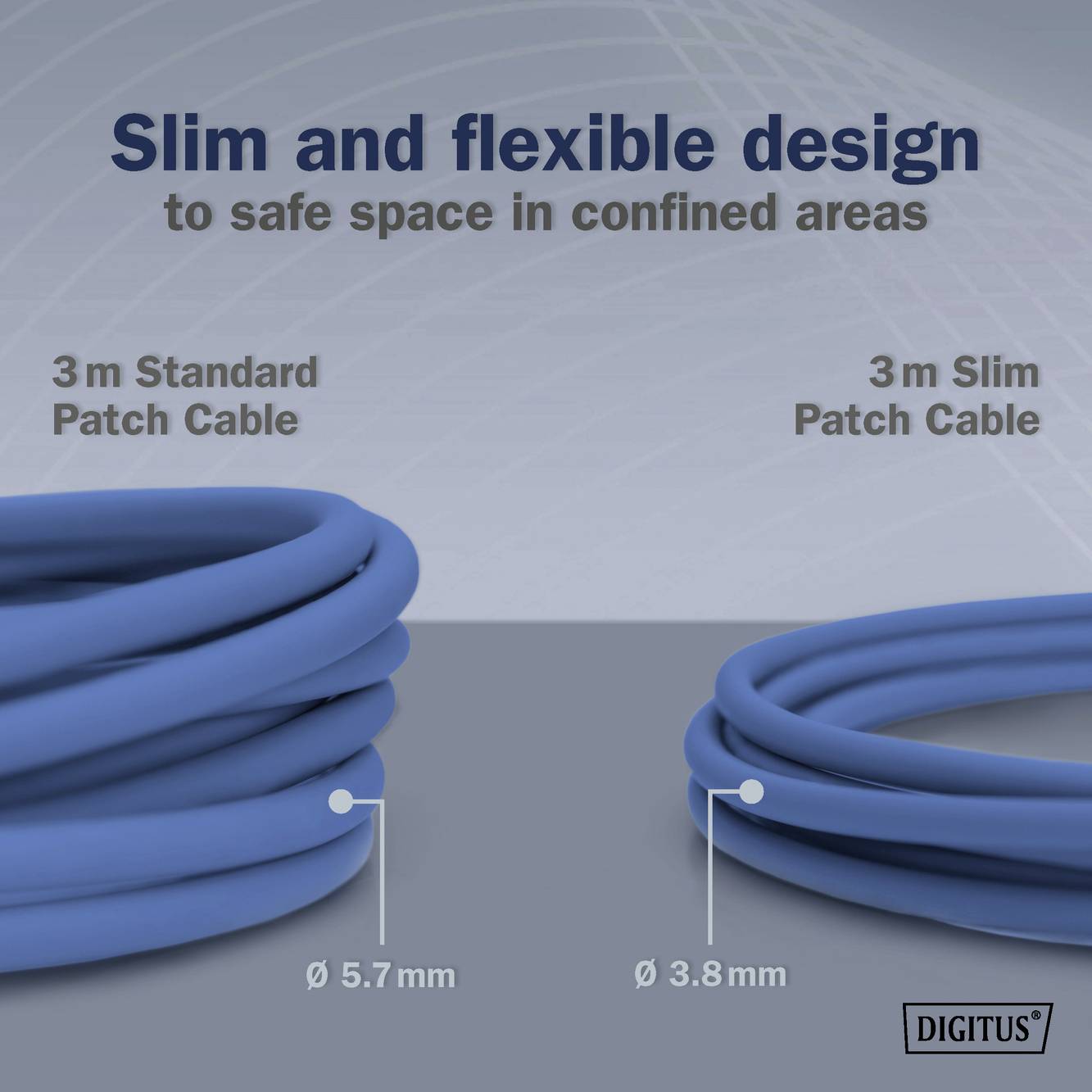

Two network cables compared: on the left a 3 m standard cable, on the right a 3 m slim cable, both in blue. Text emphasises slim design for space-saving.

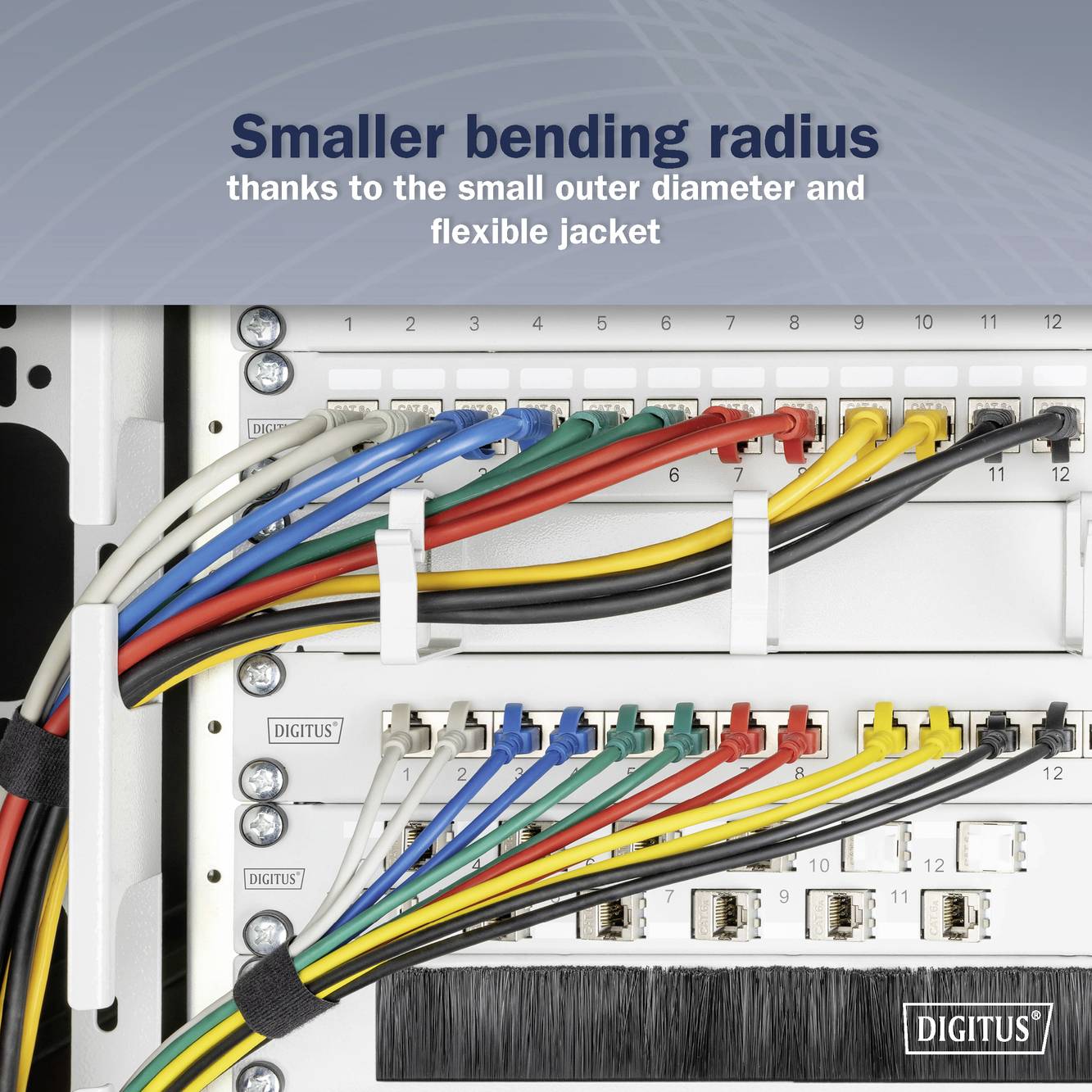

Coloured cables are organised in a network rack. Text above: 'Smaller bending radius thanks to the small outer diameter and flexible jacket'.

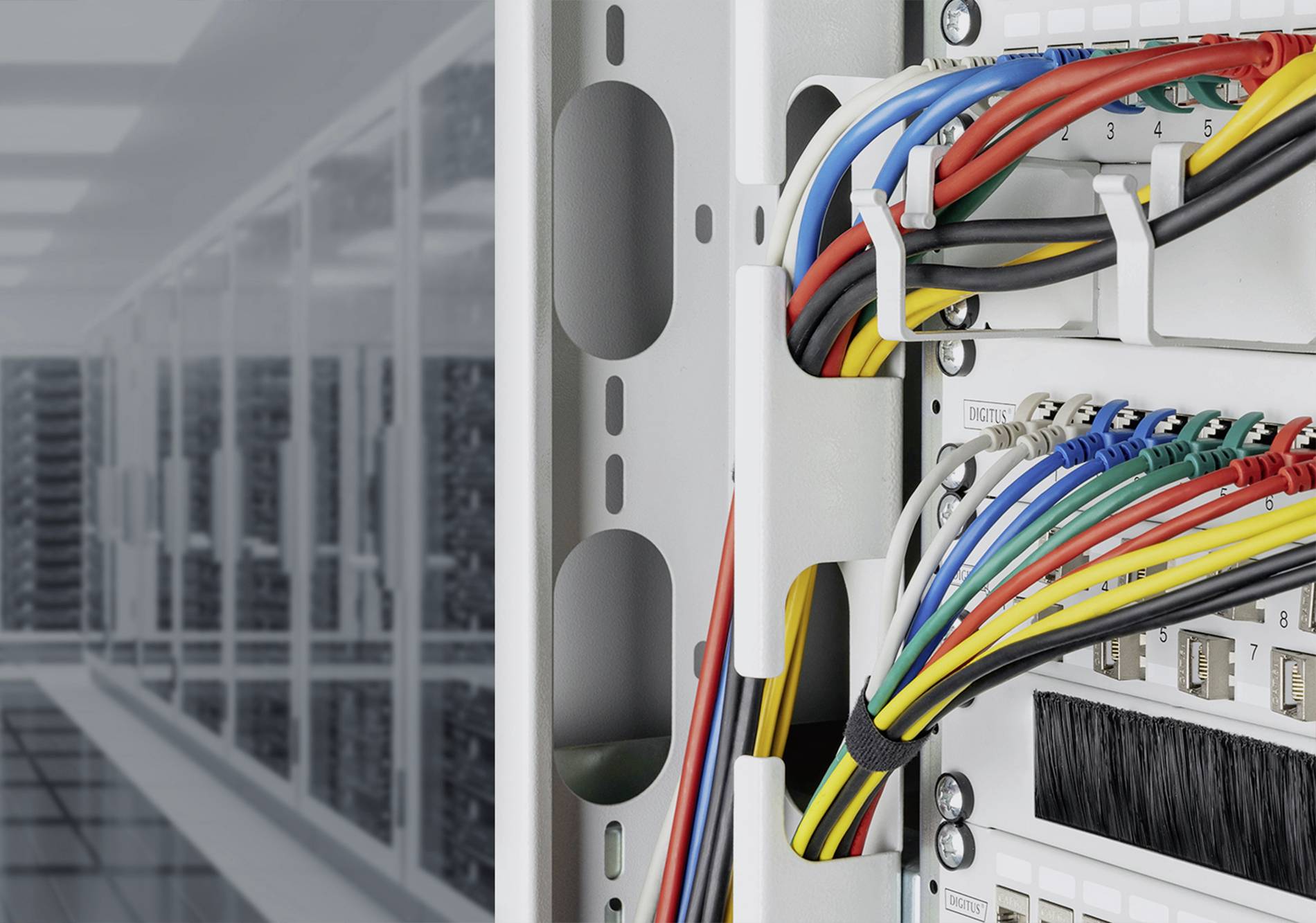

Server room with visible network cables neatly routed through a cable management system. Server racks are visible in the background.

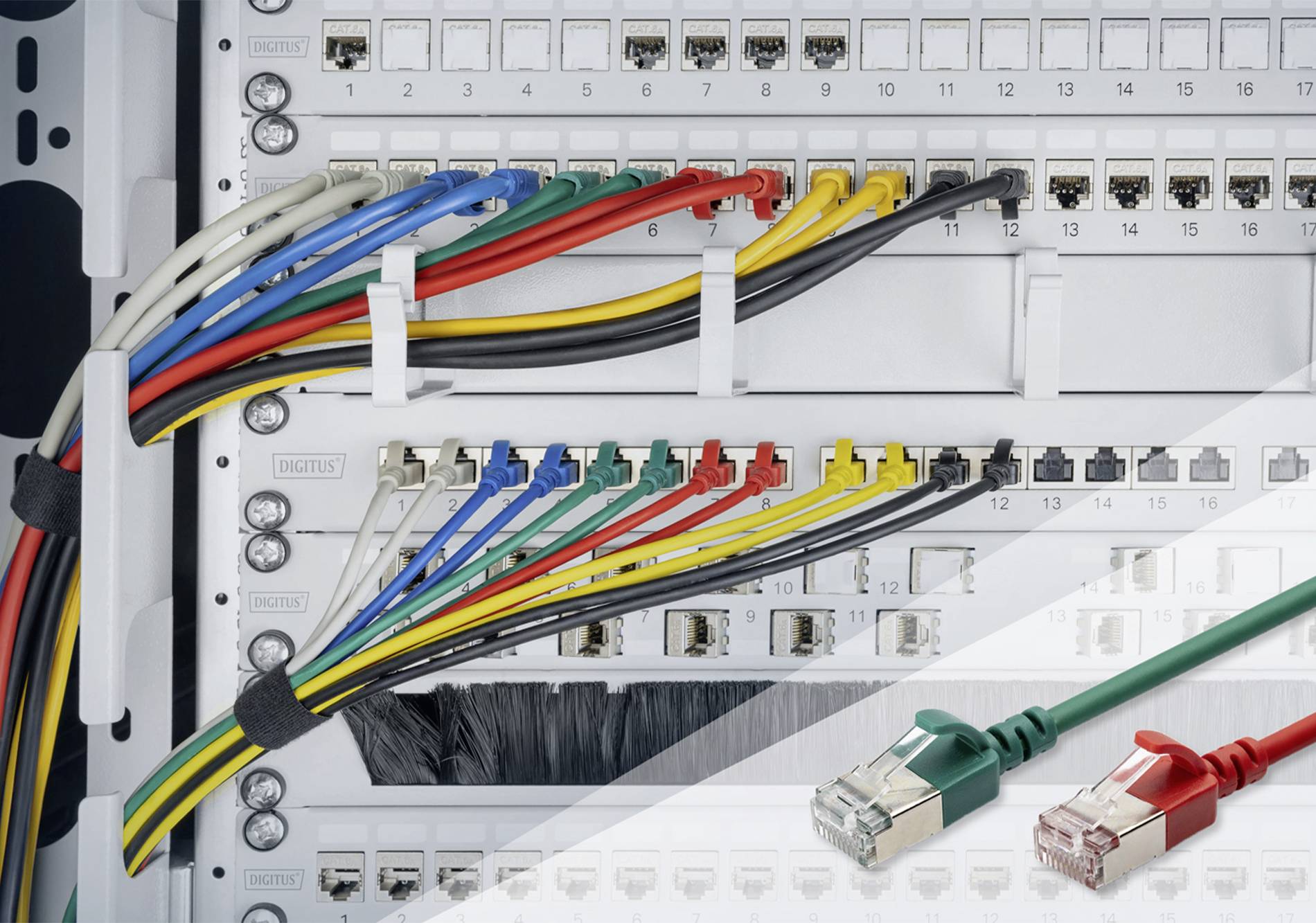

Network distribution plate connected with colourful cables, showing clear organisation of connections. Two Ethernet plugs at bottom right.

CHF 6.55

VAT included

plus

piece

Delivery time: 4-6 days

in stock

30 days free return shipment

Digitus DK-1632-A-050S-B RJ45 Network cable, patch cable CAT 6A F/FTP 5 m Blue Colour-coded, Shielded, multi-core, incl. bend

CHF 6.55

VAT included

plus

One article is not enough for you and you want to save money?

from 3 piece:	CHF 6.48	1,1% savings
from 5 piece:	CHF 6.41	2,1% savings
from 25 piece:	CHF 6.15	6,1% savings

Product description

Overview

The advantage: Slim and flexible design, the cable can be easily laid in cramped spaces
Features: Transmission speed 10 Gbit/s and frequency 500 MHz
Application area: Ideal for data centers, high density solutions and home offices
PoE+ is ready

Description

Digitus® slim patch cables are characterized by their small outer diameter and the flexible sheath. The slim design enables a versatile use in your network. In addition, Digitus® slim patch cables are manufactured according to the standards ISO/IEC 11801 and DIN EN 50173 CAT 6A. They guarantee that the cable installation complies with the ISO & EN channel specification and offer excellent performance in the Digitus® CAT 6A cabling. The power has been tested up to 500 MHz, including features such as close-up crosstalk ("NEXT"). Digitus® patch cables have been specially developed to meet all requirements in various applications. Each cable is equipped with a molded bend protection sleeve with strain relief. The sleeve also has a locking lever protection to prevent the cable from kinking and the locking lever from the plug from breaking.

Characteristics

Insulation: HD-PE (high density polyethylene)

15x OD bending radius

Plug RJ45-Plug

Colour code: Orange x white, green x white, blue x white, brown x white

WIRING STANDARD EIA/TIA 568B

Pin assignment 1:1

TYPICAL APPLICATIONS: IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T

STANDARDS: ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-4

Packaging: Digitus Polybag
