Marmitek AV Converter Connect AE34 [ - ] 7680 x 4320 Pixel

  • item model number: S343043
A rectangular electronic device with labeled input/output ports, LEDs indicating status, and buttons for control settings, manufactured by Marmitek.

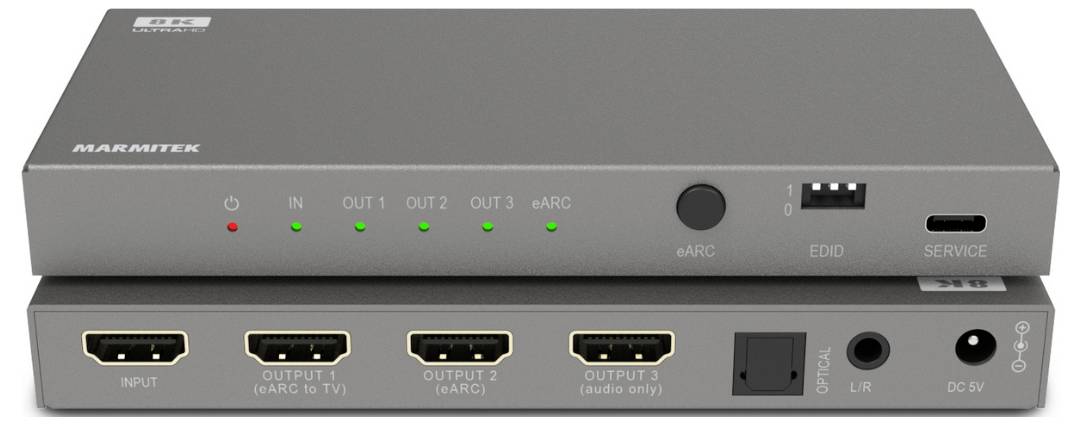

Two Marmitek HDMI switches stacked, front and back views. Features include three outputs, a service port, and audio return channel.
A modern living room with a large flat-screen TV displaying streaming apps and movie options, a wooden speaker, and a potted plant.

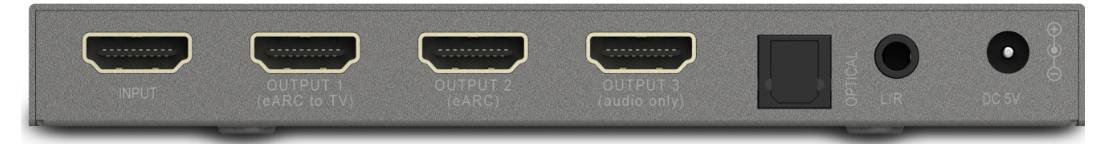

A gray device featuring three HDMI output ports labeled 'Output 1 (HDMI or DVI)', 'Output 2 (HDMI)', 'Output 3 (HDMI)', and three other input/connection ports.

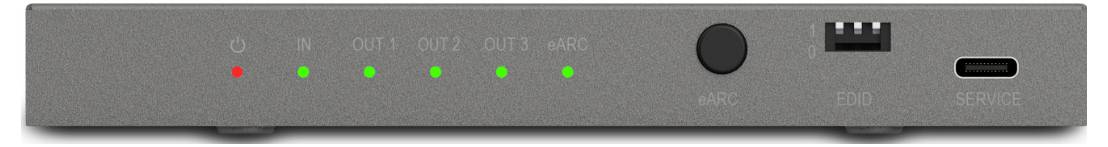

A grey network device front panel showing power indicator light in red, five green LED status lights labeled 'OUT 1' to 'OUT 4', USB-C port, and reset button.

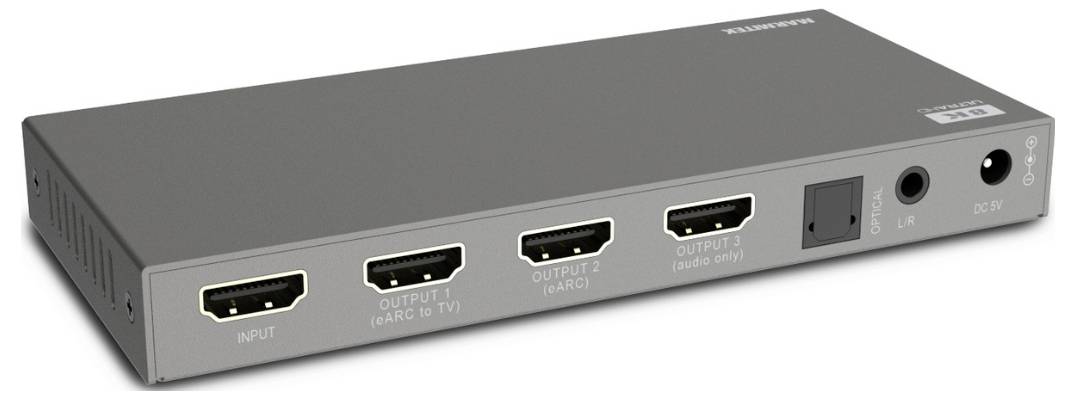

A rectangular HDMI switch with one input and three outputs for distributing video signals, labeled 'OUTPUT 1', 'OUTPUT 2', and 'OUTPUT 3'.

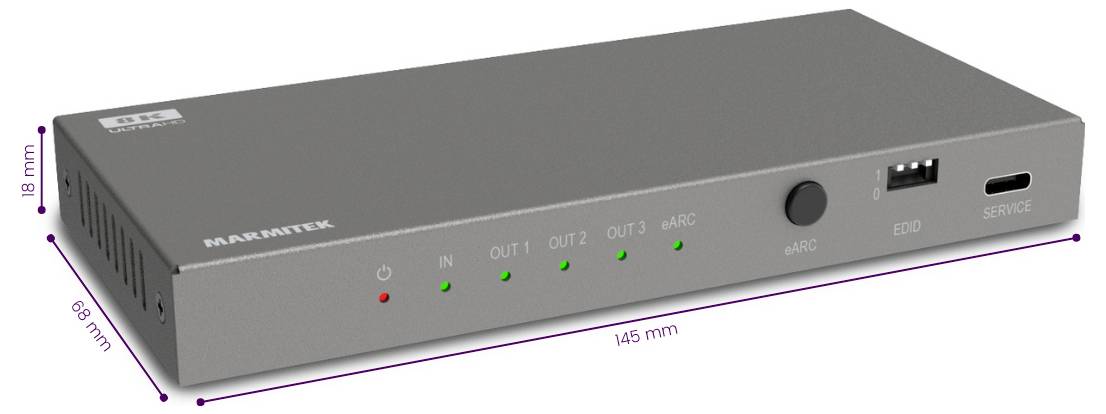

A gray electronic device labeled 'MARANTEK' with multiple ports and indicator lights, measuring 145 mm wide, 89 mm deep, and 18 mm high.
CHF 113.95
VAT included
plus
Delivery time: 5-7 days
in stock
30 days free return shipment
Marmitek AV Converter Connect AE34 [ - ] 7680 x 4320 Pixel
CHF 113.95
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece: CHF 112.81 1,0% savings
from 5 piece: CHF 111.67 2,0% savings
from 10 piece: CHF 110.53 3,0% savings

Product description

Overview

HDMI 2.1 Audio Extractor with earc
Supports 8K60, 4K120, Dolby Vision & HDR10+
VRR, ALL, QMS, SBTM
Dolby Atmos & DTS:x audio
HDMI, optical & analogue audio output
CEC-volume control via TV-remote control
Connect audio to both sound bar and amplifier

Description

HDMI audio extractor with earc and 8K support
With the Marmitek Connect AE34, you can play the sound of your TV – whether it's from apps, a built-in decoder or a connected HDMI source – simultaneously via a sound bar and a separate home theater system or an amplifier. Ideal if you want to control multiple audio systems or zones without any effort.

This device supports the latest video standards such as Ultra HD 8K@60Hz, 4K@120Hz and HDR10+. So you enjoy the best picture and sound - without any compromises. Thanks to the support for Deep Color and complete 4:4:4 chroma, even the color gradients are pin-sharp.

The Connect AE34 extracts the audio signal from the HDMI source (Audio De-Embedding) and forwards it to an amplifier, receiver or active speaker system via an HDMI, digital (Toslink) or analogue 3.5 mm output. The video signal is thereby passed through simply to your TV-set or beamer.

Unique: Use the earc function of your TV even if your audio system is not suitable for it. So you get the Maximum out of your setup - without having to change everything.

By built-in EDID switch, you can easily set the desired audio format. No matter whether Stereo, 5.1 or 7.1 – you always have control over the signal.

The Marmitek Connect AE34 is the perfect solution for anyone who wants to cleverly separate and distribute audio signals without loss of quality.

Keywords

Marmitek, 25008496, Connect AE34, converter, converters

A rectangular electronic device with labeled input/output ports, LEDs indicating status, and buttons for control settings, manufactured by Marmitek.
Two Marmitek HDMI switches stacked, front and back views. Features include three outputs, a service port, and audio return channel.
A modern living room with a large flat-screen TV displaying streaming apps and movie options, a wooden speaker, and a potted plant.
A gray device featuring three HDMI output ports labeled 'Output 1 (HDMI or DVI)', 'Output 2 (HDMI)', 'Output 3 (HDMI)', and three other input/connection ports.
