Cable length meter for copper and aluminum cable
8 memory spaces for your own cable types
Resistance measurement
Auto switch-off
Brightness of the display can be adjusted
Determines cable length, resistance and temperature
Unit in m, km and ft
Standard cable types: 0.15 ... 240 mm² can be selected
Automatically switches off after 15 minutes

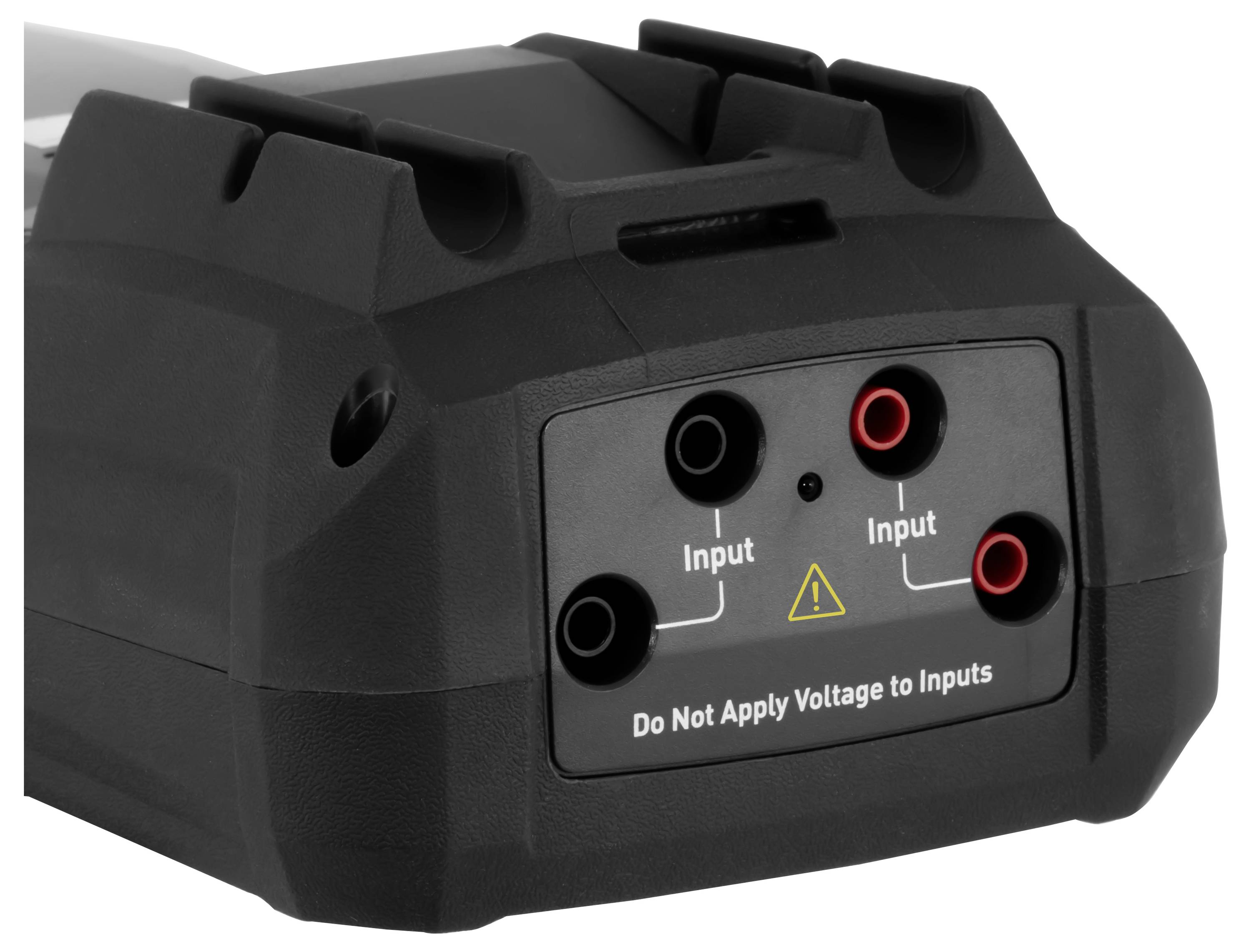

The cable length measuring device is a powerful and versatile measuring instrument, which was designed especially for the exact measurement of electrical cables and wires. With an impressive measurement range from 0.1 m to an amazing 30 km, this device can measure and display cable lengths. As the cable length meter determines the length over the line resistance, it can also measure the resistance from 0.1 mΩ to 1999.9 Ω. For this measuring principle, it is also necessary to connect the Kelvin terminals with both cable ends.
The temperature monitoring function, which covers an operating range from -5 °C to +50 °C, enables the influence of temperature fluctuations on the length measurement to be taken into account. The cable length meter supports the display of the cable length in various units, including meters (m), kilometers (km) and feet (ft), in order to meet the different requirements of users and nations.
The implementation of 8 storage locations allows the user to individually configure and store cable types for quick access to frequently used settings. This function significantly increases the practicality of the device.

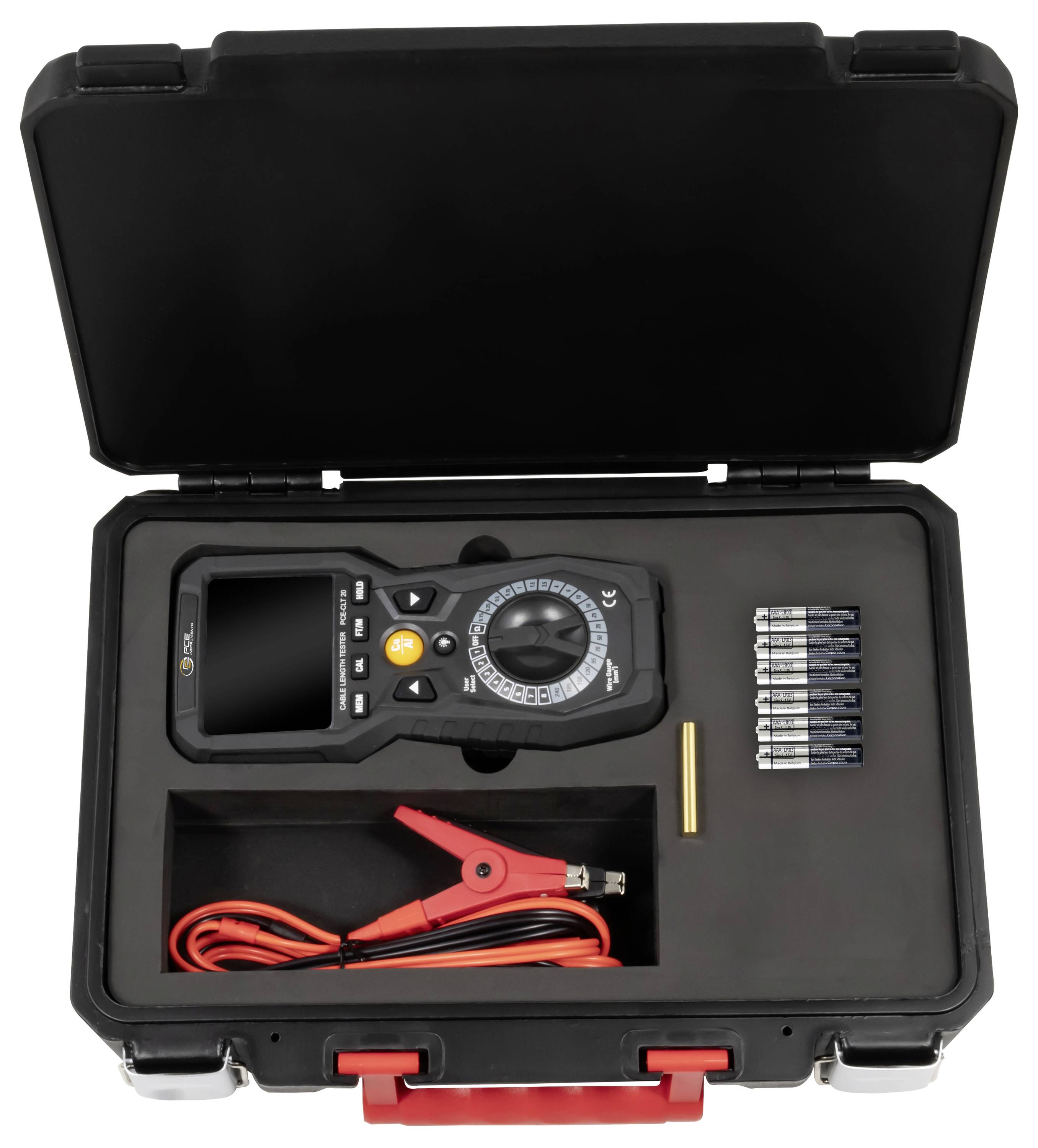

By integrating copper and aluminum cable support, the tester opens up applications in various industrial environments. In addition, the choice of standard cable types in the range of 0.15 mm² to 240 mm² enables the user to configure precisely according to the specific requirements of his application. The cable length meter is delivered in a transportation case and with two test leads which enable the direct use by electricians, in trade or many other areas
LCD with lighting
PCE Instruments, PCE-CLT 20
