Power meter PCE-PA6000 PCE Instruments PCE-PA6000

  • item model number: W353392
Digital power analyzer showing voltage, current, and power readings, with red and black test leads connected on the right side.

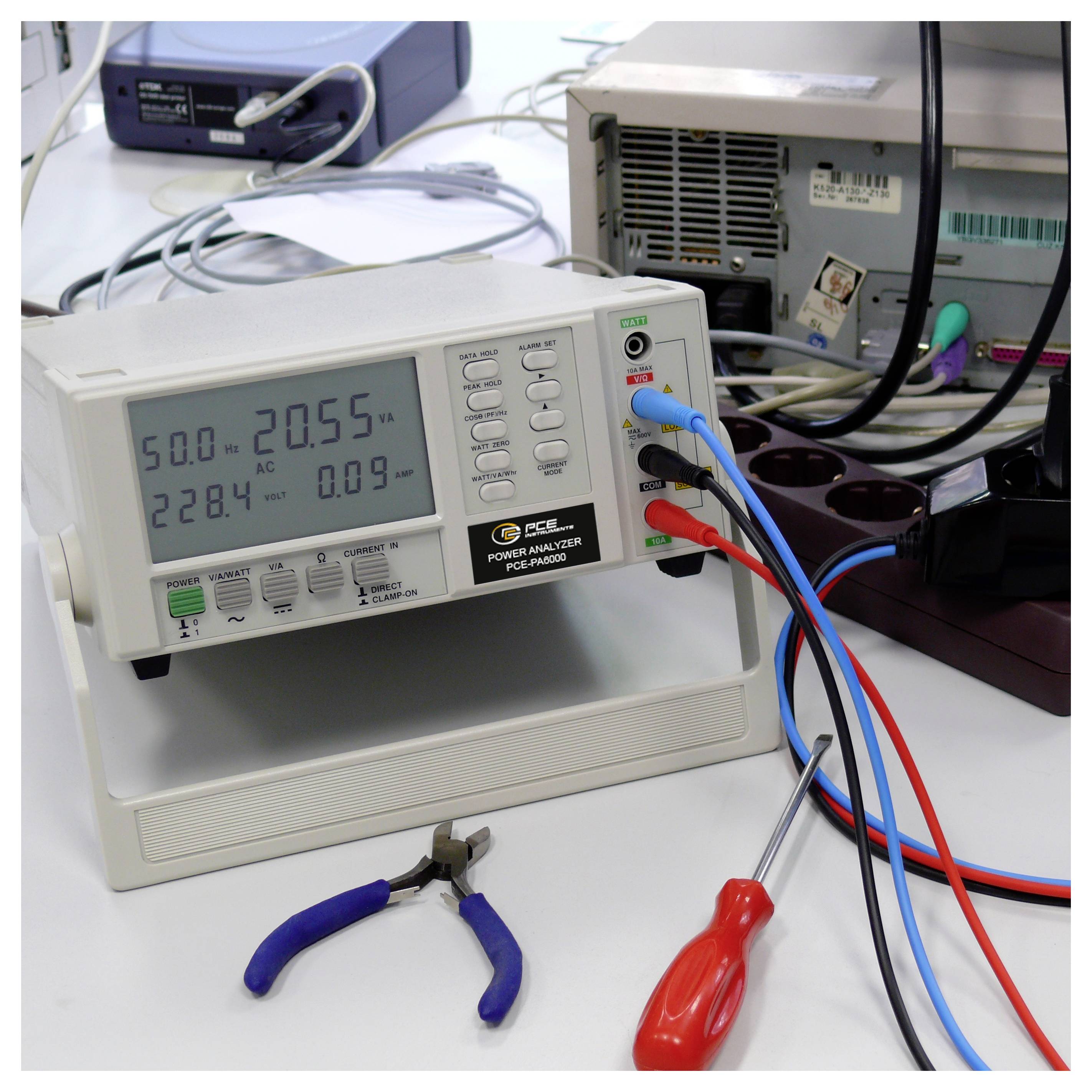

Benchtop power analyzer displays electrical readings while red, blue, and black test leads connect to nearby equipment.

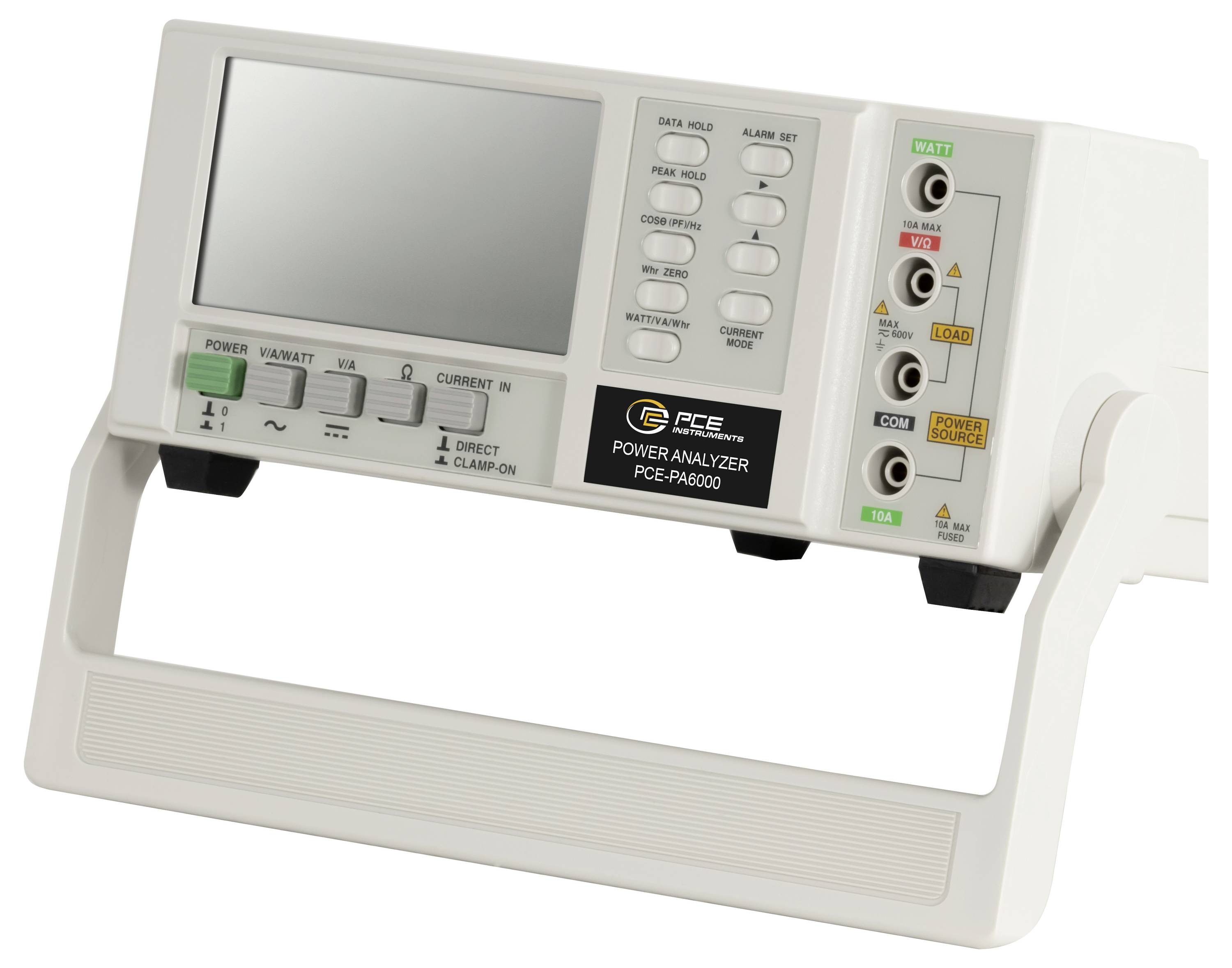

Digital power analyzer meter with blank display, buttons, and labeled input terminals in a carrying frame.

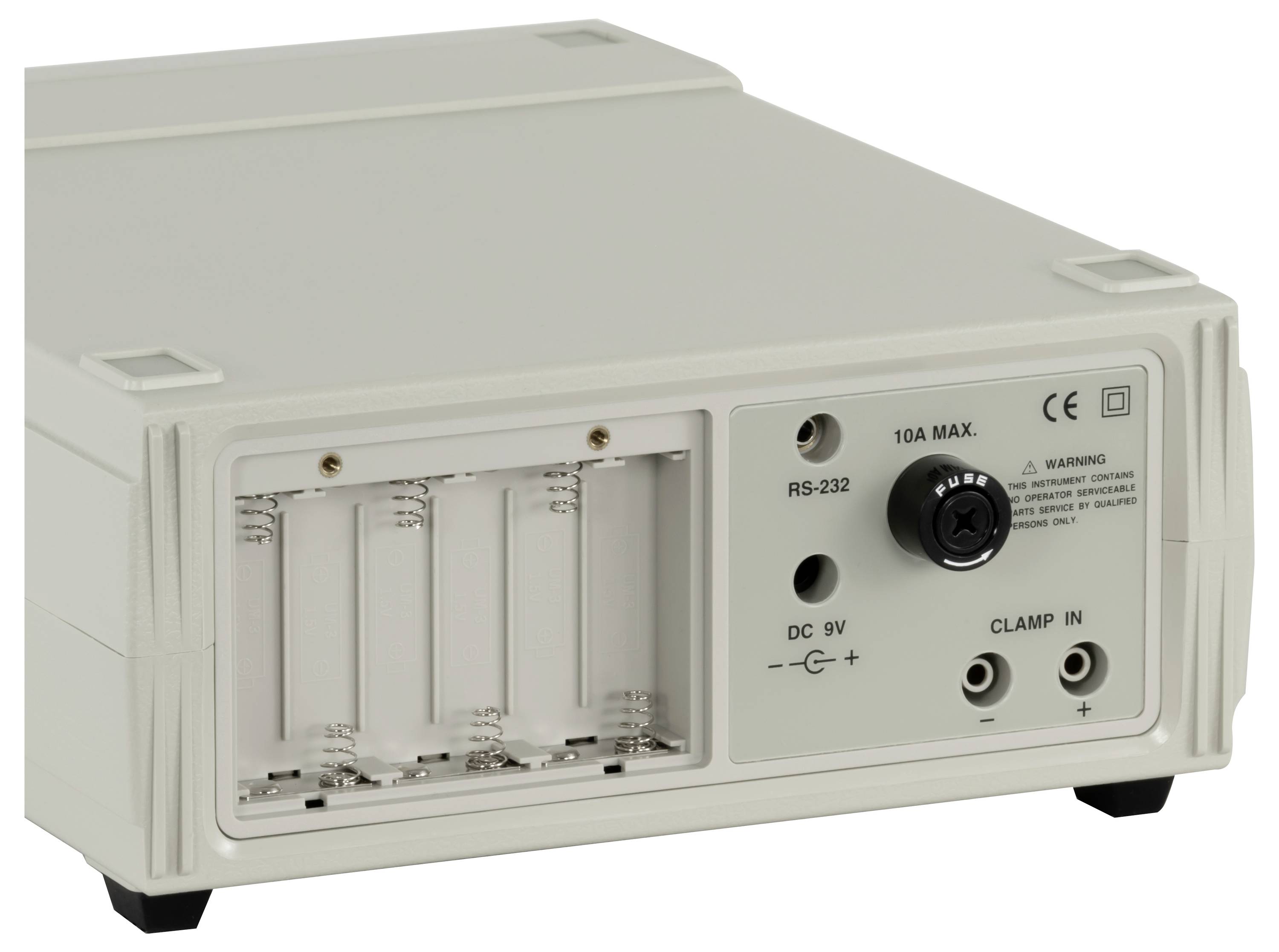

Small gray electronic device with battery compartment, RS-232 port, 9V DC input, and clamp-in connectors on the front panel.

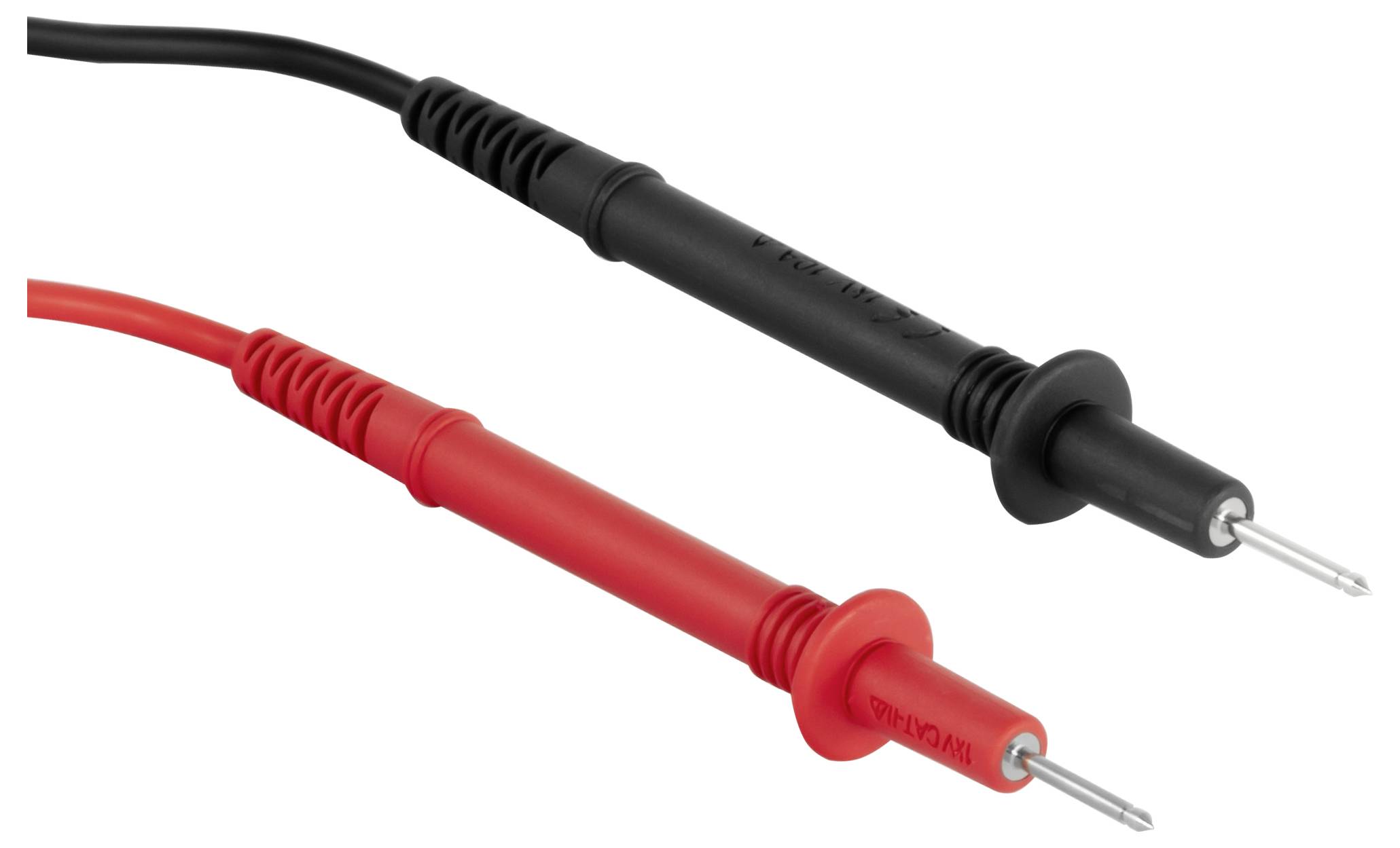

Red and black multimeter test probes with pointed metal tips, shown side by side on a white background.

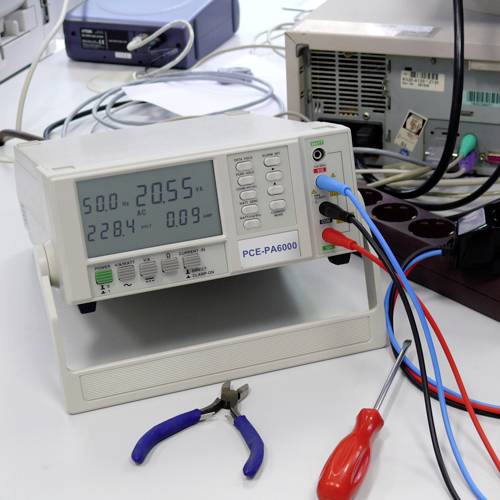

A digital ammeter displays '20.55' at '220 V AC'. A screwdriver and pliers are placed beside it. Background: Laboratory environment.

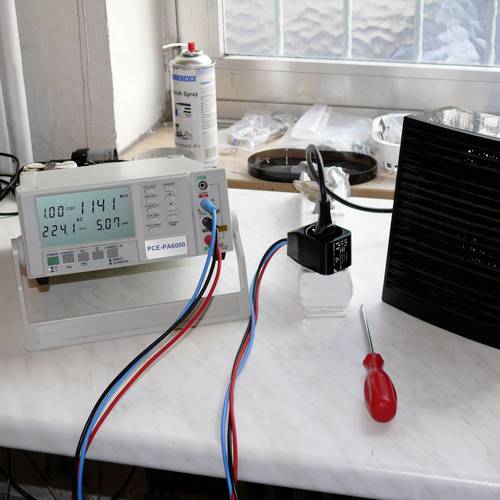

A measuring device with digital displays shows readings next to a plug socket, a screwdriver, and a spray can on a table.

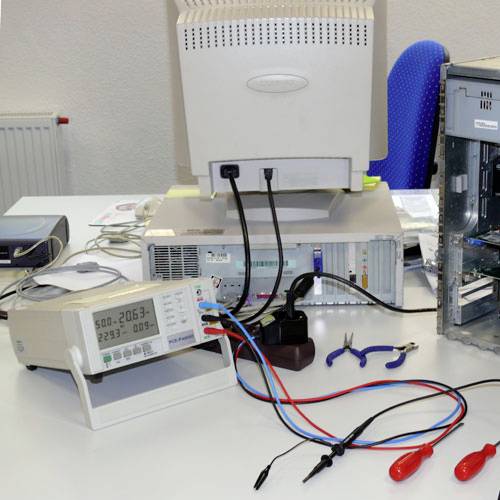

In a laboratory, an open computer sits on a table with connected electronic measuring instruments and tools.
CHF 451.70
VAT included
plus
Delivery time: 3-4 days
in stock
30 days free return shipment
Power meter PCE-PA6000 PCE Instruments PCE-PA6000
CHF 451.70
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 447.18 1,0 % savings
from 5 piece : CHF 442.66 2,0 % savings
from 10 piece : CHF 438.14 3,0 % savings

Product description

Overview

Automatic range selection
Multimeter function
Current measurement possible directly and indirectly through current transformer or current clamp
Active power / apparent power measurement
Power factor measurement Energy consumption measurement (kWh)
Measured value and peak value
Holding function High- / Low
Notification
RS-232 interface
Battery operation and mains operation possible
SAFETY IEC-1010-1; CAT II 600 V.
The figure shows the optional PCE-PA-ADP power adapter. The two images show the supplied analysis software for the power analyzer.
Four measured values can be displayed at the same time and long-term measurements can be carried out by means of the graphic display and evaluated at a later time.

Description

Universally usable power analyzer with RS-232 interface and evaluation software for the power analysis of consumers of the power analyzer PCE-PA6000 is as a desktop device or portable measuring device for measuring active power, apparent power, power factor, energy consumption, alternating voltage, AC, DC, DC, resistance and frequency can be used. The current/power measurement can be done with this power analyzer either directly with the supplied test leads, or indirectly via current clamps. The analyzer also offers the option of connecting industrial current transformers with a transmission ratio of 100/5 A or 1000/5A. The large, easy-to-read LCD display with 93 x 52 mm displays several measurement results simultaneously, e.g. Watt, cos f, ACV, ACA. The PCE-PA-ADP power adapter, which can be supplied as an option, allows consumers with a safety plug (up to 16 ACA) to be connected to the power analyzer very easily and safely for measurement and analysis. The measuring device has an RS-232 data interface, and with the help of the analysis software you can transfer, process and save the data on a PC. Thus it is the ideal device for use in the workshop or for measuring performance and troubleshooting at consumers on site.

Delivery content

  • Delivery scope 1 x power analyzer PCE-PA6000
  • 1 set of test leads
  • 1 x RS-232 cable
  • 1 x analysis software
  • 6 x battery and operating instructions

Keywords

04250348701152, PCE Instruments, PCE-PA6000

Digital power analyzer showing voltage, current, and power readings, with red and black test leads connected on the right side.
Benchtop power analyzer displays electrical readings while red, blue, and black test leads connect to nearby equipment.
Digital power analyzer meter with blank display, buttons, and labeled input terminals in a carrying frame.
Small gray electronic device with battery compartment, RS-232 port, 9V DC input, and clamp-in connectors on the front panel.
