Laser category: 1
Laserfuchs Line laser level
![Graph shows: 'Laser Line Length at 90-Degree Fan Angle'. Axes: Working Distance [m], Laser Line Length [m]. Line: Linear Increase.](https://asset.re-in.de/isa/160267/c1/-/en/002987721TI02/Laserfuchs-Line-laser-level.webp?x=500&y=500&ex=500&ey=500&align=center&format=WEBP "Laserfuchs Line laser level")
Product description
Characteristics
Line laser, green, 520nm, 5mW, 90°, Laser class 1, Focus 1m, 3V DC, 19x19 86mm, Battery operated
The type LFL520-5-3(19x86)90 is a laser for projection of a green laser line. The laser module emits radiation of the 520nm wavelength. The module is operated with a CR123A battery, which is included in the delivery and enables wireless operation over several hours. The laser has a very compact design (19x86mm). Press the switch at the end of the laser module once and the laser is switched on permanently. If activated again, the laser is switched off again. At a working distance of 1m, the opening angle (90°) generates a laser line length of 2m. For applications in industry, trade, hobby or show sector. Typical usage areas are low-cost applications. This module falls into the laser class 1.
Latch switch: Press the switch at the end of the laser module once and the laser is permanently switched on. Repeated operation switches off the laser again.
Radiation characteristics: Line, line thickness 1.2mm@1m
Optical output: 5mW (laser class 1); focus: 1m

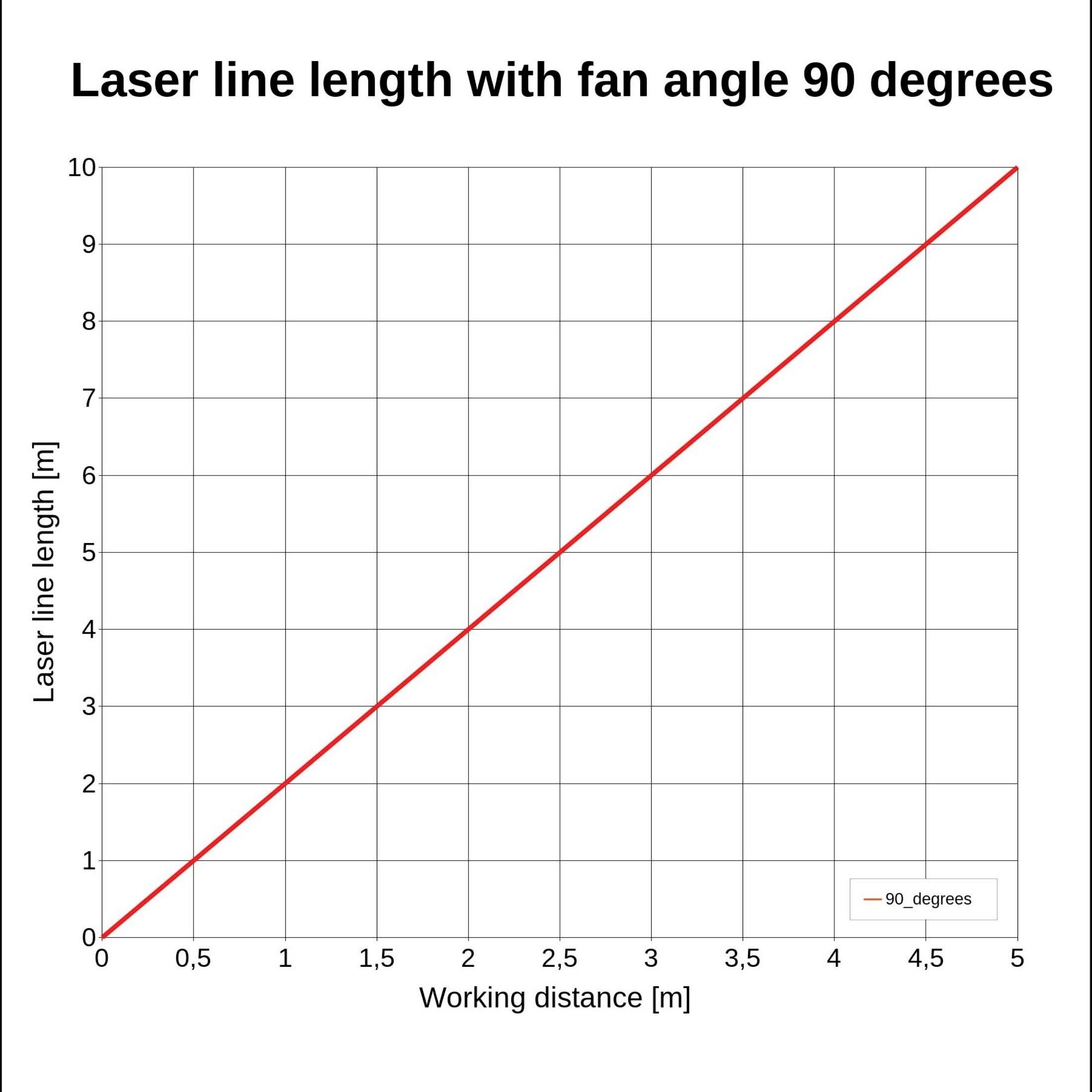

Compact design: 15x67mm; opening angle: 90°; axis deviation up to 3.0°; the opening angle (90°) produces a laser line length of 2m at a working distance of 1m.

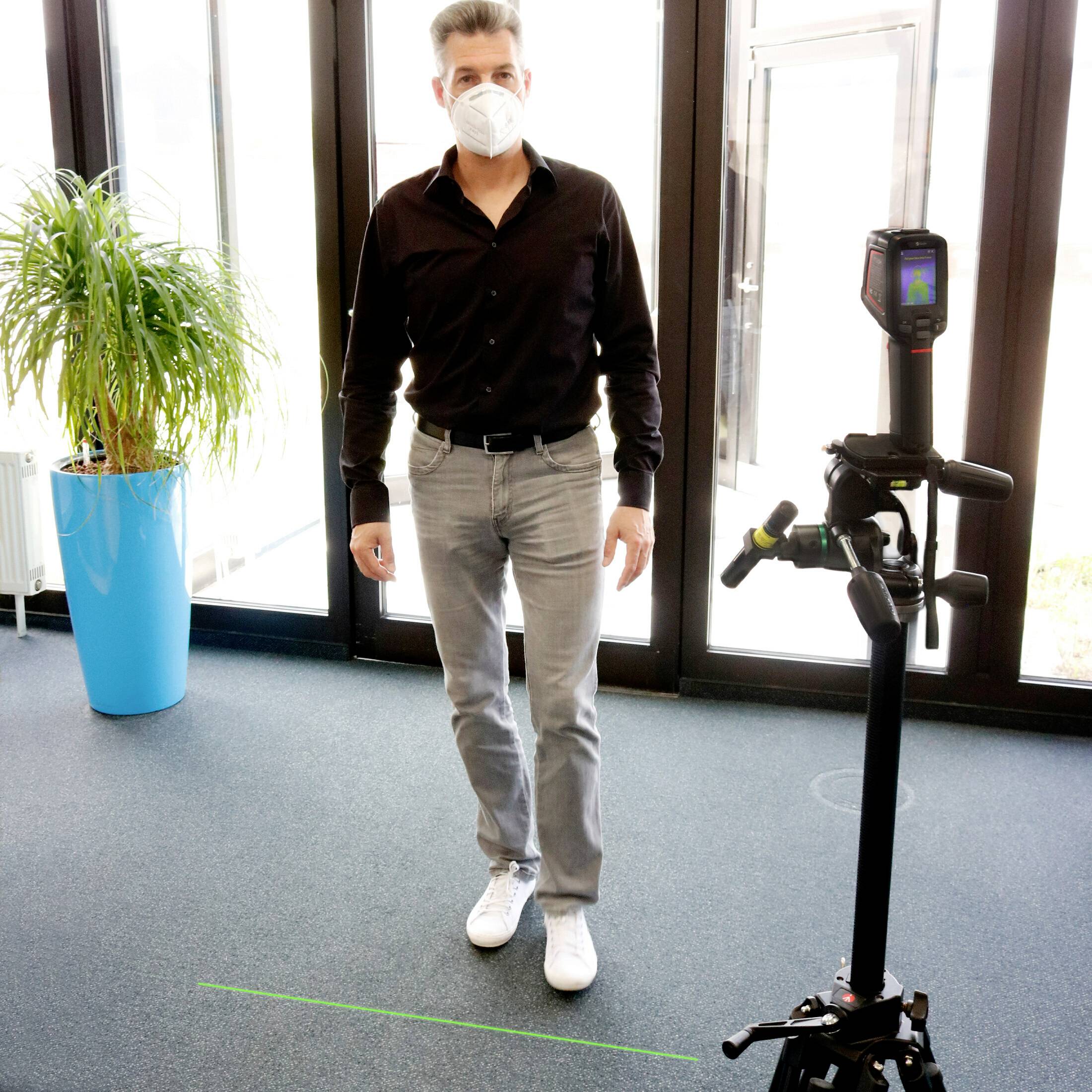

For presentations, for positioning of objects and applications in industry, trade, hobby or show sector. Supplied with one CR123A battery.
Delivery includes a CR123A type battery.
Keywords
Laserfuchs, 70136081, LFL520-5-3(19x86)90, laser, laser module, laser technology
