High resistance to high-frequency interference and electromagnetic waves
RS485 Modbus RTU output
Wear and maintenance-free ultrasound converter
Compact: Measures wind speed and direction in one unit
Protection class IP65 for outdoor use

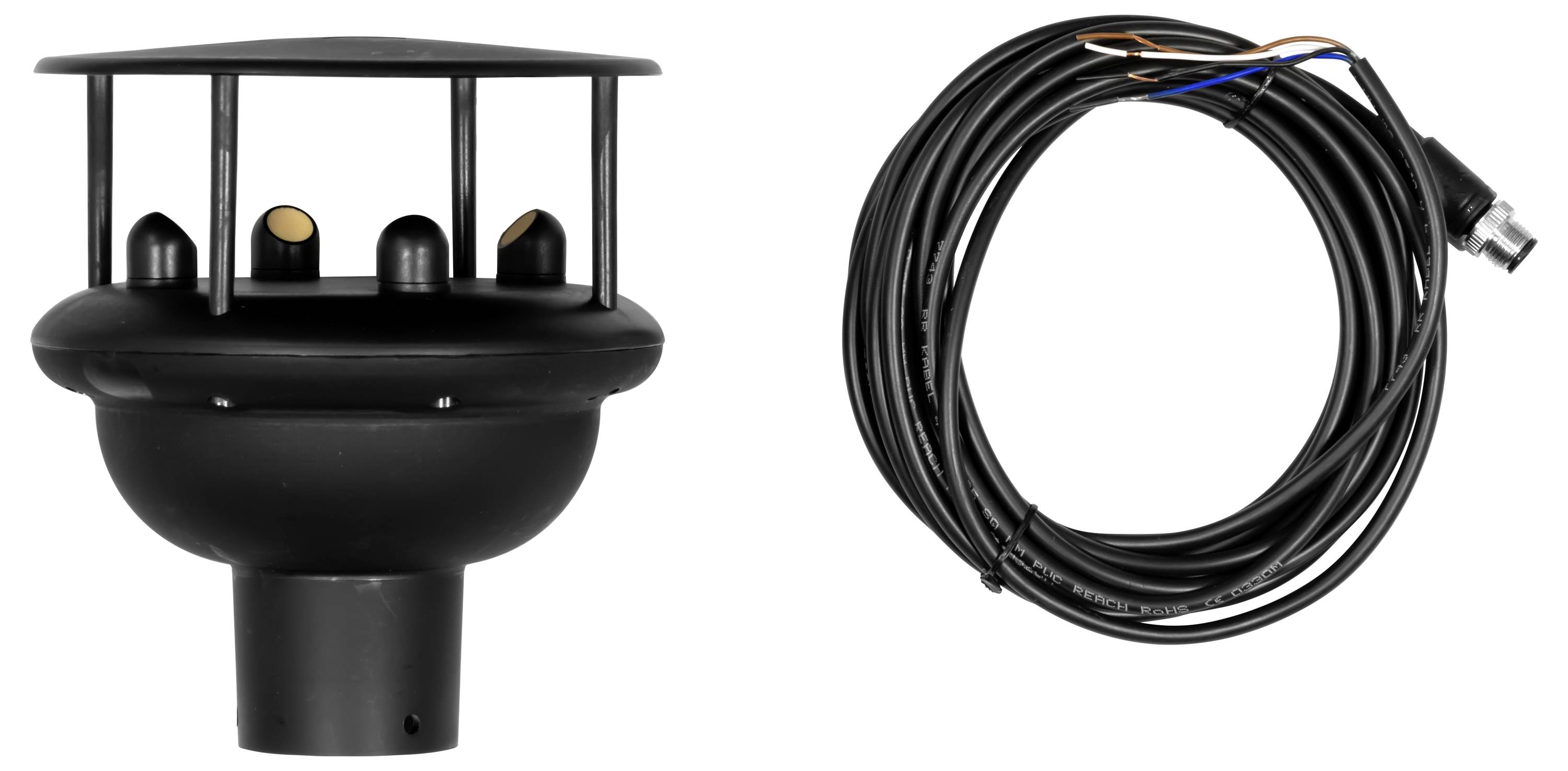

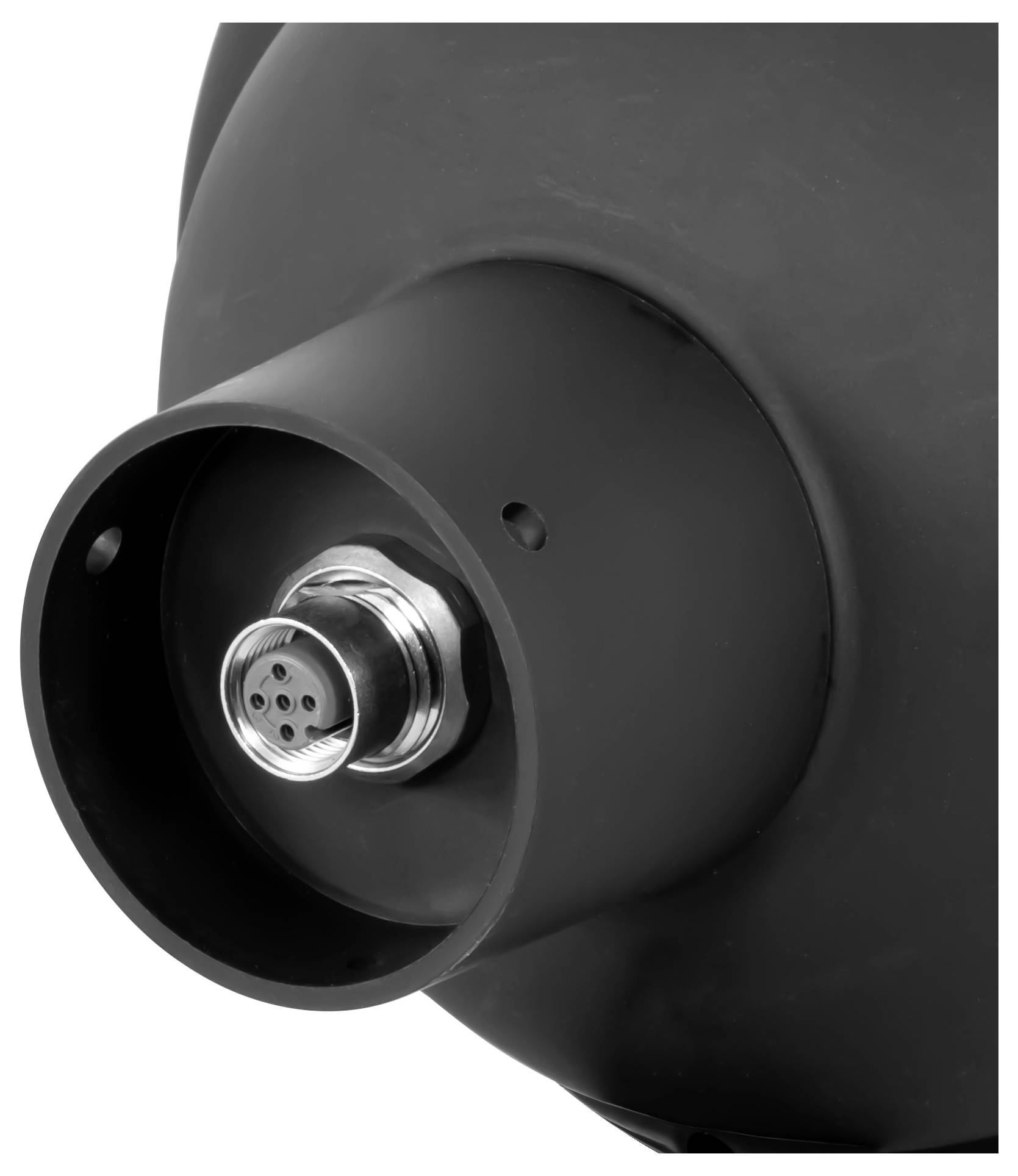

5 m cable with 4-pin M12 plug included in delivery
Power supply 9 ... 30 V DC
Max. permitted wind speed: 200km/h

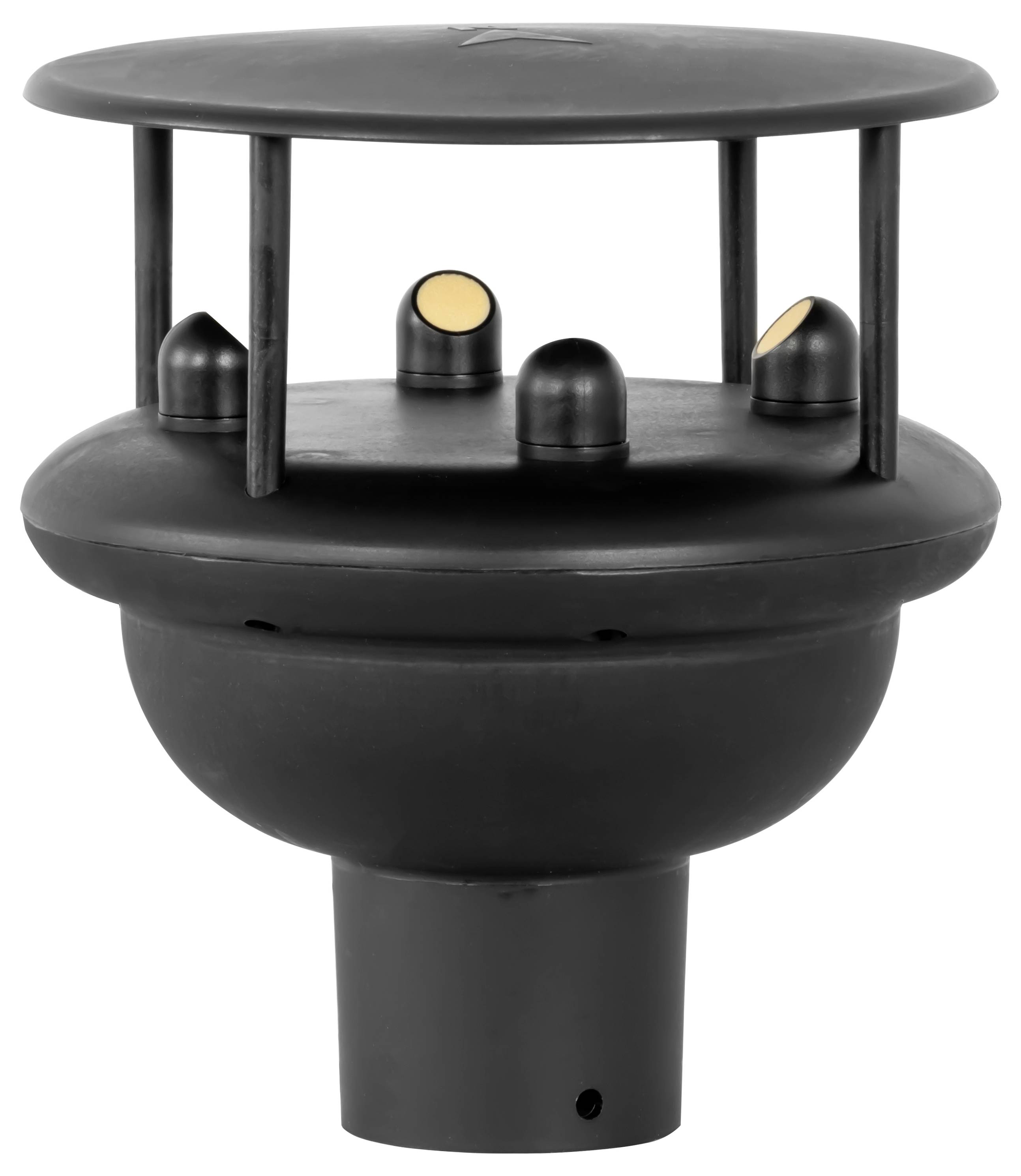

The ultrasound anemometer measures wind flow using ultrasound converters to determine the exact wind speed and direction. The ultrasound measuring principle eliminates the need for moving parts such as those used in mechanical shell anemometers, resulting in no mechanical friction. The ultrasound anemometer is robust, designed for use in industrial environments and highly resistant to radio frequencies and electromagnetic waves. Thanks to the high degree of protection IP65, it is also protected against the penetration of dust and water and thus Ideal is suitable for outdoor use.
The ultrasound anemometer offers RS485-Modbus-RTU bus communication and is therefore compatible with the latest industrial communication protocols. The compact design of the ultrasonic anemometer allows the measurement of wind speed and direction in a single device, WAS significantly reduces the complexity and space requirements of conventional mechanical anemometer and wind vane.
Typical application areas include solar trackers, irrigation control systems, greenhouse automation, wind turbines, cranes and weather stations. The device is Ideal for all applications, which need a precise wind monitoring for control, safety or for optimizing industrial resources.
