Shelly 5-Terminal Add-on Adapter

  • item model number: X151563
Micro USB to green terminal block converter cable with black wire.

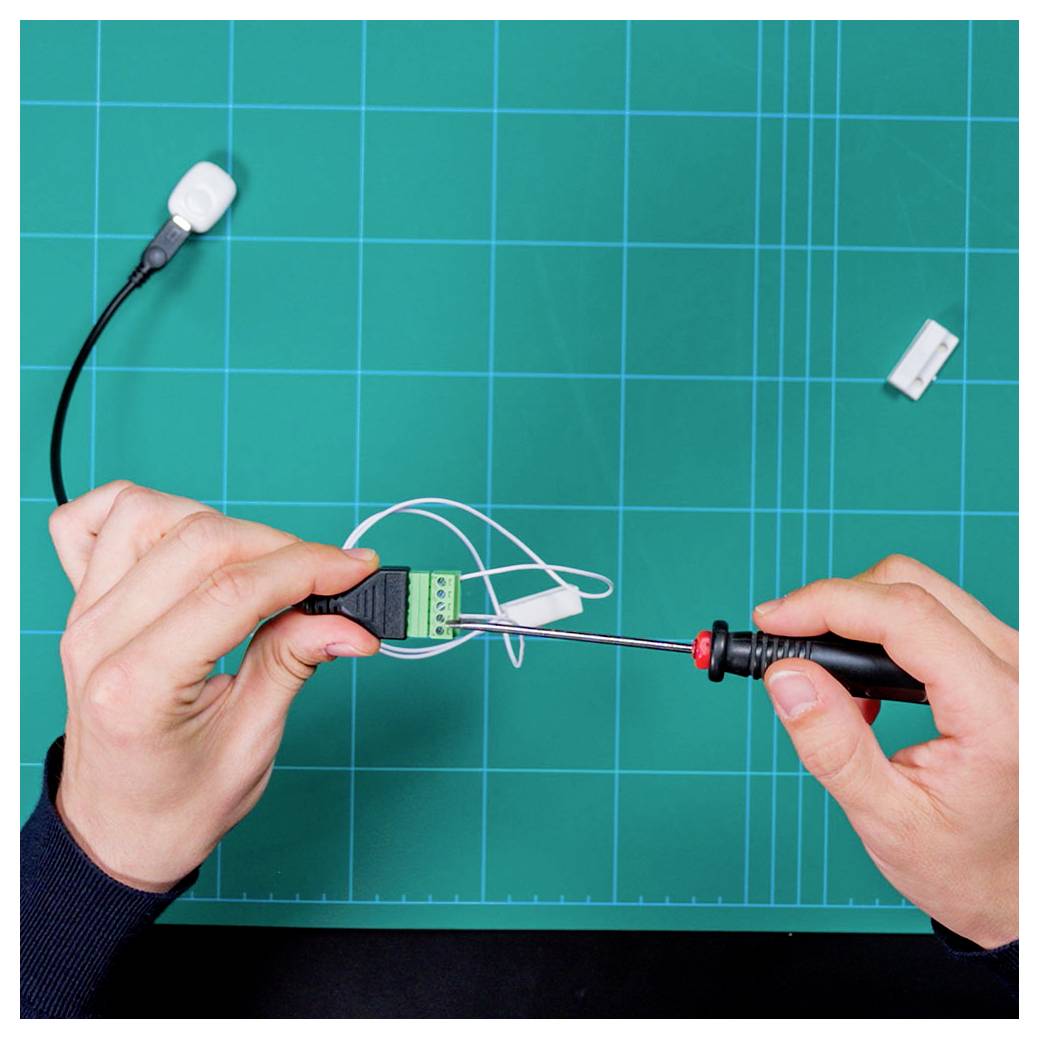

Hands shown assembling an electronic connector on a cutting mat with tools, indicating a work in progress on electronic components.

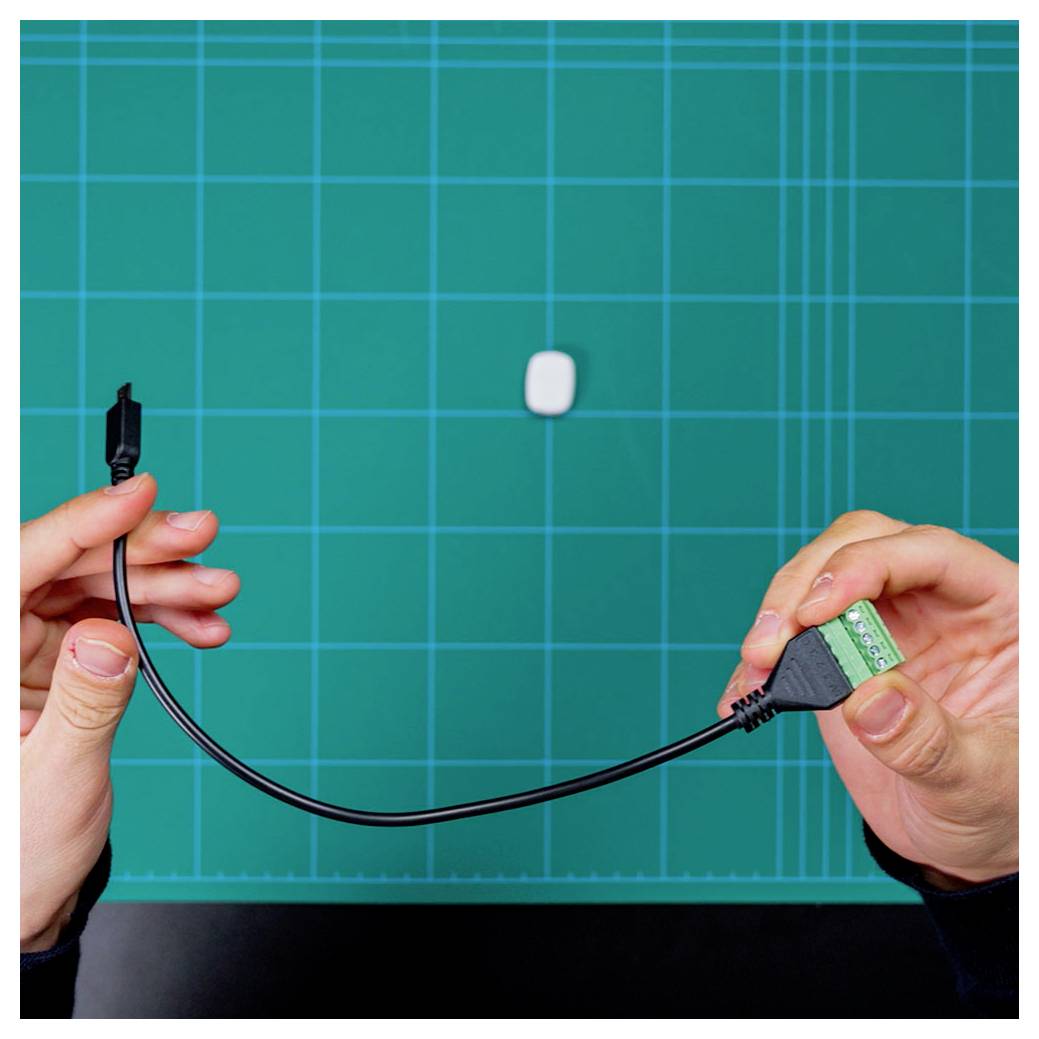

Two hands hold a black USB cable above a green grid-lined cutting mat. A small white rectangular object is on the mat.
A cable with a 5-pin connector labeled: '5V', 'IO1', 'IO2', 'IO3', 'GND', used for electrical signaling or power supply.

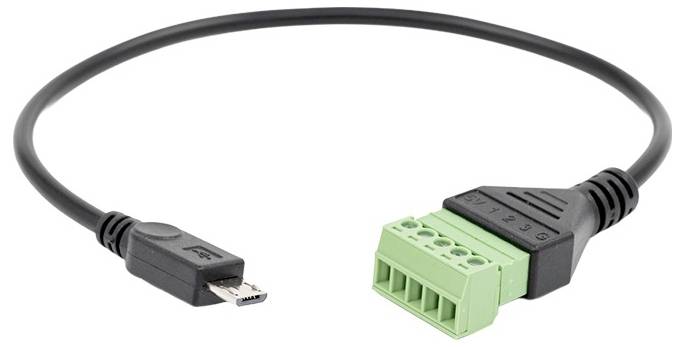

A USB to terminal block adapter cable with a micro USB connector on one end and a green screw terminal block on the other.

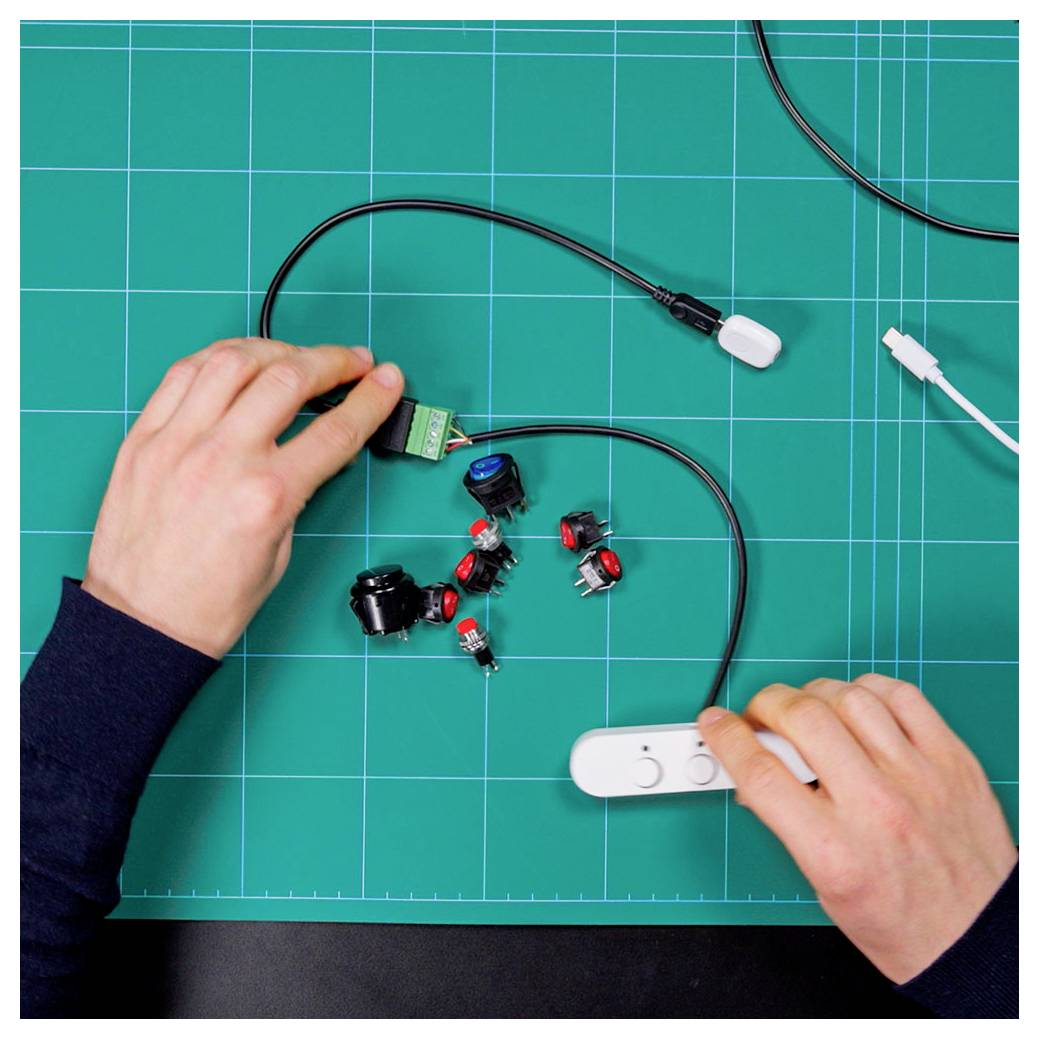

Two hands assembling electronic components on a cutting mat, including wires, connectors, and a control module, indicating a DIY electronics project.

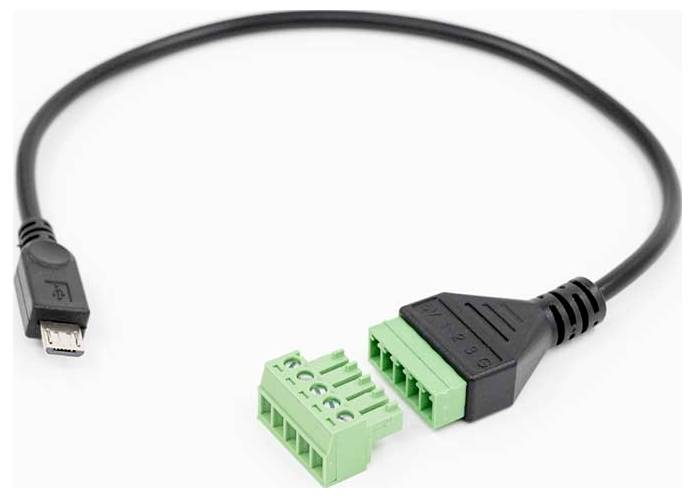

A black cable with a micro USB connector on one end and a green terminal block connector on the other, used for data or power transfer.
CHF 7.60
VAT included
plus
Delivery time: 3-4 days
in stock
30 days free return shipment
Shelly 5-Terminal Add-on Adapter
CHF 7.60
VAT included
plus
One article is not enough for you and you want to save money?
from 3 piece : CHF 7.52 1,1 % savings
from 5 piece : CHF 7.44 2,1 % savings
from 10 piece : CHF 7.37 3,0 % savings

Product description

Description

Interface module for The Pill by Shelly, which provides power, ground (earth), and three configurable I/O ports for sensor and control connections. Ideal for connecting sensors, sensors or other controls in every set-up.
*The 5-terminal add-on is sold separately from The Pill by Shelly.

Characteristics

- 3 configurable inputs/outputs (3.3 V logic level)
- Supports digital inputs/outputs, analog inputs and temperature sensors (DS18B20, DHT22)
- 5V Current and GND terminals for connected devices
- Compact interface for prototyping and integration
- Required base module for other add-ons from The Pill by Shelly

Keywords

Shelly, Shelly_The_Pill_5TA, 5-Terminal Add-on

Micro USB to green terminal block converter cable with black wire.
Hands shown assembling an electronic connector on a cutting mat with tools, indicating a work in progress on electronic components.
Two hands hold a black USB cable above a green grid-lined cutting mat. A small white rectangular object is on the mat.
A cable with a 5-pin connector labeled: '5V', 'IO1', 'IO2', 'IO3', 'GND', used for electrical signaling or power supply.
