Digitus RJ45 Networks Adapter CAT 5, CAT 5e [2x RJ45 plug - 1x RJ45 plug] Grey

  • item model number: Y233842
A silver Ethernet splitter with two input ports and an output cable terminating in an RJ45 connector.

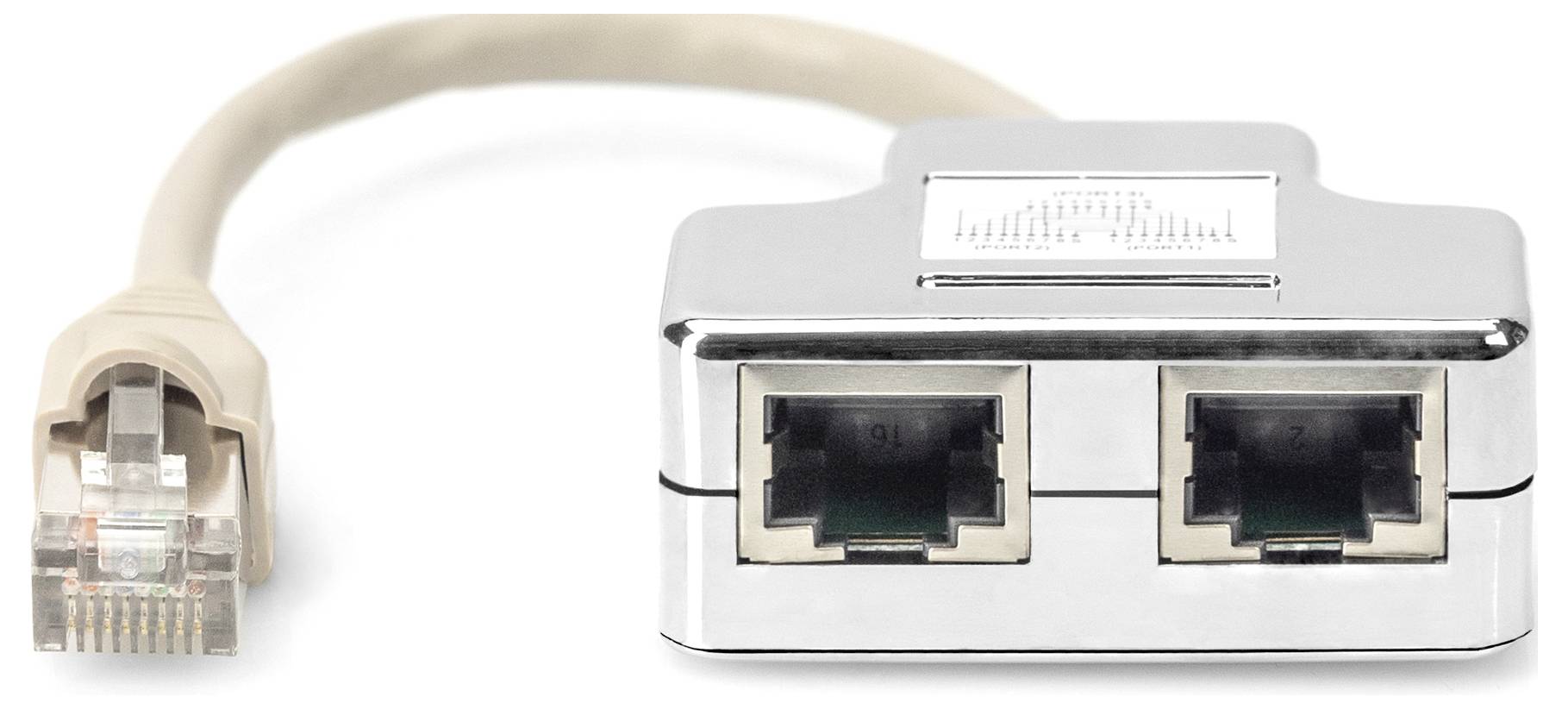

An Ethernet splitter with one cable plug and two connection sockets enables the connection of two devices to a network.

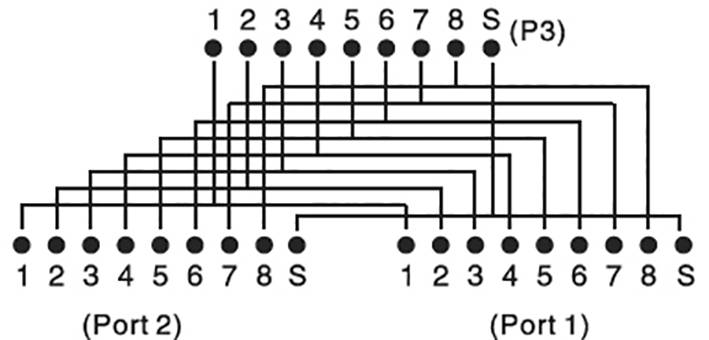

Circuit diagram of a parallel connection with two ports (Port 1 and Port 2). Connections between pins 1-8 and S are shown. P3 marks pin S of Port 2.

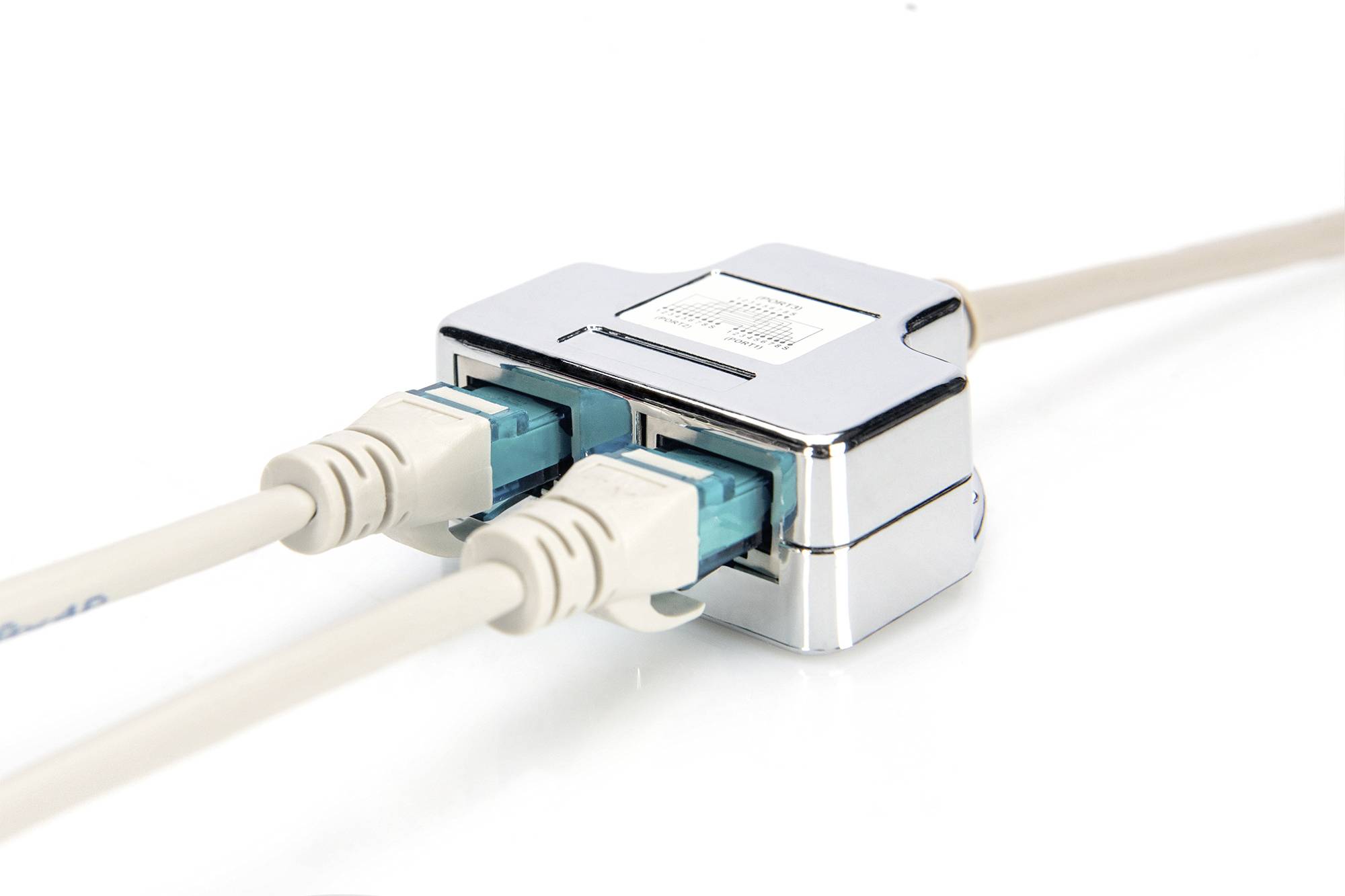

Two beige Ethernet cables are plugged into a silver network splitter, which is resting on a white surface.
Currently not available
There is already a notification for this product.
Digitus RJ45 Networks Adapter CAT 5, CAT 5e [2x RJ45 plug - 1x RJ45 plug] Grey
Currently not available
There is already a notification for this product.

Product description

Overview

1:1 version

Description

The shielded patch cable adapters consist of two RJ45 sockets and a 0.19 m long patch cable with RJ45 plug. They are available in different versions, which are individualized according to the pin assignment for the required application purpose.

Characteristics

2x RJ45 socket to 1x RJ45 plug
Patch cable has kink protection sleeve with strain relief and snap-on protection

Information

Please check the adapter pin layout. Depending on use, required pin layouts may differ.

Delivery content

  • cat 5e, 2x 01:01, patch cable adapter, shielded 2x RJ45 socket to 1x RJ45 plug, length 0.19 m

Keywords

04016032066590, Digitus, AT-AG CX2, network connector, ethernet connector

A silver Ethernet splitter with two input ports and an output cable terminating in an RJ45 connector.
An Ethernet splitter with one cable plug and two connection sockets enables the connection of two devices to a network.
Circuit diagram of a parallel connection with two ports (Port 1 and Port 2). Connections between pins 1-8 and S are shown. P3 marks pin S of Port 2.
Two beige Ethernet cables are plugged into a silver network splitter, which is resting on a white surface.

Product specifications
