VOLTCRAFT R-200 Component tester Digital CAT III 600 V Display (counts): 4000

Overview

High accuracy through the 4-conductor Kelvin measurement method
High resolution from 0.1 mΩ with 200 mA test current
Additional multimeter measurement functions

Description

The R-200 enables milli-ohm resistance measurements from 0.1 mΩ to 40 Ω with high resolution and accuracy to transformers, circuits, ring-bus systems, components, etc. Through the sprayed on soft-rubber protection the R-200 is also suitable for harsh use.

Characteristics

Test current up to 200 mA · Multimeter with measurement functions V/AC, V/DC, Ω, F, mA/AC, mA/DC, acoustic continuity tester and diode test · Rel-/Min-/Max- and Hold funciton · Background lighting · Auto power-off.

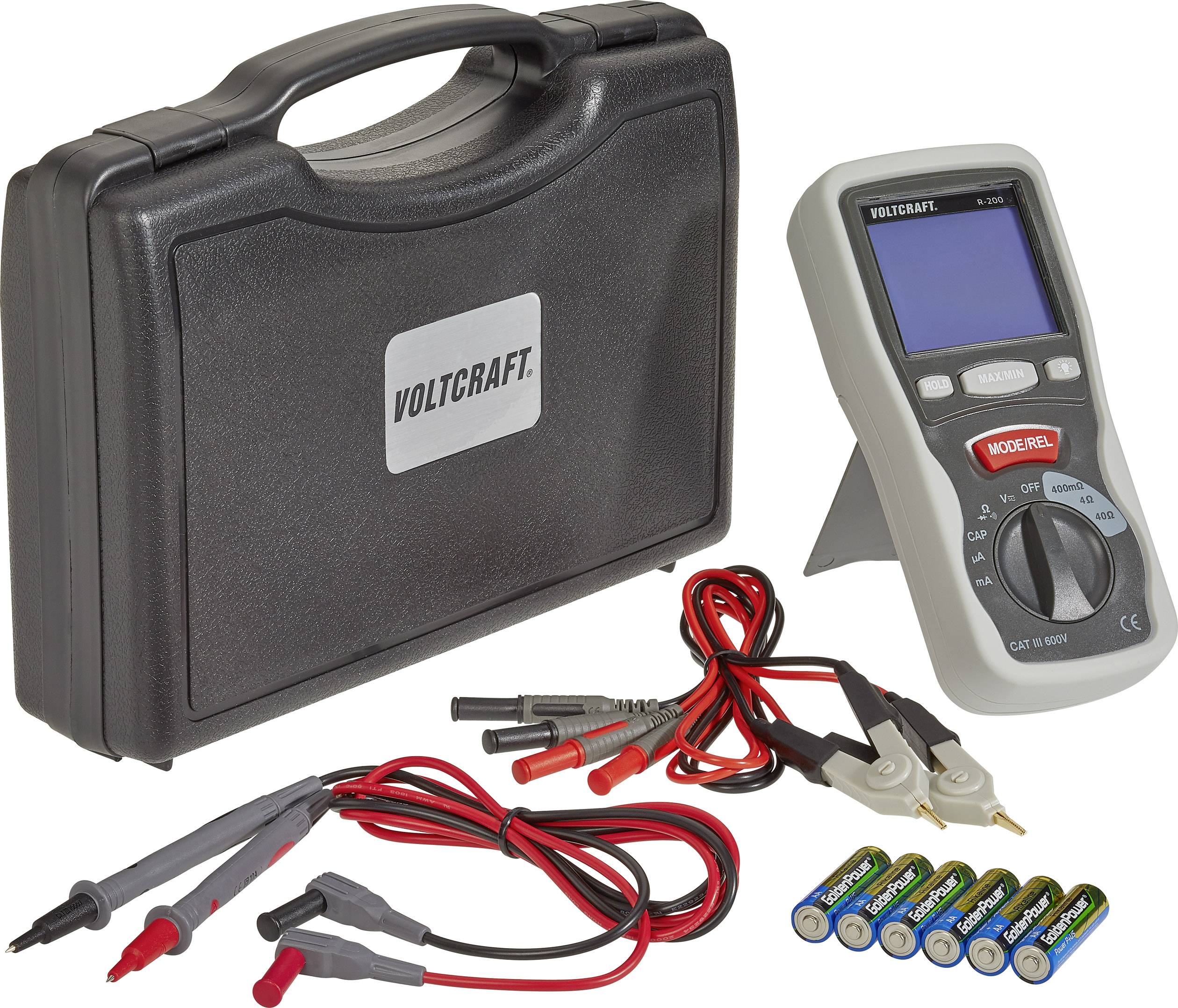

Delivery content

• R-200
• 1 set of Kelvin measurement leads
• 6 batteries (type AA)
• Stable preservation case
• Instructions for use.
