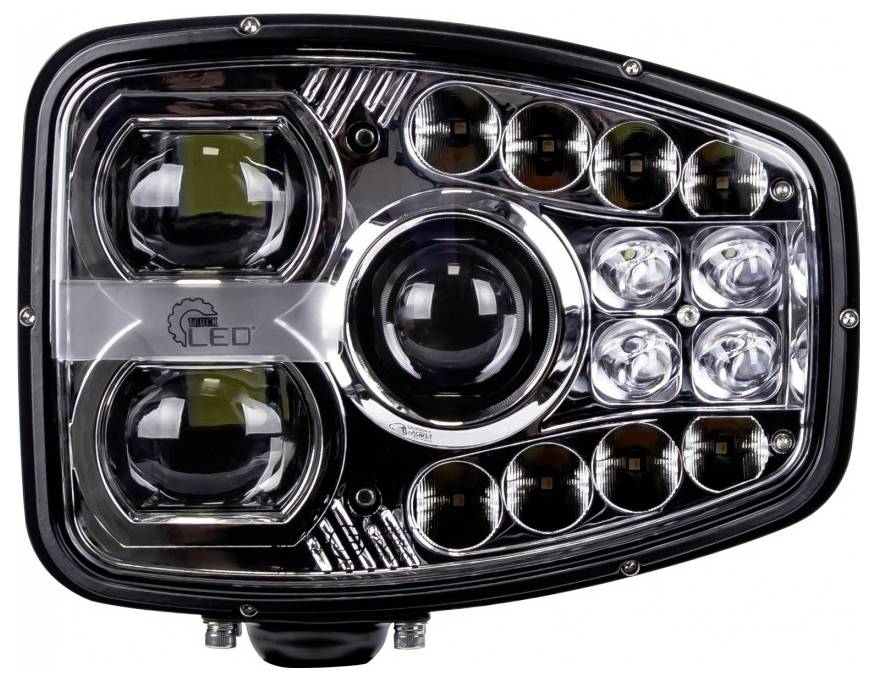

LED front headlights on the left side of the vehicle
Connection via 6-pin German plug with 200 mm cable
All lighting functions integrated
High light output with low power consumption
Long life thanks to LED technology
Robust design for professional use
Compact design for versatile mounting
Modern LED head spot light for commercial vehicles, trucks, construction and agricultural machines. The spotlight combines all the important light functions in a compact, high-quality casing and provides optimum view as well as enhanced safety in daily use. Thanks to efficient LED technology it offers strong light output with low power consumption and long life.
The headlight is specially designed for the left side of the vehicle.
Functions:

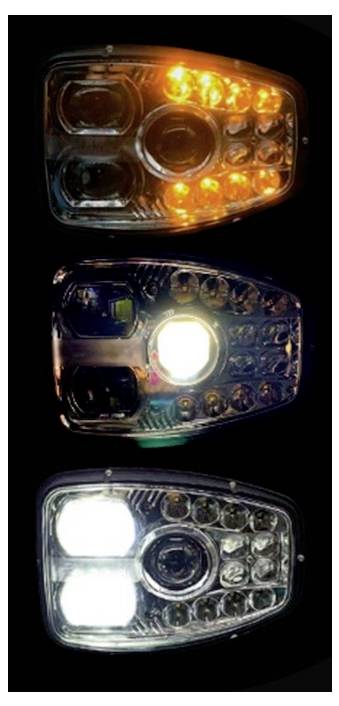

LED front headlights with integrated parking light, low beam, high beam, daytime running lights and flashing light – all functions combined compactly in one system.
The robust housing is designed for demanding applications and reliably resists vibrations, moisture and dirt. Owing to its compact design the headlight Ideal is suitable for different vehicle types and retrofit solutions. The modern look of each vehicle is upgraded in addition.
Mounting side: Left
Operating voltage 12 24 V DC
Lighting functions: Parking light, low beam, high beam, daytime running lights, flashing light

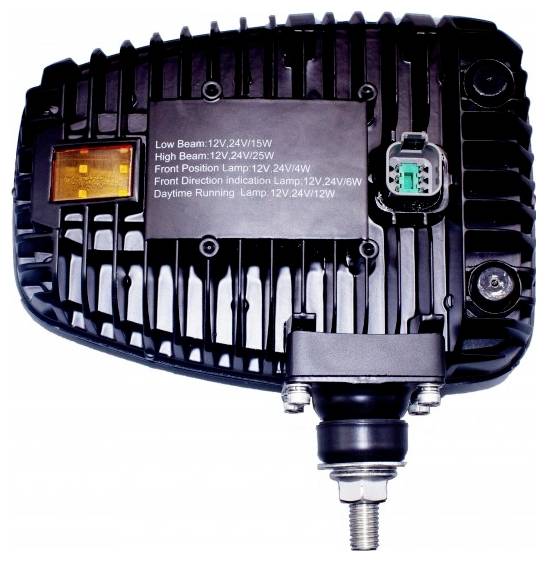

Power consumption:
Parking light 4 W
Low beam 15 W
Distance light 25 W
Daylight driving light (DRL): 12 W

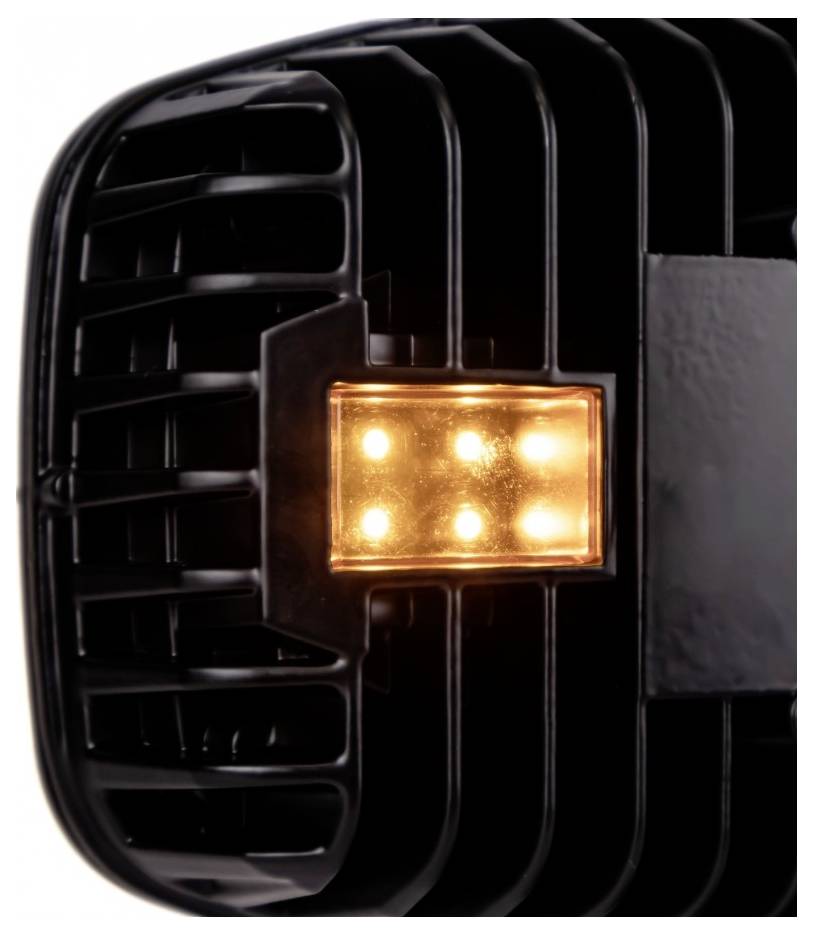

Flashing light 6 W

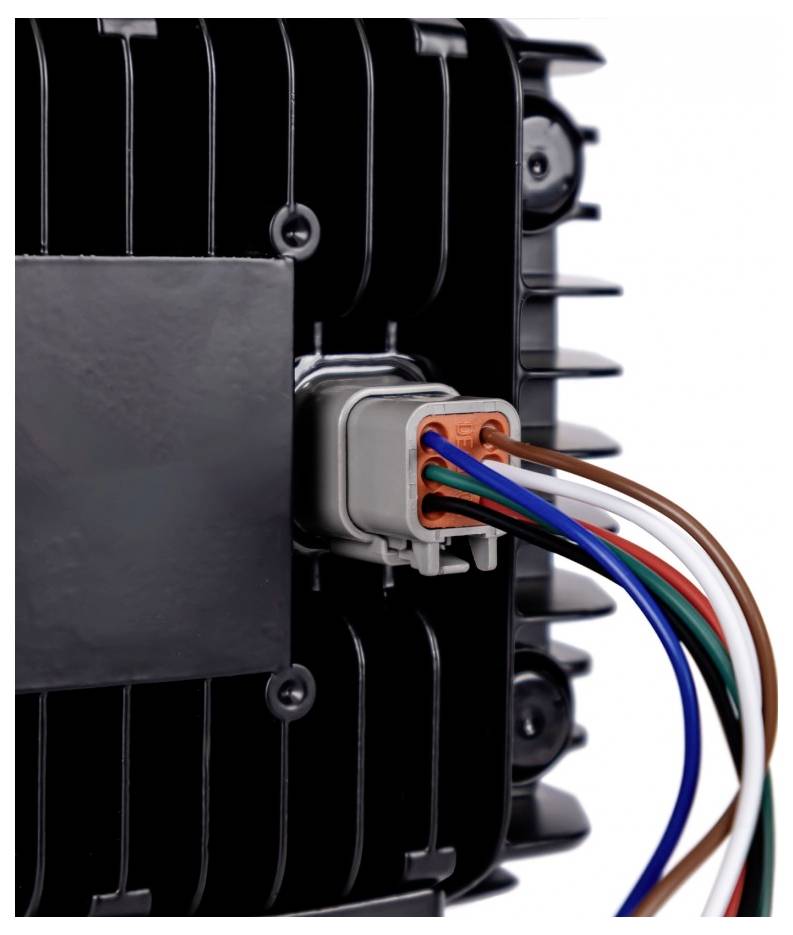

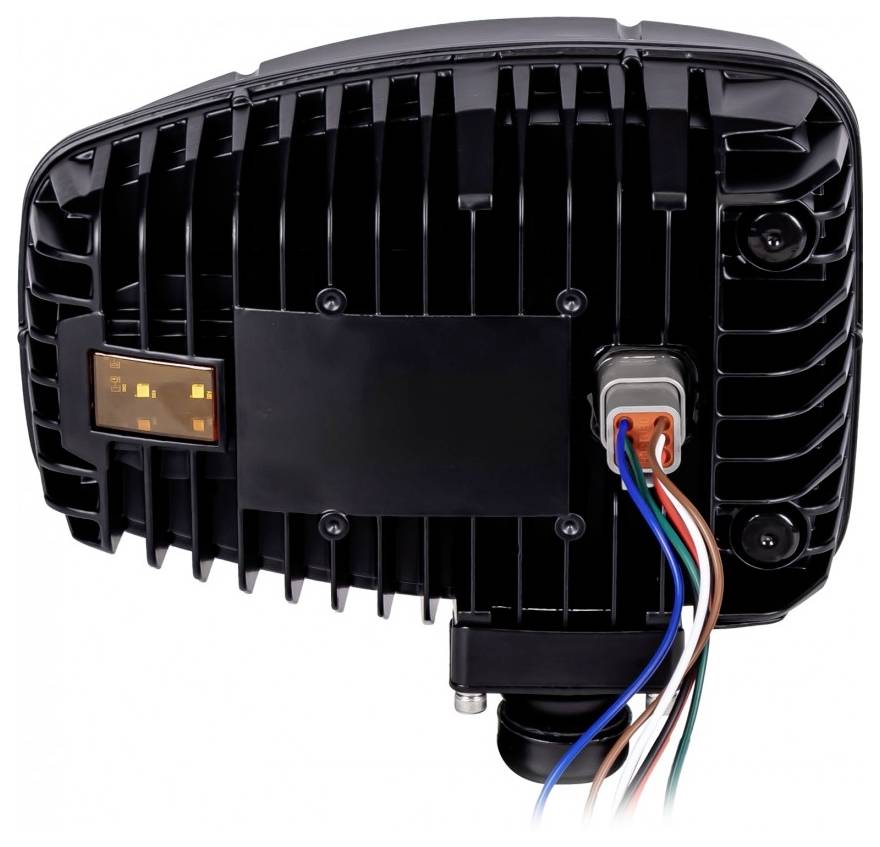

Connection: German plug 6-pin with 200 mm cable
Light source LED
Aluminium casing material
Disc material: Polycarbonate (PC)
Mounting: Screw fixing
APPROVALS: ECE R148, ECE R149, ECE R10
