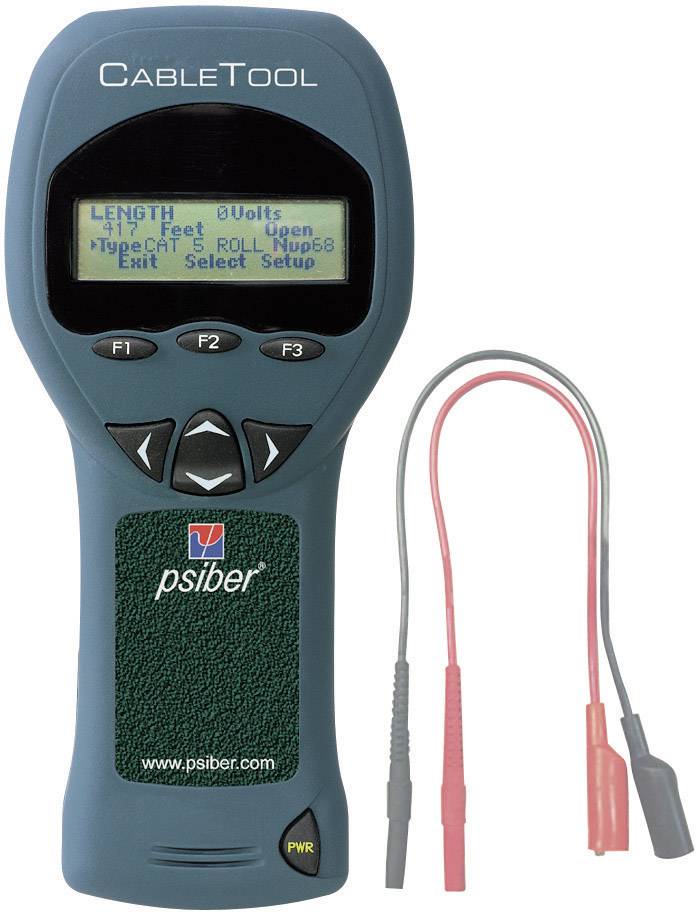

226009 Softing CTK5015

Overview

Full copper reflectometer (TDR) up to 700m
Determines cable length or distance to the fault location (Open / short circuit)
Built-in voltmeter up to 250 V
Length determination for all lines such as power, antenna and network cables

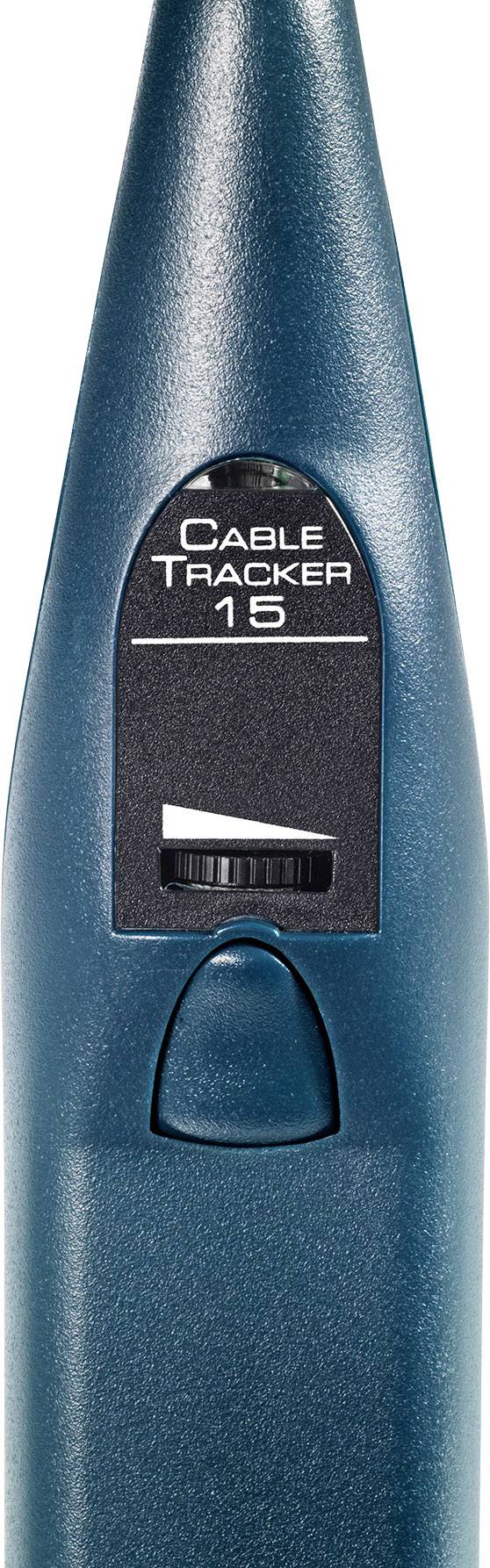

Cable tracer included in delivery

Description

The CableTool determines the length of all copper cable types: Network and telephone cables, coaxial cables as well as conventional power supply cables can be measured with the built-in, fully-fledged TDR (Time Domain Reflectometer) over length or distance up to a point of failure such as cable squeezing, interruptions or short circuits. You can use the voltmeter function to determine active lines. In addition, the CableTool has a tone generator for cable location. The CableTracker Probe can be used to clearly locate cable runs in cable ducts and under plaster.

Characteristics

Fully fledged copper reflectometer (TDR) up to 700 m - Measures cable lengths or distance to disturbance - Built-in voltmeter up to 250 V - Cable search function via optional receiver (sample) - For all cables such as power cables, antenna cables and data cables.

Delivery content

• Cable Tracker Probe CT15 - Connection cable with crocodile clips - Receiver - Batteries - Bag - Operating instructions.
