VOLTCRAFT LCR-300 RLC circuit Digital CAT I Display (counts): 20000

Overview

Up to 100kHz sampling rate
Inductance up to 2000 H
Capacitance readings up to 20mF
Resistance up to 200 MOhm
Basic accuracy: 0.3% with a resolution of 0.01%
Automated component recognition
Large 20.000 counts display

Description

Precise device for measuring resistances, inductances and capacities. By the sorting and selection function is ideally suited for the qualitative pre-selection of components in development, production or repair. The user has the option to use the automatic component recognition. This allows the rapid and simple operation of the device without specific component knowledge.

Factory calibration ensures accurate readings
Calibration according to manufacturer standards is part of Voltcraft Quality Assurance. This ensures high quality products and compliance with tolerance limits as outlined in the user manual. This does not include certification.

Characteristics

Automatic component recognition (LCR) · Sort function for a measured reference value, an entered reference value or on the specified tolerance areas · Reference measurements with the display of the variation in % · Display of quality factor, phase angle and loss factor · Data hold · HOLD function · Auto range · Manual component selection · Manual switchover for serial or parallel circuit · Precision 4-conductor measurement technology · Dual display · Power supply operation possible · Selectable display backlighting · 2 possible measuring inputs: integrated measuring clamps and measuring sockets · Input calibration function for high accuracy · Auto power-off.

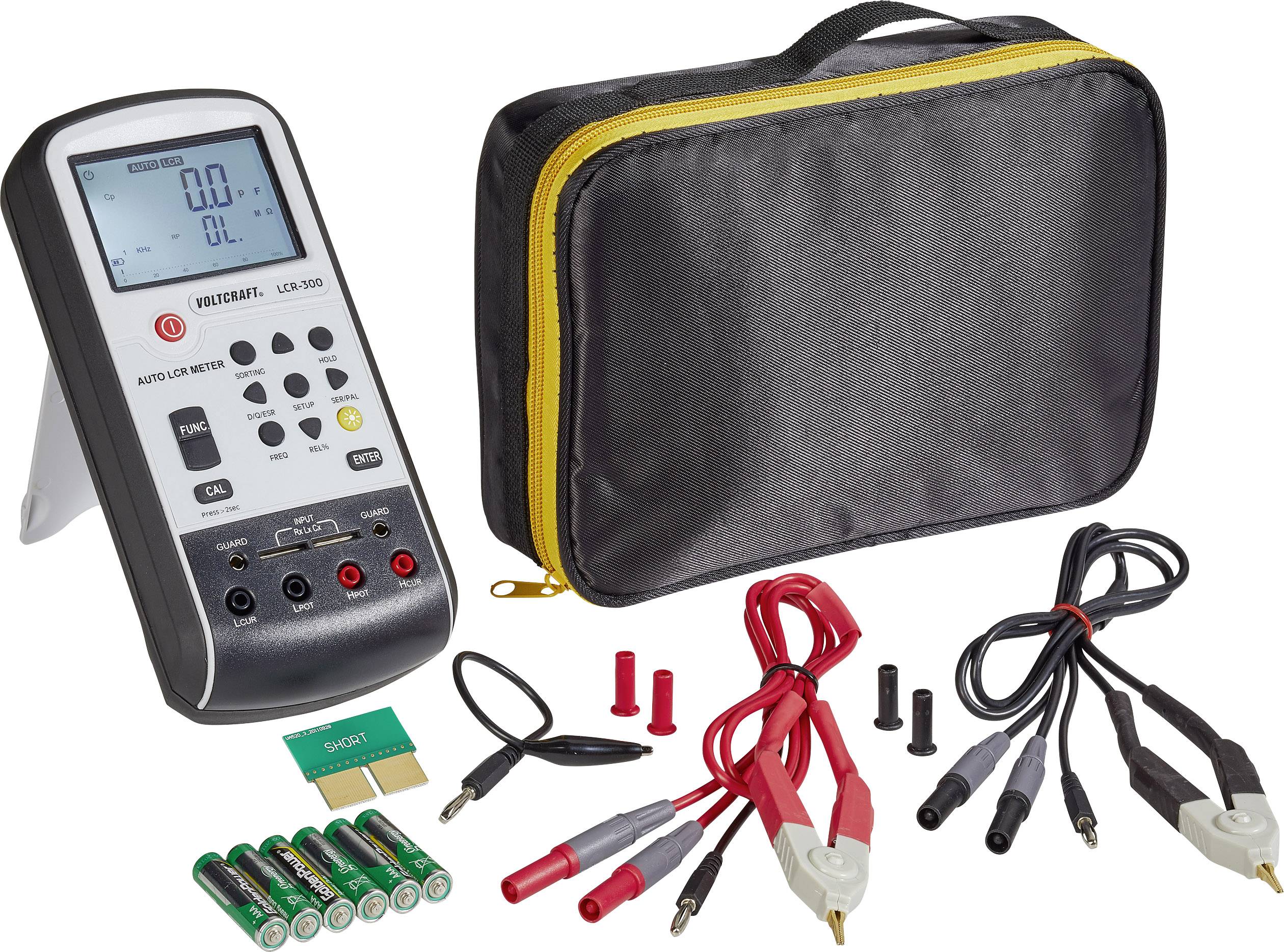

Delivery content

• Batteries
• 1 set of Kelvin measurement leads with precision alligator clips
• Calibration plug
• Bag
• User manual.
