Beha Amprobe ACDC-54NAV Clamp meter, Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 10000

Overview

Large display with background lighting
Temperature in °C and °F
Real effective value

Description

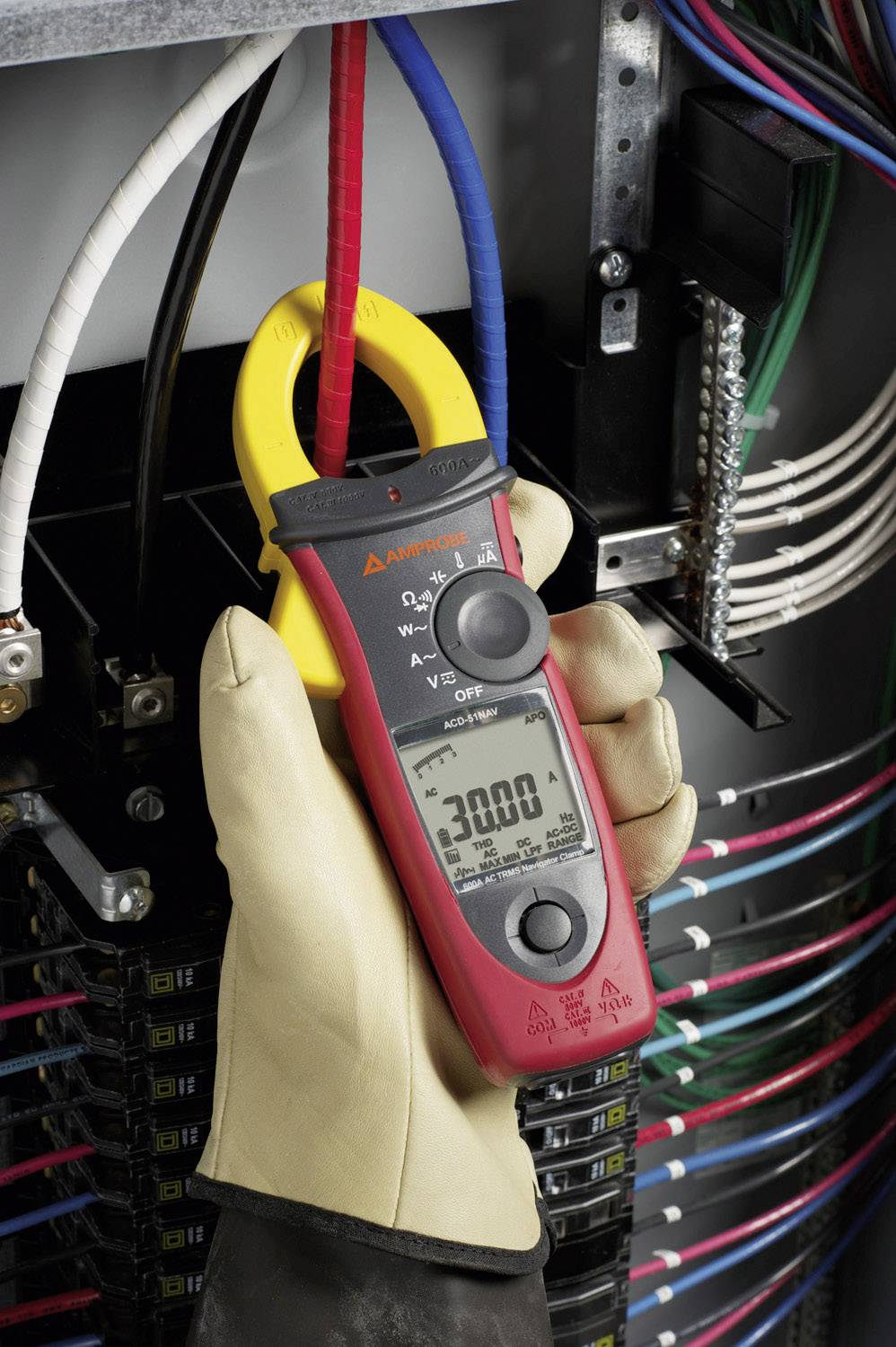

The Amprobe Navigator Current Clamp is equipped with numerous diagnostic functions, among others for the determination of rotating field direction, power and power factor, total harmonic distortion and individual harmonics, starting current and low pass filter. It can be used to immediately check the system condition on site before resorting to more specialized instruments or incurring additional costs.
This clamp is specified for CAT IV 600 V, CAT III 1000 V and is suitable for voltage measurements up to 1000 V AC/DC. The new, innovative navigation system eliminates the need for complicated pushbuttons and replaces them with a single joystick that allows the user to select the desired functions directly on the display.

Characteristics

True RMS value - measurement functions: Active power, power factor, voltage up to 1000 V AC/DC, resistance, frequency, THD - Alternating current up to 1000 A - Direct current up to 1000 A - Capacitance - Temperature measurement in °C and °F - Temperature adapters and sensors included - Direction of rotation detection - Non-contact voltage detection - Low-pass filter for frequency inverter drives - Acoustic continuity test - Min. Max and Smart Data Hold as well as Peak Hold - Automatic torch when clamped on - Large 10,000 digit display with active backlight and analogue segment display - Automatic switch-off - Maximum pliers opening 45 mm (1.77") - Can withstand drop from 1.2 m height.

Delivery content

• 2 measuring leads - battery - bag - operating instructions.
