Bicker Elektronik BEA-540H Industrial PC PSU 400 W 80 PLUS

Overview

Industry standard up to 70 °C ambient temperature
Designed for continuous operation 24/7
MTBF: 130,000 h at +50 °C, without fans

Description

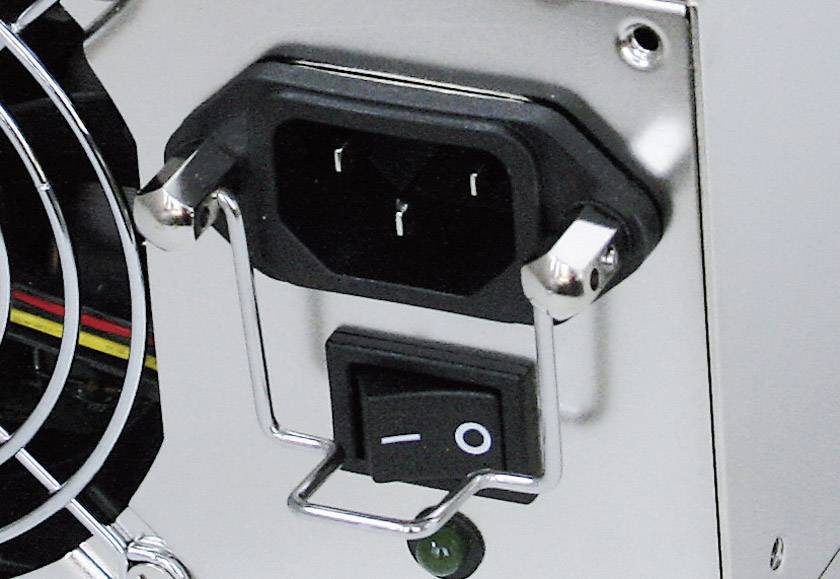

The PC-power supply BEA-540H combines high energy-efficiency with the sturdiness of an industrial PC power supply. It fulfils the requirements of 80 PLUS®. Through the low standby consumption of 1.7 W the BEA-540H can also be used in devices conforming to Energy Star 4.0. The enhanced noise immunity and the high-quality components ensure a high availability of the computer. Amongst others, high-quality branded capacitors of the quality class up to +105 °C are used. It delivers 400 W continuous power from -0 °C to +50 °C without restriction. A new feature in the BEA-540H is also the safety catch that prevents the mains plug from slipping out. The power supply is tested for the industrial area according to the standards EN 61000-6-4 (interference emission) and EN61000-6-2 (noise immunity).

Characteristics

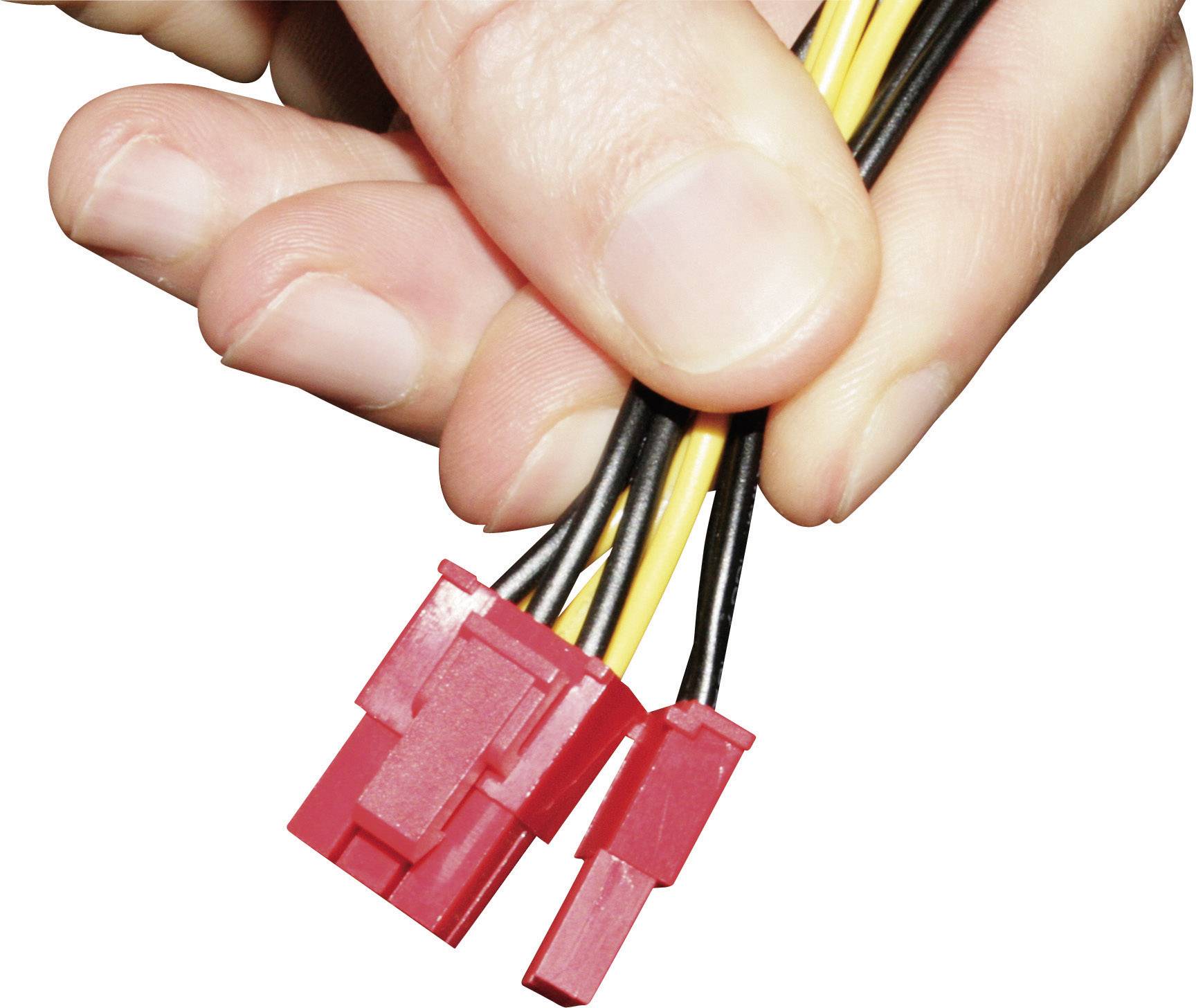

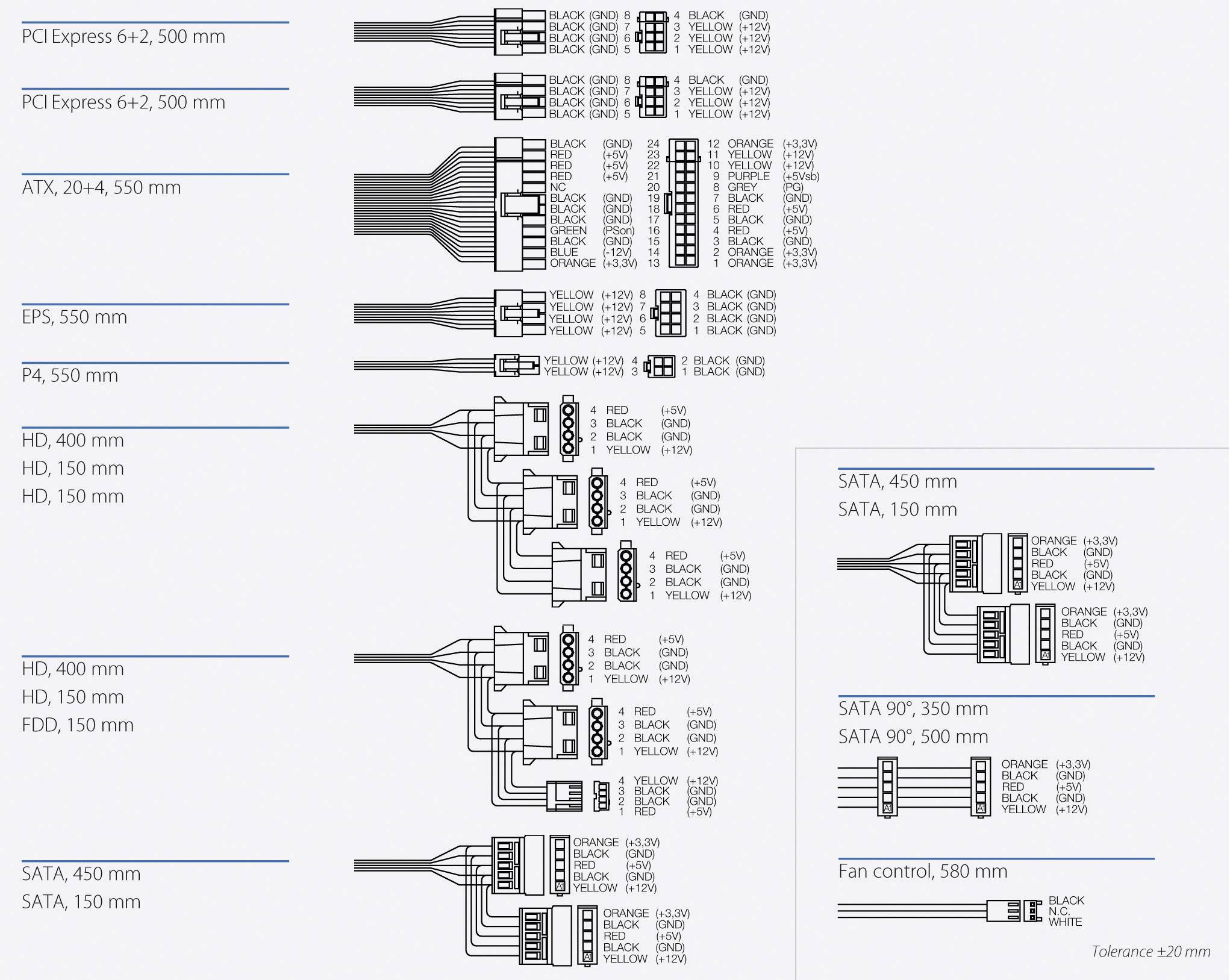

From 6x SATA are two 2 with 90 °C, 1x EPS 8-pin, PCIe are 6+2, 80 PLUS certified.

Delivery content

• ATX-Power supply
• Operating instructions.
