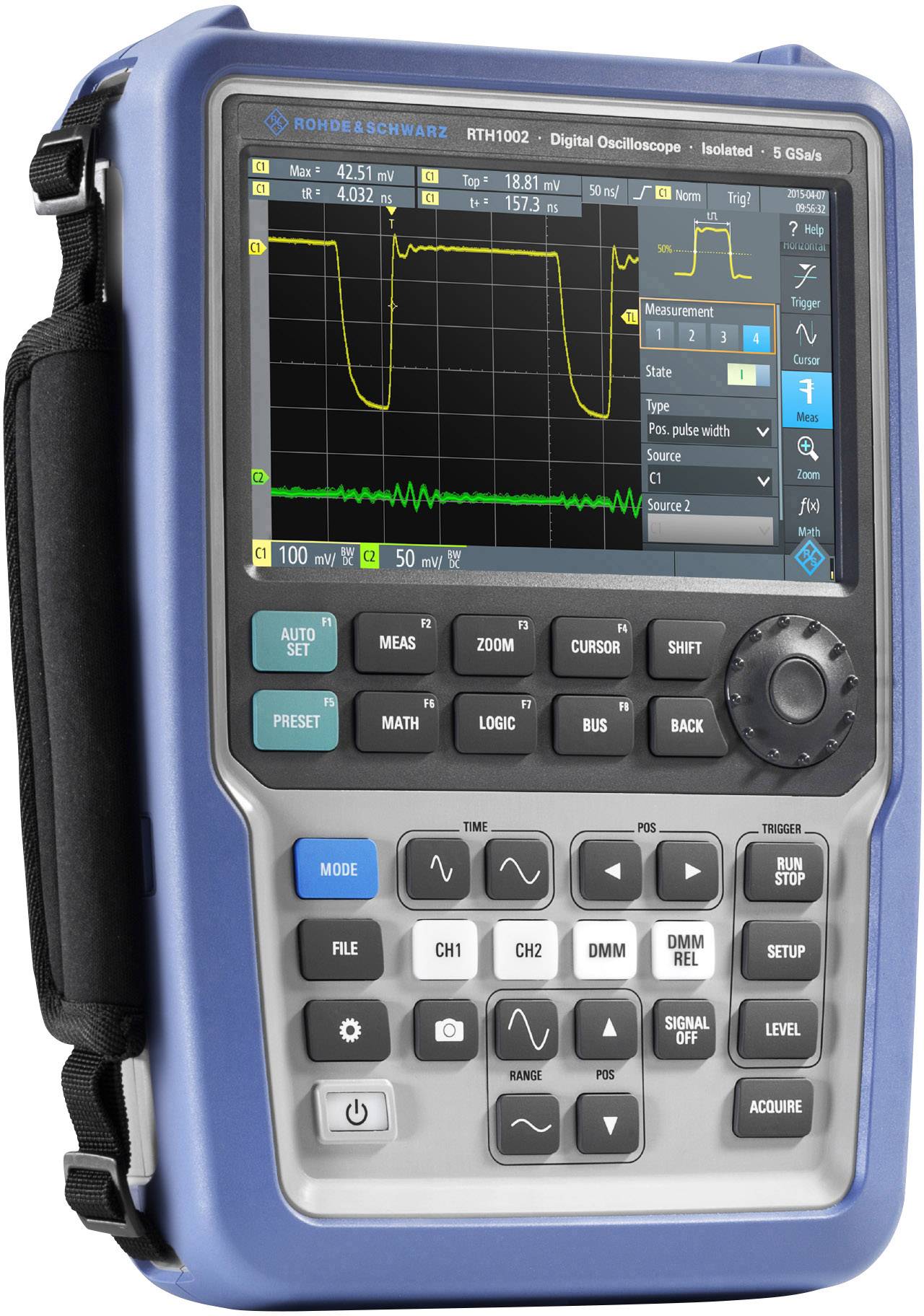

Rohde & Schwarz RTH1014 Handheld oscilloscope 100 MHz 500 KP 10 Bit 1 pc(s)

Overview

Bandwidth 100 MHz
Sampling rate 5 Gsample/s
Memory 500 ksample
5 instruments in 1: lab performance oscilloscope, logic analyzer, protocol analyzer, data logger, digital multimeter (partly optional)
Capacitive touch and keypad operation
Rated for measurements up to CAT IV 600 V
Wireless LAN for web based remote control (optional)

Description

Lab performance in a rugged and portable design: whether debugging embedded devices in the lab or analyzing complex problems in the field, the R&S®Scope Rider offers both, the performance and capabilities of a laboratory oscilloscope and the form factor and ruggedness of a battery operated handheld device.

Characteristics

4 separately isolated analog input channels · Integrated data logger · Rated to CAT IV 600 V / CAT III 1000 V · IP51 dust- and drip-proof housing for harsh environments · 7'' 800 x 480 capacitive color touch display · Wireless LAN for web-based remote control · Isolated USB and LAN interfaces for data exchange and PC connection · SD card for up to 32 Gbyte of data storage · Sampling rate up to 5 Gsample/s and memory up to 500 ksample · 33 automated measurement functions · Waveform math functions · Widest selection of trigger types · Deep zoom capability ·

Delivery content

• Four 500 MHz 10:1 passive probes R&S®RT-ZI10
• Rechargeable battery pack
• Power adapter with cable and adapter set for various socket types
• Hand strap
• Printed "Getting Started" manual
• Printed "Basic Safety Instructions" brochure
