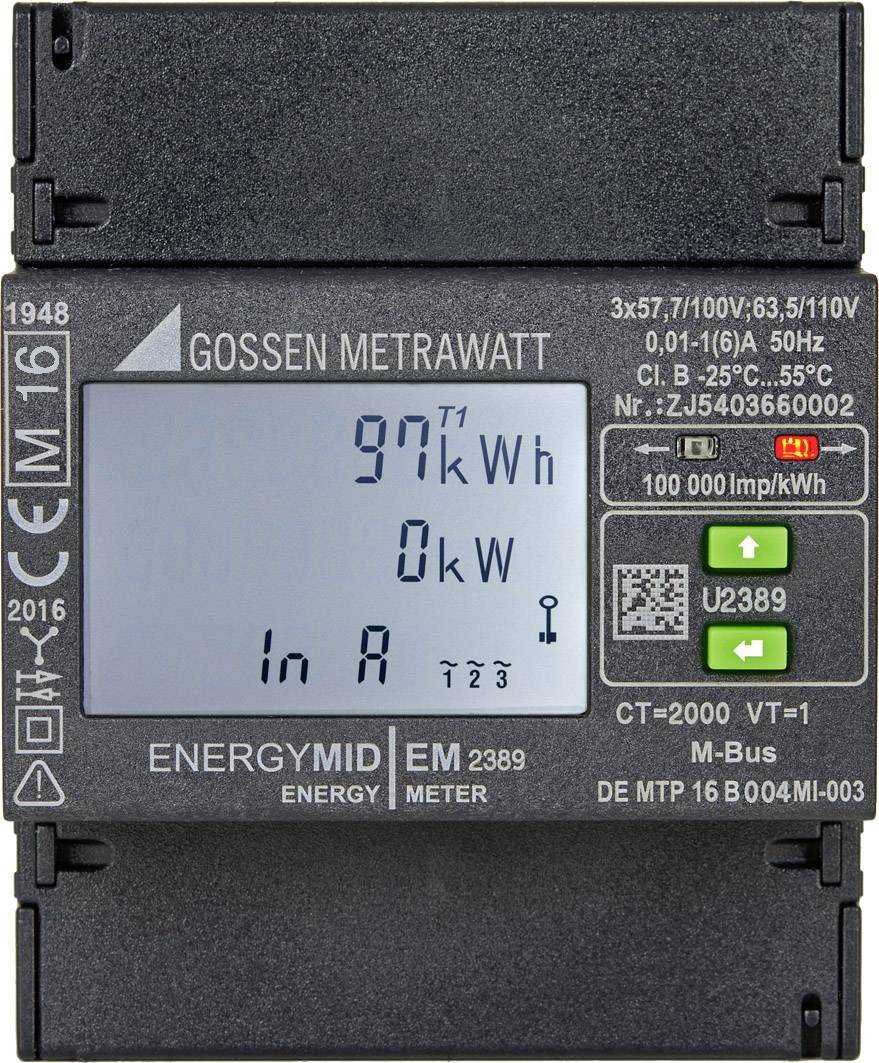

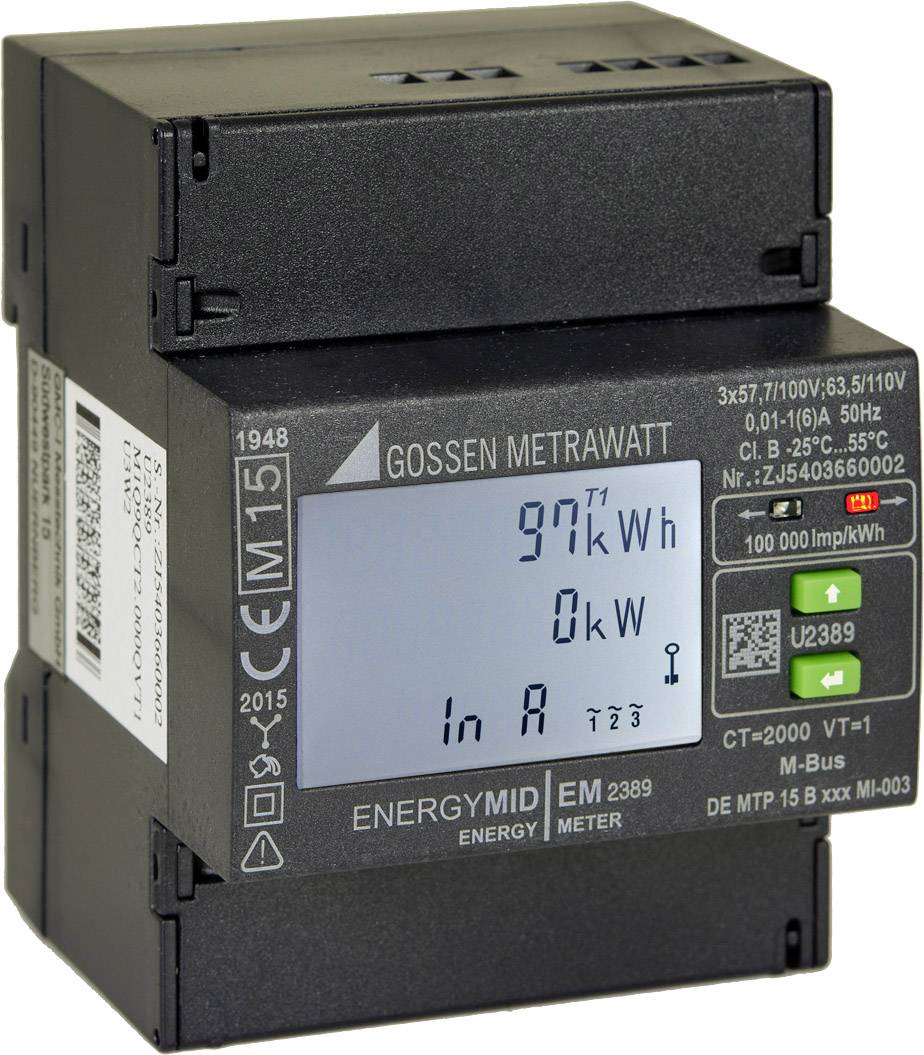

Gossen Metrawatt U2387-V022 U2387-V022 Electricity meter (3-phase) incl. converter jack Digital MID-approved: Yes 1 pc(s)

Overview

Energy meter for transformer connection 5 (6) A and 1 (6) A, 3-wire system, 400 V, S0, CT / VT / pulse rate programmable, MID, multifunctional display (MFD)

Description

Multifunctional energy meter for 3-wire networks with 1(6) A and 5(6) A transformer connection
Simple network monitoring by display of up to 33 further measured variables directly on the display (MFD)
Active energy measurement according to EN50470-3, Class B for industry and trade as well as increased requirements in households
Suitable for billing purposes thanks to initial verification according to MID ex works
4 Quadrant measurement (purchase and delivery)
Ultra-compact design (4 TE = 72 mm)
Future-proof thanks to 4 tariff inputs
Fast error detection thanks to colour change on the display: Phase sequence, phase failure, reverse polarity of converters, overload
High-contrast LCD display with backlight
Universal pulse output (2-fold) with adjustable pulse rate, pulse duration and selectable voltage range
Manipulation protection by sealable cover and parameter lock
Quality product "Made in Germany"
3-year warranty

Delivery content

• Device
• manual (bilingual)
