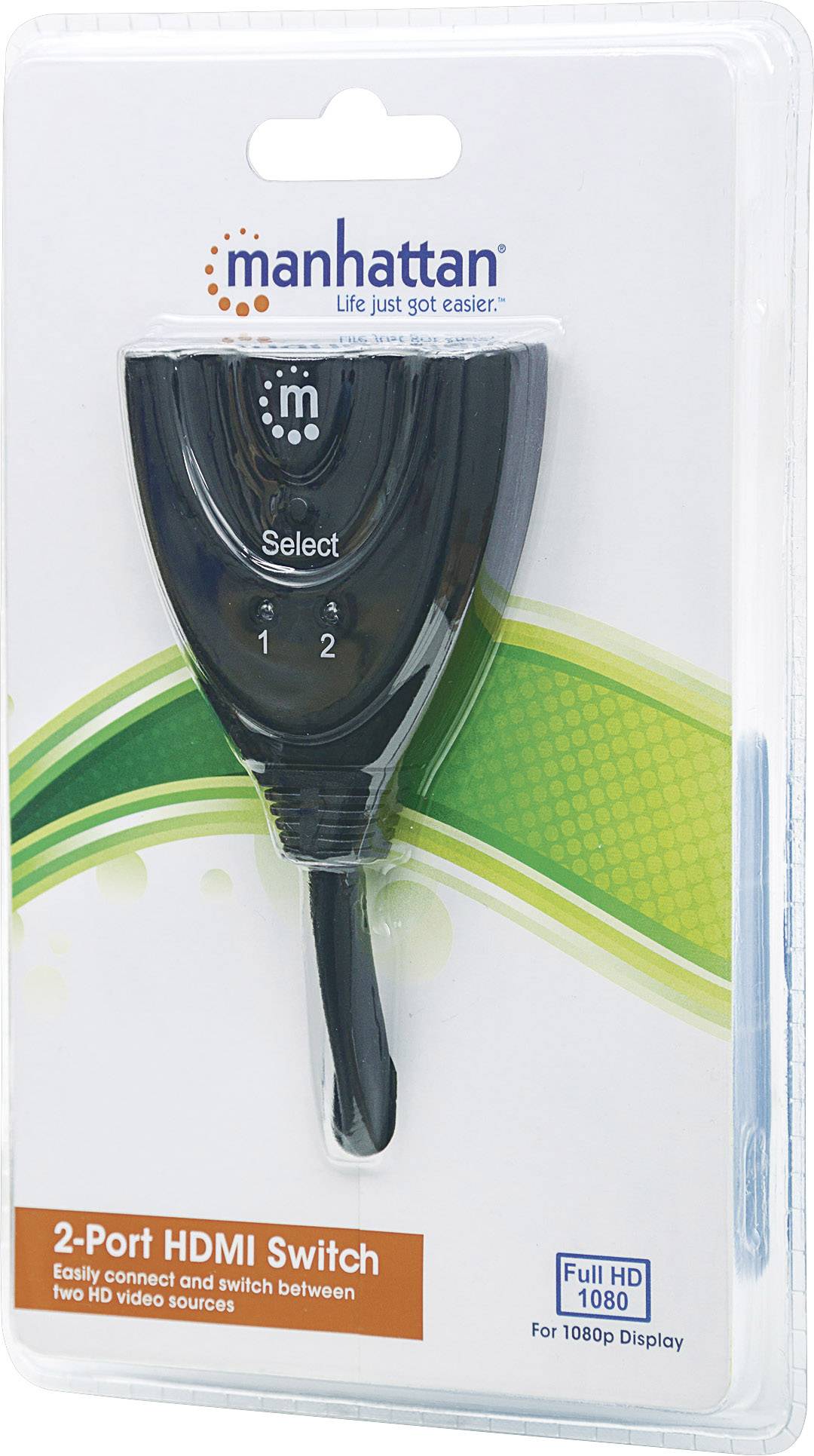

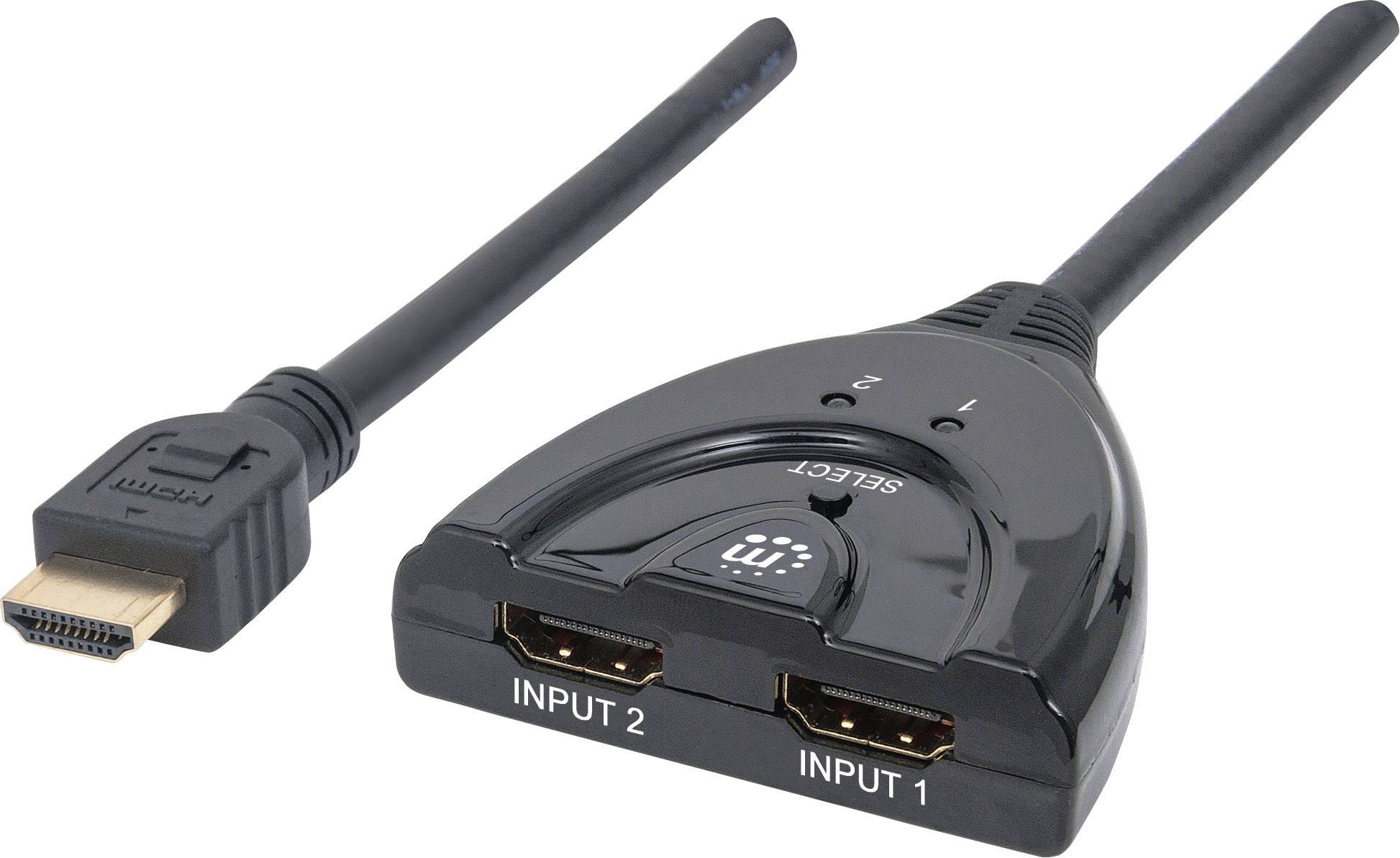

Manhattan 207416 2 ports HDMI switch LED display, 3D playback mode, gold-plated connectors 1080 p

Overview

To connect two HD video sources to a single HDMI port
Automatically detects one HD signal or manually switches at the touch of a button
1080p resolution, 3D, Deep Color
Capable for game consoles such as Playstation and Xbox as well as Blu-ray players, set-top boxes, Satellite receiver and more
HDCP compliant
Supports LPCM, DTS Digital, DTS-HD Master Audio, and Dolby TrueHD audio
Supports 3D video and 8-bit (24-bit total) Deep Color
Supports bandwidth up to 2.25 Gbps for 1080p display
Plug & Play; requires no special equipment, remote control and no power supply unit
Integrated HDMI cable, 50 cm
Gold-plated contacts for corrosion-free signal transmission

Description

For connecting multiple HDMI sources to one display
With the Manhattan 2-Port HDMI Switch, you can connect multiple HDMI sources such as Blu-ray players, satellite receivers, digital video recorders, set-top boxes or game consoles to an HDMI-enabled display. Save yourself the hassle of constantly plugging in HDMI cables and switch between the players comfortably.

Flexible solution for many HD applications
This HDMI switch extends the connectivity of your TV, beamer or monitor. It automatically detects the currently active HDMI source and brings the signal to your display. If several playback devices are switched on, you can also manually select the source at the touch of a button.

Excellent picture and audio quality
This switch does not compromise picture and sound quality. FullHD 1080p picture signals are transmitted lossless with 3D support and audio in LPCM, DTS and Dolby TrueHD.

Characteristics

Standards and certificates:
HDMI 1.3b.
HDCP 1.0 / 1.1
CE
FCC
RoHS 2
Connectivity

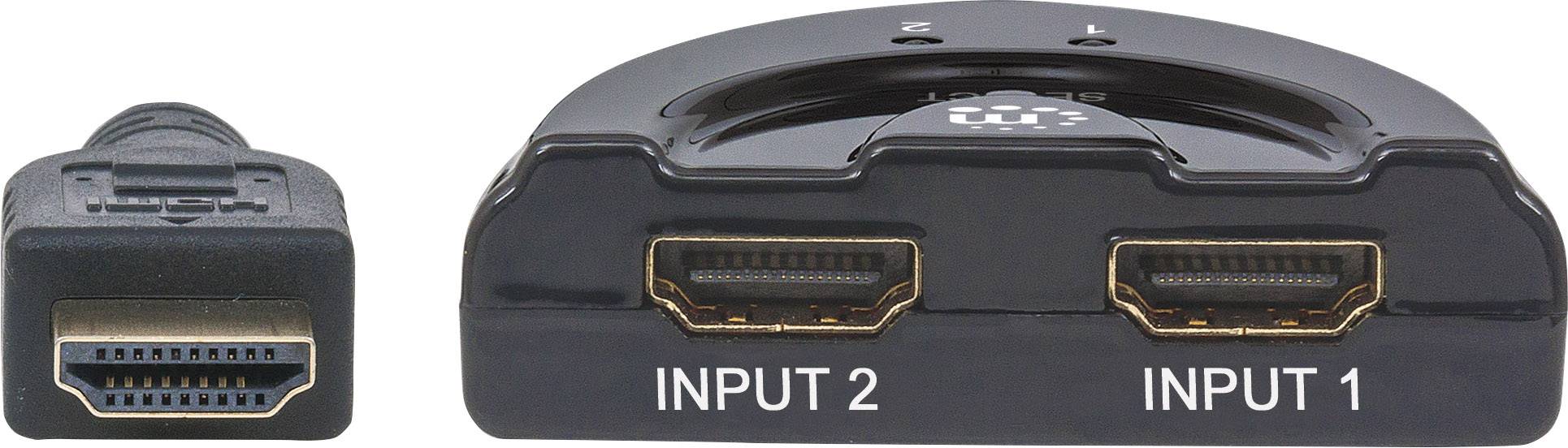

1x HDMI-plug (output)
2 x HDMI socket (input)
Signal Input/Output
Input Video signal: 400 - 600 mV
Input DDC Signal: 5 V p-p (TTL)
Maximum single-link range: 2.5 Gbit/s and 1080p resolution
Video output: HDMI 1.3b, HDCP 1.0 / 1.1
Frequency: 2.25 Gbit/s/250 MHz
Video resolutions:
DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p

Delivery content

• HDMI switch
• manual
