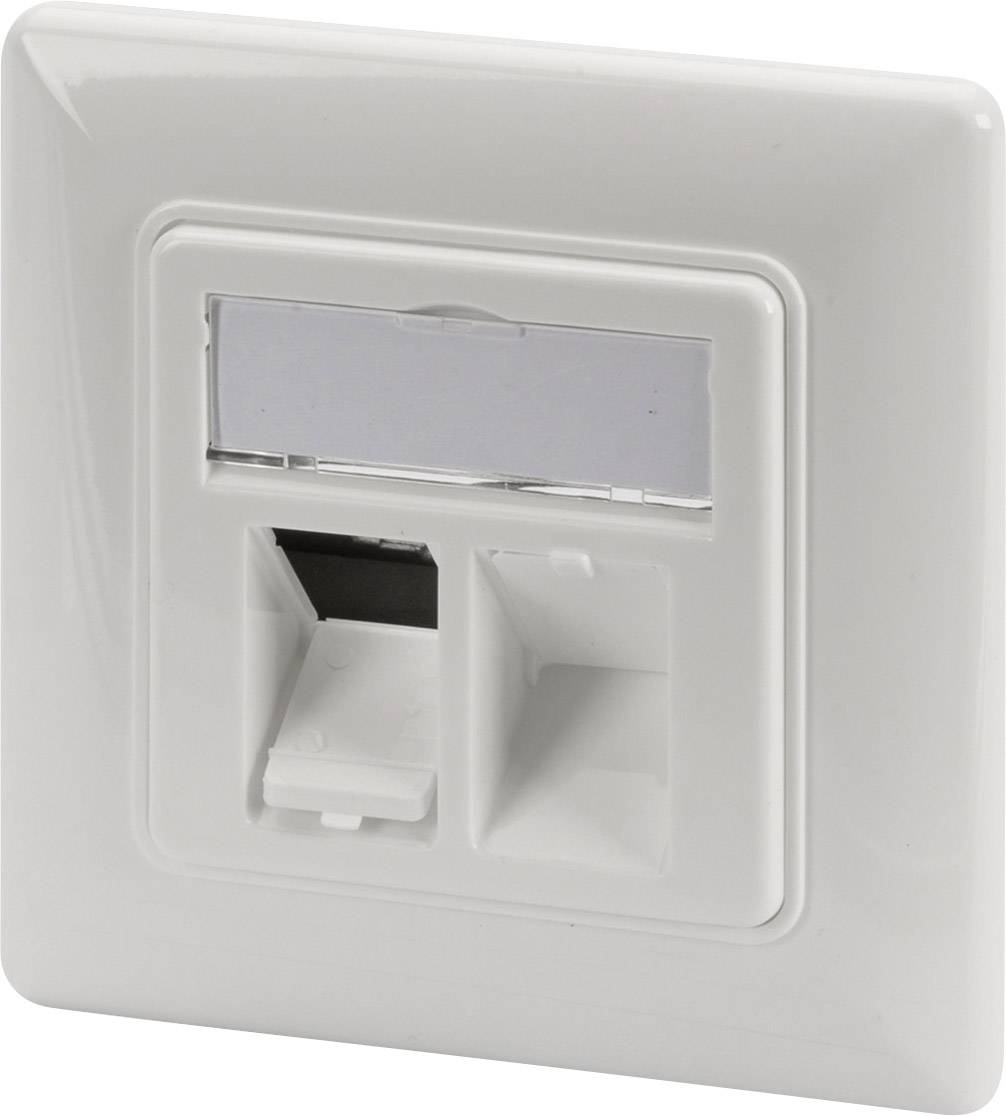

Connection box with inclined outlet for recording of 2 Keystone Modules
Insert direction of the module inclined 45° vertically
Central plate with a viewing window for labelling insert (including labelling insert included in the scope of delivery)
German Layout
The DIGITUS® Face plate is suitable for the connection of the DIGITUS® Keystone Module "DN-93617". Included dust protection shutters provide a perfect protection. The connection way of the module is 45° vertical. The face okate is fully design compatible to common swith programmes (GIRA, JUNG, etc.).
· Layout keystone entry: 45° outlet
· Area of application: Cavity socket, trunking, surface mount box
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
· General properties:
· Suitable for installation in trunking, flush and surface mount
· Central ground connection
· Integrated dust cover
· Plastic label field
· Design compatible to current switch ranges of switch manufacturers
· Technical properties:

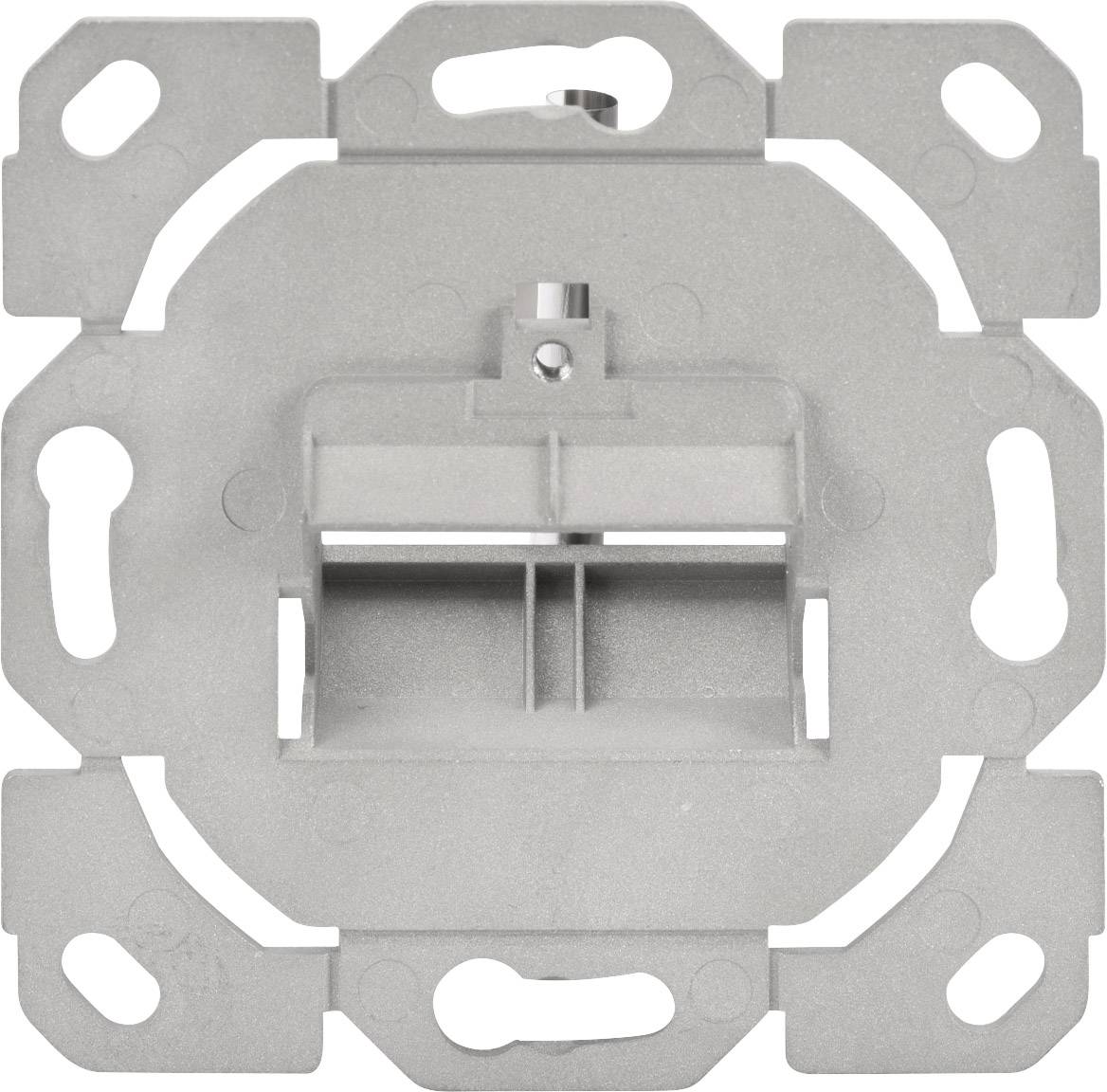

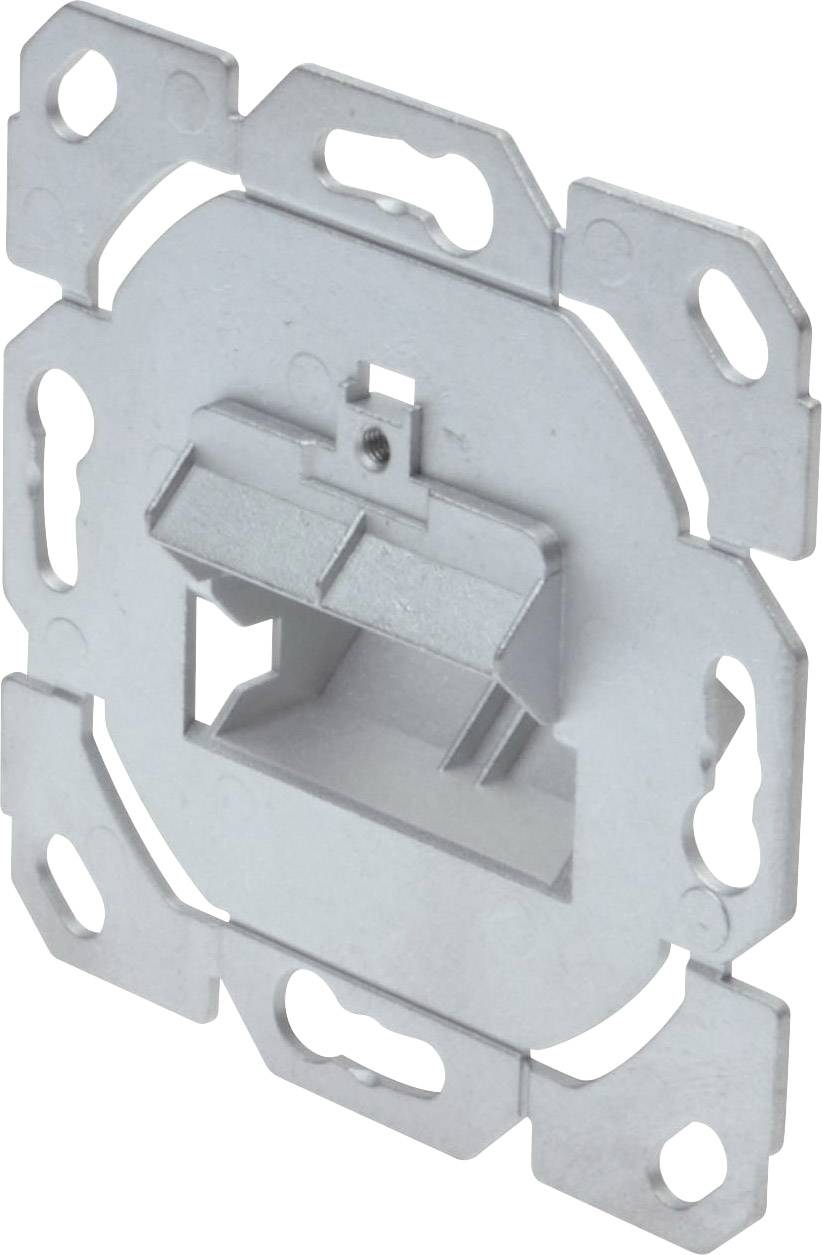

· Wall outlet material: Die-cast metal
· Central plate material: ABS UL 94V-0
· Frame material: ABS UL 94V-0
· Surface mount box material: ABS UL 94V-0
· Physical properties:
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)

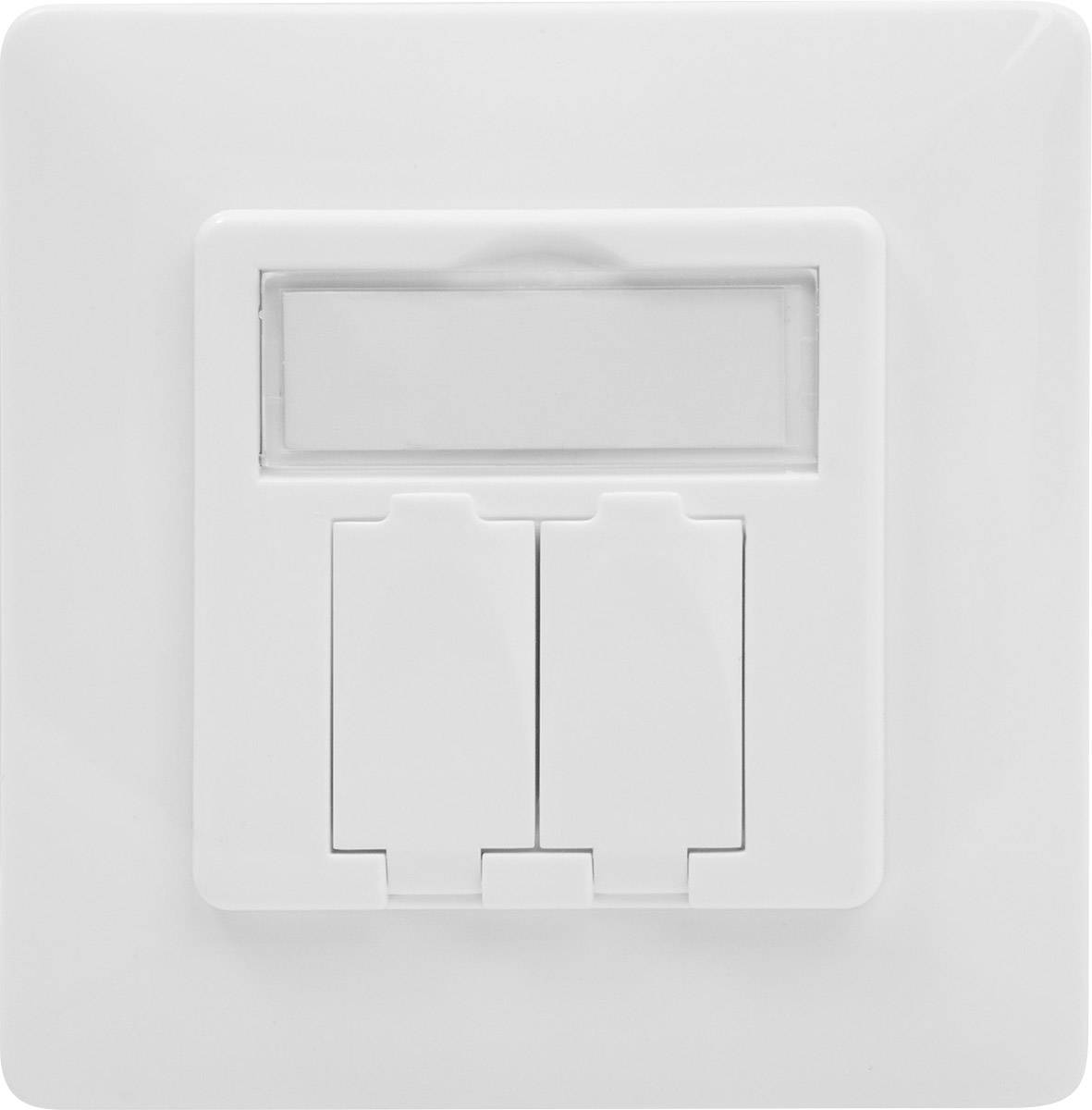

Framework with 80 x 80 mm of cover + 50 x 50 mm of central plate

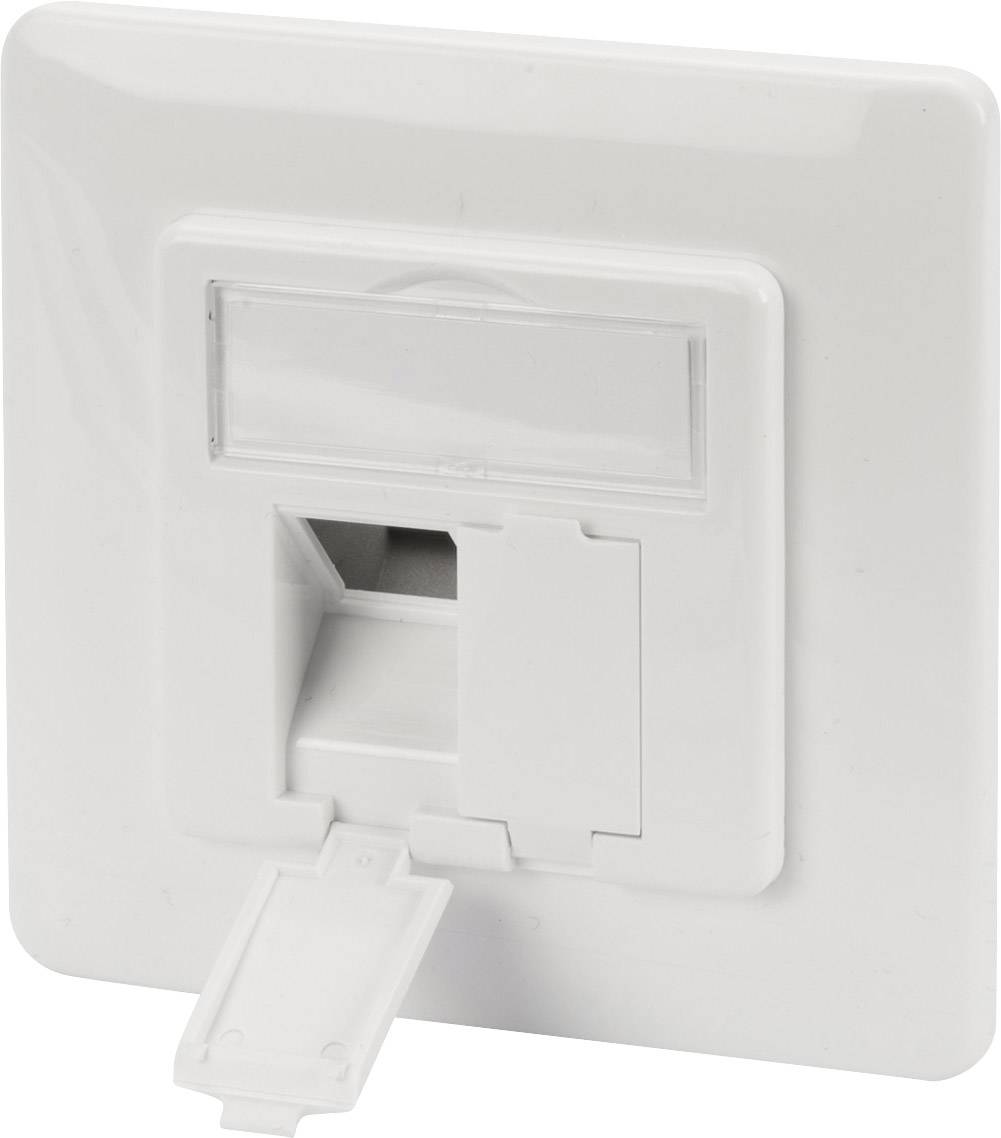

Central plate with integrated dust-protection flaps
Color (frame & central plate): similar to pure white
Compatible with the DIGITUS ® CAT 6A Keystone module "DN -93617"
Design is compatible with all the common switching programmes
Compatible with the DIGITUS ® CAT 6A Keystone module "DN -93617"
