GYS GYSFLASH 12.12 029392 Automatic charger 12 V 12 A

Overview

Temperature Sensor
Power Supply Mode
Refresh Mode

Description

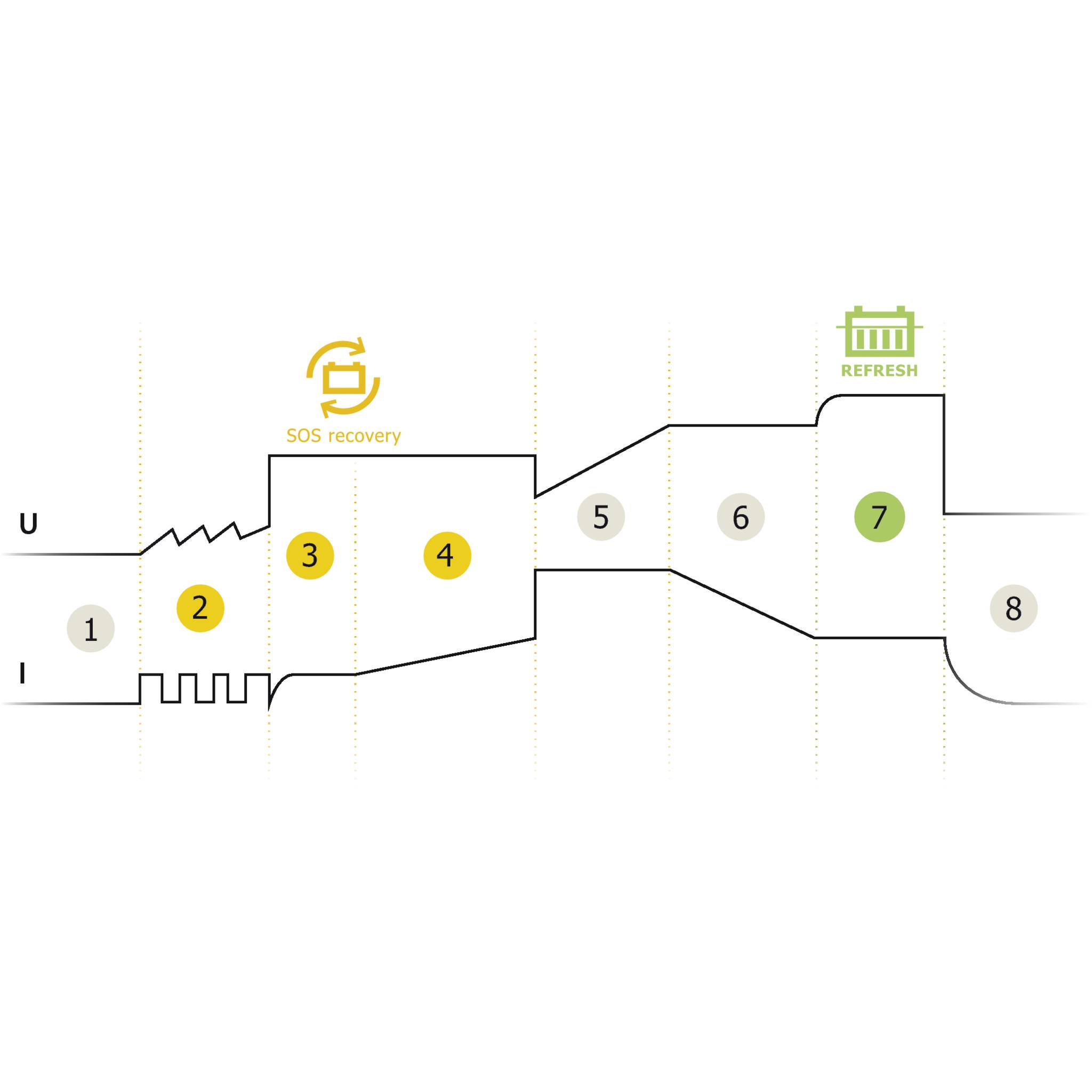

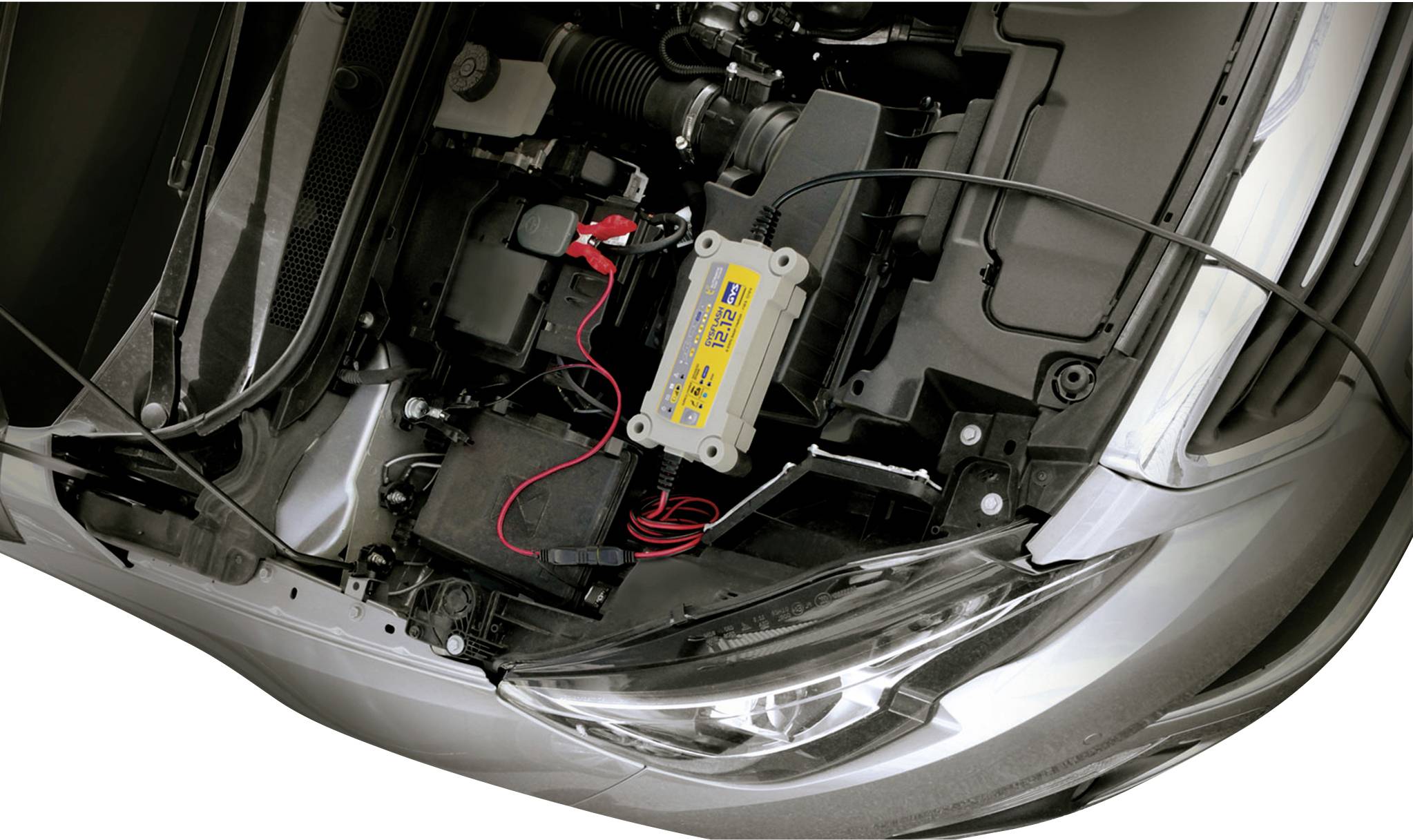

The GYSFLASH 12.12 is suitable for charging 12V batteries in passenger cars, commercial vehicles, trucks and coaches. The device has an intelligent eight-stage charging curve and a supply mode for supplying exhibition vehicles in the showroom or garage.

Characteristics

Especially for 12 V batteries (lead-acid) from 20 to 250Ah, trickle charge up to 330 Ah possible - 2 optional settings to adapt the charging behaviour: - AGM : Special charge for start-stop batteries (AGM) - Refresh : Resuscitation and recovery of deeply discharged batteries - Supply mode, securing of the power supply for demonstration vehicles in the showroom - Supply of the on-board power supply when changing batteries to secure memory contents - Improved charge conservation: the charger can remain connected to the battery and thus always guarantees a smooth start. The eight-stage, monitoring-free charging and maintenance phase maximises battery life and performance - An outdoor air temperature sensor for optimum charging of the battery in summer and winter. The charger accurately adjusts the charging settings to the ambient temperature - Recovery of deeply discharged batteries from 2 V (SOS Recovery) - Protection of the device electronics : protection against short circuit, reverse polarity and overvoltage - Automatic standby circuit when battery is disconnected - Integrated temperature sensor prevents overheating of the internal electronics - Simplified user interface prevents incorrect use - Compact design, lightweight and portable - Completely dustproof and waterproof housing (IP65) - Optional wall mounting.

Delivery content

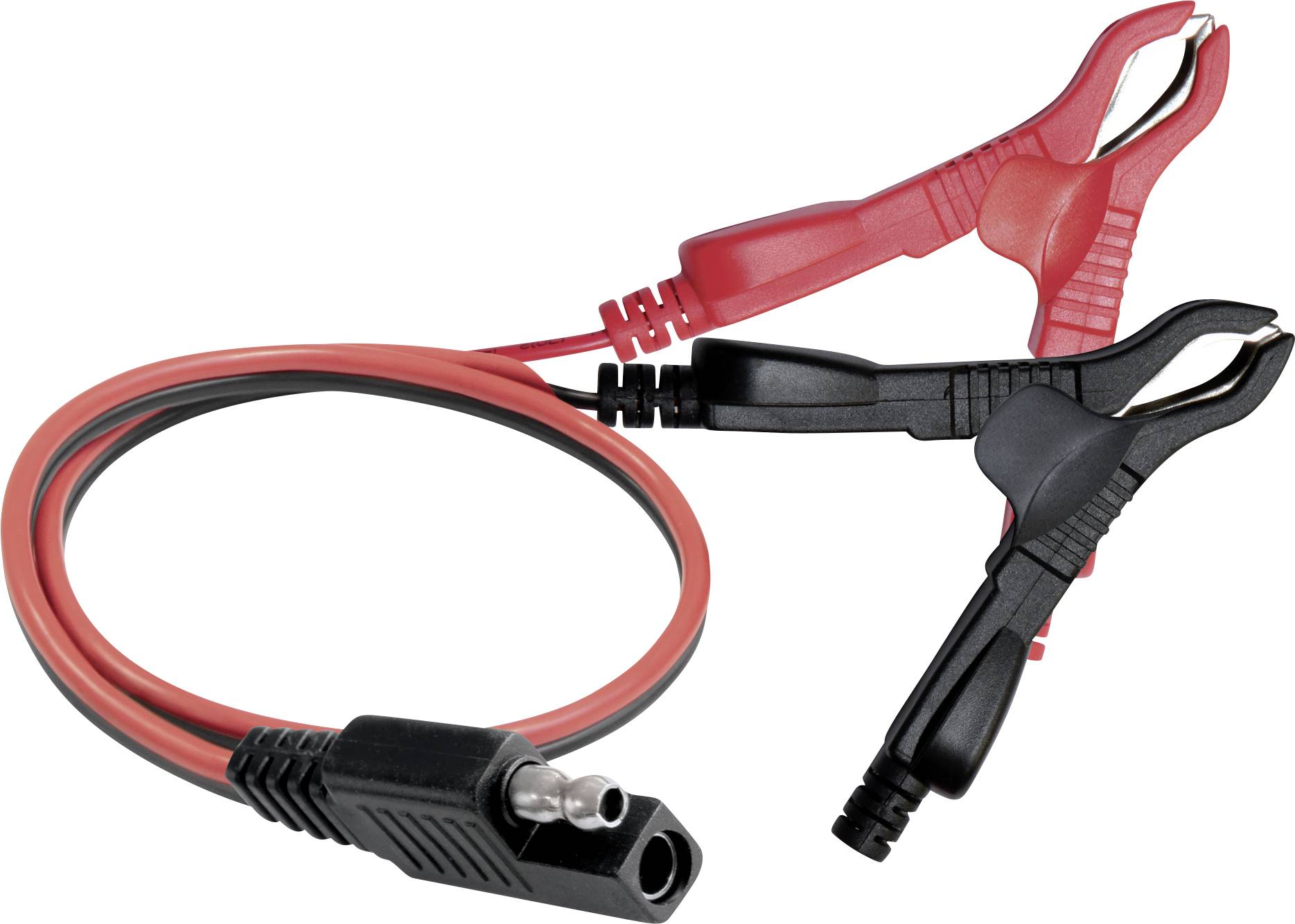

• 1.9 m cable with pole terminals
