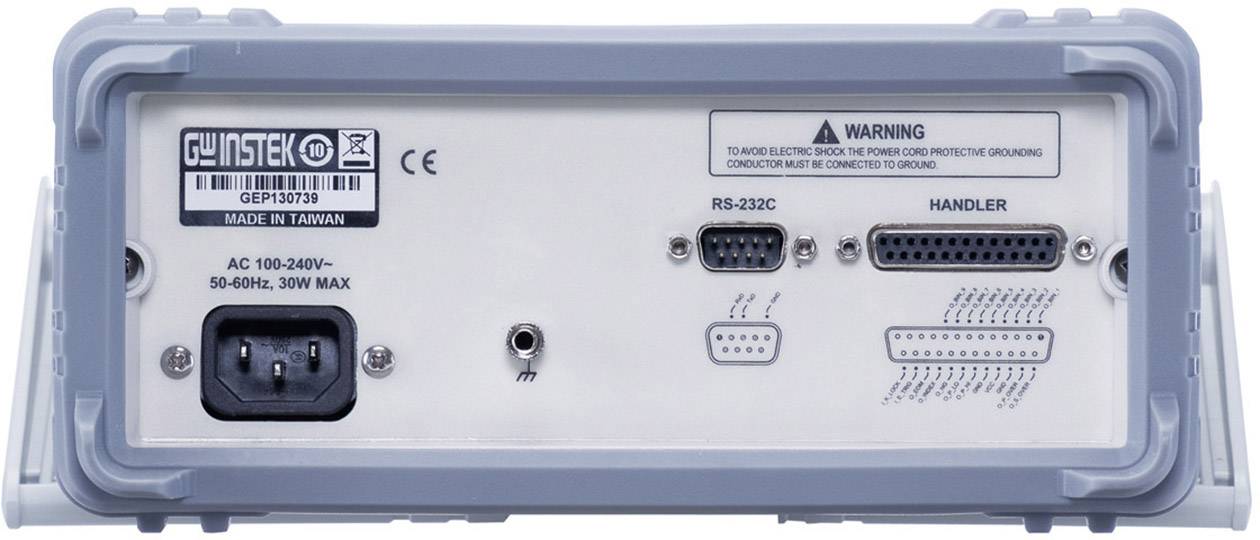

GW Instek LCR-6100 RLC circuit Digital Display (counts): 999999

Overview

10 Hz - 100 kHz
Basic accuracy 0.05%
Measurement speed up to 25 ms (max.)
Full frequency range or spot OPEN/SHORT

Description

High-precision LCR meter with a freely selectable test frequency range from 10 Hz to 100 kHz. The compact design, 2 U height and 1/2 rack, is one of the practical features of the series, which represents the optimal space saver for table or system carriers. The LCR-6000 series with many features is the ideal tool for R&D, production testing, IQC, etc. in the implementation of the individual test steps for passive components.

Characteristics

8.89 cm colour graphic display - Simultaneous display of setting criteria and measurement results - PASS/FAIL evaluation - Two zero methods - Automatic level control (ALC) function - Adjustable test current function and DC resistance measurement - Internally adjustable BIAS voltage of ±2.5 V - 10 measurement function memory locations - 10000 measurement data storable - HANDLER processing interface for sorting machines - Remote control via RS232.

Delivery content

• Kelvin test leads - Power cord - CD-ROM with operating instructions and software.

Keywords

04713008673065, 04719692508775, GW Instek, 01CR610000GT, LCR-6100, digital multimeter
