GW Instek LCR-6200 RLC circuit Digital Display (counts): 999999

  • item model number: X792031
A LCR measuring device with a screen displaying capacitance, resistance, and inductance, along with several buttons and connections.
An LCR metre on a table, measuring capacitance and resistance. Measurement values and control buttons are visible on the screen.

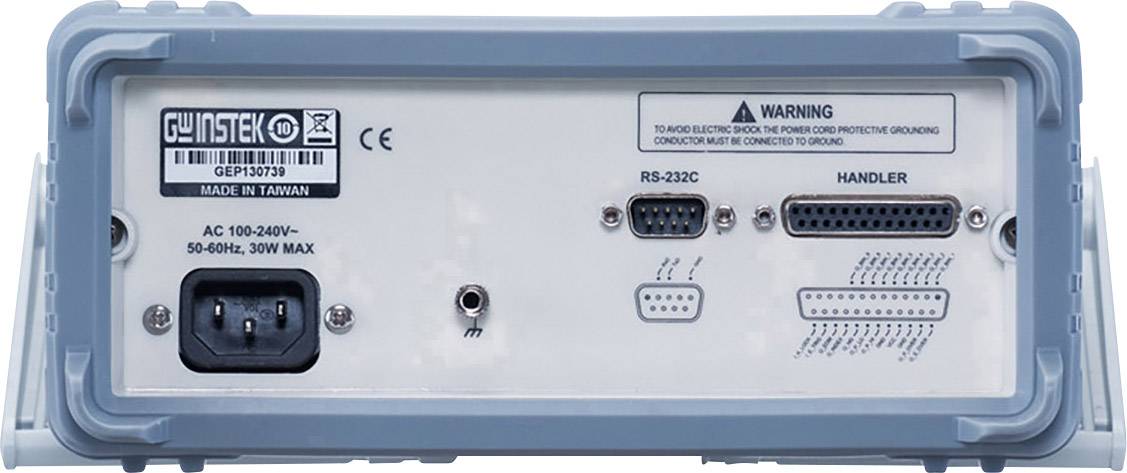

Rear view of an electronic device with various ports, including RS-232C, a Handler port, and a power connection.
2.610,31 €
VAT included
Free shipping
Delivery time: 1-2 days
available from 01/10/2026
30 days free return shipment
GW Instek LCR-6200 RLC circuit Digital Display (counts): 999999
2.610,31 €
VAT included
Free shipping
One article is not enough for you and you want to save money?
from 3 piece : 2.584,20 € 1,0 % savings
from 5 piece : 2.558,10 € 2,0 % savings
from 10 piece : 2.532,00 € 3,0 % savings

Product description

Overview

10 Hz - 200 kHz
Basic accuracy 0.05%
Measurement speed up to 25 ms (max.)
Full frequency range or spot OPEN/SHORT

Description

High-precision LCR meter with a freely selectable test frequency range from 10 Hz to 200 kHz. The compact design, 2 U height and 1/2 rack, is one of the practical features of the series, which represents the optimal space saver for table or system carriers. The LCR-6000 series with many features is the ideal tool for R&D, production testing, IQC, etc. in the implementation of the individual test steps for passive components.

Characteristics

8.89 cm colour graphic display - Simultaneous display of setting criteria and measurement results - PASS/FAIL evaluation - Two zero methods - Automatic level control (ALC) function - Adjustable test current function and DC resistance measurement - Internally adjustable BIAS voltage of ±2.5 V - 10 measurement function memory locations - 10000 measurement data storable - HANDLER processing interface for sorting machines - Remote control via RS232.

Delivery content

  • Kelvin test leads - Power cord - CD-ROM with operating instructions and software.

Keywords

04719692508782, GW Instek, 01CR620000GT, LCR-6200, digital multimeter, dmm

A LCR measuring device with a screen displaying capacitance, resistance, and inductance, along with several buttons and connections.
An LCR metre on a table, measuring capacitance and resistance. Measurement values and control buttons are visible on the screen.
Rear view of an electronic device with various ports, including RS-232C, a Handler port, and a power connection.
