Trend Networks SecuriTEST IP CCTV camera tester

Overview

Automated generation of test reports with camera images and network configurations
Test reports can be forwarded directly from the scene via e-mail or file sharing service
Camera audio test for testing cameras equipped with microphones using the tester's internal speaker
Control of camera audio signals via connected external headphones

Description

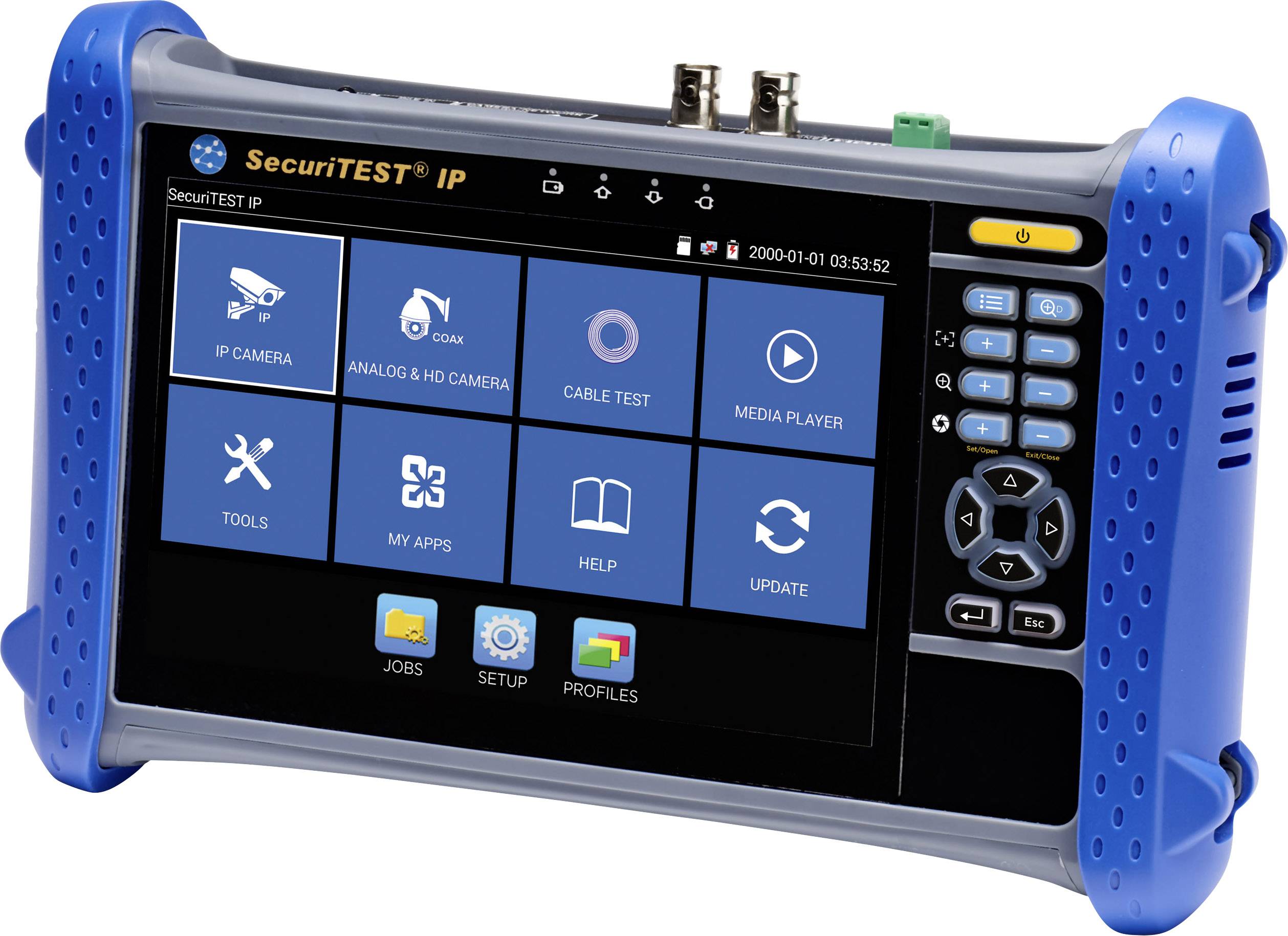

The SecuriTEST IP is a tester for installation and troubleshooting of digital/IP, HD coaxial and analog CCTV camera systems. More than the SecuriTEST IP is all you need to configure, document and power these systems. Increase your productivity with every project.

Characteristics

Supports ONVIF and analog PTZ cameras

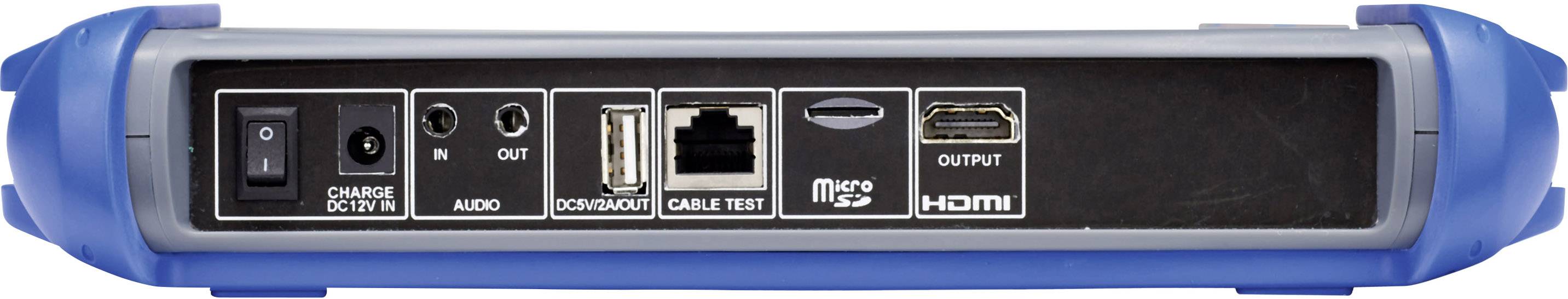

connects to all popular cameras via RJ45, BNC and WLAN
QuickIP function automates the connection setup to the cameras
12 V DC power supply of the camera via the lithium-ion battery or PoE/PoE+ (up to 24 W) without additional PoE injectors
Data cable test - the wiring diagram of unshielded twisted pairs (UTP) can be checked via the RJ45 connector
Powerful USB port (2 A) for fast charging of mobile phones, Tablets and other devices (no data transfer)

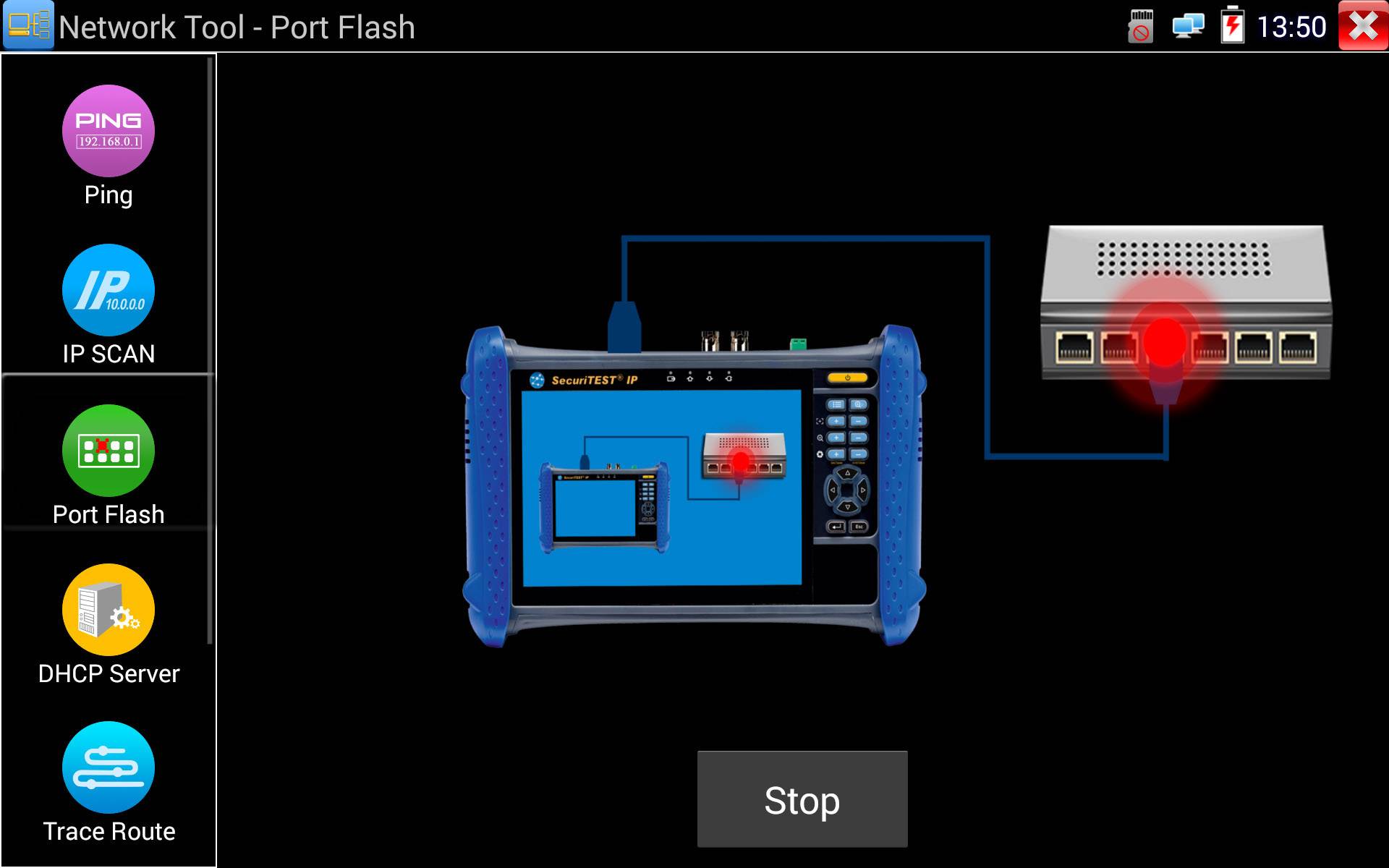

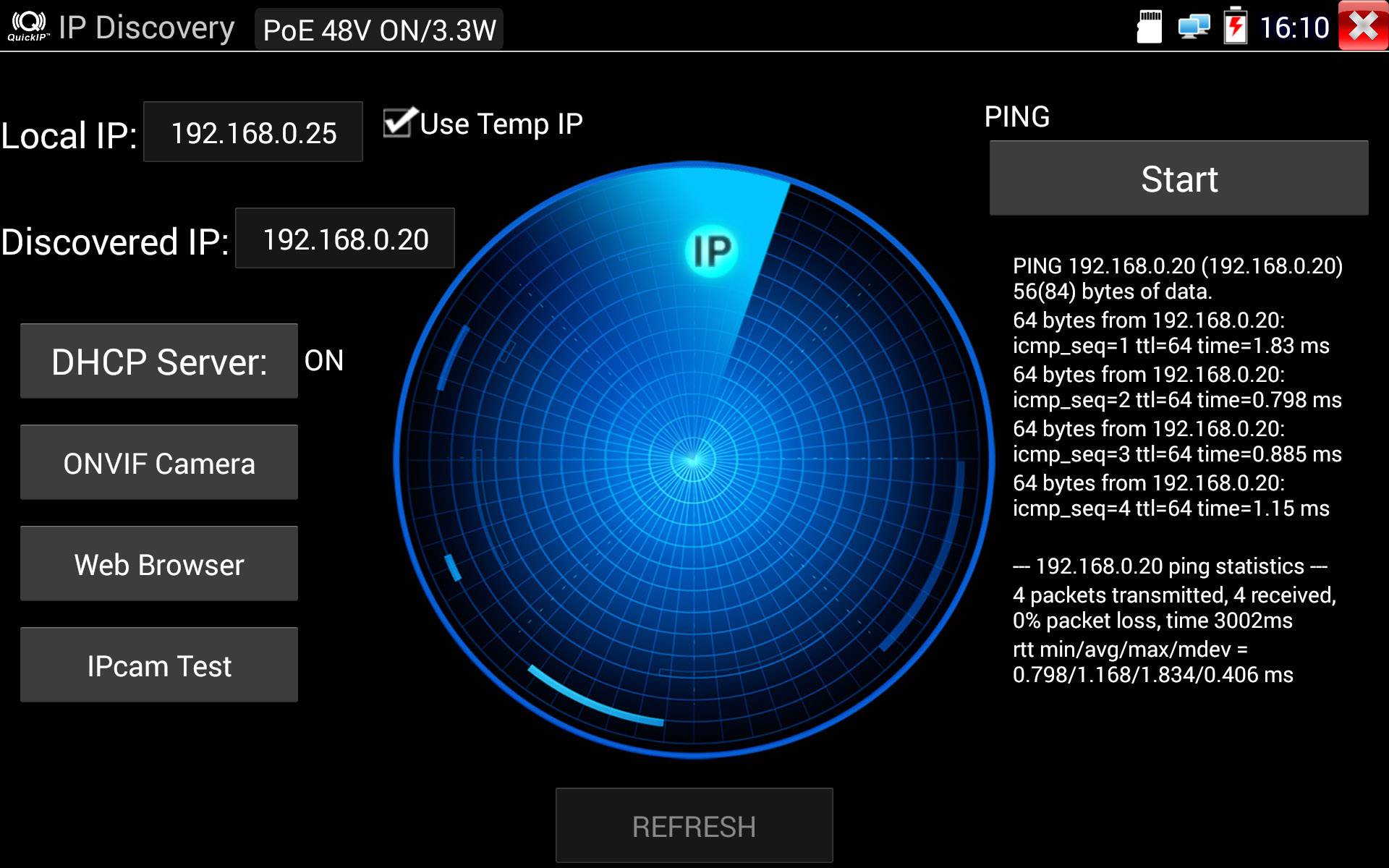

Fault diagnostics functions - network configuration display, ping/trace route, port identification hub flashes, IP network scan to check IP addresses

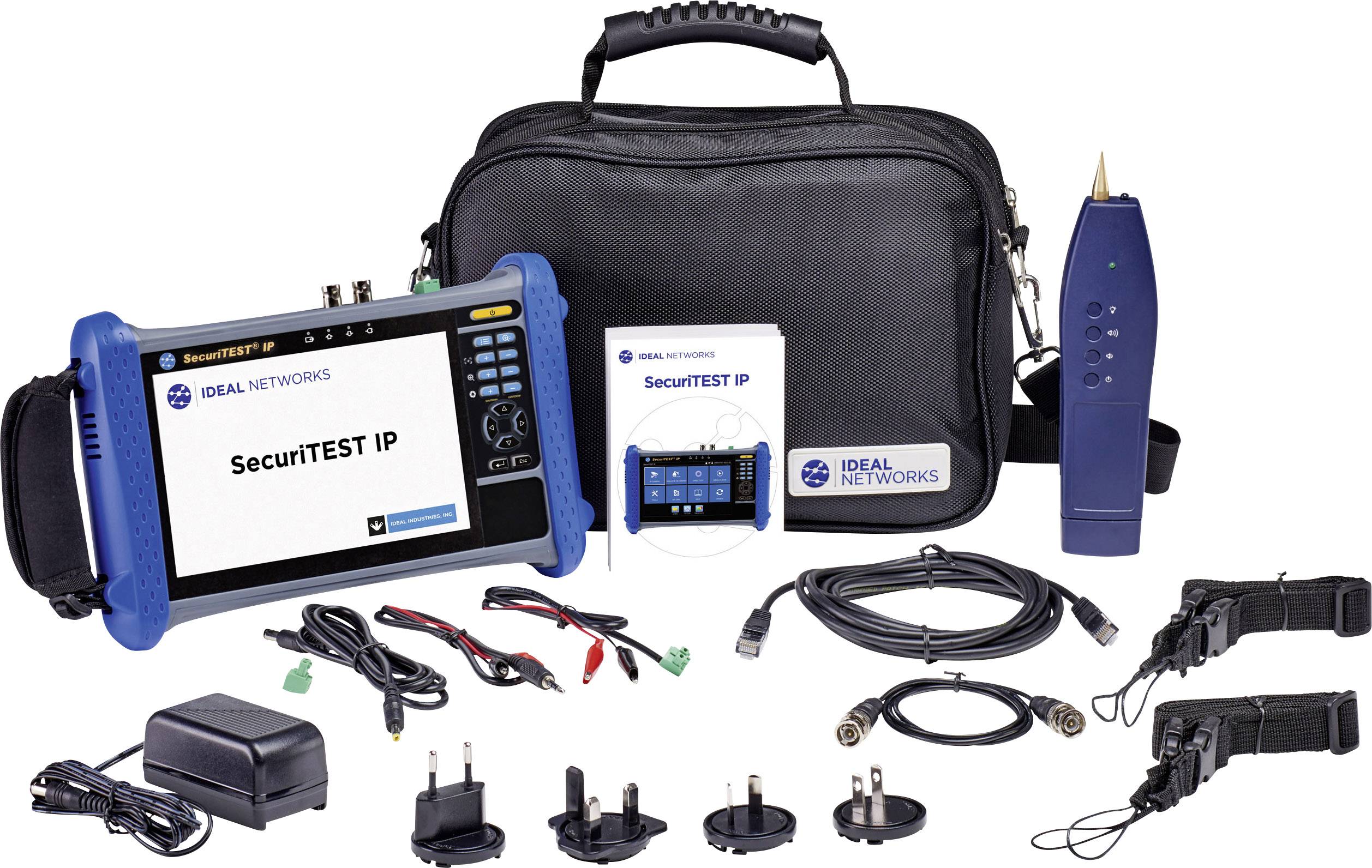

Delivery content

• 1 SecuriTEST camera tester - 1 carrying bag - 1 lanyard - 1 power supply with EU, UK, US, AU adapter - 1 cable tracer - 1 UTP patch cable 3m Cat. 5e - 1 coaxial cable 3m with 2 BNC plugs - 1 power sup

Keywords

00783250788477, Trend Networks, R171000, SecuriTEST IP, cable finder, cable finder tool
