Gossen Metrawatt METRAwin 10 Measurement Compatible with (diagnostics accessories) Gossen Metrawatt GMC-I METRAHIT Series

Overview

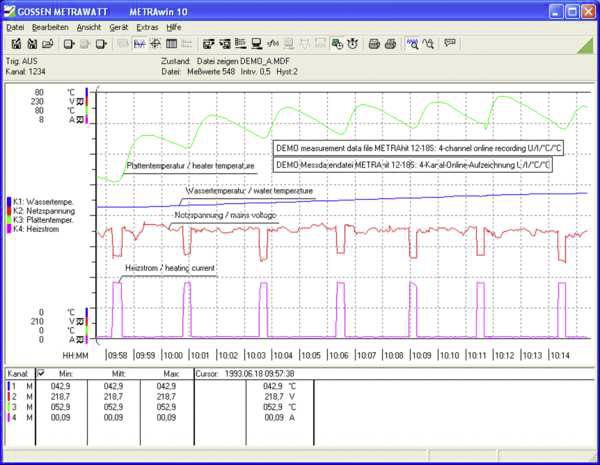

The measured values are retrieved from the multimeters using METRAwin 10, managed in the PC and displayed as Yt diagrams, XY diagrams (up to 6 channels) or in tabular form (up to 10 channels).

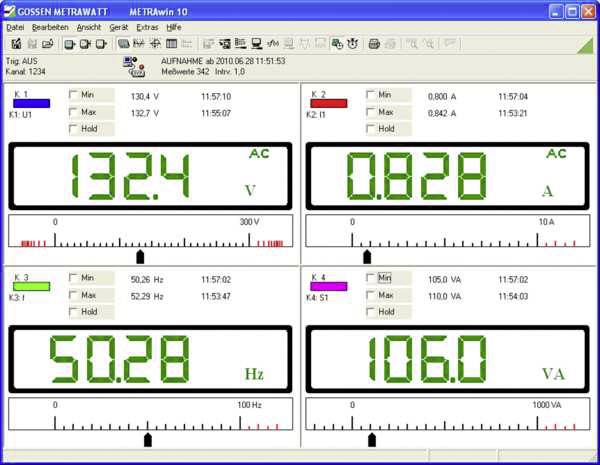

In online mode, the measured data are displayed on up to four virtual pointer instruments or digital displays (with adjustable limit values). The powerful online arithmetic allows evaluation and analysis of the data. Depending on the multimeter type and measurement function, the scanning can be adjusted over a wide range.
The measurement data can be exported as an ASCII file or easily transferred to other Windows applications (e.g. Word, Excel) via the clipboard.

Description

METRAwin 10 /METRAHit supports the multimeter types METRAHit::
METRAHIT Starline series (X-TRA, E- and S-series) in combination with interface adapter USB-X-TRA (multi-channel).
METRAHIT 30M in combination with interface adapter USB-Hit (only 1-channel) or BD232 (multi-channel)
METRAHIT 22S-29S / M / C / EX / I in combination with interface adapter USB-Hit (only 1-channel) or BD232 or Memory adapter SI232-II or SI232 (multi-channel)
METRAHIT 12S-18S / U / T / One+ in combination with interface adapter RS232 (1-channel only) or memory adapter SI232-II or SI232 (multi-channel)

Delivery content

• 1 License documents

Keywords

04012932103946, Gossen Metrawatt, GTZ3240000R0001, METRAwin 10, diagnostics software, diagostic software
