Beha Amprobe ACD-14-PRO-EUR Clamp meter, Handheld multimeter Digital CAT III 600 V Display (counts): 6000

Overview

CAT III 600 V
Real effective measurement (TRMS)
Simultaneous measurement of voltage and current (AC)
Dual display with backlight
Precise measurement of small alternating currents (Amp-tip)
The measurement of the ionization current (μA DC range) in the heating systems

Description

The modern current clamp ACD-14-PRO EUR offers a variety of measuring functions for applications in HVAC and electrical engineering. It is equipped with a large backlit dual LCD display and can display voltage and current simultaneously. ACD-14-PRO-EUR offers the following functions: True RMS measurements, low pass filter, inrush current, frequency, resistance, capacitance, temperature, DC micro amps, amp tip and non-contact voltage detection. The Amp-Tip function enables reliable and accurate current measurement down to 0.1 A on both large and small conductor diameters. The low-pass filter allows accurate current and voltage measurements to be made on motor controllers with frequency converters. The measuring instrument has a rubber-coated housing, is particularly robust and offers high safety according to measurement category CAT III 600 V.

Characteristics

- Current measurement true effective (TRMS)
- Voltage and resistance measurement
- Capacitance and frequency measurement
- Temperature measurement
- Acoustic continuity test
- Low-pass filter
- Measurement of inrush current
- Non-contact voltage detection
- Automatic measuring range selection
- Integrated measured value memory (Data Hold)
- Clamp opening 30mm
- Auto- Power- Off

Delivery content

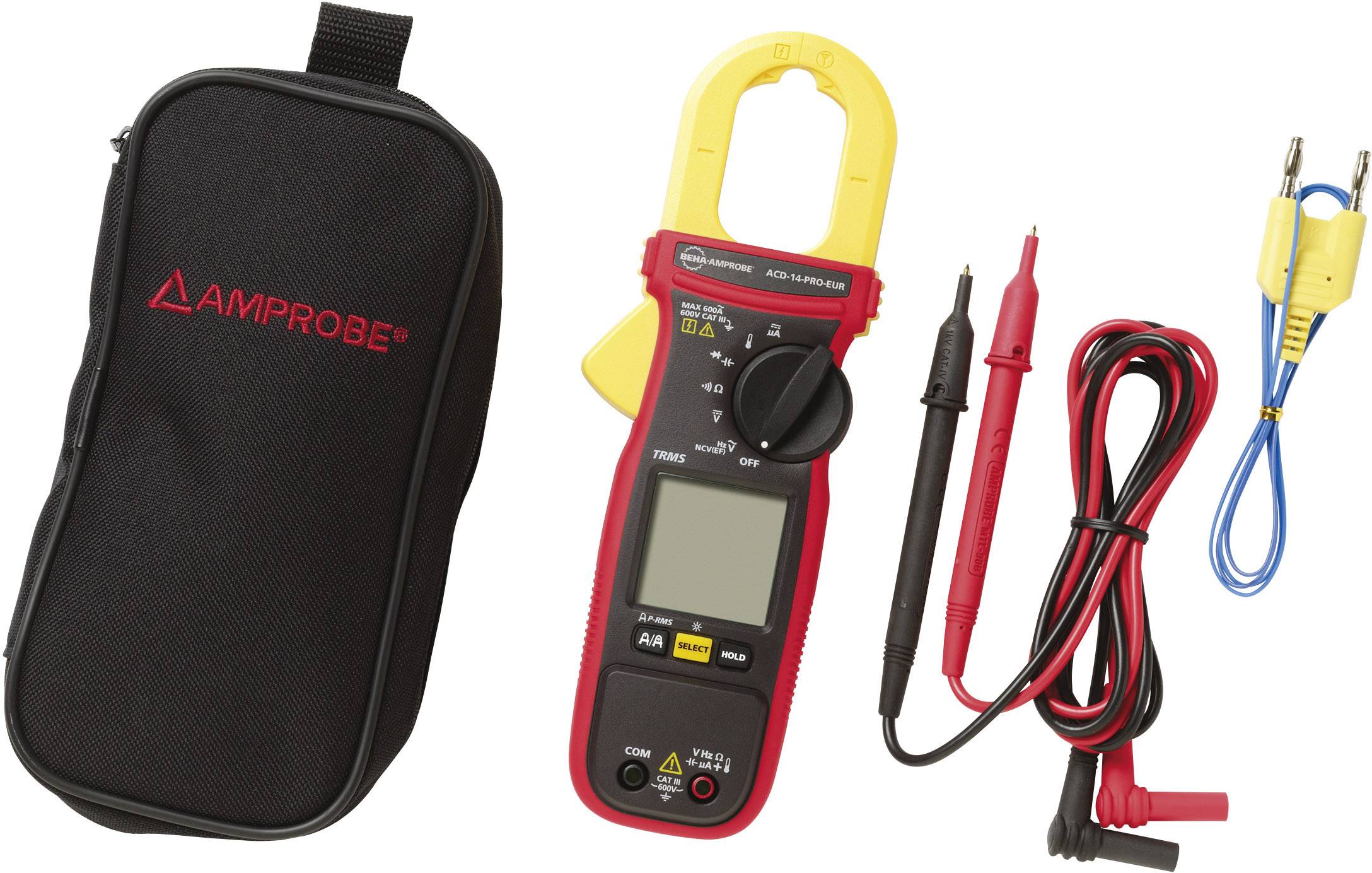

• Safety measuring leads - Temperature sensor type K - Batteries - Bag - Operating instructions.
