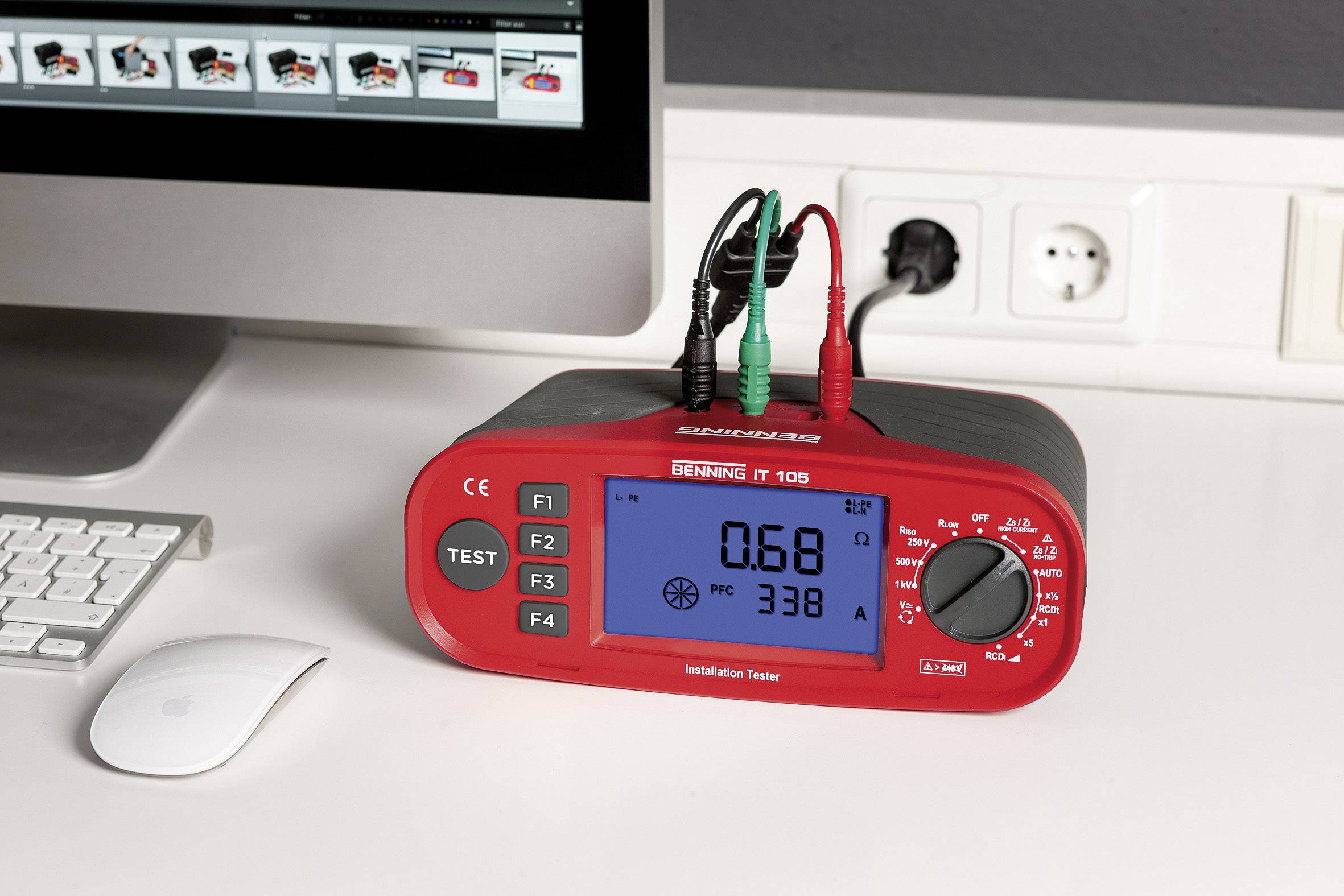

Benning IT 105 Electrical tester VDE standard 0100, 0105

Overview

Testing of electrical installations according to VDE 0100/0105 and IEC 60364
Low-ohm resistance of protective conductor and equipotential bonding conductor connections (test current 200 mA)
Insulation resistance with a test voltage of 250 V, 500 V and 1000 V
Loop impedance (L-PE) without (FI/RCD trip) with simultaneous display of the no-fault current (PFC)
Line impedance (L-N/L) with a high test current (HIGH CURRENT) with simultaneous display of the short-circuit current (PSC)
Testing of FI/RCD protection switch, standard and delayed (S) with sinusoidal AC and pulsating test current (A)
Automatic measurement of the trip time (. x, 1 x and 5 x IΔN) and of tripping current in the ramp procedure
Voltage and frequency measurement up to 440 V
Check rotating field direction in rotary current grids (L1-L2-L3)

Description

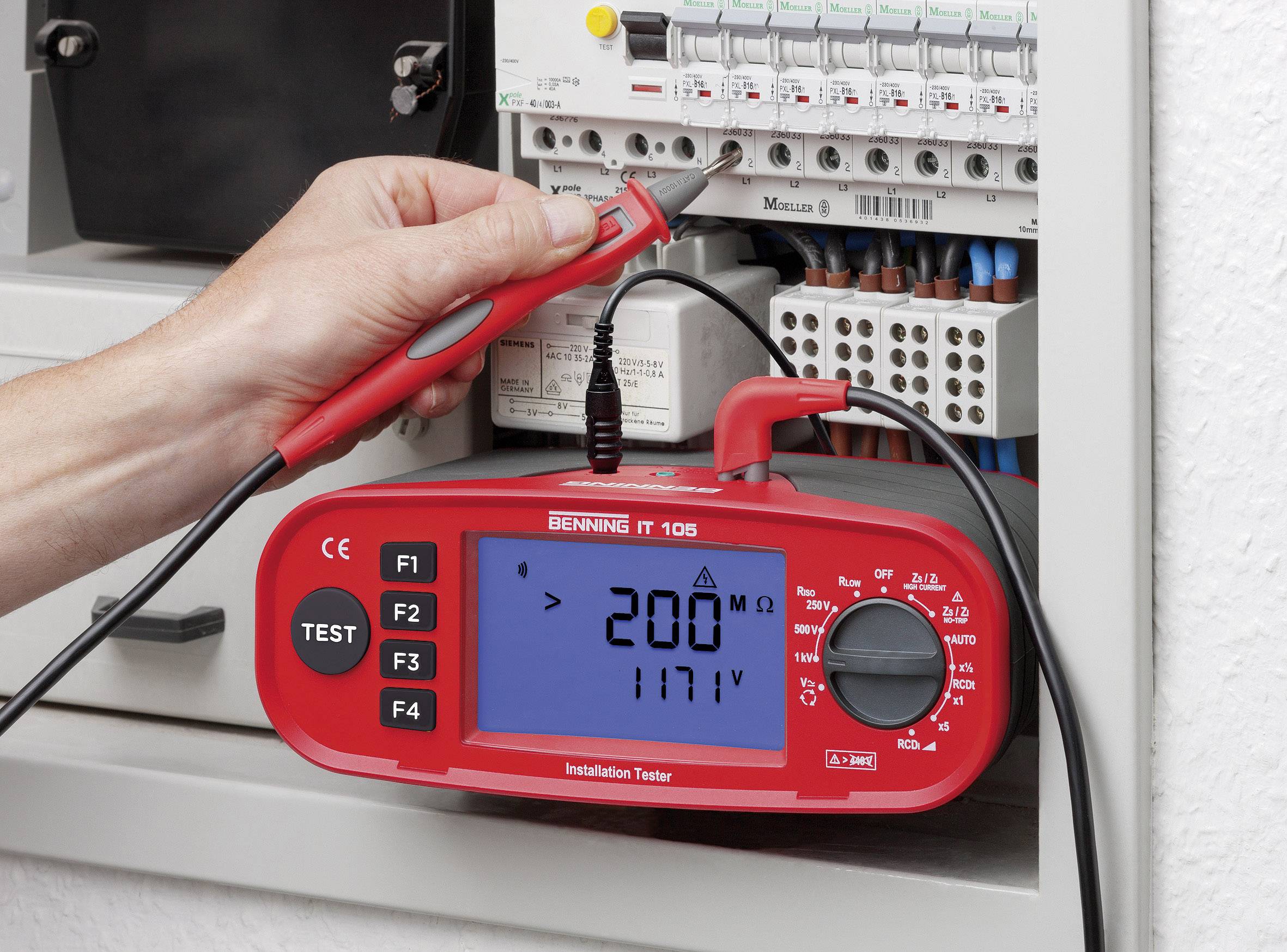

Technical safety testing of electrical equipment after installation, modification or as a regular re-examination can be carried out with the BENNING IT 105 simply and rationally.

Characteristics

Extra large graphics display (95 x 55 mm) with background lighting · Probe tip with test button to start the measurement process · AUTO-start function for low-ohm, loop and line impedance measurement · LOCK function (continual measuring) the insulation resistance · Compensation (zero adjustment) of the test leads up to 10 Ω.

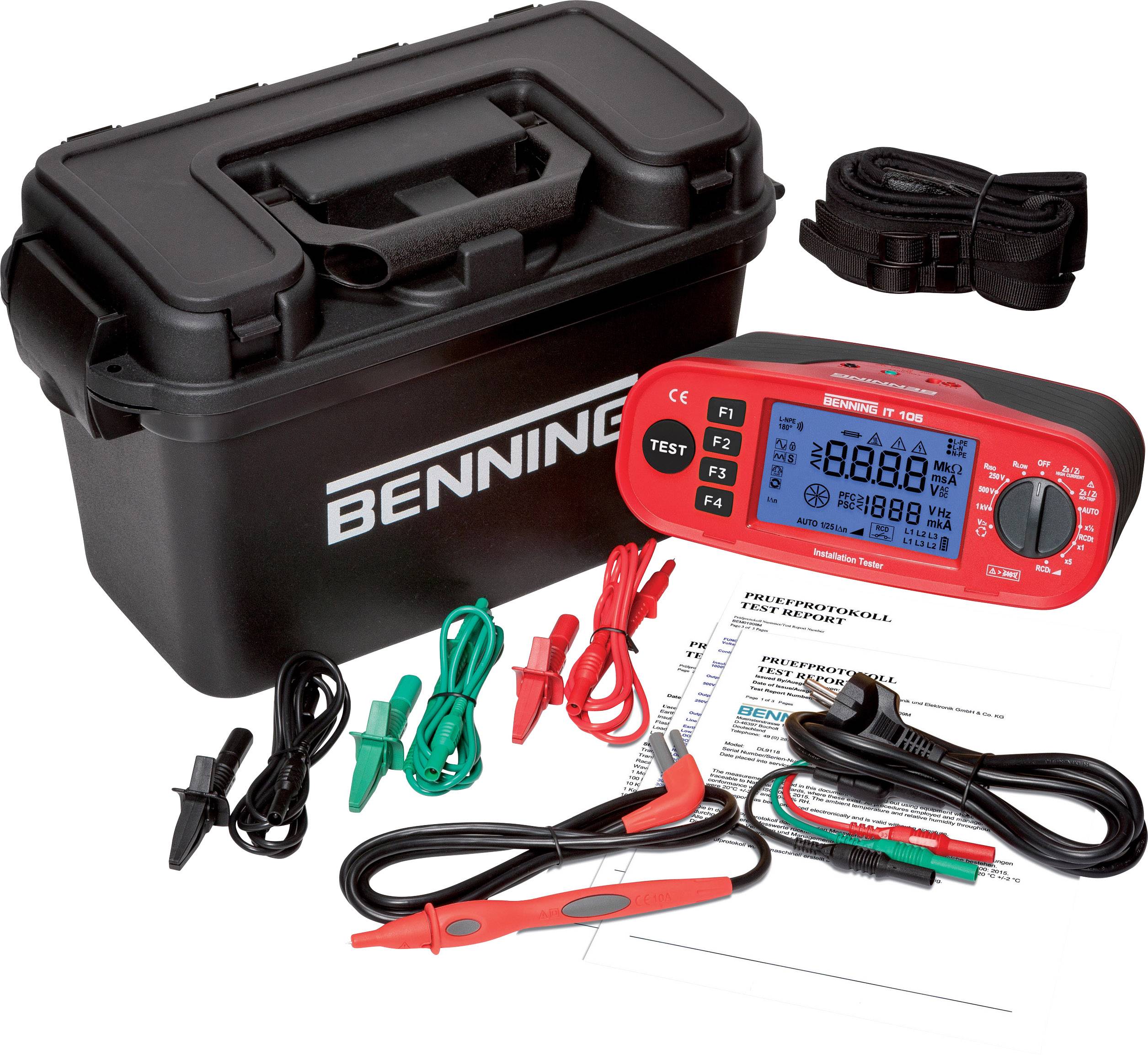

Delivery content

• Benning-it 105
• Hard case
• Test tip with TEST button
• Test probe/alligator clip set
• Test lead with safety plug
• Shoulder strap
• 6 mignon batteries
• User manual
• Factory standard certificate
