H-Tronic Dew point control system -40 - 125 °C 1 W

Overview

5 different, freely selectable functions
Including two sensors with 10 meter cable length
Ca 2700 VA Max. switching capacity

Description

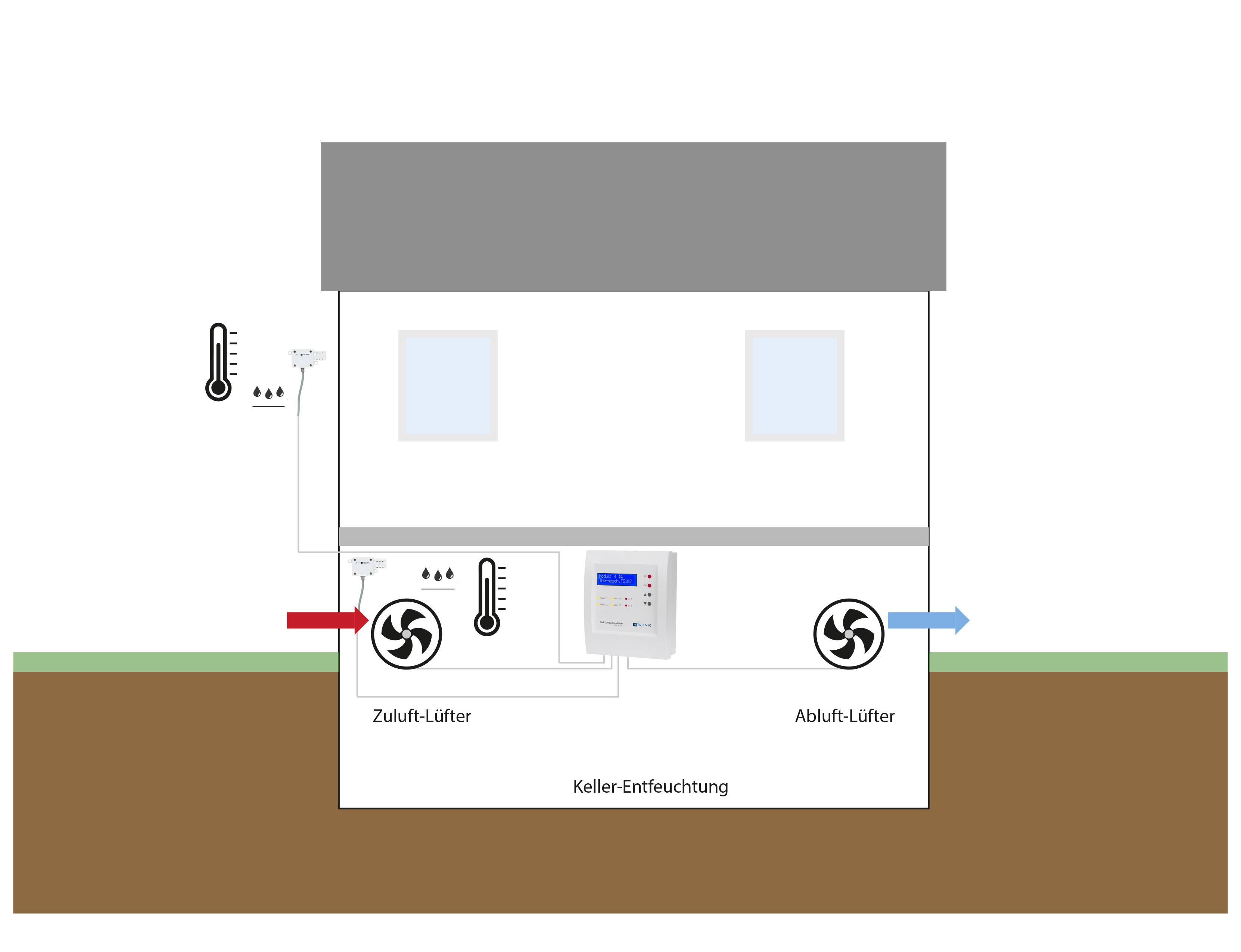

With the help of two sensors (included in delivery) the PLS 1000 can measure the current relative humidity as well as the current temperature in two environments. The PLS 1000 calculates the absolute air humidity and the respective dew points from these values. On the basis of these values, 5 integrated functions (modes), different humidity and temperature controls can be implemented. Room fans for supply and return air can be controlled directly via 4 integrated potential-free relays. Typical applications are the measurement of air humidity and temperature, the automatic ventilation, drying or humidification of rooms, the manual control of room fans, as well as the realization of a 2-channel temperature and humidity switch.

Characteristics

5 different, freely selectable functions: Measuring, cellar drying, * dT ventilation, temperature-humidity switch, manual
realisation of dew point controls, cellar ventilation
sensor monitoring for interruption
automatic humidity control for bathrooms, sanitary rooms, cellars, wine cellars, kitchens, etc.
Control of room fans and other loads via 4 potential-free relays
control of room climate
high-quality, long-term stable sensors included in delivery
suitable for both wall and top-hat rail mounting

Delivery content

• H-Tronic PLS 1000

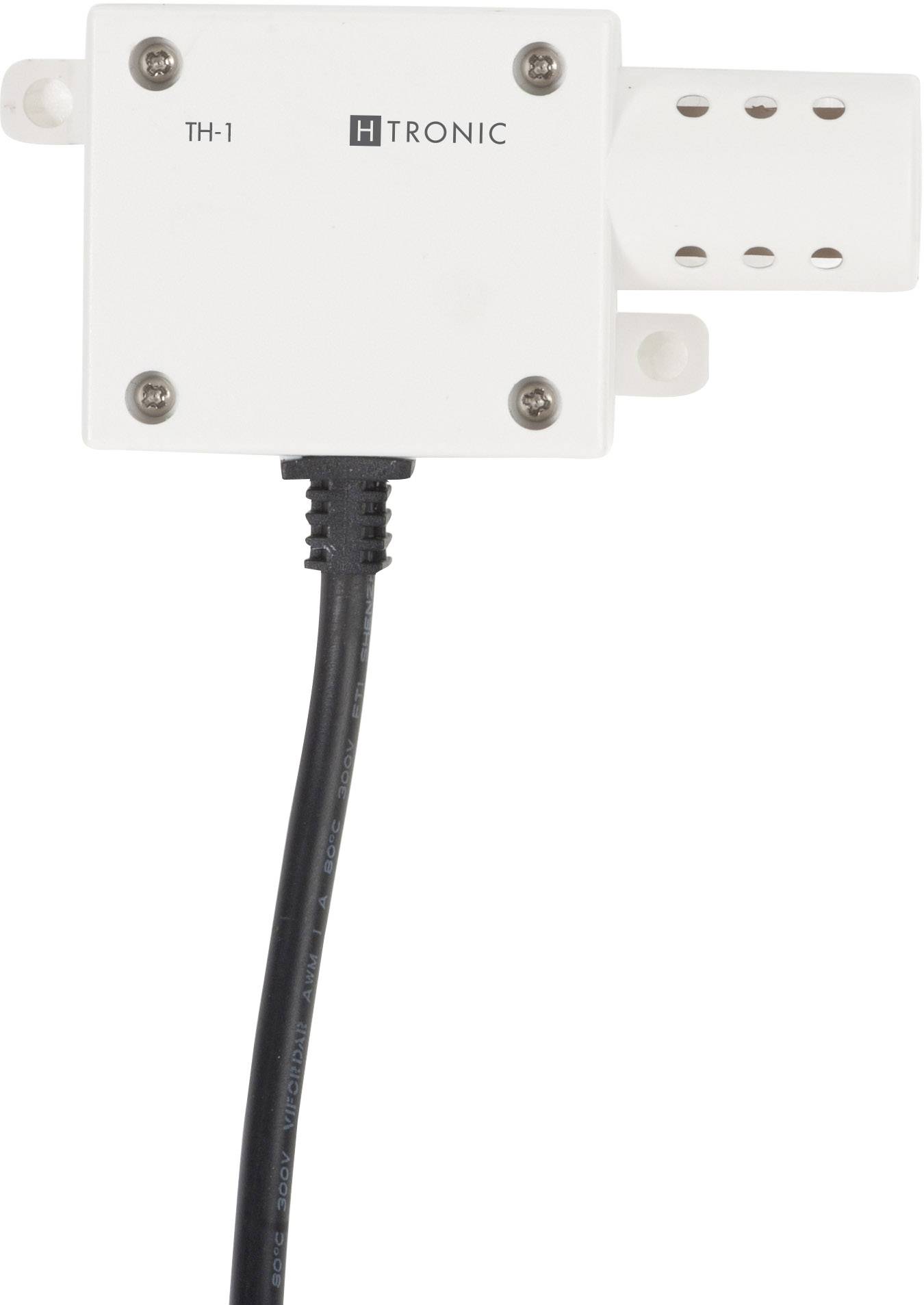

• 2 x TH-1 measuring sensor
• manual.
