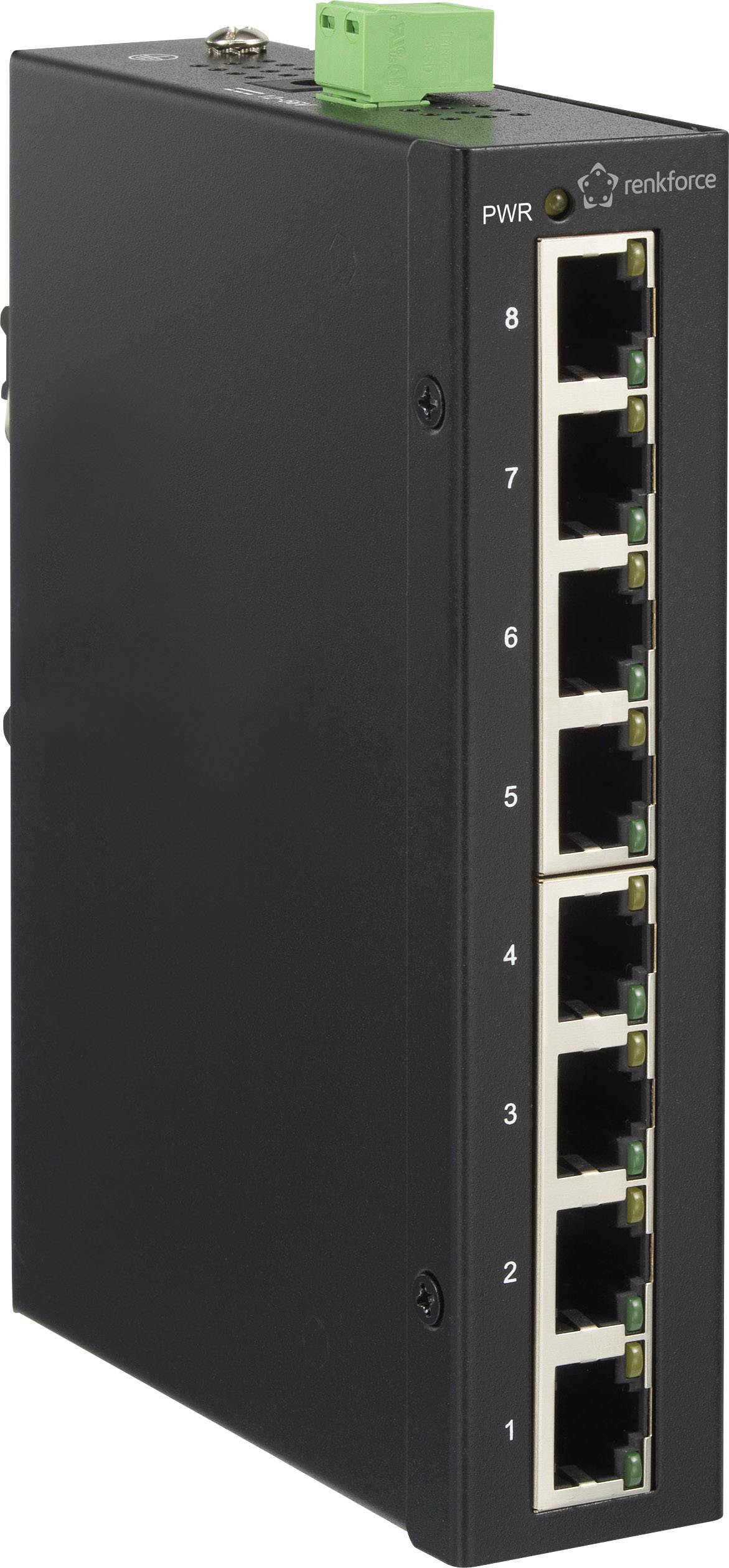

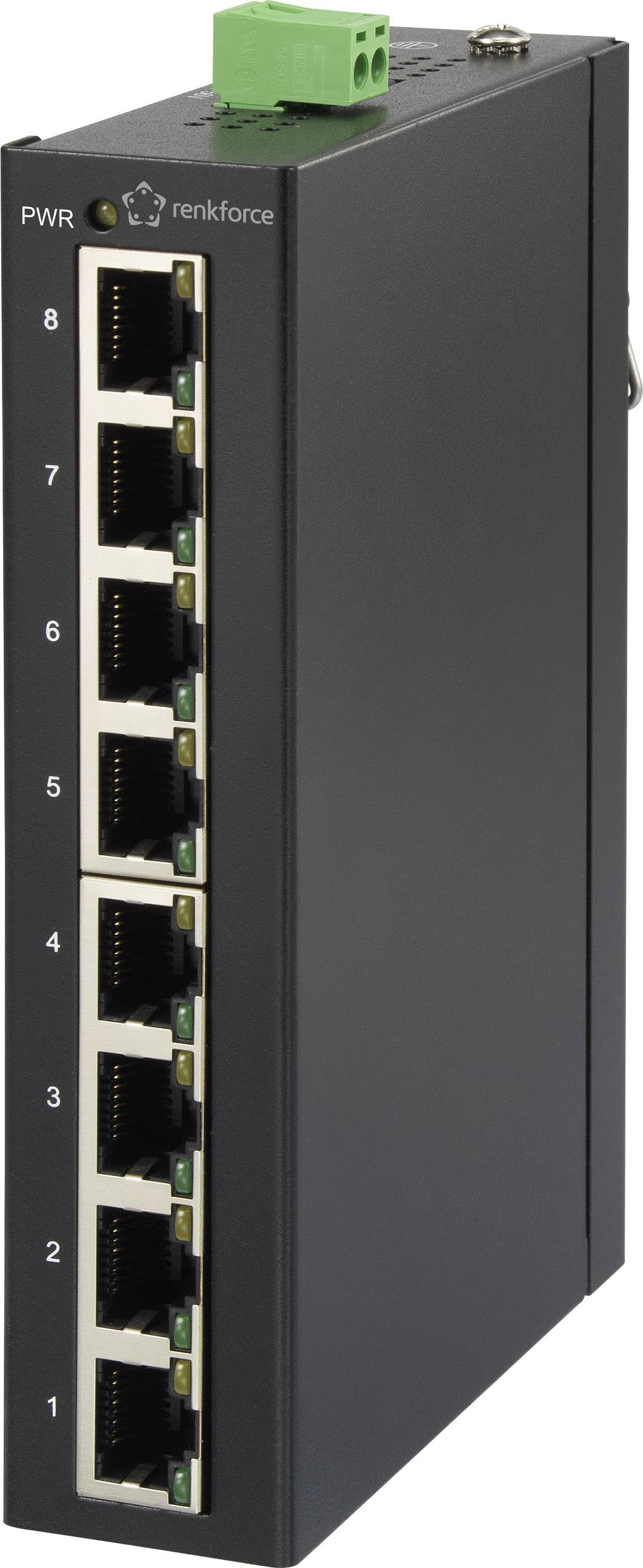

Renkforce FEH-800 Industrial Ethernet switch

Overview

DIN rails and wall mounting
Protection class IP 30
Wide-range input 12 ~ 56 V DC
LAN Data Transfer Rate: 100 MBit/s

Description

This network switch for industrial use optimized. The aluminum housing with protection class IP 30 is suitable for mounting on DIN rail. If required, each of the 5 ports with a link error triggering an alarm. The power supply can also be monitored. The control is via DIP switch

Characteristics

Max. power consumption: 6 W

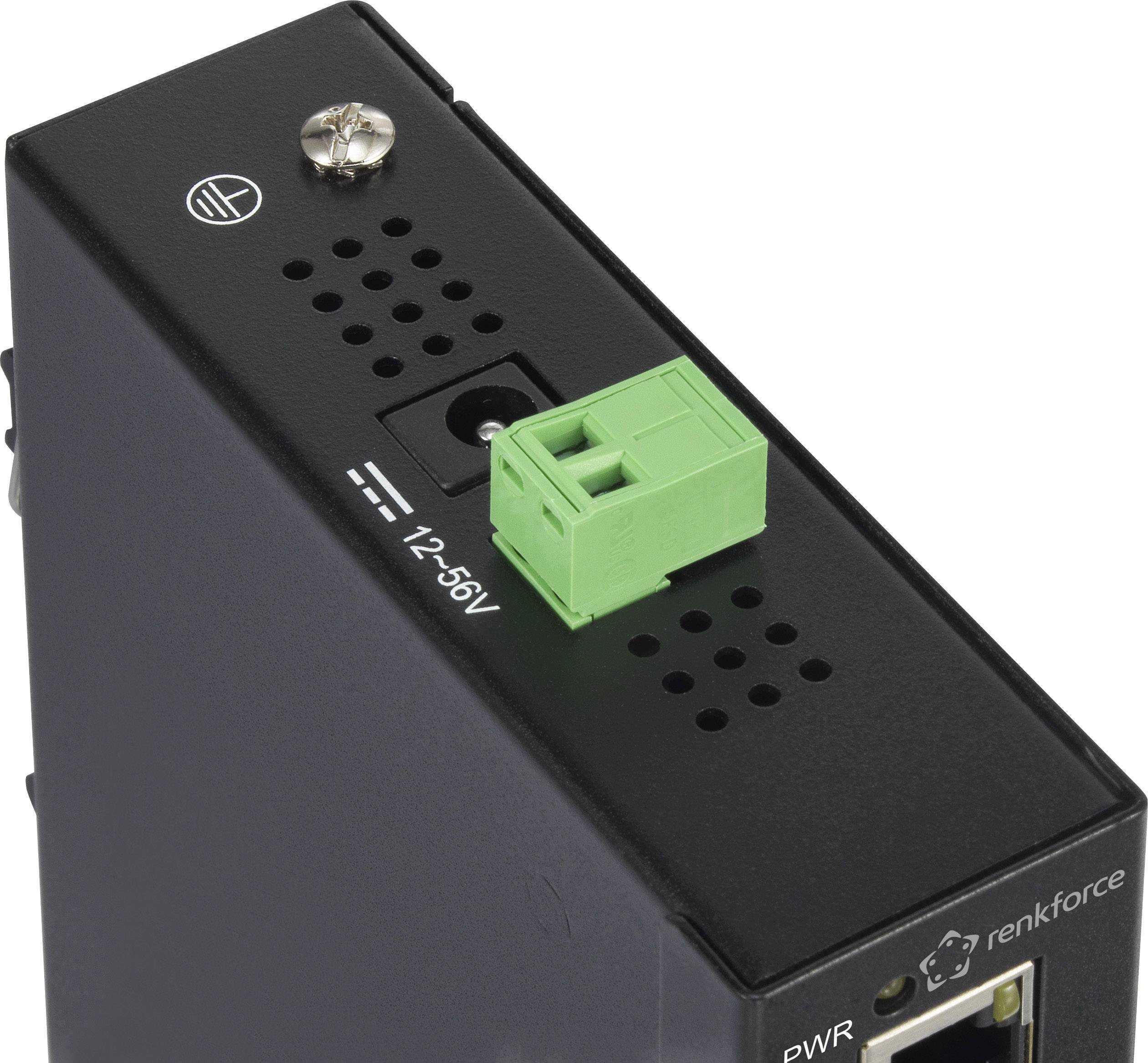

Input power 12 ~ 56 V DC terminal strip (2-pin 5 mm)
Operating temperature: -40 to 75 °C
LED-display: Link/Act, Speed
Flow control: IEEE802.3x
Auto-MDI/MDI-X
Store and forward
Full and half duplex
Protection class IP 30
Wide-range input 12 ~ 56 V DC
DIN-rail mounting
Standards: IEEE 802.3 10BaseT, IEEE 802.3u 100 BaseTX, IEEE 802.3x flow control
Buffer Memory: 448 Kbits
EMI FCC Class A Part 15, VCCI Class A
EMS EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT),
EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Shock IEC 60068-2-27
Free-fall IEC 60068-2-32
Vibration IEC 60068-2-6

Delivery content

• 8-Port Network Switch
• Quick start guide.
