Network cable tester R156006 Trend Networks

Overview

Professional bi-directional data cable transmission tester for the simple and cost-effective way the performance of wiring for voice, data and video applications to check and document.

Description

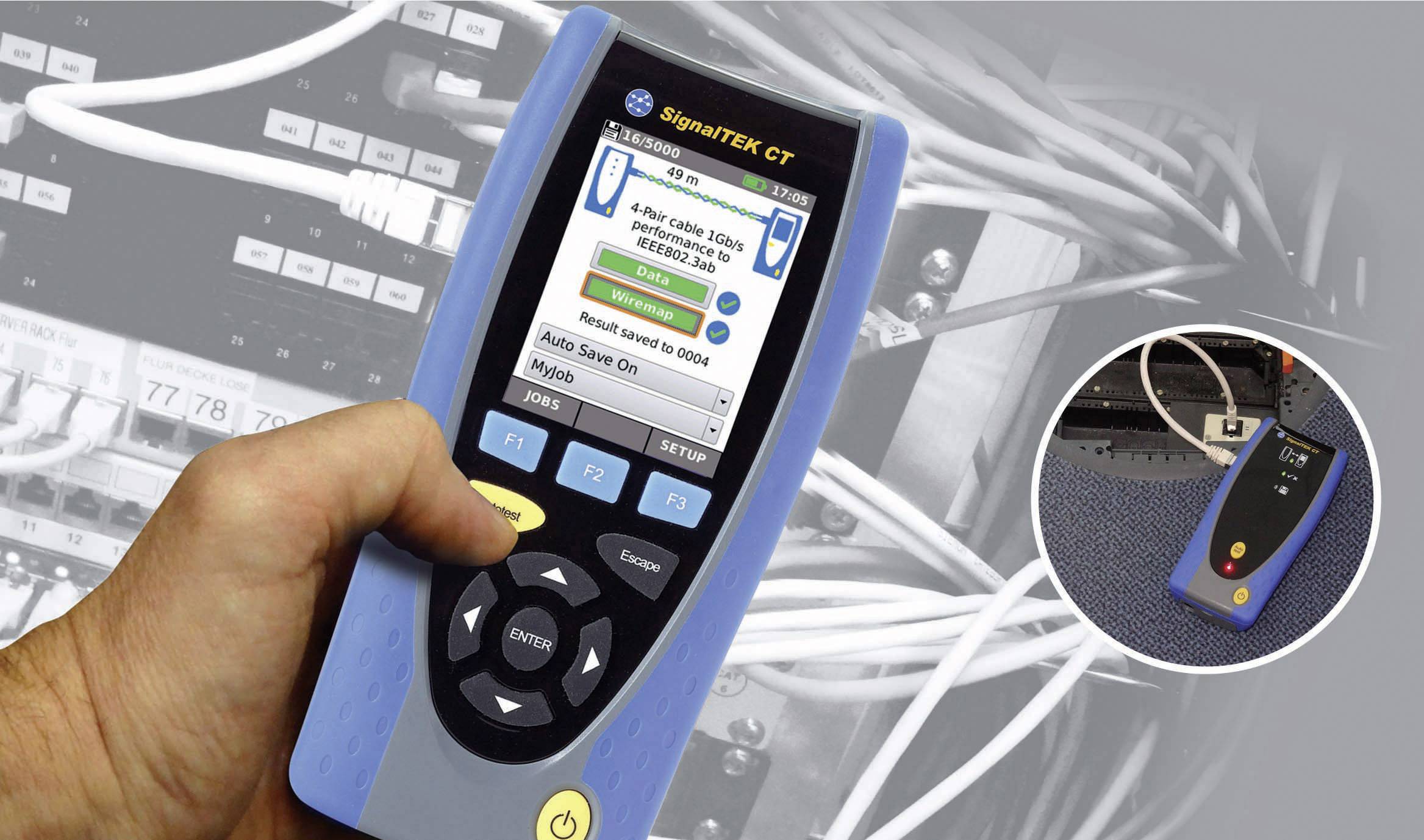

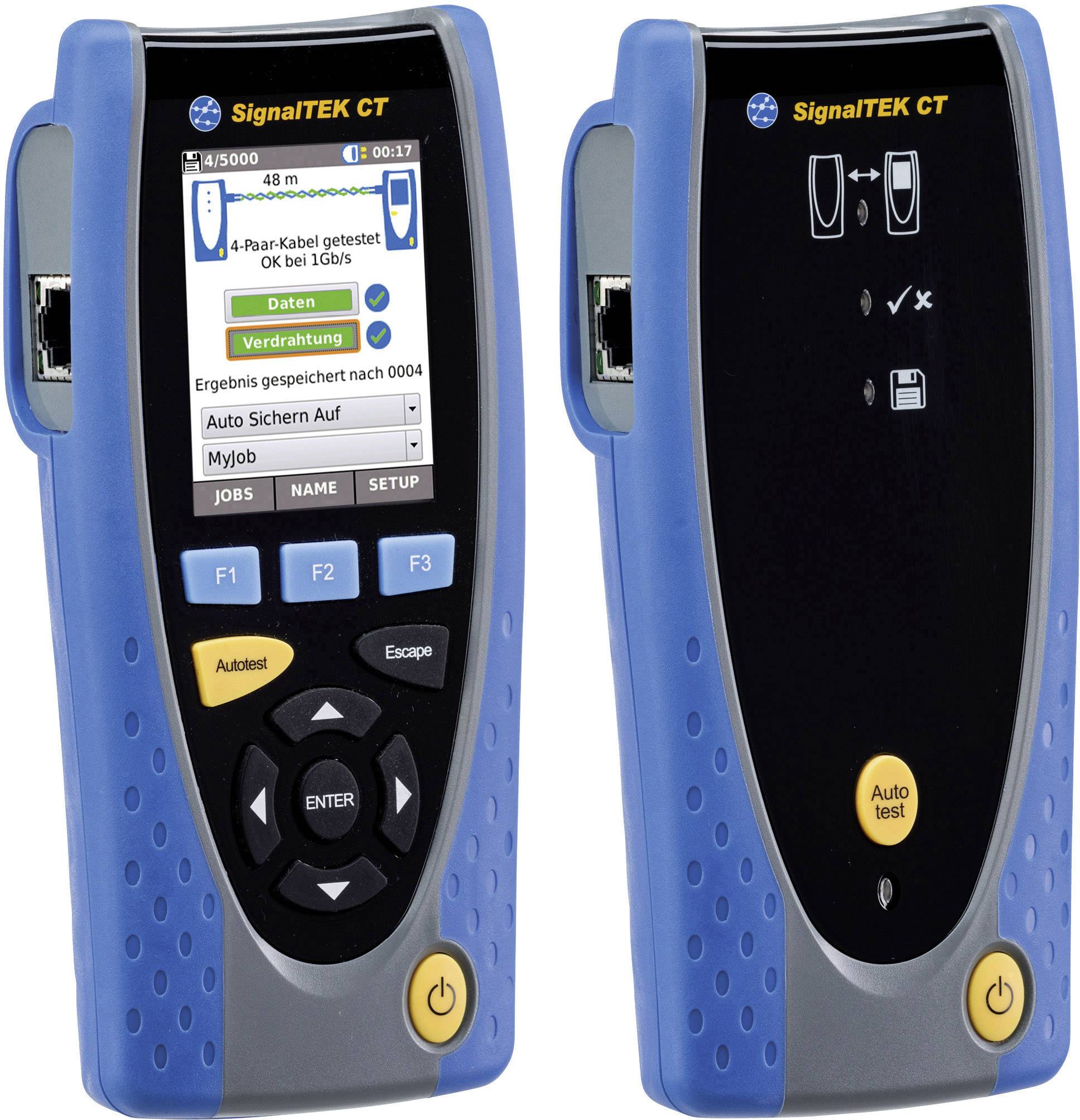

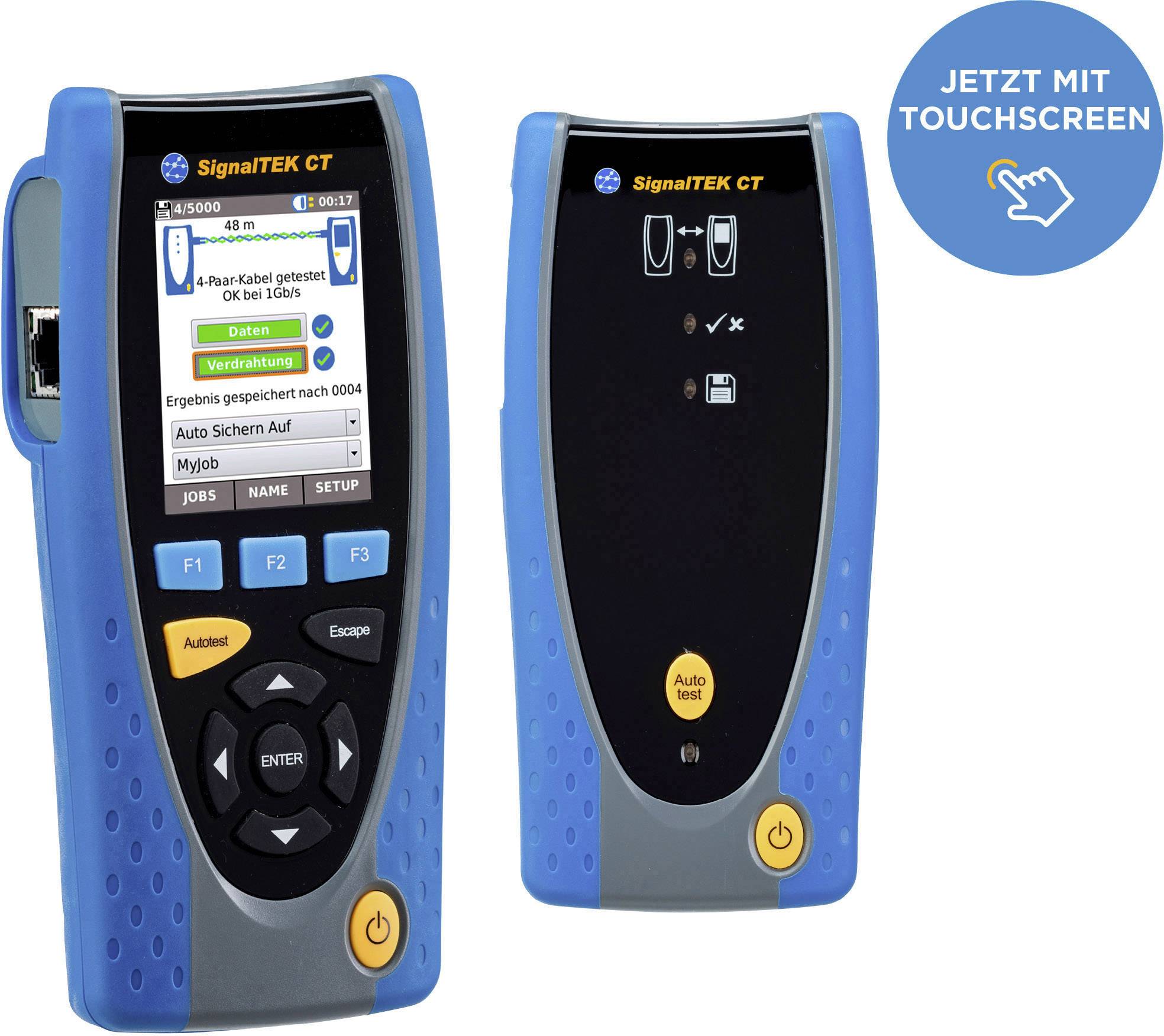

The SignalTEK CT with touch-screen color display is an easy-to-operate bi-directional transmission tester for data cable for testing the wiring as well as the 1 Gigabit Ethernet data transfer and creates a meaningful proof of performance. The color display with touch-screen improves and simplifies the operation and allows a quick access to the functions. With the auto test can be started from both the tests, hand-held devices, so that the test execution can be done by a single technician. This means that in just three steps to your destination order enter data, auto test button use and results. The data memory holds up to 5,000 tests and test reports can be displayed in 3 different versions and in the new easy-to-read PDF format or CSV quickly and easily via WiFi and the ideal AnyWARE app.

Characteristics

Clear statement by-pass/fail-Function · Uberpufung of the network connections in accordance with the gigabit performance standards IEEE 802.3ab · Bi-directional load check at maximum gigabit data rate · Check the wiring plan, short circuit, open ends, split pair, error detection per pin · The distance to the error and cable length by using the TDR-technology · Configurable auto test function for the quick check of common applications · Internal Memory for 5,000 Test Results · Creation of the test reports in three designs · Export of reports in easy-to-read PDF format or CSV · Transfer of the reports via WiFi and ideal AnyWARE App · Touch-screen color display · Tone generator for port allocation · Interchangeable inserts reduce operating costs RJ45.

Delivery content

• 1 main unit
• 1 terminal
• 2 battery modules
• 2 mains adaptors/chargers
• 2 RJ45 cable 30 cm
• 1 Wifi Adapter
• Short user guidelines
• Bag
