Analog input 0-10V, 4-20mA and other
Measuring and displaying a process variable
Signal scaling
Adjustable decimal point position
Display range -999 … +9999
Two-point control with a NPN output
Square root function (for special transmitter)
Digital filter
Alarm function (flashing when the setpoint deviations)
Error message with a lower/exceeding the Measurement Limits
Error message in the event of wire break or short circuit

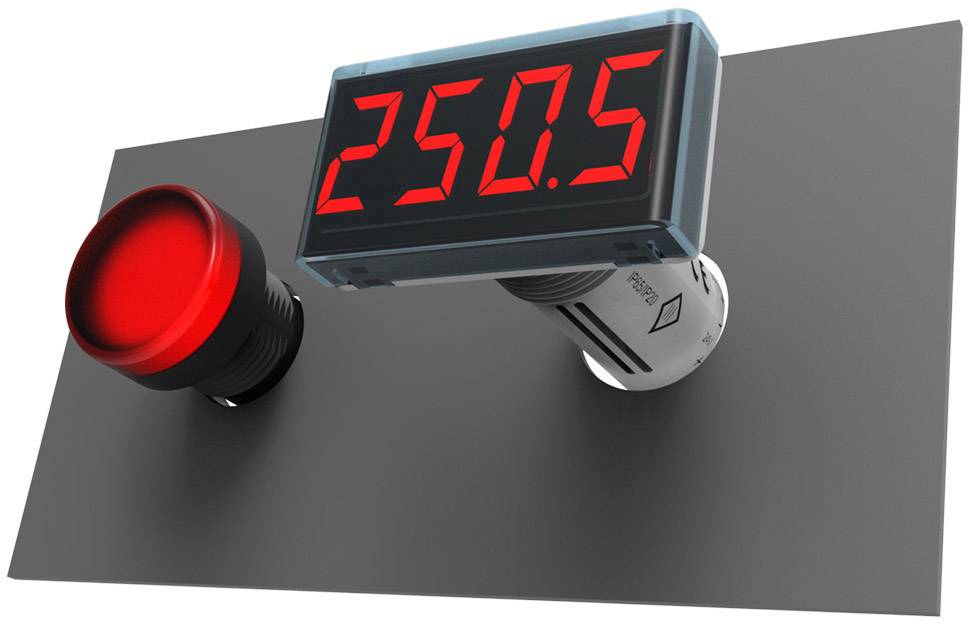

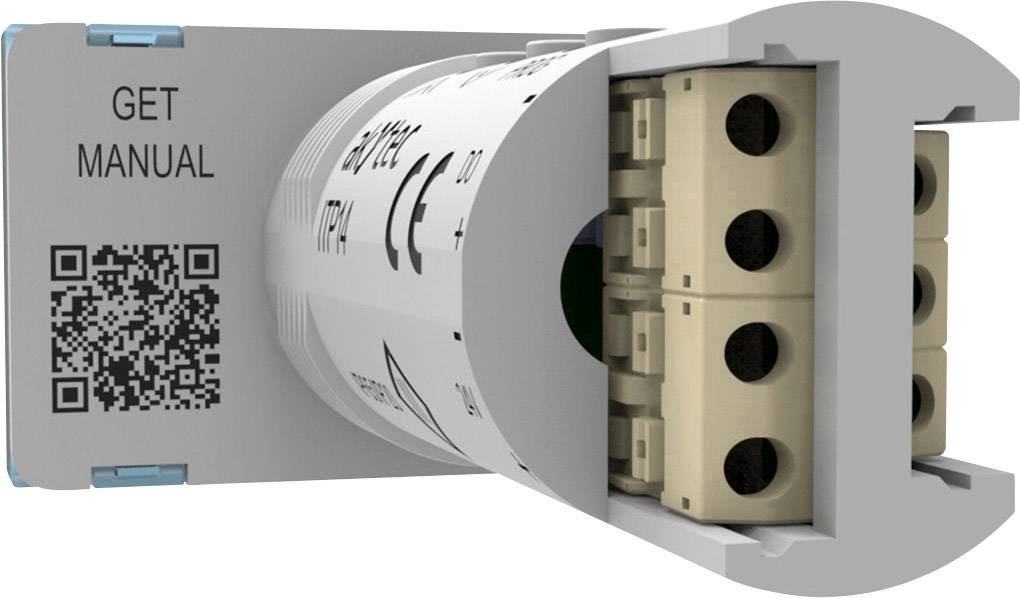

The ITP14 is a universally usable process display for monitoring and control of industrial processes. The display has a digital output and a configurable analogue input. The input can either for current signals (4-20mA, 0-20mA, 0 mA) or for voltage signals (0-10V or 2-10V) can be set. This device has a compact, standardised design and fits in a standard 22.5 mm hole for signal lights. This enables a quick and easy installation and many displays can be used in a switch cabinet or in a control panel can be accommodated.
Analog input for mA and V signals
Digital output with NPN Transistor
Power supply 24 V DC
04053199906000, akYtec, ITP14, voltage display, panel meter
