Overview
4-10 mm², Cu3~
With elastic sealing membranes, residue for cable entry, sealing range Ø 9,0-21,0 mm
Two cable entries in the ground, sealing range Ø 9,0-20,0 mm

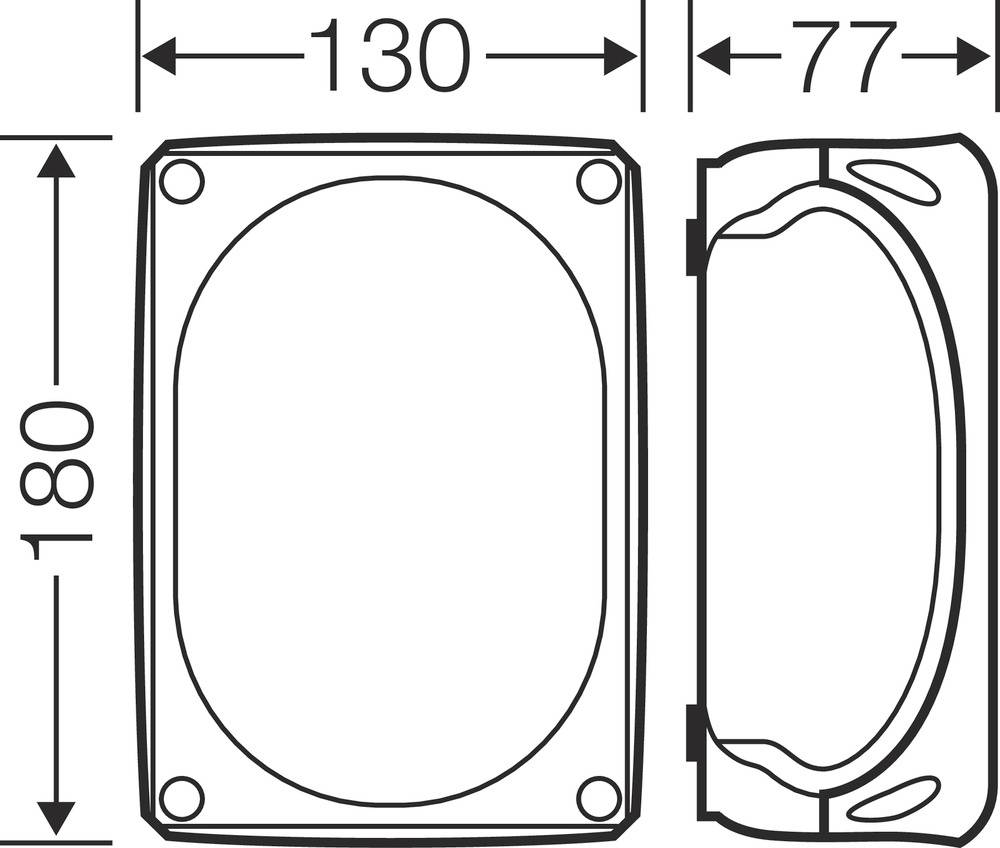

Hensel 62000010 Junction box (L x W x H) 77 x 180 x 130 mm Grey-white (RAL 7035) IP66 (front bezel sealed) 1 pc(s)
34,80 €
VAT included
plus
delivery as soon as available
30 days free return shipment
34,80 €
VAT included
plus
Product description
Description
Suitable for interior rooms and the protected installation outdoors according to DIN VDE 0100 Part 737.
Characteristics
Terminal with 2 clamping points per pin
5-pin for each pin, 6 x 2.5 mm² sol, 4 x 4 mm² sol, 4 x 6 mm² sol, 4 x 10 mm² sol, 2 x 16 mm² s
With elastic sealing membranes, residue for cable entry, sealing range Ø 9,0-21,0 mm
Two cable entries in the ground, sealing range Ø 9,0-20,0 mm
Lid without accessories sealable
Cover holding band and outdoor brackets for wall mounting included
Color: gray, RAL 7035
To close the open membranes plug-in cable supports type EDK. Protection class IP66
Rated insulation voltage Ui=690 V a c/d.c.
Rated current 63 A
Keywords
02050005725499, 04012591125037, 2050005725499, Hensel, 62000010, DK 1010 G
