Overview
2.5 mm², Cu3~
Cable entry in the ground, sealing range Ø 9,0-20,0 mm
Lid without accessories sealable

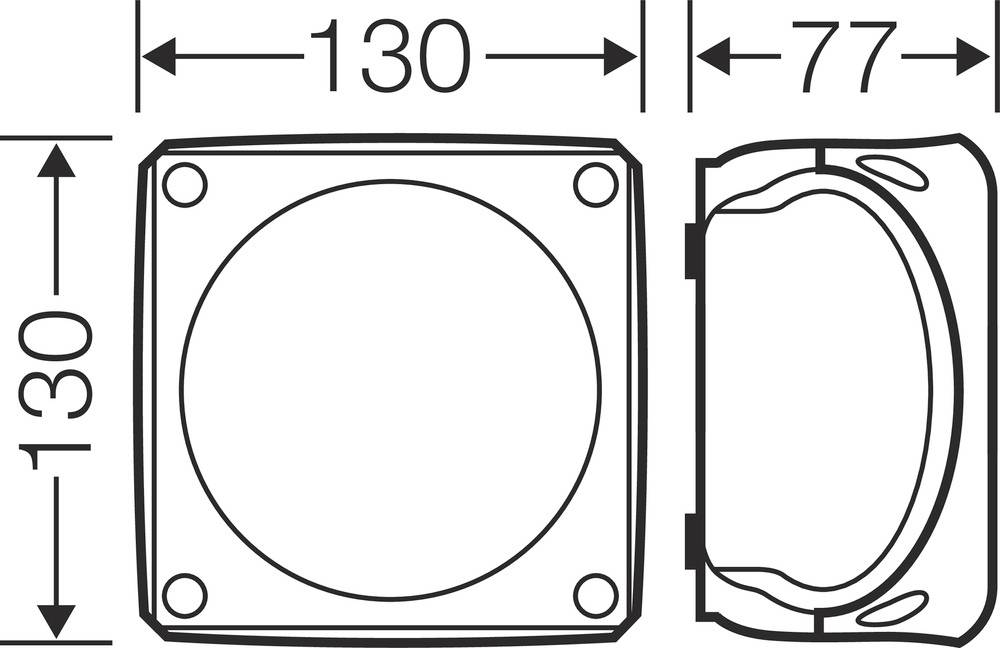

Hensel 62000007 Junction box (L x W x H) 77 x 130 x 130 mm Grey-white (RAL 7035) IP66 1 pc(s)
CHF 17.75
VAT included
plus
Delivery time:
4-6 days
in stock
30 days free return shipment
CHF 17.75
VAT included
plus
Product description
Description
Suitable for interior rooms and the protected installation outdoors according to DIN VDE 0100 Part 737
Characteristics
Terminal with 2 clamping points per pin
5-pin for each pin, 6 x 1.5 mm² sol/f, 4 x 2.5 mm² sol/F, 4x 4 mm² sol/F, 4x 6 mm² sol/f, 2 x 10 mm² sol/F
With elastic sealing membranes, residue for cable entry, sealing range Ø 9,0-21,0 mm
With a cable entry in the ground, sealing range Ø 9,0-20,0 mm
Lid without accessories sealable
Cover holding band and outdoor brackets for wall mounting included
Color: gray, RAL 7035
To close the open membranes plug-in cable supports type EDK. Protection class = IP66.
Rated insulation voltage Ui=690 V a c/d.c.
Rated current 40 A
Material: PP (polypropylene)
Protection class IP66
Keywords
02050005785516, 04012591124993, 2050005785516, Hensel, 62000007, DK 0606 G
